- Description
-

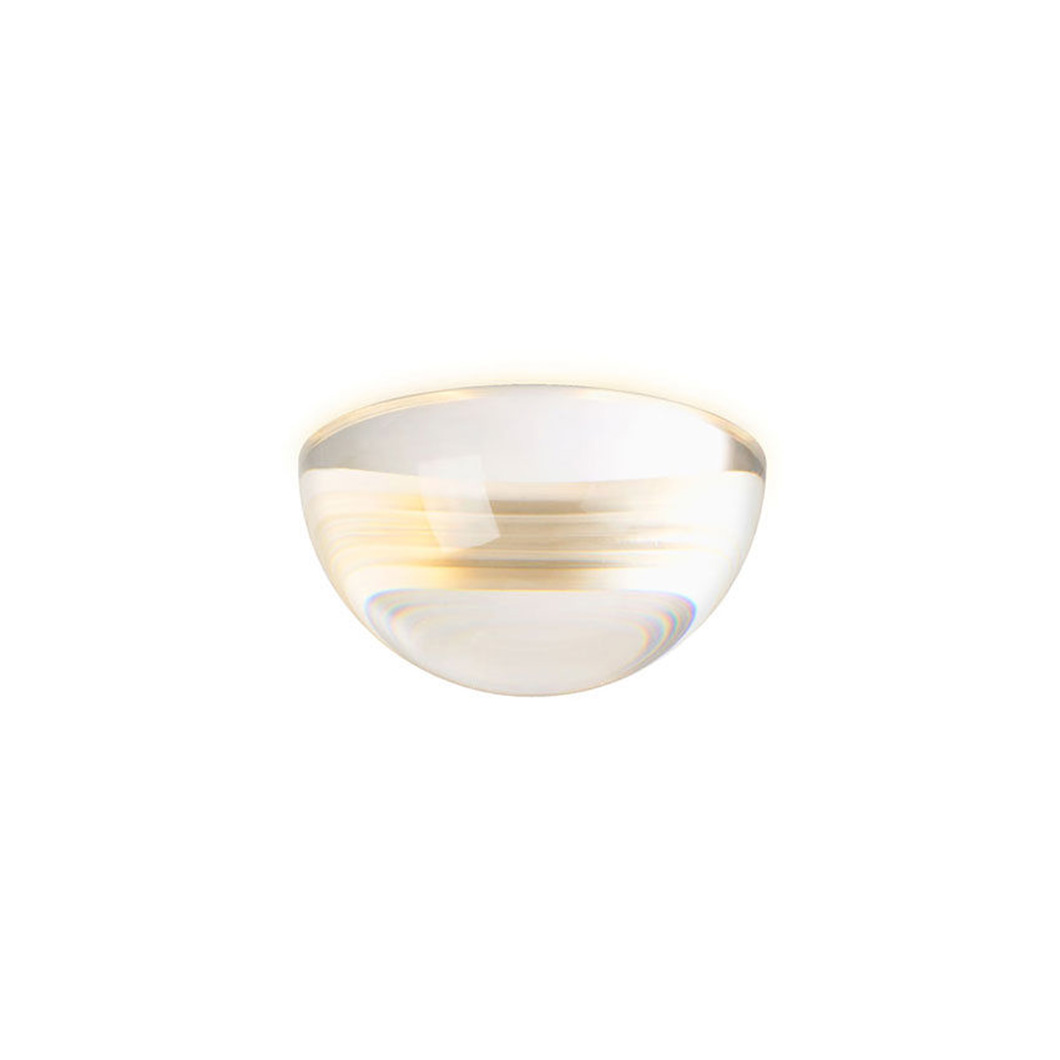

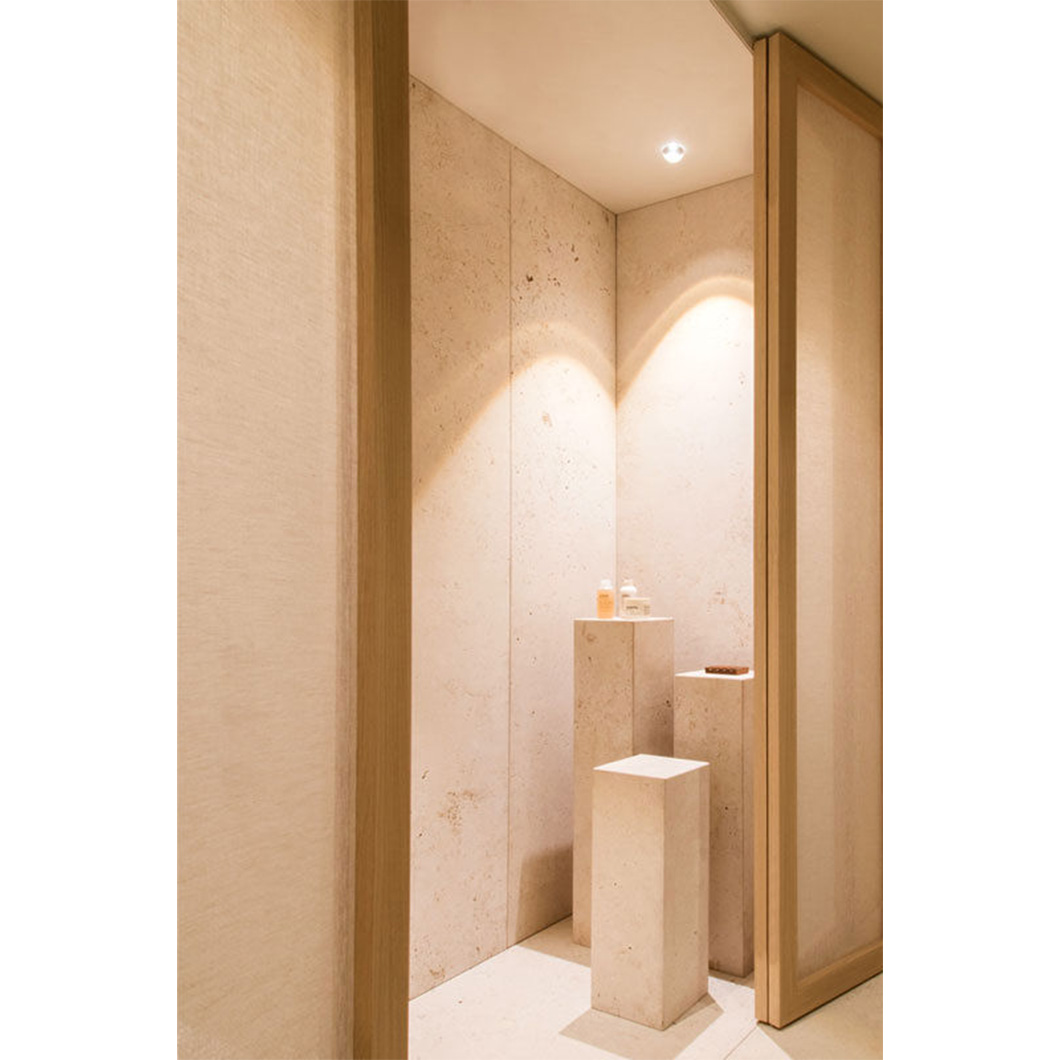

Subtle and practical, the Bouly 4 Ceiling Light is a semi-recessed luminaire that delivers a warm 2700K light from its integrated LED source. The domed fitting is crafted from transparent glass with a silver LED holder, emitting a narrow 10°, medium 25°, or wide 40° beam of light. Measuring Ø75mm by 37.5mm, the rounded fixture's minimalist aesthetic complements a range of interior spaces.

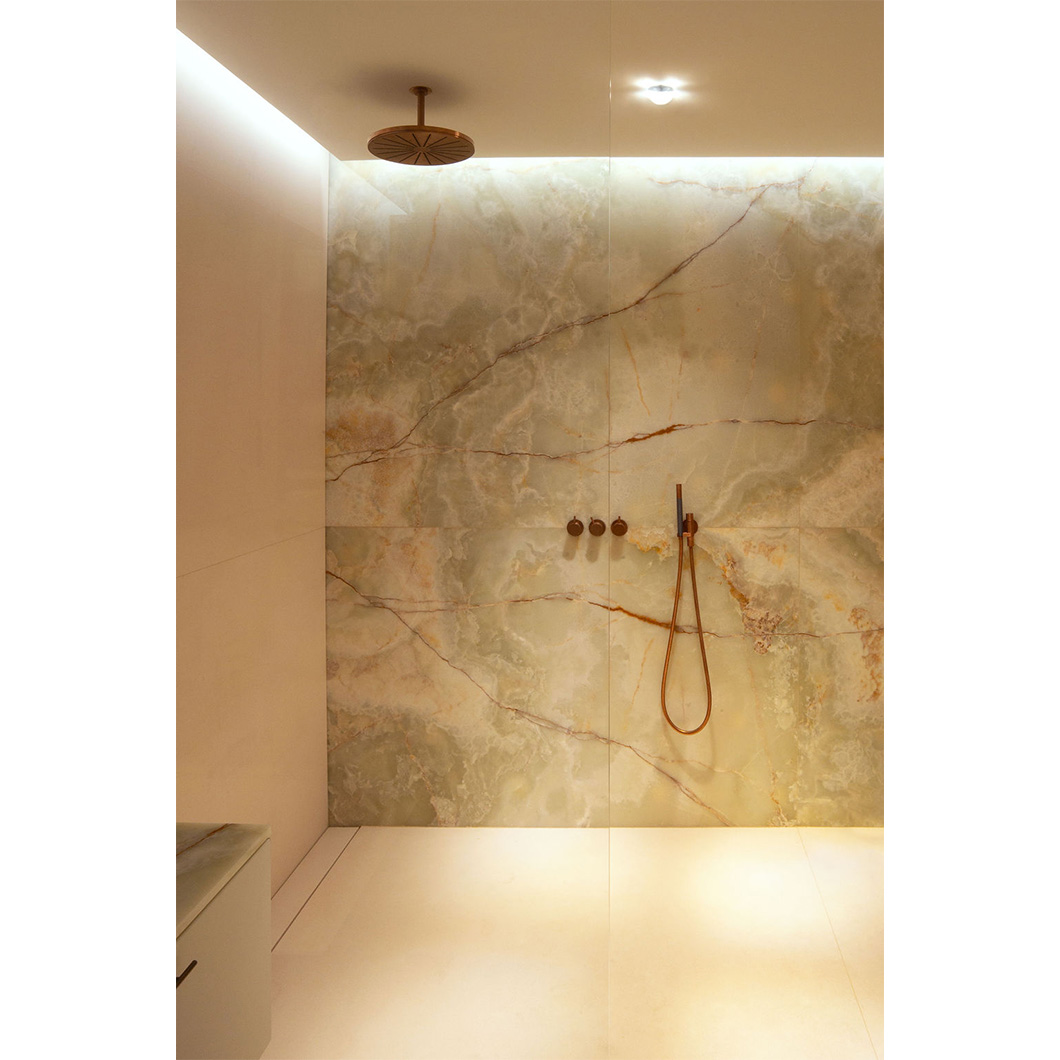

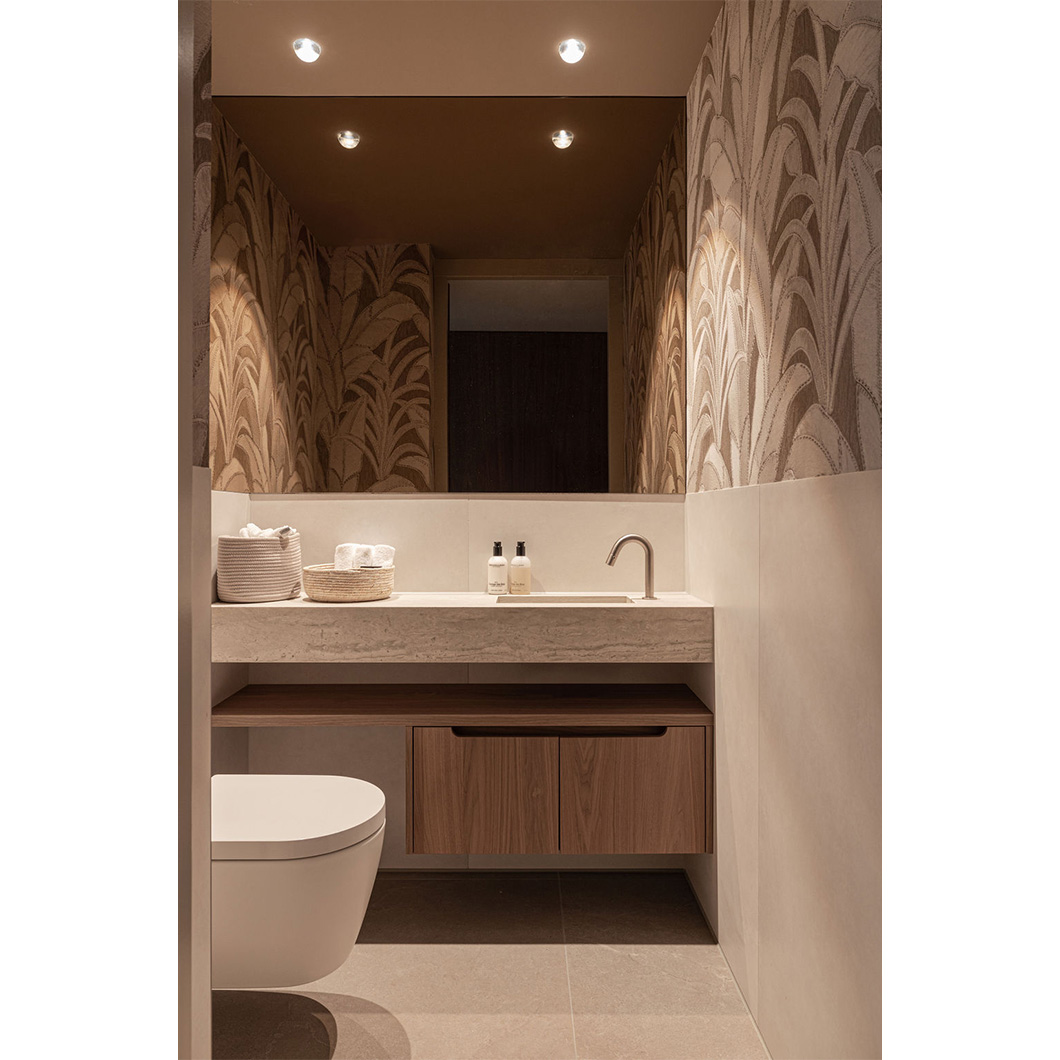

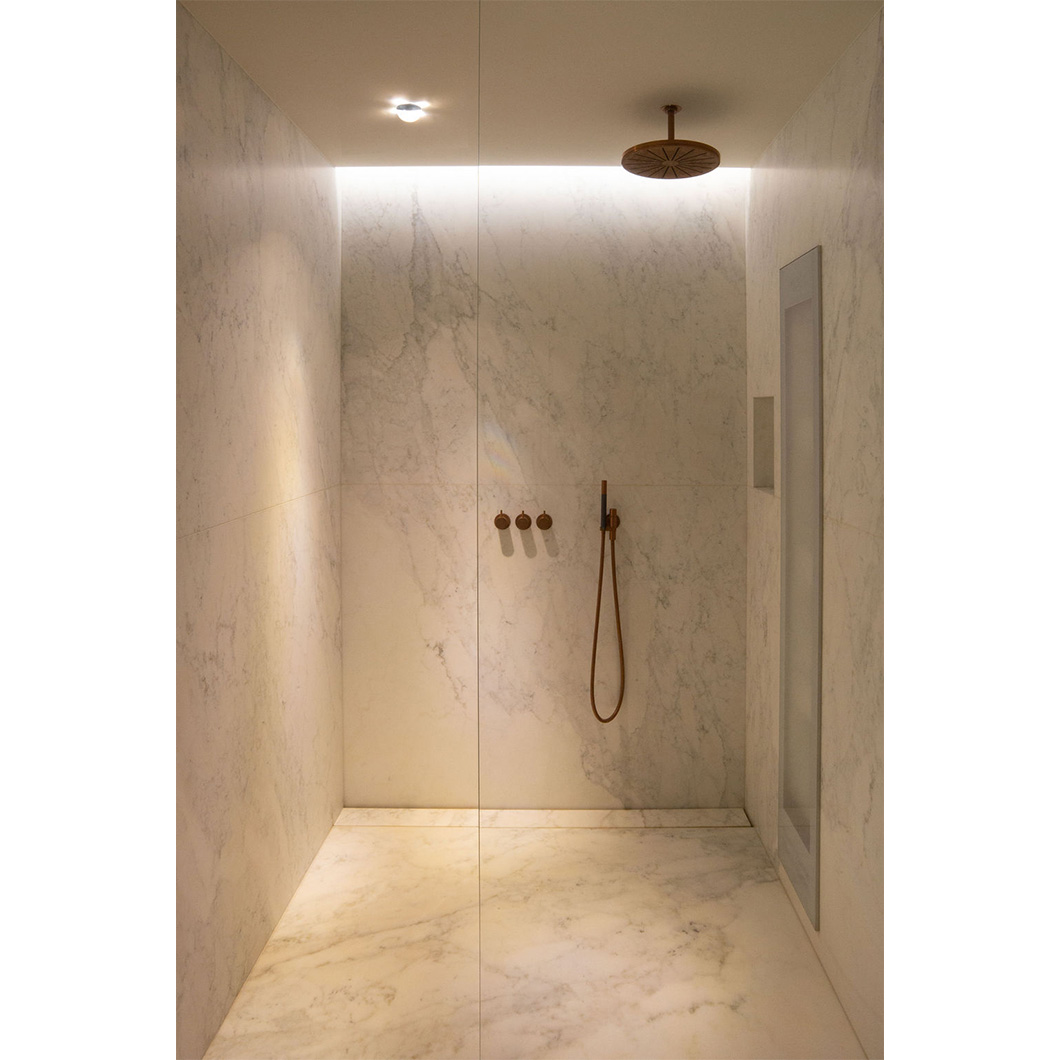

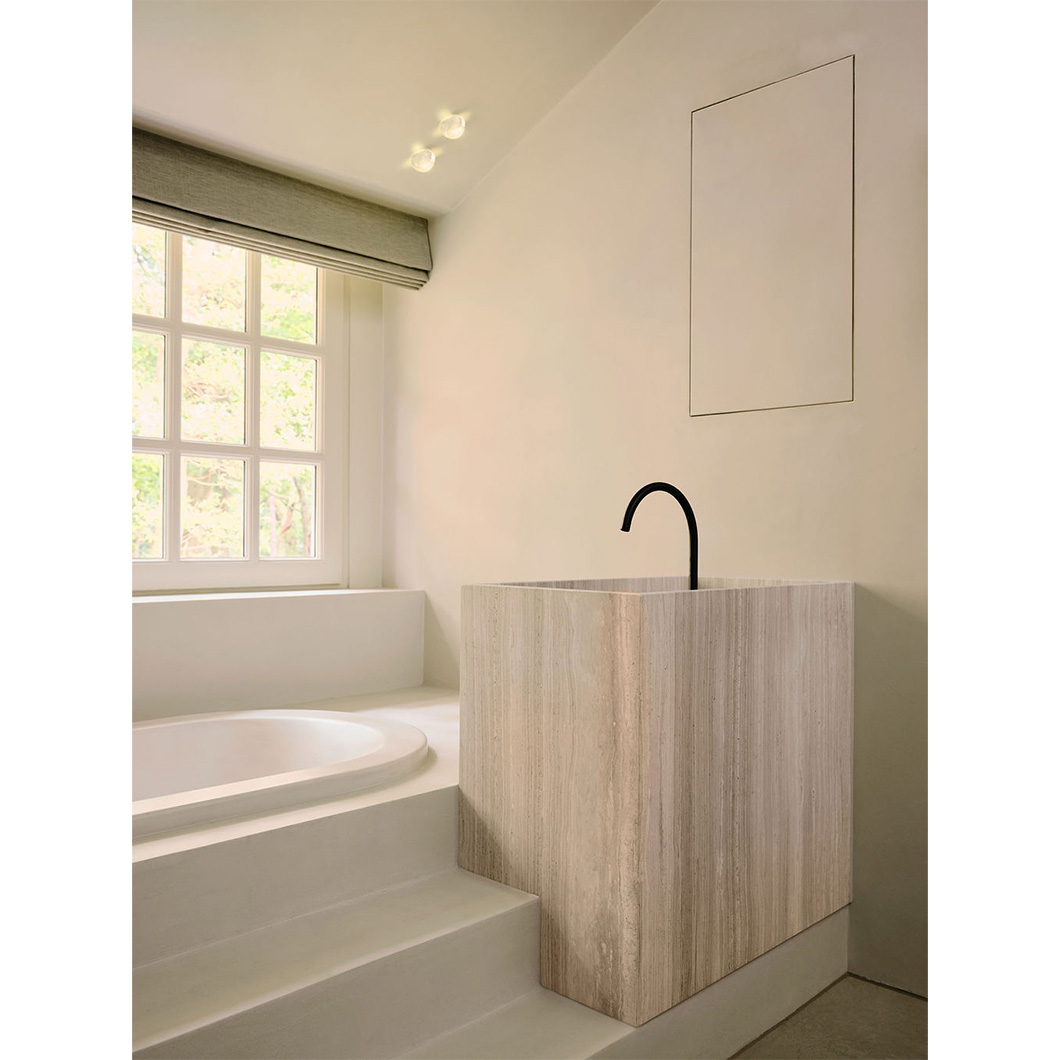

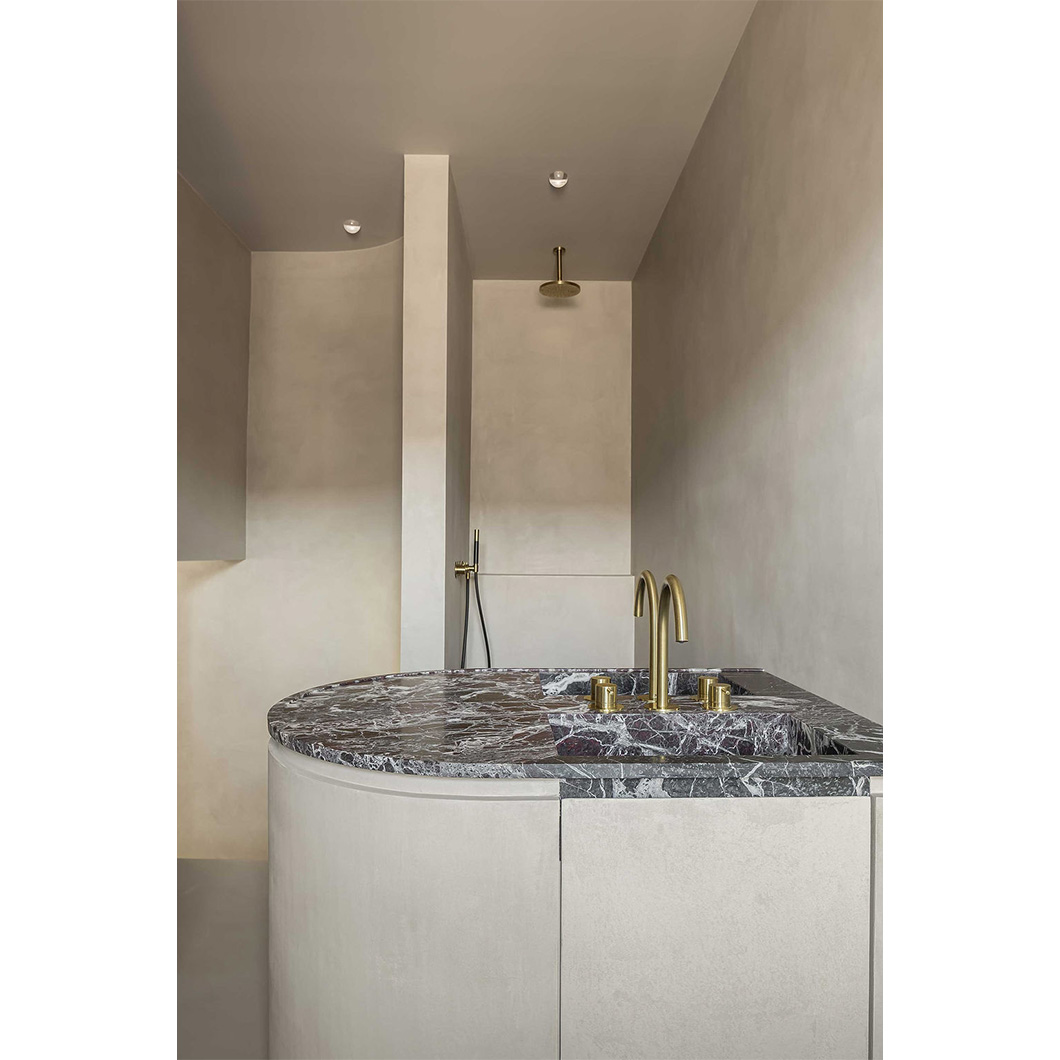

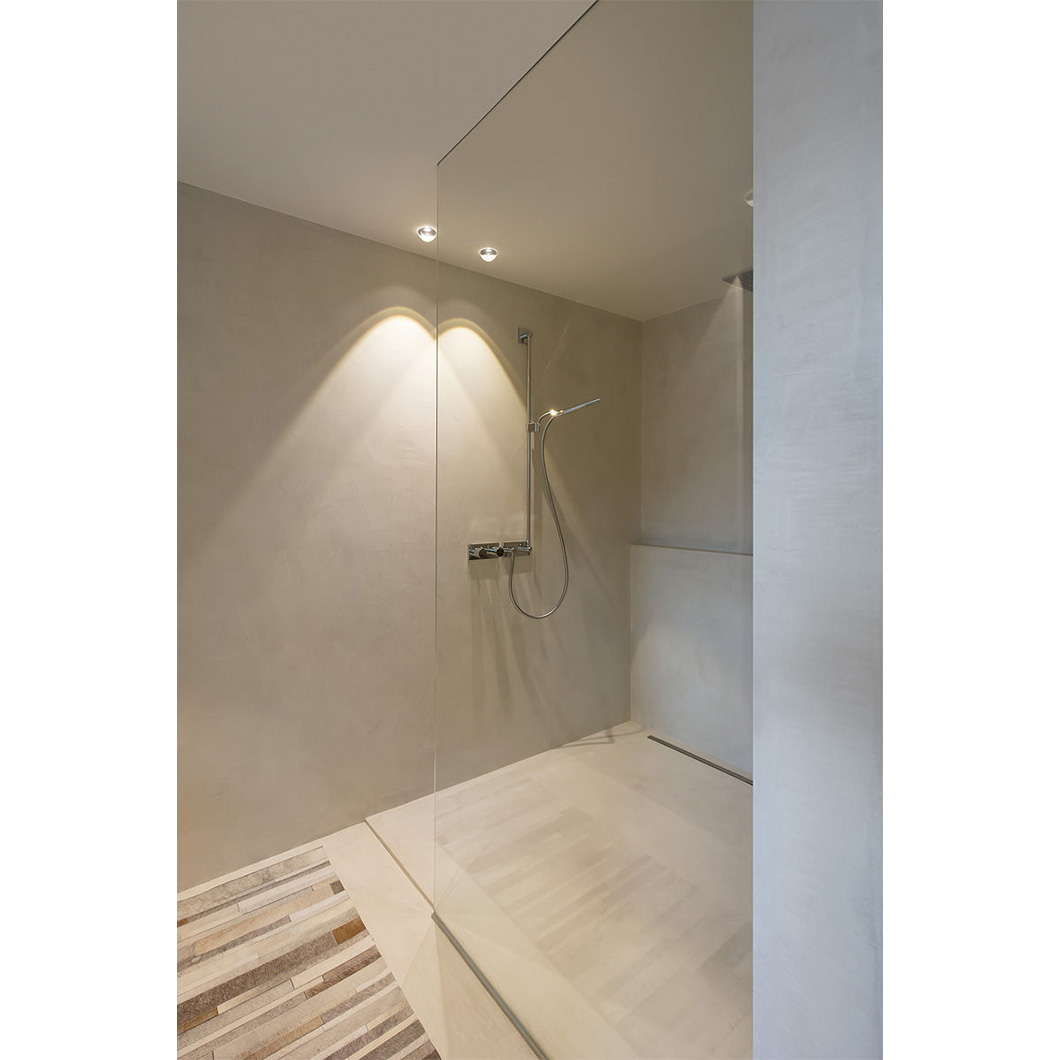

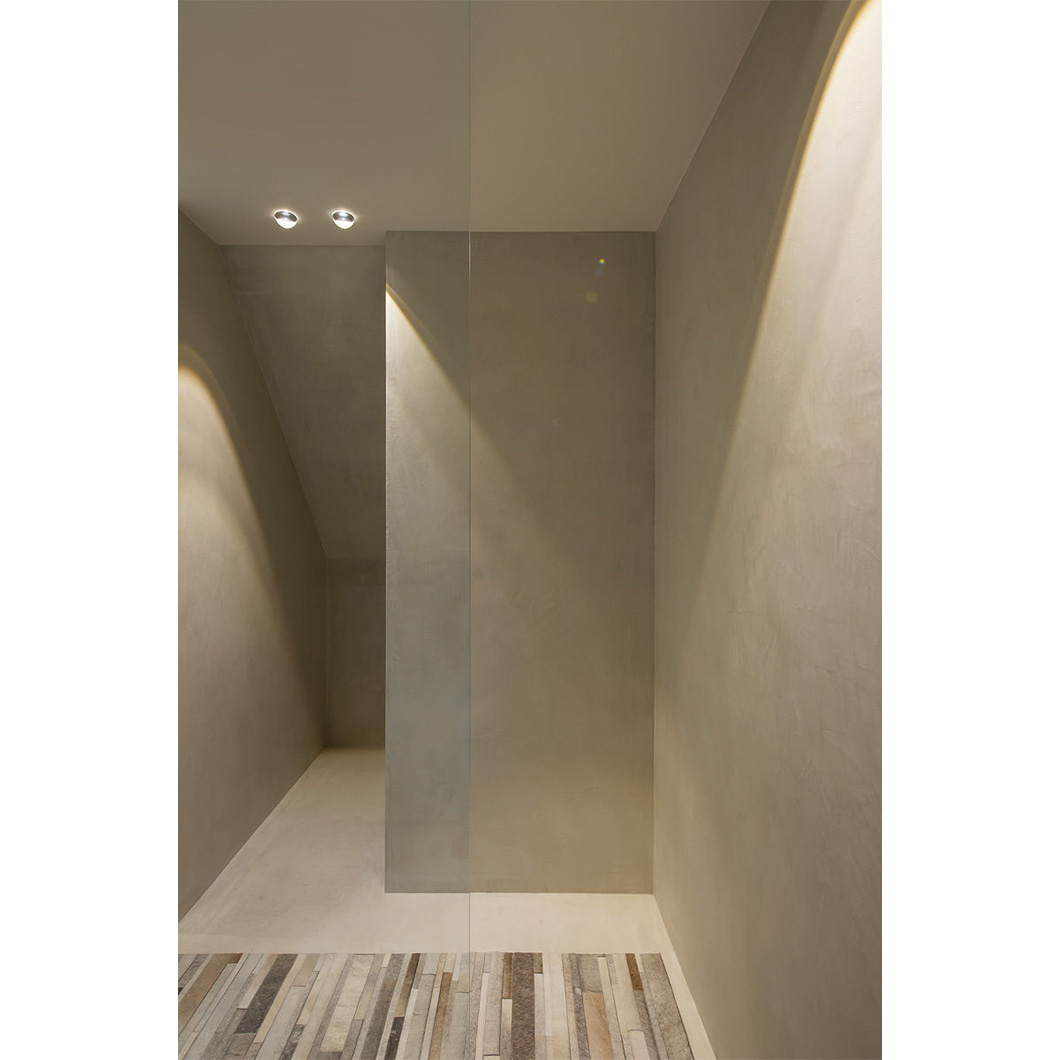

Bouly 4 is available in a standard IP50, indoor version, ideal for lining hallways, everyday workspaces, or other dry areas. Alternatively, opt for the IP55 model, which is suitable for installation in bathrooms, such as above a shower area or over a sink. Plaster kit accessory available.
350mA driver required - see the specification tab below for more details on suitable drivers and select one from the dropdown options above.
- Specification
-
IP50 / IP55
Materials:
Transparent glass
Finish: Silver
Dimensions:
Ø75mm x 37.5mm
Accessory for ceiling:
Plaster kit Ø200mm
Light source:
1x 4 LED array 0,96W (LED incl.)
350mA
456lm
2700K
CRI 93
Beam angle: 10° | 25° | 40°
False ceiling:
Aperture: Ø67 - depth: min. 70mm (driver in ceiling) | Depth: min. 60mm (driver remote)
Concrete ceiling:
Aperture: Ø67 - depth: min. 100mm (driver remote)
| Code |
Driver |
Volt |
Devices Powered |
| N 5W |
5W Non-dimmable |
230V |
1x |
| D 3WT |
3W TRIAC/IGBT dim. |
110V-230V |
1x |
| D 6WP |
6W PUSH-DIM or 1-10V dim. |
230V |
1x |
| D 15WP |
15W PUSH-DIM or 1-10V dim. |
230V |
1-3x |
| D 15WDA EU |
15W PUSH-DIM or DALI dim. |
110V-230V |
1-3x |
| D 15WDA EU-US |
15W DALI dim. |
110V-230V |
1-3x |
| D 40WDP* |
40W PUSH-DIM, 1-10V or DALI dim. |
110V-230V |
2-8x |
*Driver remote: does not fit through cutout hole of fixture
Lamp type: 1x 4 LED array 0,96W (LED incl.)
- Dimensions
-
Product dimensions: D.38mm x Diameter.75mm
- Downloads
-
- Delivery and warranty
-
Delivery
Delivery approximately 6-7 weeks
Warranty
5-year warranty on LEDs.
Warranty only applies to products sold with Trizo21 drivers.
- About the manufacturer
-
Trizo21 is a Belgian company, designs and manufactures contemporary lighting of the highest quality. They are suitable for a large variety of lighting purposes, from private homes to commercial venues including hotels & business centres.
All products are fully designed and assembled on site with special attention given to technical perfection, quality of materials and the finishing touches.
