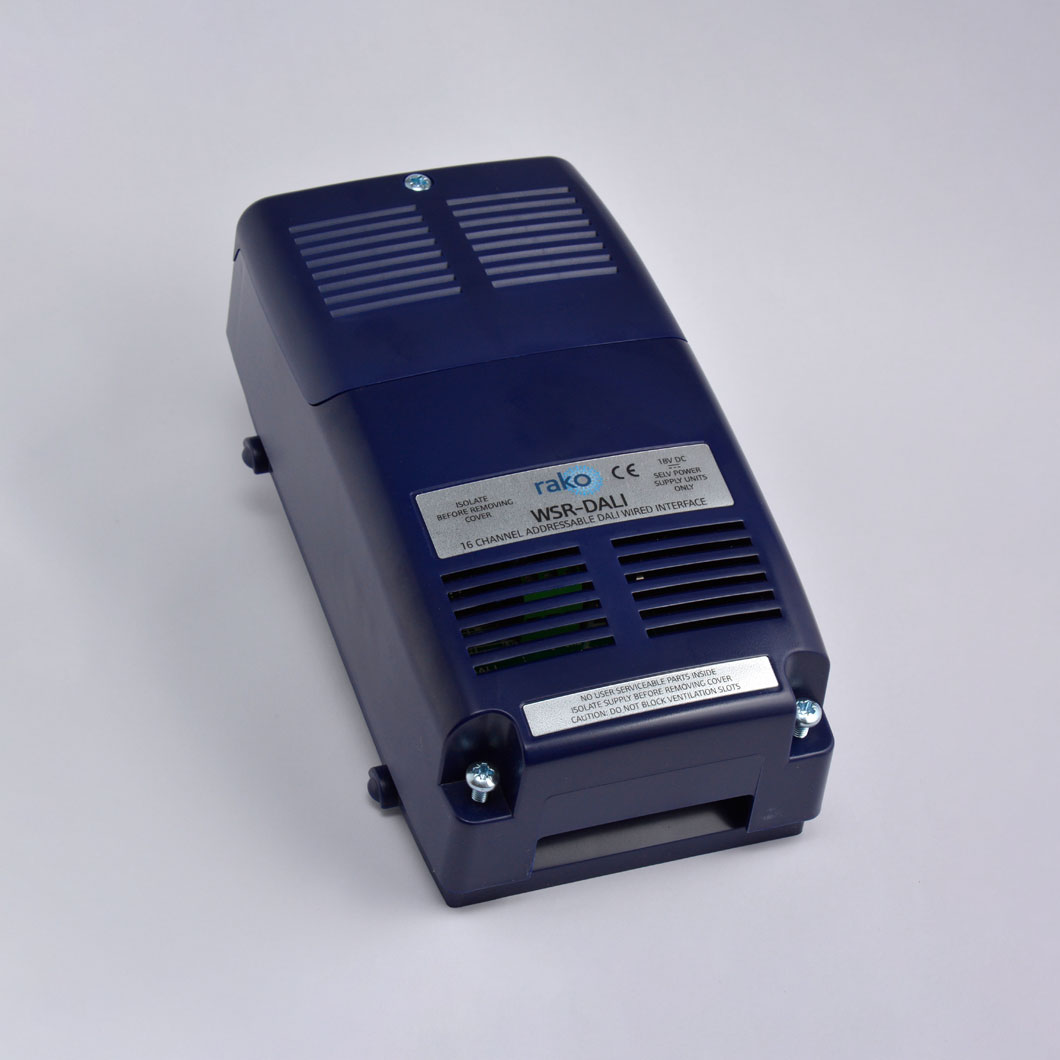

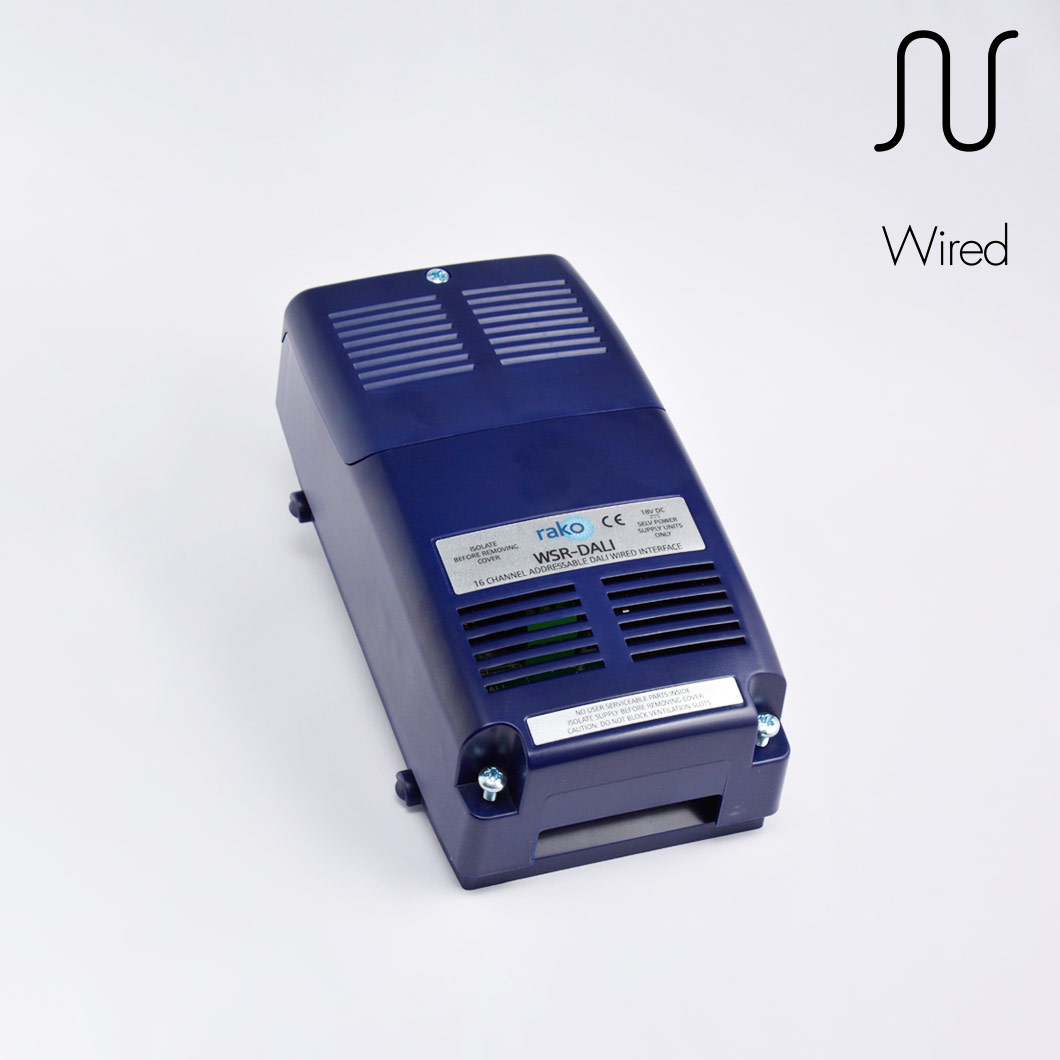

Rako WSR-DLI Wired DLI Control Module

Manufacturer: Rako


One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details


The WSR-DLI is a Rako wired system control module giving control of up to 15 addressable channels of DLI controllable fittings in a single Rako Room.

  • The WSR-DLI is a wired control module
  • Controls 15 channels of addressable DLI fittings in a single Rako Room
  • Individual DLI fittings can be grouped to Rako channels
  • Unit includes an address recovery function should one DLI fitting need replacing.

The WSR-DLI allows a wireless Rako system to have addressable control of Digital Addressable Light fittings. The module is complete with an 18V DC power supply that powers the DLI network. Programming is achieved with Rasoft Pro and allows Auto addressing of DLI devices.

Swap, Move and Group functions allow the user to achieve a logical arrangement of devices for programming. The WSR-DLI controls up to 64 DLI devices grouped to 15 channels of control in a single Rako Room.

Note: The WSR-DLI is not supported by Rasoft Classic Software.

For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat


Input Supply: 18V DC

Cat5 Output: 18 (2 used by network in & out connections)

Connections: 4 way screw terminal for loop in loop out

Housing: UL V0 ABS

Weight: 320g

Climate Range:
Temperature +2C to +40C
Humidity +5% to 90% non condensing

Rakom Cable Type: UTP CAT5e or CAT6

Rakom Terminals: RJ11 Socket or Krone Connector

Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007
LVD - EN 60950-1 :2006

Communication: Rakom wired network


Product dimensions: W.105mm x D.190mm x H.66mm

Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty
