Rako WMT-400 Combined Trailing Edge Plug-In Dimmer for RAK8-MB

Manufacturer: Rako

£142


One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

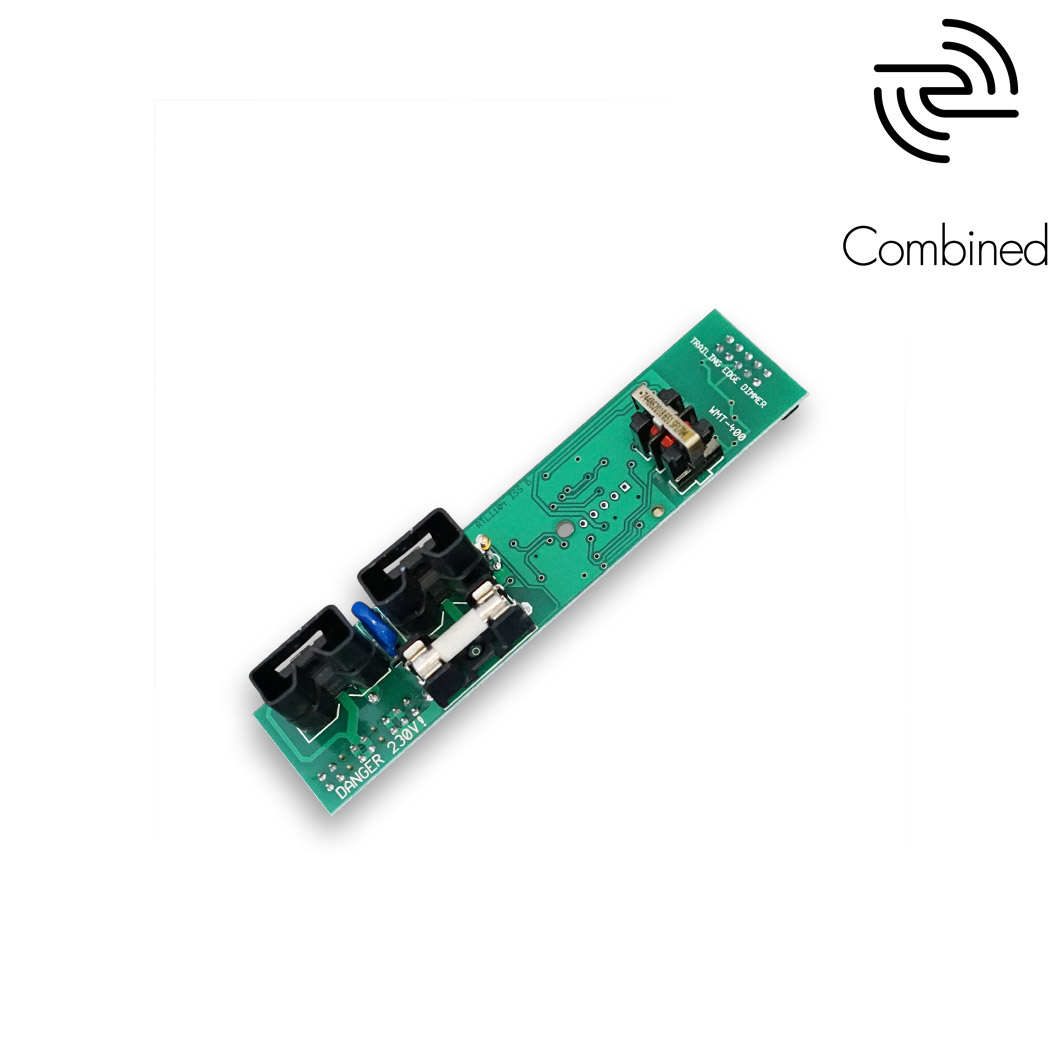

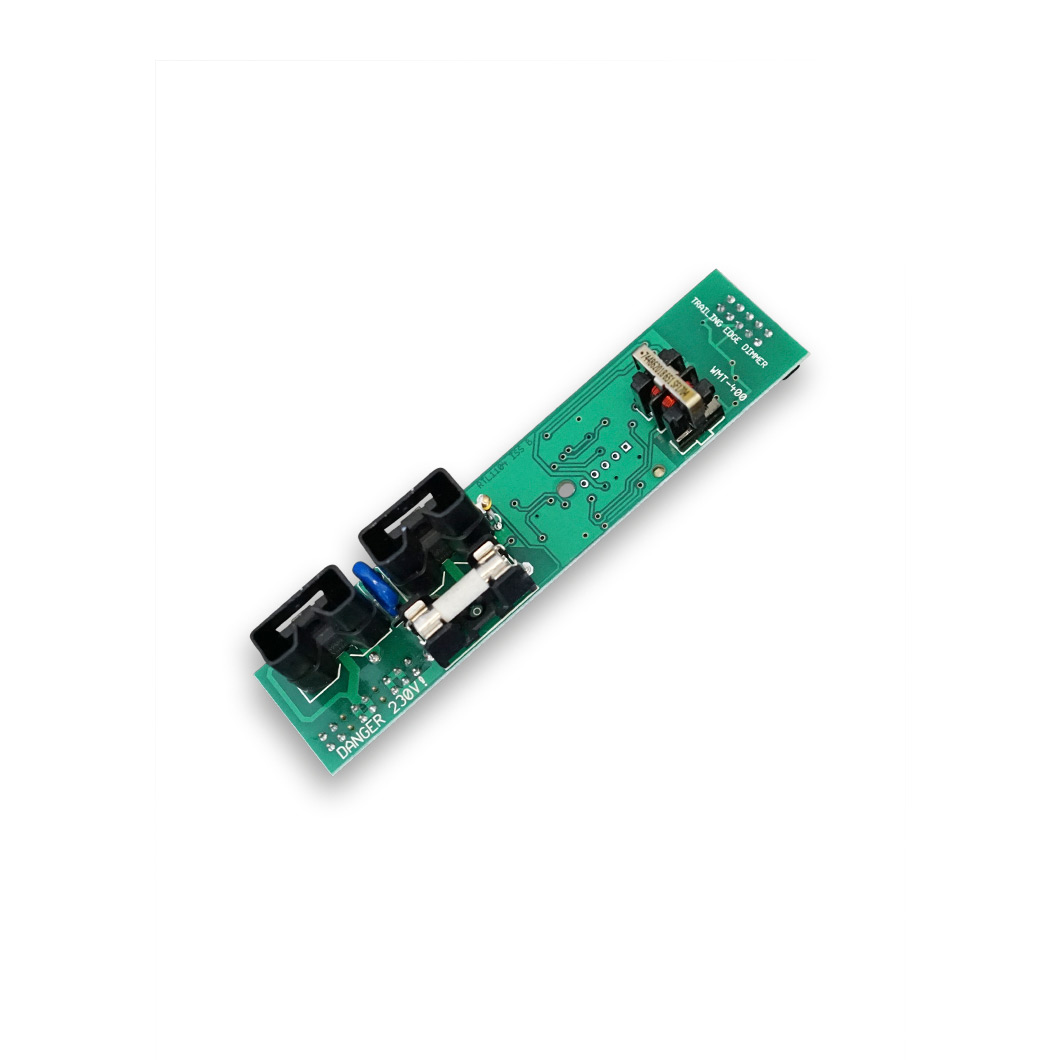

The Rako WMT-400 pluggable module is used to dim LED lamps, tungsten and low-voltage halogens and any other trailing edge dimmable load with the RAK8-MB motherboard.

  • The WMT-400 is a pluggable trailing edge dimmer module to be used with the RAK8-MB.
  • The unit is plugged directly into one of the slots on the RAK8-MB.
  • The WMT-400 can be used in combination with any of the other modules compatible with the RAK8 allowing for greater flexibility during both specification and installation.
  • Trailing edge dimming technology gives smooth quiet dimming of electronic transformer fed loads and maximises dimming performance of most GU10 and other LED fittings.

The WMT-400 combines with the RAK8-MB to provide a centralised lighting control system that can integrate with either wireless or wired Rako products.

The WMT-400 uses trailing edge dimming technology to maximise the performance of most dimmable LED downlights including GU10s and integrated downlights. The WMT-400 is also the recommended dimmer for GU10 tungsten lamps due to its in-built short-circuit protection, necessary with this style of lamps.

Maximum loading is 400W of mains halogen or 200W of mains dimmable LED lamps. As with all RAK8 pluggable modules no memory is stored on the WMT-400. All programming is stored on the motherboard meaning the WMT-400 can be swapped with any other module without the need to be reprogrammed.


For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Protection:
Auto resetting over current protection
Auto thermal shutdown
Voltage surge protection

Maximum Loading:
400W - mains halogen
200W - mains dimmable LEDs

Minimum Loading: 1W

Weight: 50g

Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing

Standards:
Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001

Communication:
RS485 to other RAKs, RX-Link and RAK-Link

Connections: Pluggable module

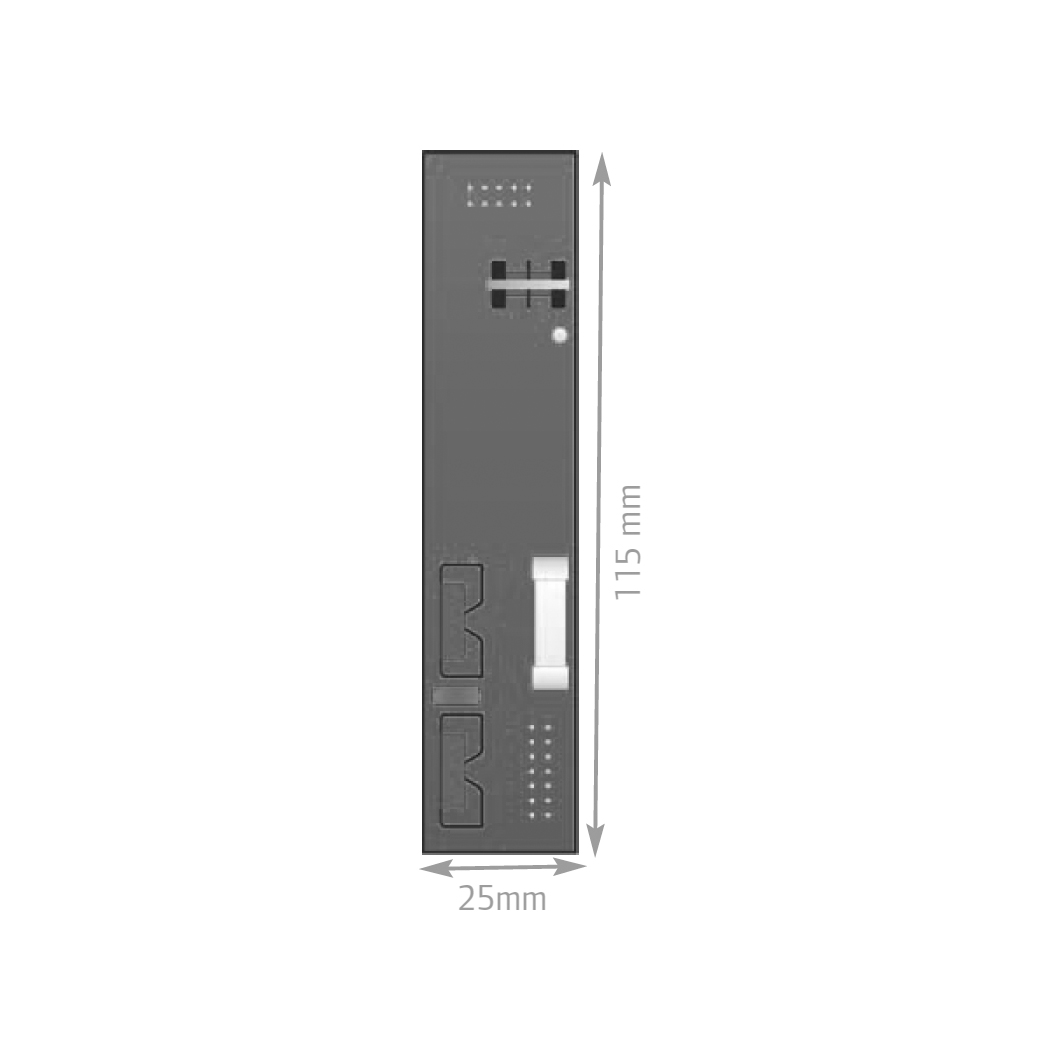

Dimensions

Product dimensions: W.25mm x D.115mm x H.28mm

Downloads
Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

Made in Britain, Rako smart lighting controls and systems are easy to use, easy to install & cost effective. Leading the way in providing state-of-the-art digital dimming technology, Rako provides innovative solutions for both wired systems (perfect for new build projects), wireless systems (ideal when it isn't possible to replace wiring) or a hybrid of both.

Perfect for modern living, Rako systems can be easily controlled with tablets, smartphones and smartwatches. Set up lighting scenes that  allow you to select a pre-set lighting scene or change the mood lighting at the touch of a button. Rako offer a full suite of control panels, cover plates, control modules and dimmers, hubs and interfaces. If you're looking for fully integrated smart home mood lighting systems, you're in the right place.

Rako won the Smart Building Awards for Best Lighting Control product and the CEDIA EMEA Award for Best New Hardware for 2022.
