Rako RAK-LINK Wired Connection Unit for RAK8-MB

Manufacturer: Rako

£521


One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

The Rako RAK-LINK forms the connection between RAK8-MB motherboard and the wired Rakom CAT5 network.

  • A wired connection unit for use with RAK8-MB motherboard unit, with a power supply for wired CAT5 products.
  • The power supply has the capability of powering 32 Rakom devices, up to 1000m over standard CAT5e cable.

The RAK-LINK provides an isolated link between the RAK4 dimmer units and wired Rakom products. The unit also includes a heavy duty 15vdc power supply for the Rakom network. Connection for the CAT5 is by 8 way punch down terminals. This allows for a daisy chain configuration of the Rakom wired network.

Where a ‘star’ or ‘home-run’ configurations are required the use of the RAK-STAR unit is needed. Three RJ11 programming sockets within the unit allows system programming using the RASOFT software suite and connection of other Rakom accessories such as the WA-BRIDGE interface.


For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Input Supply:
200-260V AC 50/60Hz
6A Type B MCB protection required

Supply Output: 15VDC 3A for Rakom CAT5 control network

Housing: Powder coated galvanised steel

Weight: 2kg

Climate Range:
Temperature +2C to +40C
Humidity +5% to 90% non condensing

Rakom Cable Type: UTP CAT5e or CAT6

Rakom Terminals:
8 way Krone punch down
(screw terminal option available)

Standards:
Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001

Communication: Rakom wired network

Connections:
Flash memory (non volatile)
Firmware upgrades via RASOFT programming software

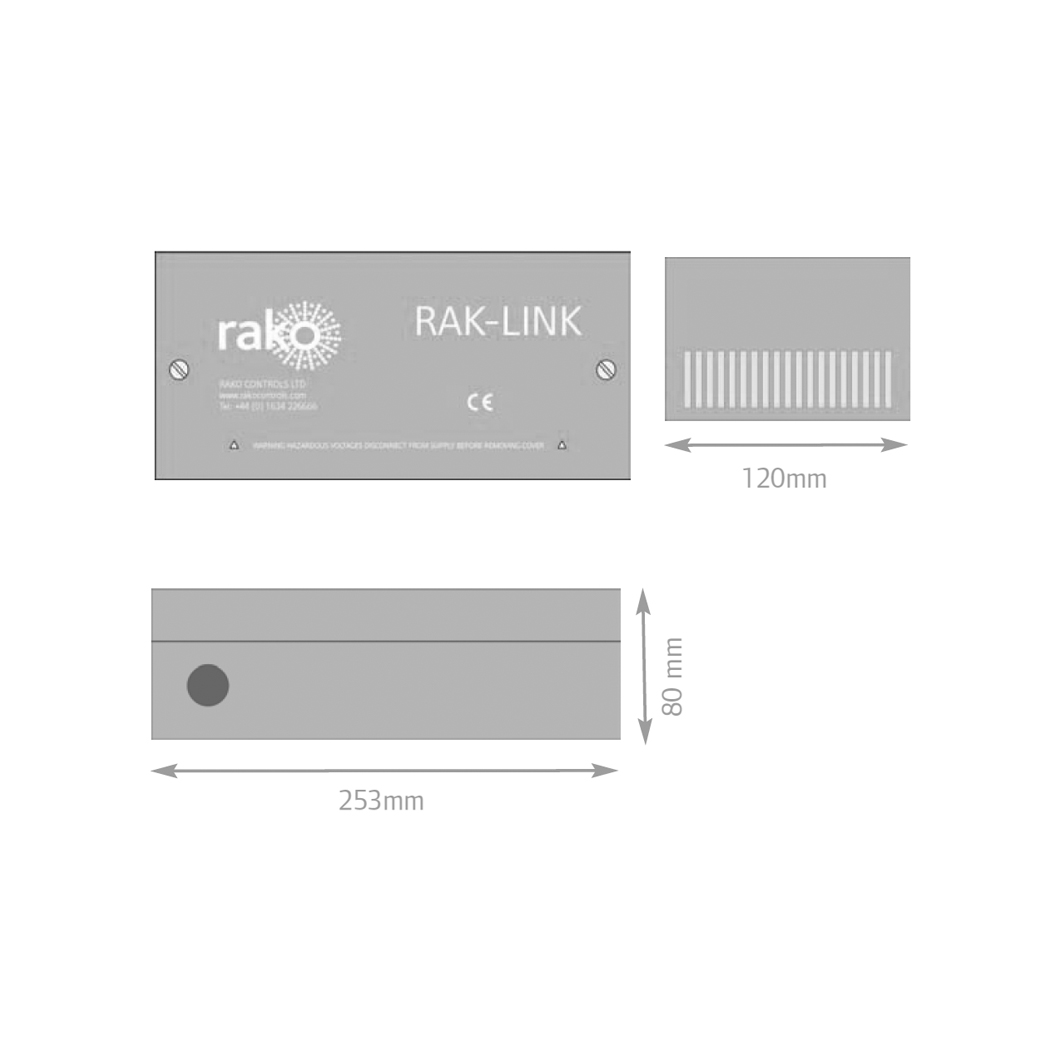

Dimensions

Product dimensions: W.120mm x D.253mm x H.80mm

Downloads
Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

Made in Britain, Rako smart lighting controls and systems are easy to use, easy to install & cost effective. Leading the way in providing state-of-the-art digital dimming technology, Rako provides innovative solutions for both wired systems (perfect for new build projects), wireless systems (ideal when it isn't possible to replace wiring) or a hybrid of both.

Perfect for modern living, Rako systems can be easily controlled with tablets, smartphones and smartwatches. Set up lighting scenes that  allow you to select a pre-set lighting scene or change the mood lighting at the touch of a button. Rako offer a full suite of control panels, cover plates, control modules and dimmers, hubs and interfaces. If you're looking for fully integrated smart home mood lighting systems, you're in the right place.

Rako won the Smart Building Awards for Best Lighting Control product and the CEDIA EMEA Award for Best New Hardware for 2022.
