Rako WLED150CV1 Wired 150W Constant Voltage Dimmer

Manufacturer: Rako

£299


One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

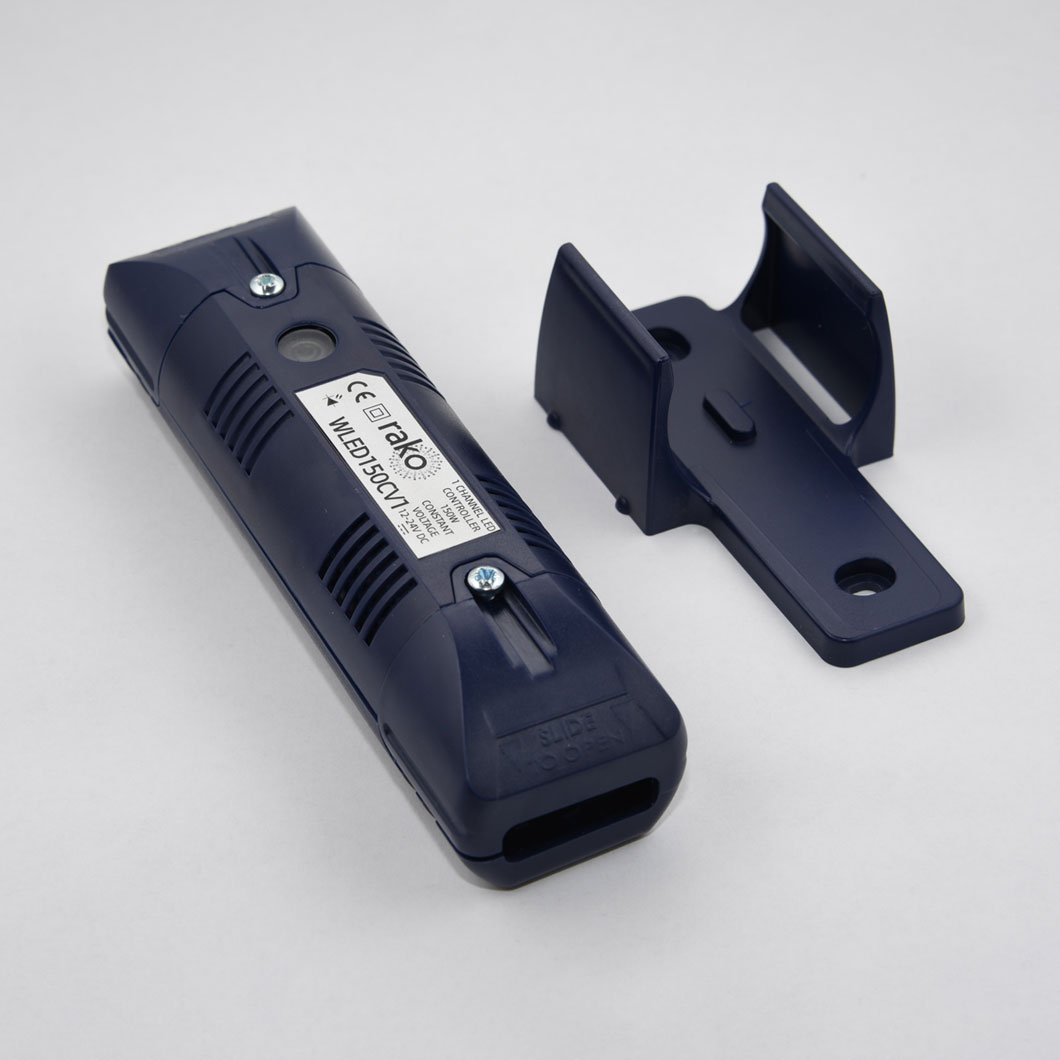

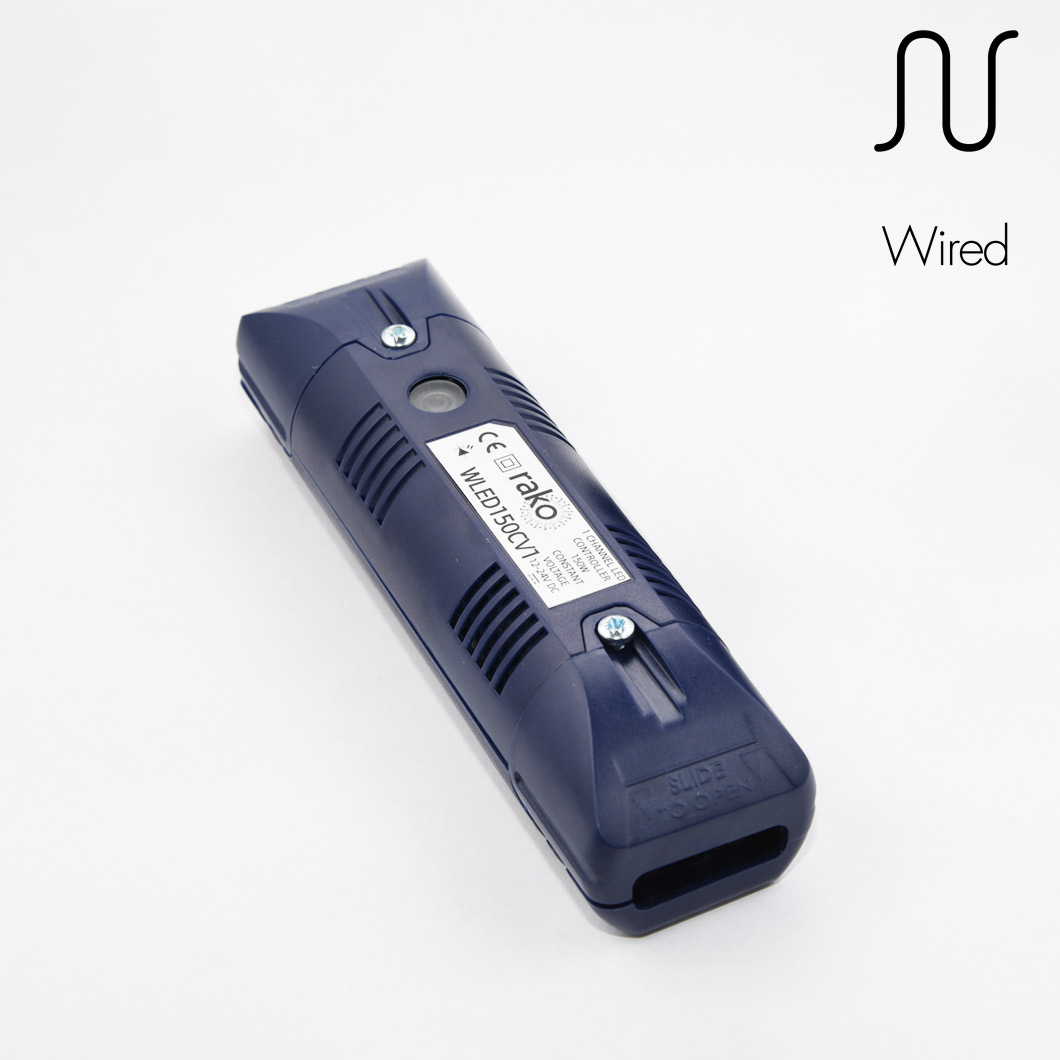

Suitable for ceiling or cupboard mounting, the WLED150CV1 is a wired 150W constant voltage dimming LED driver.

  • A compact single channel 150W constant voltage LED dimmer with in-built wired receiver and Rako processor for control of single channel constant voltage LED fittings.
  • Controlled from any Rako Wired device, e.g. WCM, WAPIR or from wireless devices via a WA/WTC-Bridge or a WRB100.

Designed for use with single channel constant voltage LED fittings and single channel LED tape light. Maximum wattage of 150W for 12VDC fittings or 300W for 24VDC fittings. Requires a suitable external DC power supply (normally the power supply that would be supplied with the fitting for a non-dimming application).

Programmed using the RASOFT PC software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory. Connection to the Rakom wired network can be via the RJ11 lead, plugging into a RAKLink or RAKStar unit.

Alternatively a WPCON or WPCONC unit can be used as a remote plug in connection point. Installing a Bridge or WRB100 as part of the wired system will allow the WLED150CV1 to receive commands from wireless devices as part of a “combined” or “hybrid” system.


For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Input Supply:
12V/24V DC power supply depending on load 12-18V DC supply from Rako wired network for control

Housing:
UL V0 ABS

Weight:
175g

Climate Range:
Temperature +2C to +40C
Humidity +5% to 90% non condensing

Connections:
2 way screw terminals for 12-24V DC supply
2 way screw terminals for load connections

Protection:
Reverse polarity input protection
Output current limit protection

Load Type:
Single channel constant voltage LED fittings and tape

Min/Max Loads:
Min: 1W
Max: 150W @ 12V DC / 300W @ 24V DC

Terminal Sizes:
4 mm2

Standards:
Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007

Communication:
Rakom wired network

Memory:
Flash memory (non volatile)

Dimensions

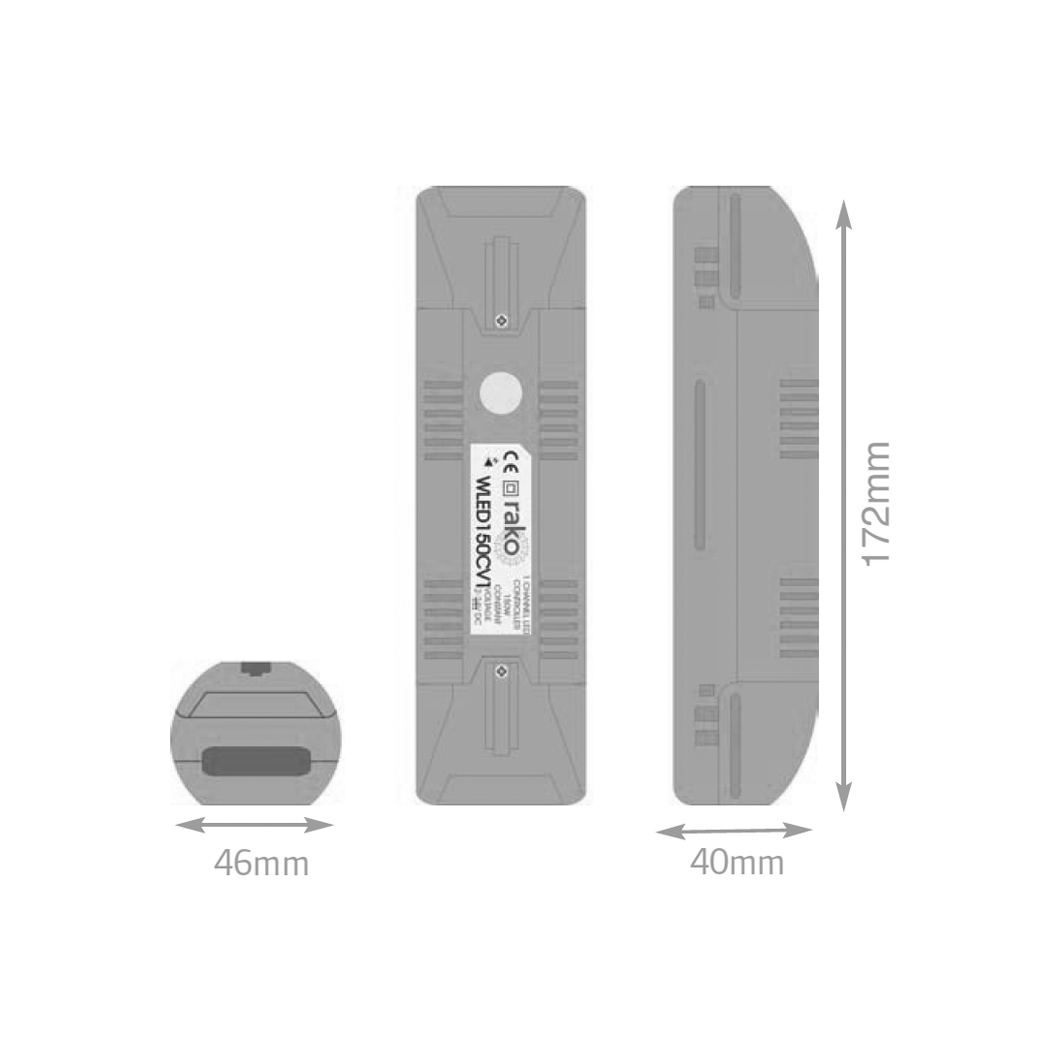

Product dimensions: W.46mm x D.172mm x H.40mm

Downloads
Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty
