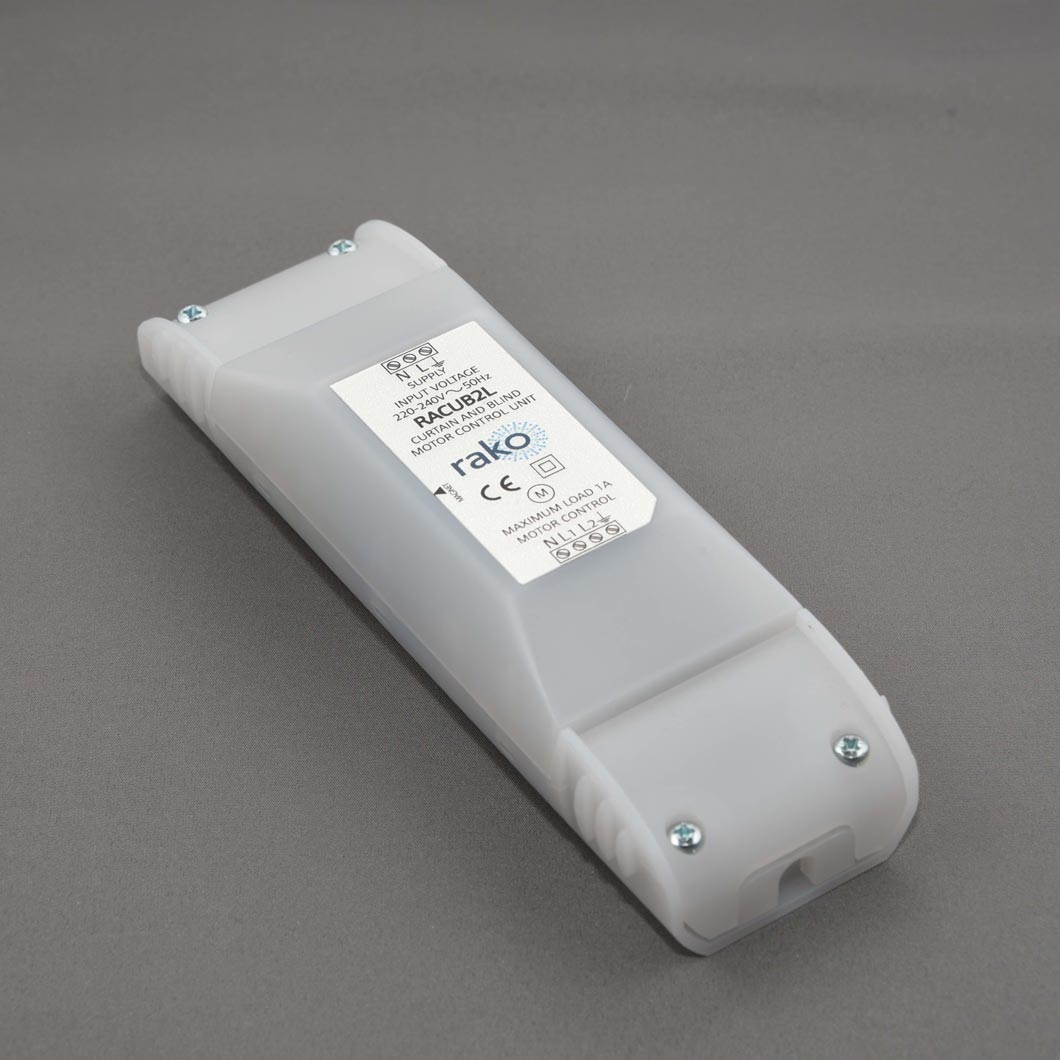

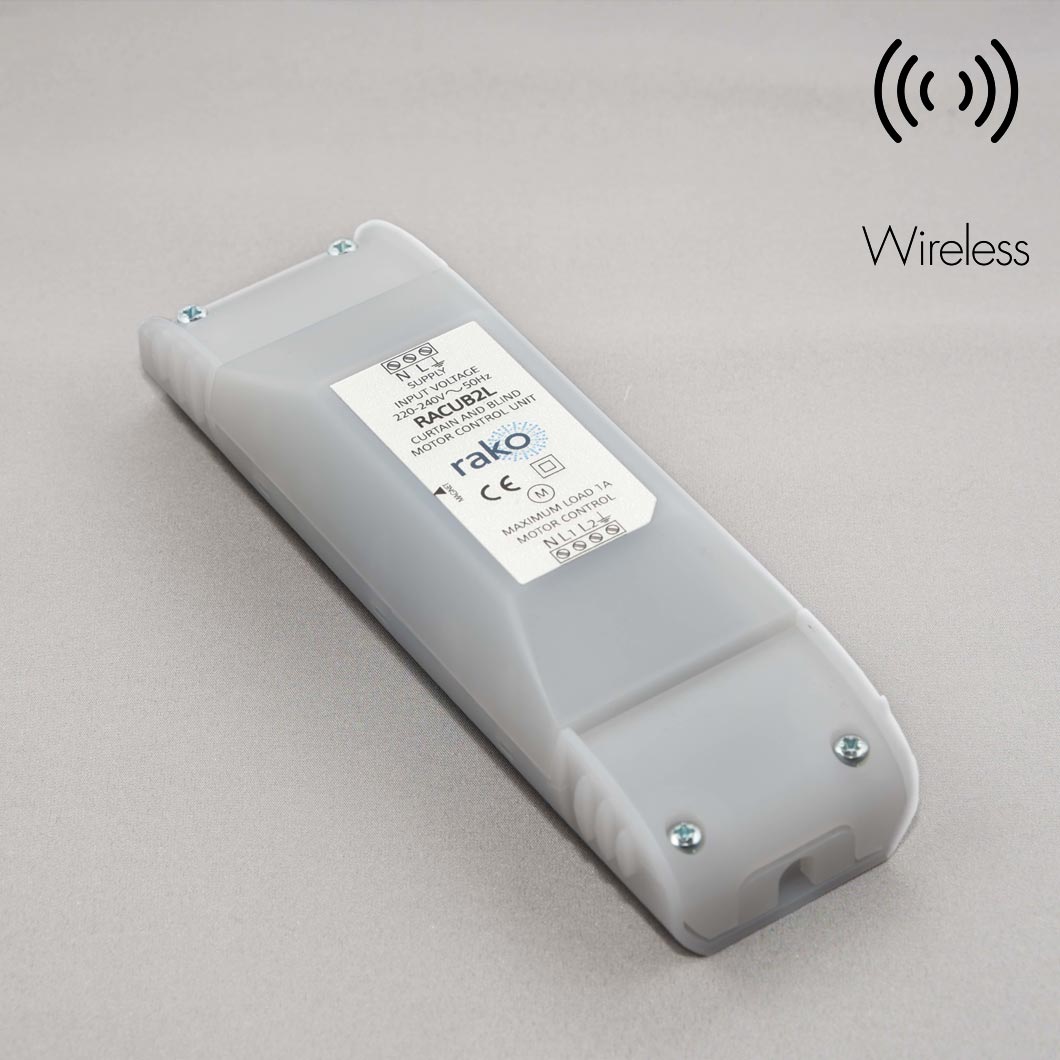

Rako RACUB2L Wireless Mains Voltage Curtain / Screen / Blind Control Unit

Manufacturer: Rako

£222


One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

The Rako RACUB2L curtain and blind module internally wired for dedicated use with 240V motors with twin live connections (Up and Down).

  • Mains voltage motorised curtain/screen/blind control module internal aerial.
  • For use with curtain, screen and blind motors that have a Neutral, Live1, Live2 & Earth connection.


For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Input Supply:
230V AC +/-10% 50Hz

Weight: 240g

Housing: UL V0 material

Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing

Connections:
2 way screw terminals for mains power
6 way screw terminals for relay outputs

Load Types:
240vac Motors
12VDC Motors
Motors with volt-free contact inputs

Minimum Load: n/a

Maximum Load: 2A

Terminal Sizes:
1.5mm2 - Stranded
2.5mm2 - Solid

Standards:
Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001

Communication:
Rakom coded fm radio, 433.9MHz

Memory: Flash memory (non volatile)

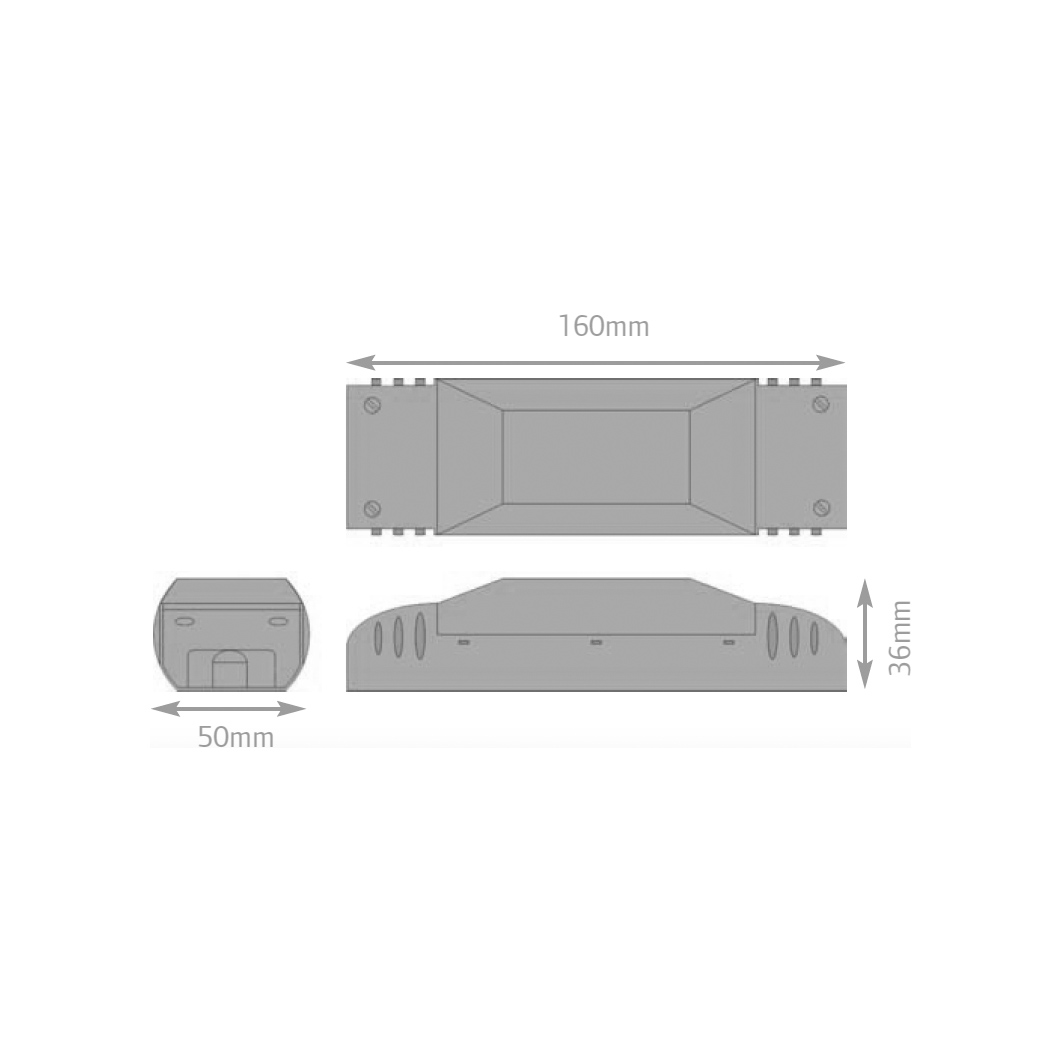

Dimensions

Product dimensions: W.50mm x D.160mm x H.36mm

Downloads
Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

Made in Britain, Rako smart lighting controls and systems are easy to use, easy to install & cost effective. Leading the way in providing state-of-the-art digital dimming technology, Rako provides innovative solutions for both wired systems (perfect for new build projects), wireless systems (ideal when it isn't possible to replace wiring) or a hybrid of both.

Perfect for modern living, Rako systems can be easily controlled with tablets, smartphones and smartwatches. Set up lighting scenes that  allow you to select a pre-set lighting scene or change the mood lighting at the touch of a button. Rako offer a full suite of control panels, cover plates, control modules and dimmers, hubs and interfaces. If you're looking for fully integrated smart home mood lighting systems, you're in the right place.

Rako won the Smart Building Awards for Best Lighting Control product and the CEDIA EMEA Award for Best New Hardware for 2022.
