- Description
-

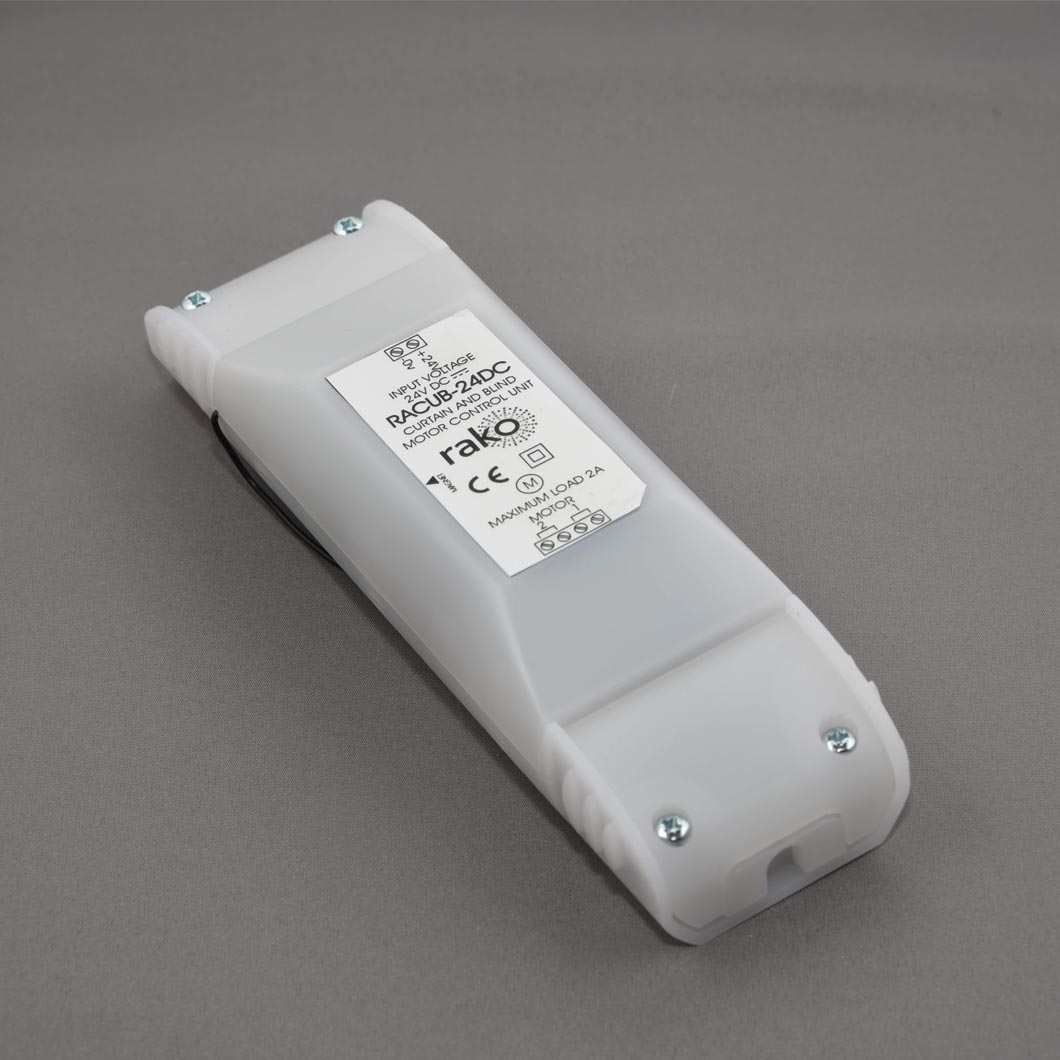

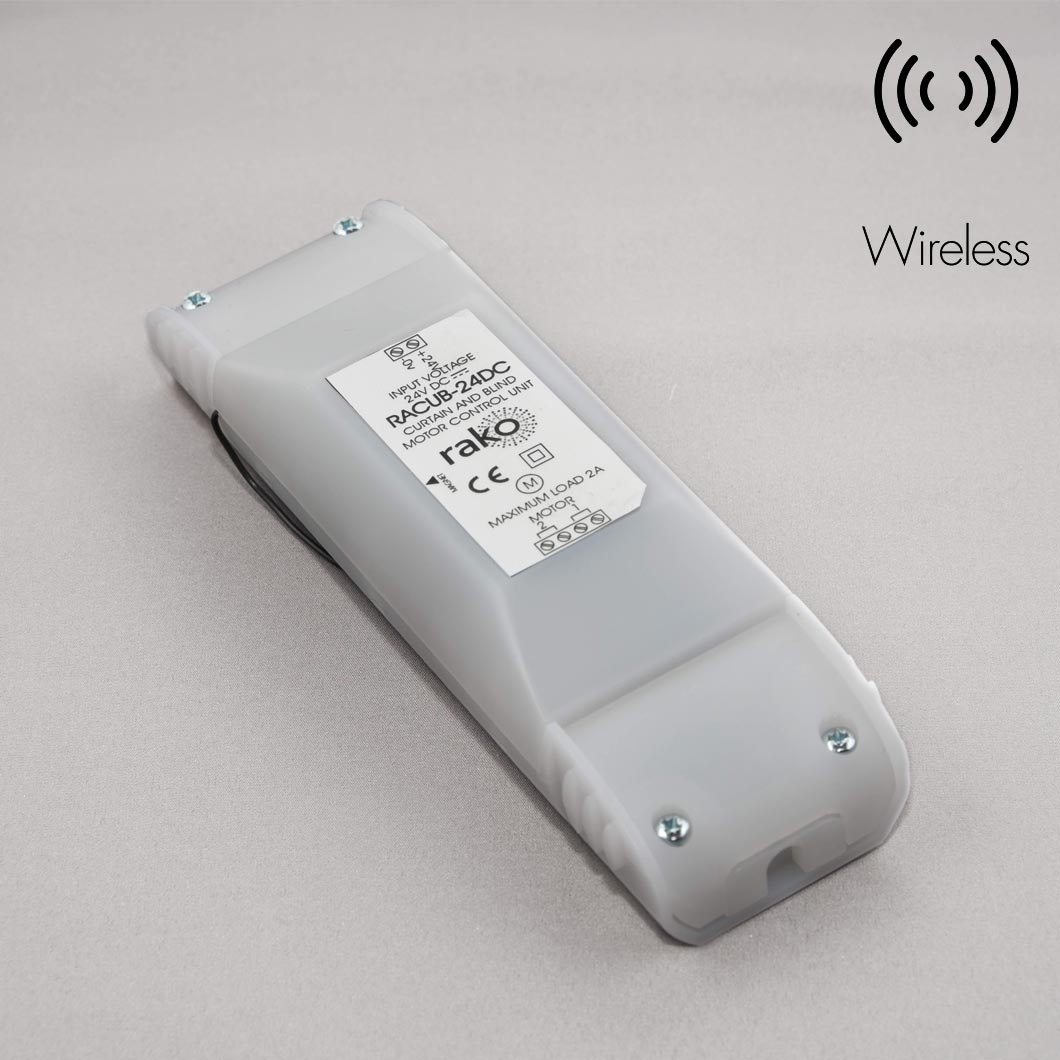

The Rako RACUB2L wireless curtain and blind module for use with 24V motors requiring polarity reversing control.
- Low voltage motorised curtain/screen/blind control module internal aerial.
- For use with curtain, screen and blind motors that have a 24VDC Positive and Negative 2-wire connection.
For install enquiries contact us on:
[email protected]
01189 882294
or on our website Live Chat
- Specification
-
Input Supply:
230V AC +/-10% 50Hz
Weight: 240g
Housing: UL V0 material
Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing
Connections:
2 way screw terminals for mains power
6 way screw terminals for relay outputs
Load Types:
240vac Motors
12VDC Motors
Motors with volt-free contact inputs
Minimum Load: n/a
Maximum Load: 2A
Terminal Sizes:
1.5mm2 - Stranded
2.5mm2 - Solid
Standards:
Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001
Communication:
Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
- Dimensions
-
Product dimensions: W.50mm x D.160mm x H.36mm
- Downloads
-
- Delivery and warranty
-
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
