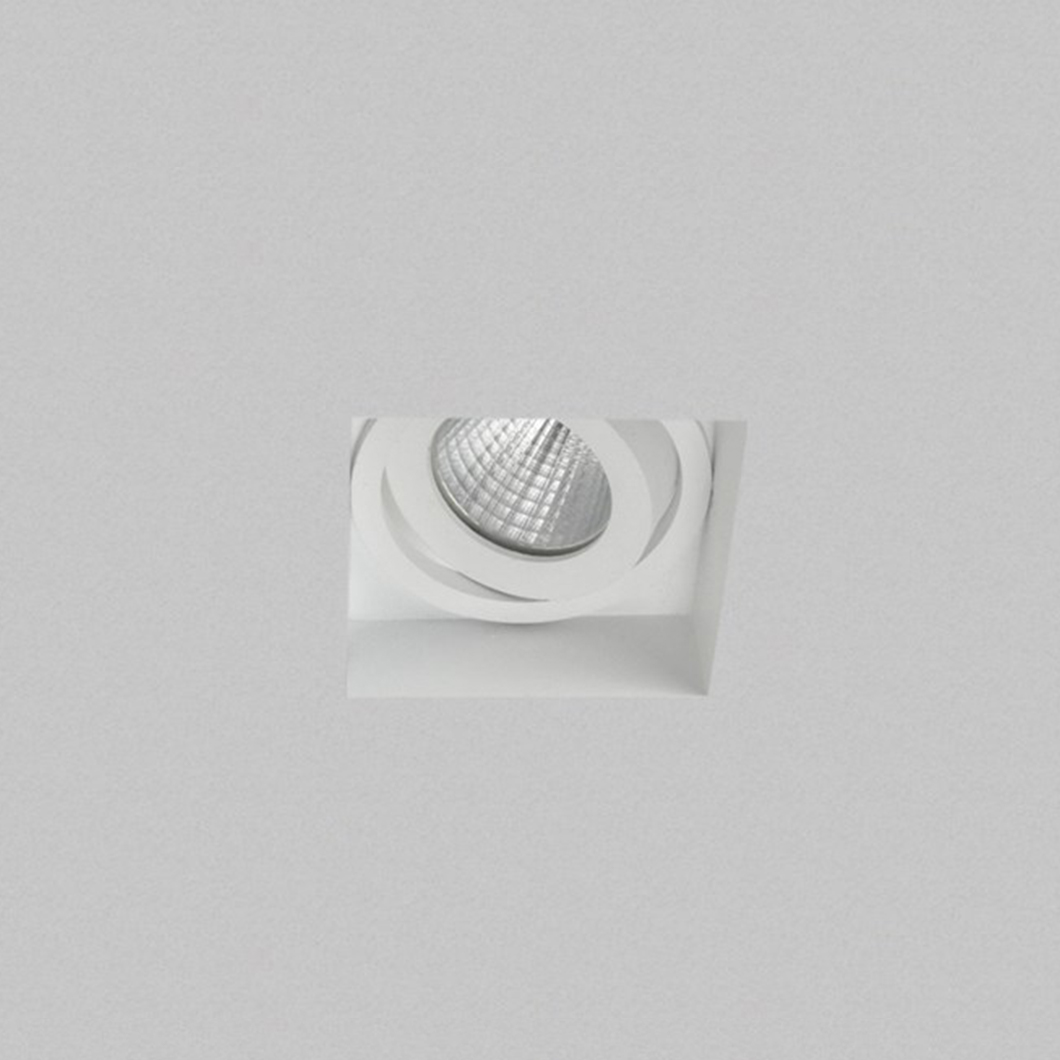

Eiger Mini with ceiling as background

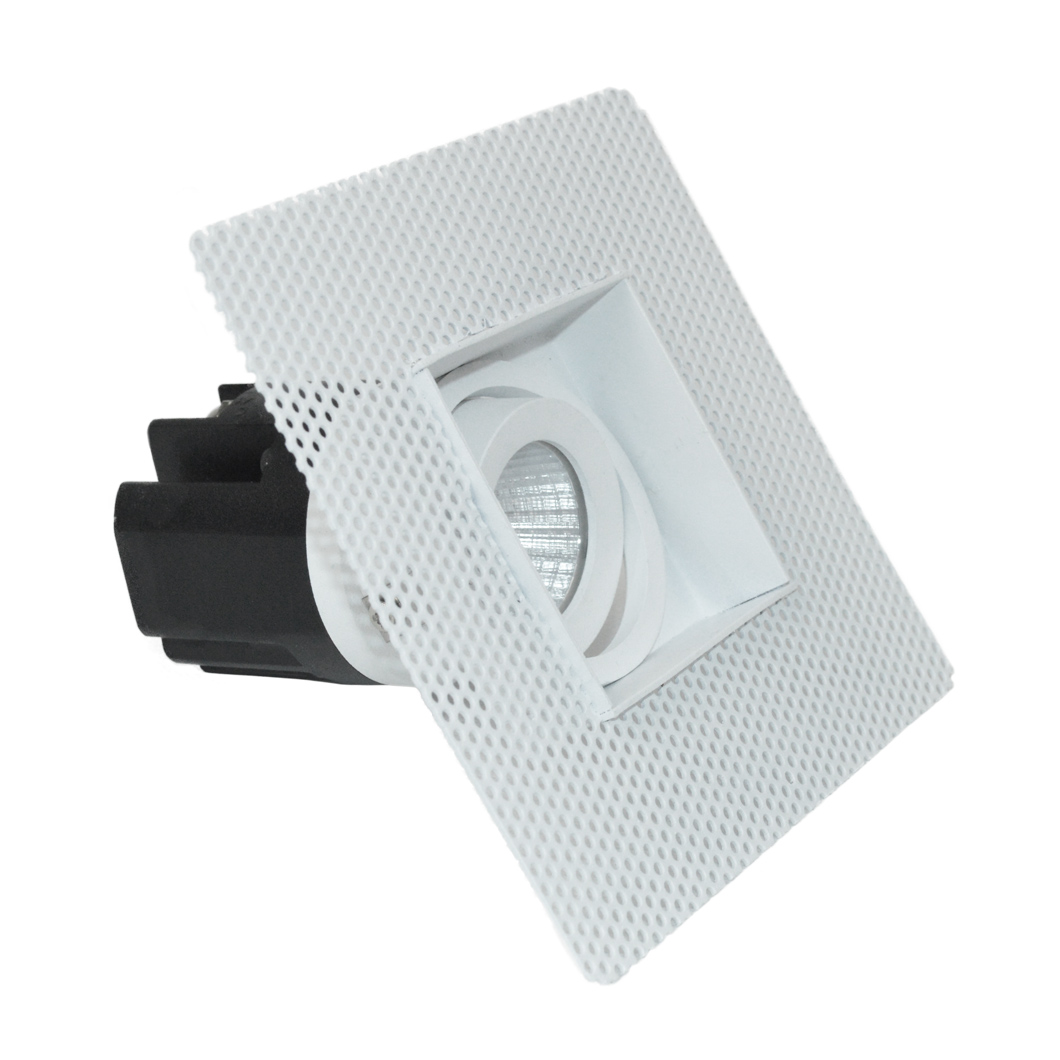

Three quarter view of DLD Eiger Mini 1-S LED square adjustable downlight with plaster-in frame on white background
Three quarter view of DLD Eiger Mini 1-S LED square adjustable downlight with plaster-in frame on white background

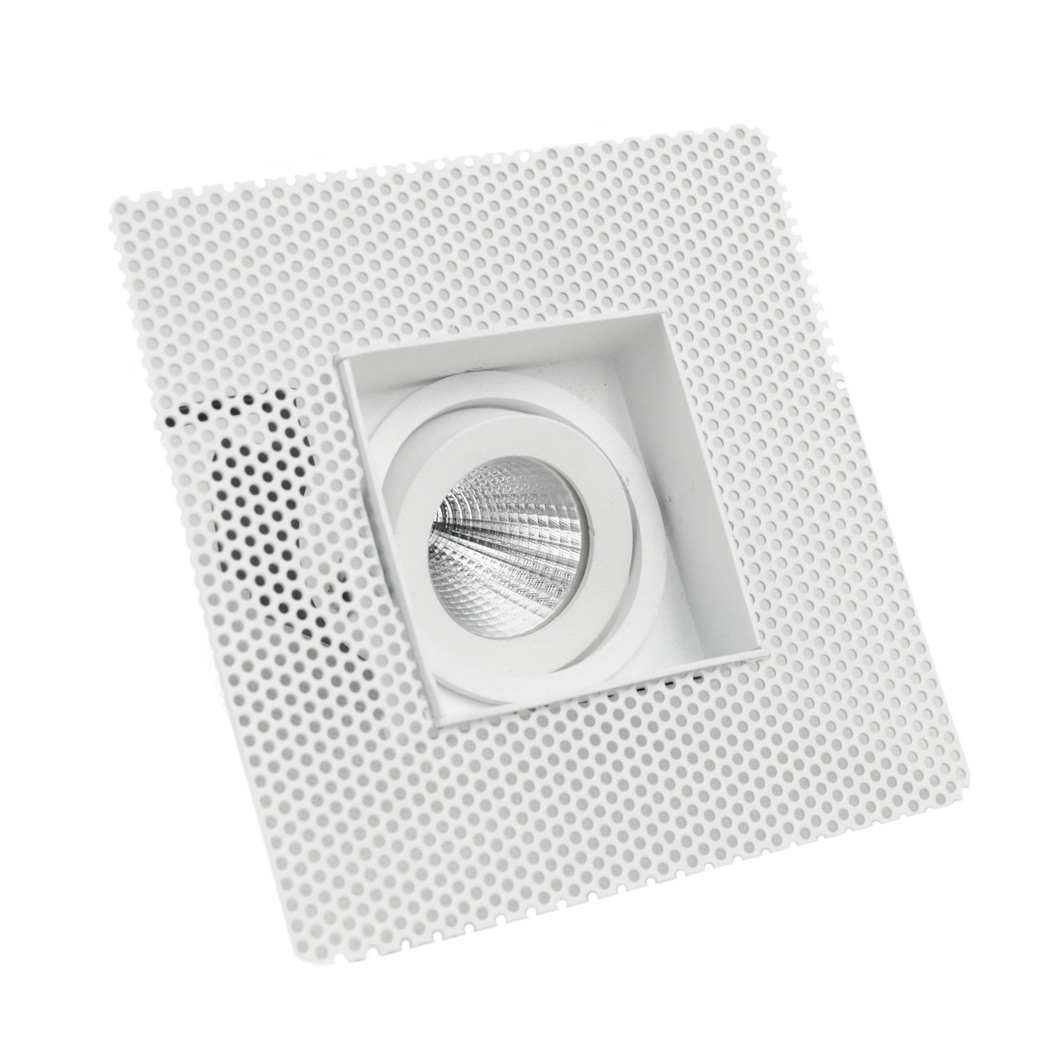

Off-centre view of DLD Eiger Mini 1-S LED square adjustable downlight with plaster-in frame on white background

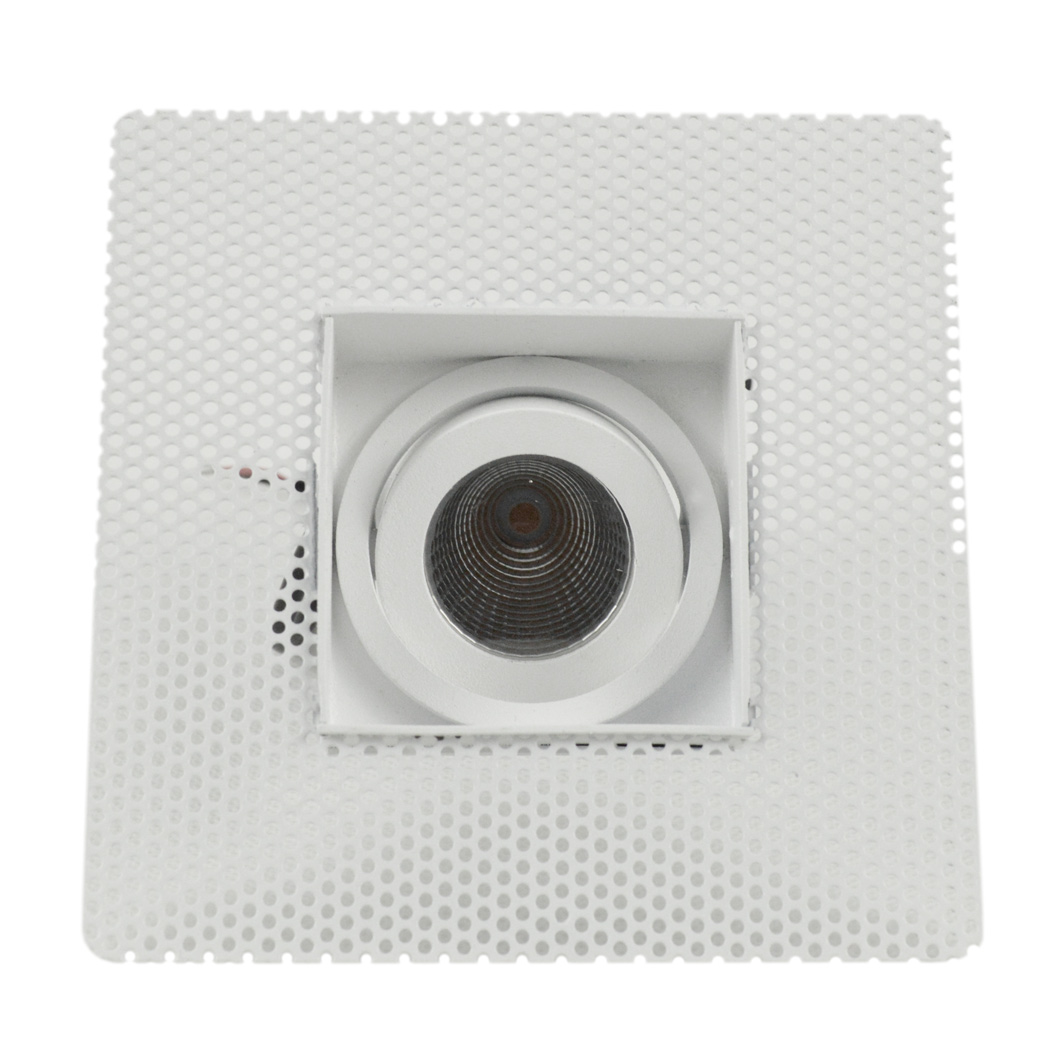

Straight on view of DLD Eiger Mini 1-S LED square adjustable downlight with plaster-in frame on white background

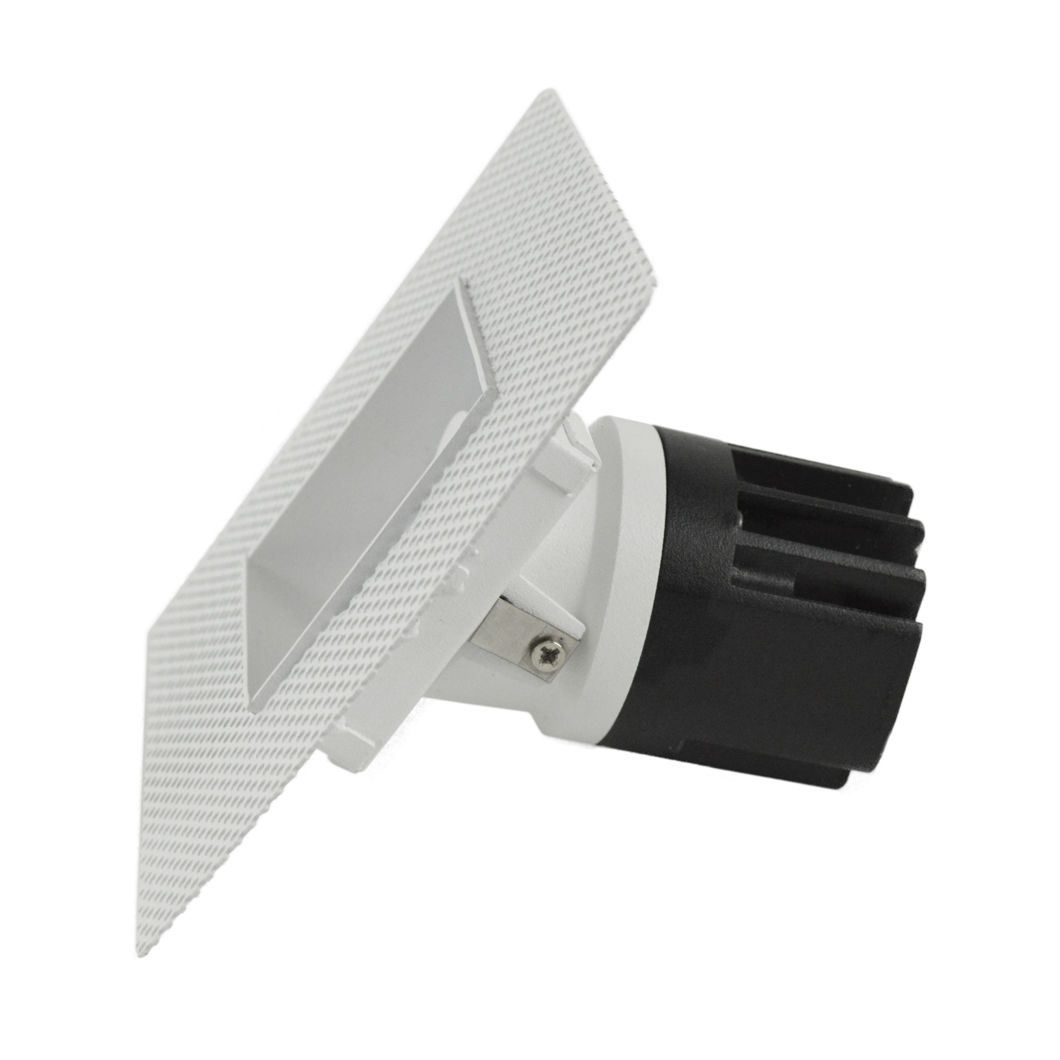

Side view of DLD Eiger Mini 1-S LED square adjustable downlight with plaster-in frame on white background

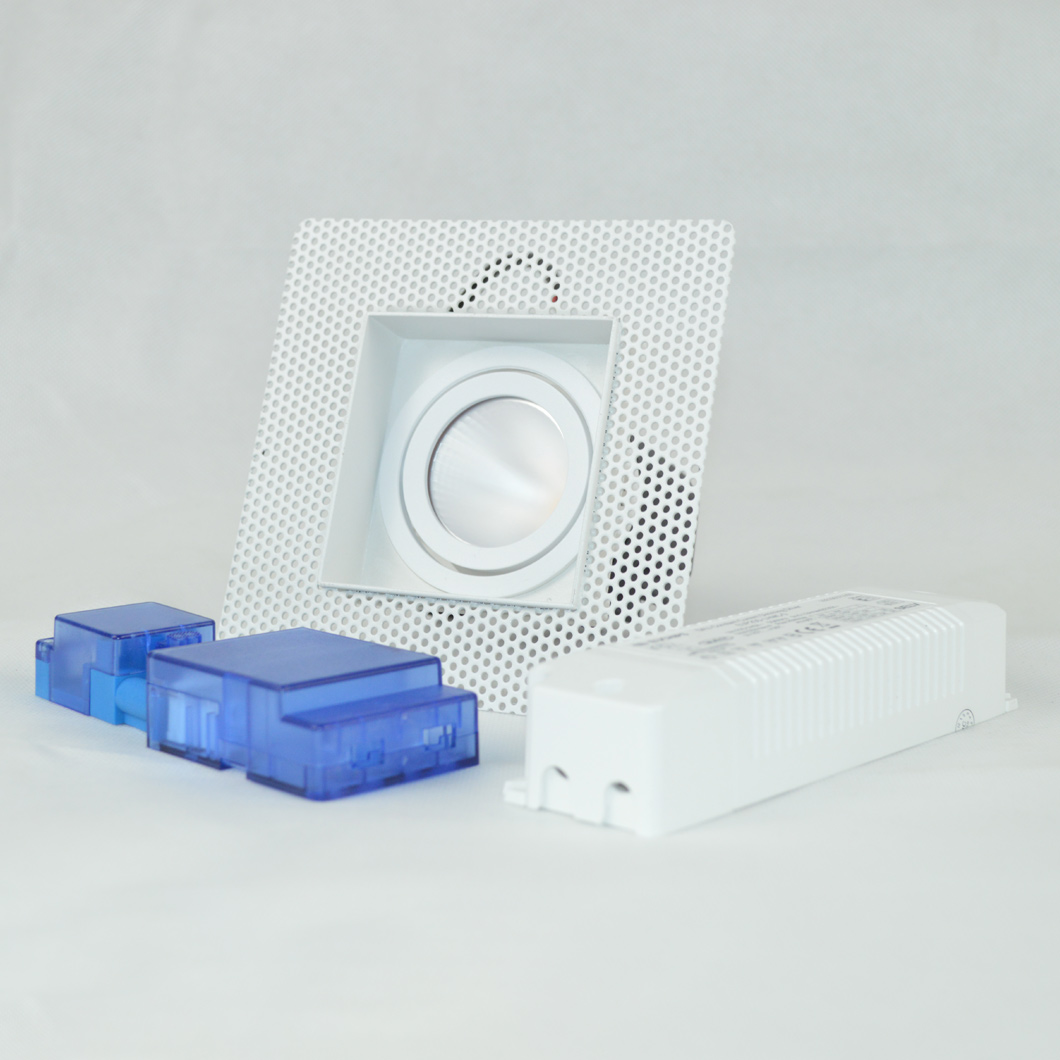

DLD Eiger Mini True Colour CRI98 LED downlight with plaster-in frame, driver & blue electrical connector on grey background

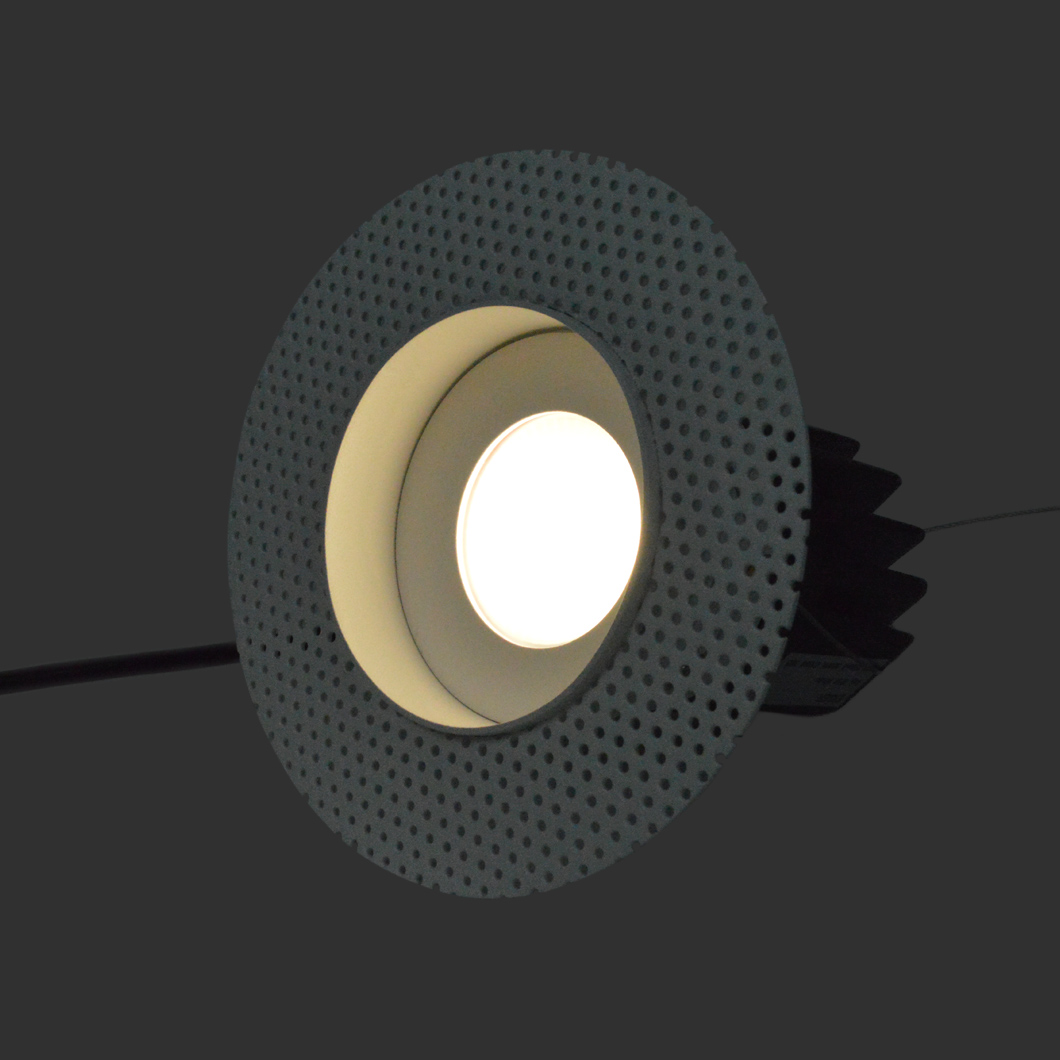

Three quarter view of DLD Eiger Mini True Colour CRI98 LED downlight with plaster-in frame switched on against a dark background
Eiger Mini, plaster in light, warm led bulb
Eiger Mini with ceiling as background
Three quarter view of DLD Eiger Mini 1-S LED square adjustable downlight with plaster-in frame on white background
Three quarter view of DLD Eiger Mini 1-S LED square adjustable downlight with plaster-in frame on white background
Off-centre view of DLD Eiger Mini 1-S LED square adjustable downlight with plaster-in frame on white background
Straight on view of DLD Eiger Mini 1-S LED square adjustable downlight with plaster-in frame on white background
Side view of DLD Eiger Mini 1-S LED square adjustable downlight with plaster-in frame on white background
DLD Eiger Mini True Colour CRI98 LED downlight with plaster-in frame, driver & blue electrical connector on grey background
Three quarter view of DLD Eiger Mini True Colour CRI98 LED downlight with plaster-in frame switched on against a dark background

OUTLET DLD Eiger Mini 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery

Manufacturer: DLD Architectural

£35

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

About a fifth smaller than our flag-bearing Eiger fitting, the square version of our Eiger Mini LED plaster-in downlight uses the latest True Colour CRI98 LED COB - showcasing colours in a space as close to a natural light source as possible. Alongside colour rendering with outstanding accuracy, the 400 lumens that the Eiger Mini produces combines with its discrete size to create an ideal light fitting for residential lighting schemes. Installed into the ceiling and plastered in for a seamless finish, the 24º adjustable tilt of the Eiger Mini is designed specifically to blend into the architecture of a lighting scheme. And with an IP54 rating, the Eiger adjustable can be installed in bathroom zone 2. The LED engine can be simply removed from the plaster-in housing after installation, making maintenance easy. Available with a beam angle of 15º or 36º. Die-cast aluminium luminaire with steel housing. The heat sink is made from forged aluminium for optimum heat dissipation. In white or black.

Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. Emergency pack available as an extra. Dimmable with either 0-10V, TRIAC or DALI dimming drivers - see dropdowns above. Eiger Mini is available in single or twin versions, and with or without trim.

4000K colour temperature on demand - please contact for details.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.

Delivery usually within 1-2 weeks

Lightbulb with brain filament icon
- Our Top Tips -

  • The KGP and EldoLED drivers that are available with Eiger Mini all fit through the small cutout hole
  • You can install them inline (a single driver per downlight) or remotely (one driver housed at an accessible point away from the light fittings)
  • Installing inline - if a fault occurs any issue is localised to the individual downlight, meaning the others will be unaffected
  • Installing remotely - you can power multiple downlights from one driver which keeps costs down, and house it in an easily accessible position. But if there are any issues, it is likely to affect multiple downlights at the same time
  • If installing remotely, let us know & we can recommend the best driver depending on how many fittings you are powering and the type of dimming you are using
Specification

IP54 - suitable for bathroom zone 2
Wattage: 7.7W
Current: 180mA
Beam angle: 15º | 24º | 36º
Adjustable tilt: 24º
Adjustable rotation: 355º
CRI 98

Beam Angle | Colour Temperature | LM/W | Delivered Lumens:
15d | 2700ºK | 50lm | 400lm
36d | 2700ºK | 51lm | 408lm
15d | 3000ºK | 52lm | 416lm
36d | 3000ºK | 54lm | 432lm
15d | 4000ºK |
36d | 4000ºK |

Plaster-in frame: 110mm x 110mm

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

  • LED fitting removable from the plaster-in housing post installation
  • Driver fits through the cut-out hole diameter
  • Driver can be housed remotely from the fitting (check maximum distance with us)
Dimensions

Product dimensions: W.63mm x D.63mm x H.87mm

Cutout dimensions: W.66mm x H.66mm

Downloads
Delivery and warranty

Delivery varies for each product, please see product description

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.

For more information on our products and services please call 01189 882294 or email [email protected].
