Onok Click Surface Mounted Modular Track System Components

Manufacturer: Onok

£0.00001

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

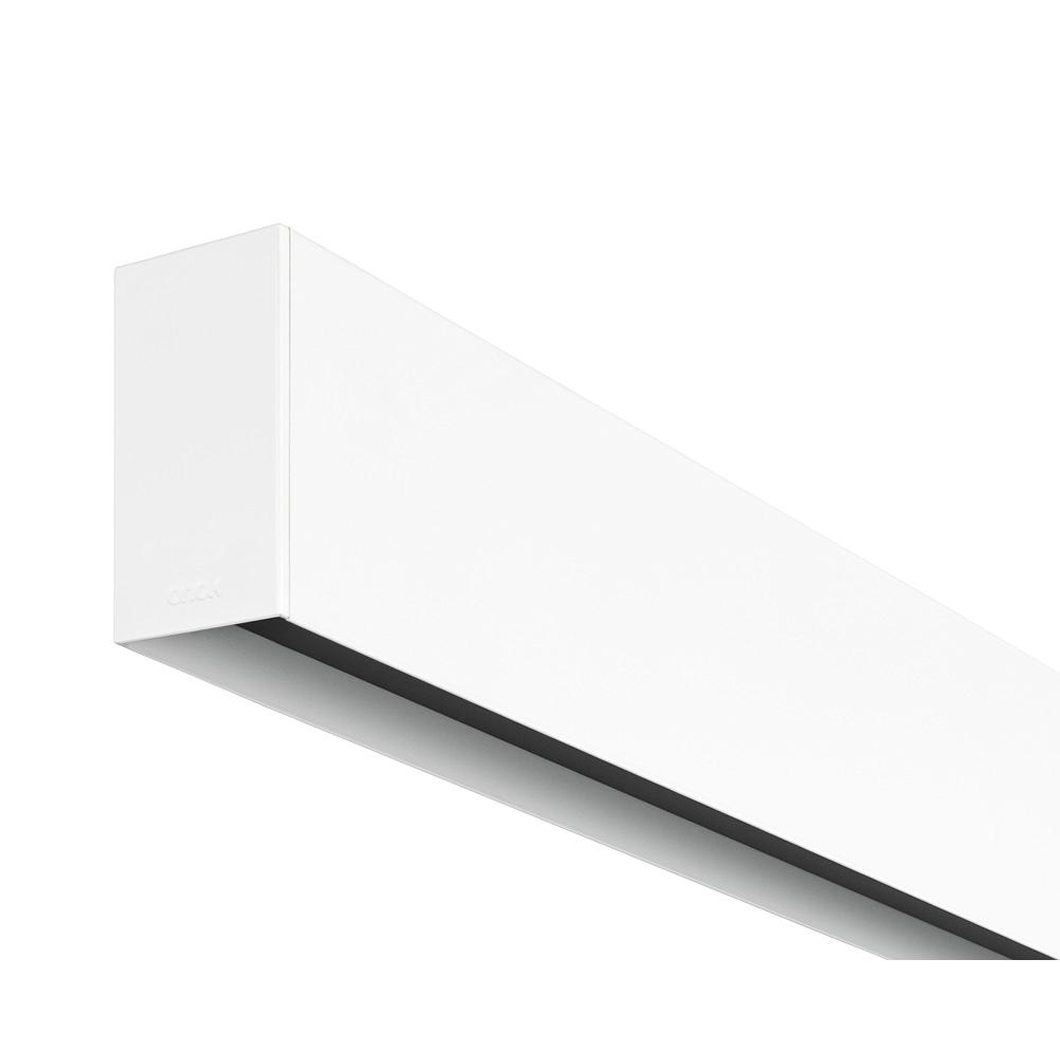

The Onok Click Surface Mounted Track is one of 3 versions of the Onok Click System. Equipped with a neat architectural design, there’s much versatility to the way it can be used depending on the type of modules you use and how many. The modules themselves can ‘click’ in with ease making it simple to assemble. Structure is available in satin black or satin white finishes. See 'Specification' tab for technical info on modules.

Additionally, the track is available in suspended and recessed versions.

For bespoke lengths of track, please contact us for more info.

Watch 'How Click System works' video:



Lightbulb with brain filament icon
- Our Top Tips -

  • Track sections come in 1 and 1.5 meters. They can be individual or can be assembled one after the other until the maximum of 6 meters. Every 6 meters may need a new feeding cable input.
  • 1 metre of track can hold up to 2 modules except for the Click Linear 1 metre module.
  • If there are areas of the track which you don't want modules at, we recommend filling them with the 'blind cover' segments for a more professional aesthetic.

How do I order a track? We know track lighting can be confusing so we've simplified it the best we can for you!

  • Use the dropdown options to select an individual component of the track system you want to build, along with the finish and a colour temperature (for modules) - then simply add to your basket with the desired quantity.
  • You can then continue to do this until all the required components for your system are in the basket. Once you're happy with everything selected, progress to the payment page.
  • It's as easy as that!
  • Of course, if you would like any help with anything, we are more than happy for you to email us at sales@darklightdesign.com or call us on 01189 882294
Specification

Track dimensions:
H.75mm, D.43mm, W.1000mm/1500mm/2000mm/2500mm/3000mm

Dot 5 module:
W.150mm
10W 700mA
[3000K 1079lm] / [4000K 1155lm] CRI90

1 meter sections of track can admit up to 2 of these modules, and 1.5 meter sections can admit up to 3 of these modules.

Dot 10 module:
W.300mm
20W 700mA
[3000K 2158lm] / [4000K 2310lm] CRI90

1 meter sections of track can admit up to 2 of these modules, and 1.5 meter sections can admit up to 3 of these modules.

Focus 1 module:
W.500mm, H.130mm, Dia.40mm
8.4W 700mA
[3000K 673lm] [4000K 722lm] CRI 90

1 meter sections of track can admit up to 2 of these modules, and 1.5 meter sections can admit up to 3 of these modules.

Focus 2 module:
W.500mm, H130mm, Dia.25mm
12.6W 500mA
[3000K 2x500lm] [4000K 2x541lm] CRI90

1 meter sections of track can admit up to 2 of these modules, and 1.5 meter sections can admit up to 3 of these modules.

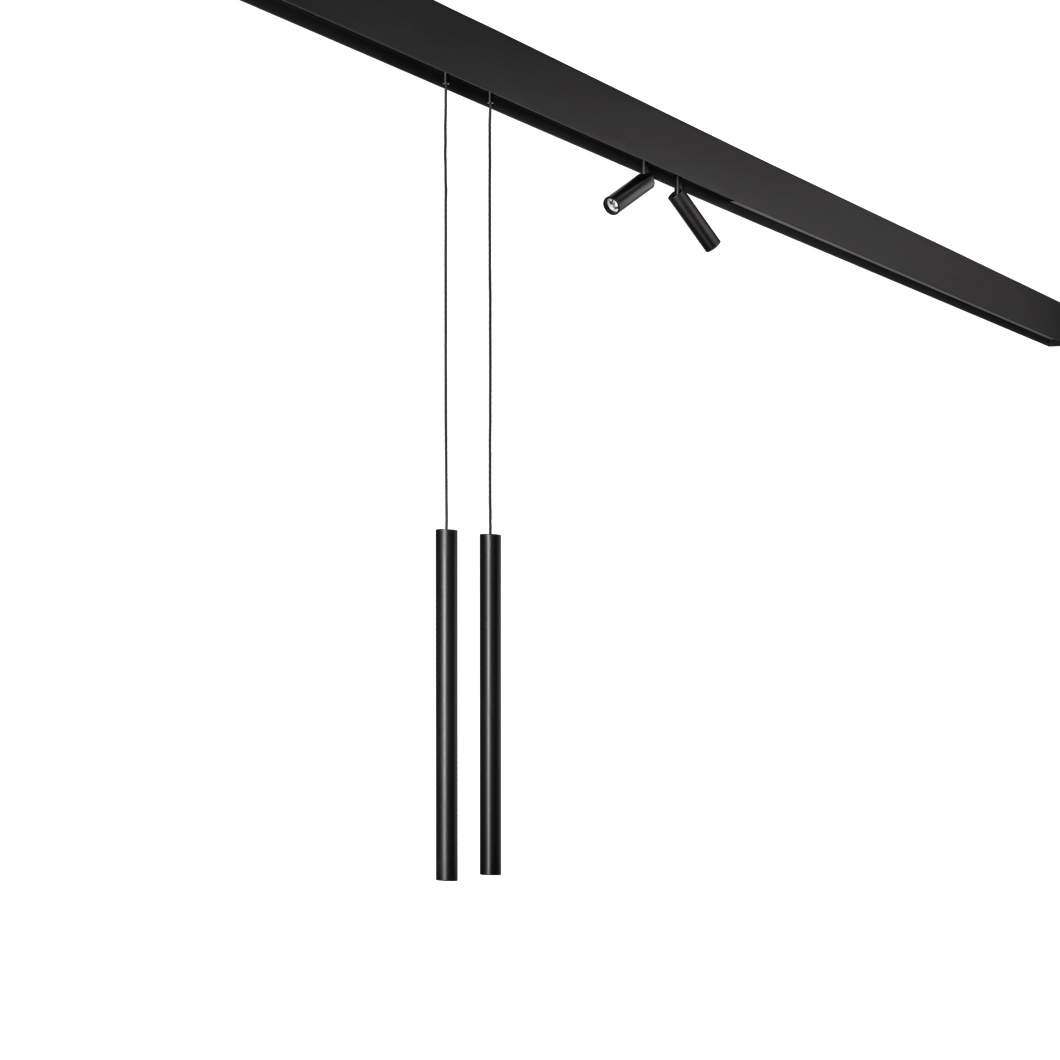

Tube 2 module:
W.500mm, H.1800mm, Dia.25mm
12.6W, 500mA
[3000K 2x500lm] [4000K 2x541lm] CRI90

1 meter sections of track can admit up to 2 of these modules, and 1.5 meter sections can admit up to 3 of these modules.

Linear module:
D.42mm
36.3W, 500mA
[3000K 5075lm] [4000K 5525lm] CRI85

Only suitable for 1.5m track sections and will not admit any other module in the same section.

Dimensions
Downloads
Delivery and warranty

Delivery usually within 1-2 weeks

About the manufacturer

Onok’s innovative ‘Click’ system helps you to achieve the exact lighting effect that you need. Using an almost endless combination of profiles and luminaires, you can customise your design by mixing surface mounted, recessed or suspended track modules with spotlights, downlights, linear luminaires and pendants. Founded back in 1994, the Spanish brand partners their own R&D department with laboratories, institutes and universities to perfect their functional and versatile products.

More sustainable than alternatives based on electrified tracks or magnetised modules, their aluminium extrusion track lighting system produces less waste – requiring lower temperatures - and uses less copper. Aesthetically speaking, the invisible union between luminaire and profile is a real selling point. Contemporary and minimalist in style, their technical lighting systems are ideal for highlighting painting or sculpture in museums and art galleries, or showcasing displays in retail spaces, showrooms and hotel foyers. Onok is a leading international designer, manufacturer and distributor of LED products, with a collection that spans both indoor and outdoor architectural lighting. One look at their superb range below and you’ll know you’re on the right track.
