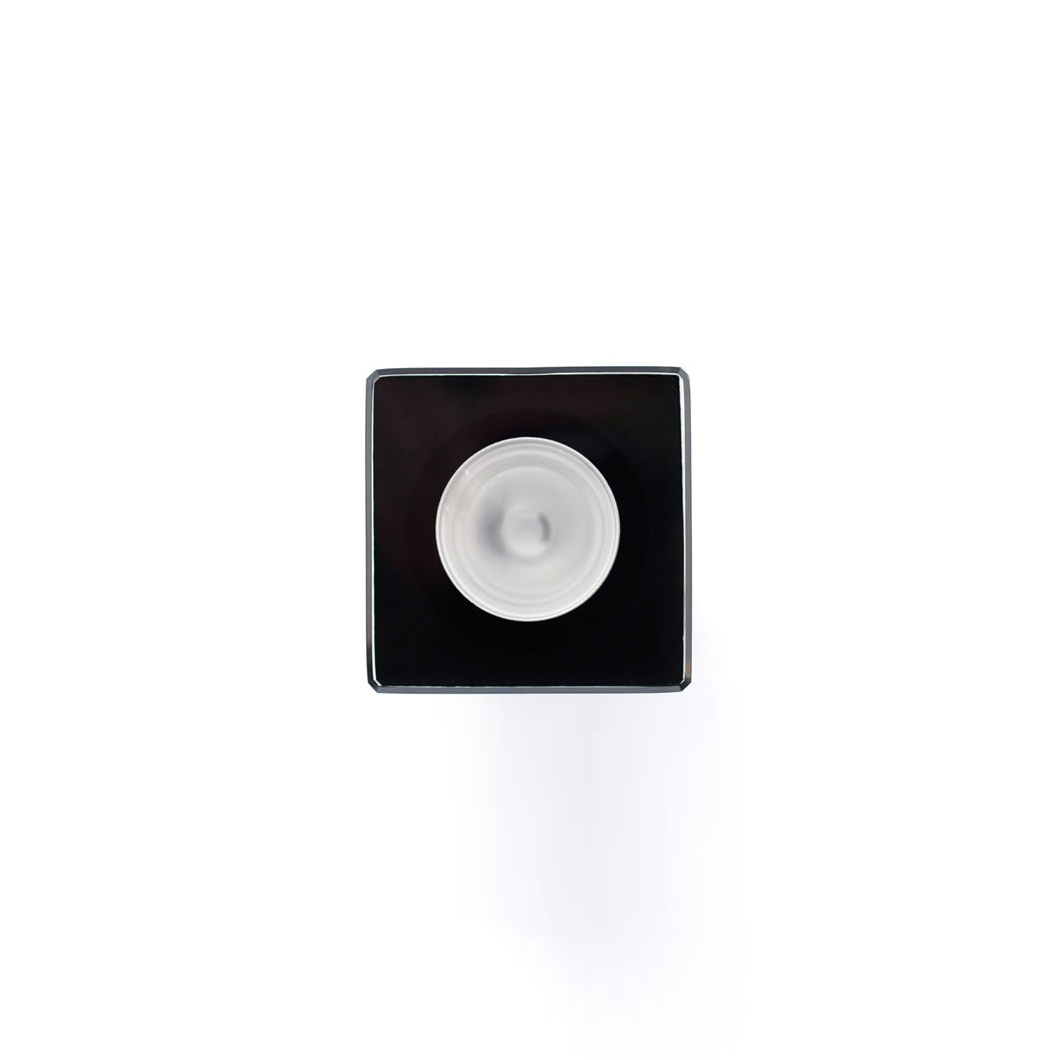

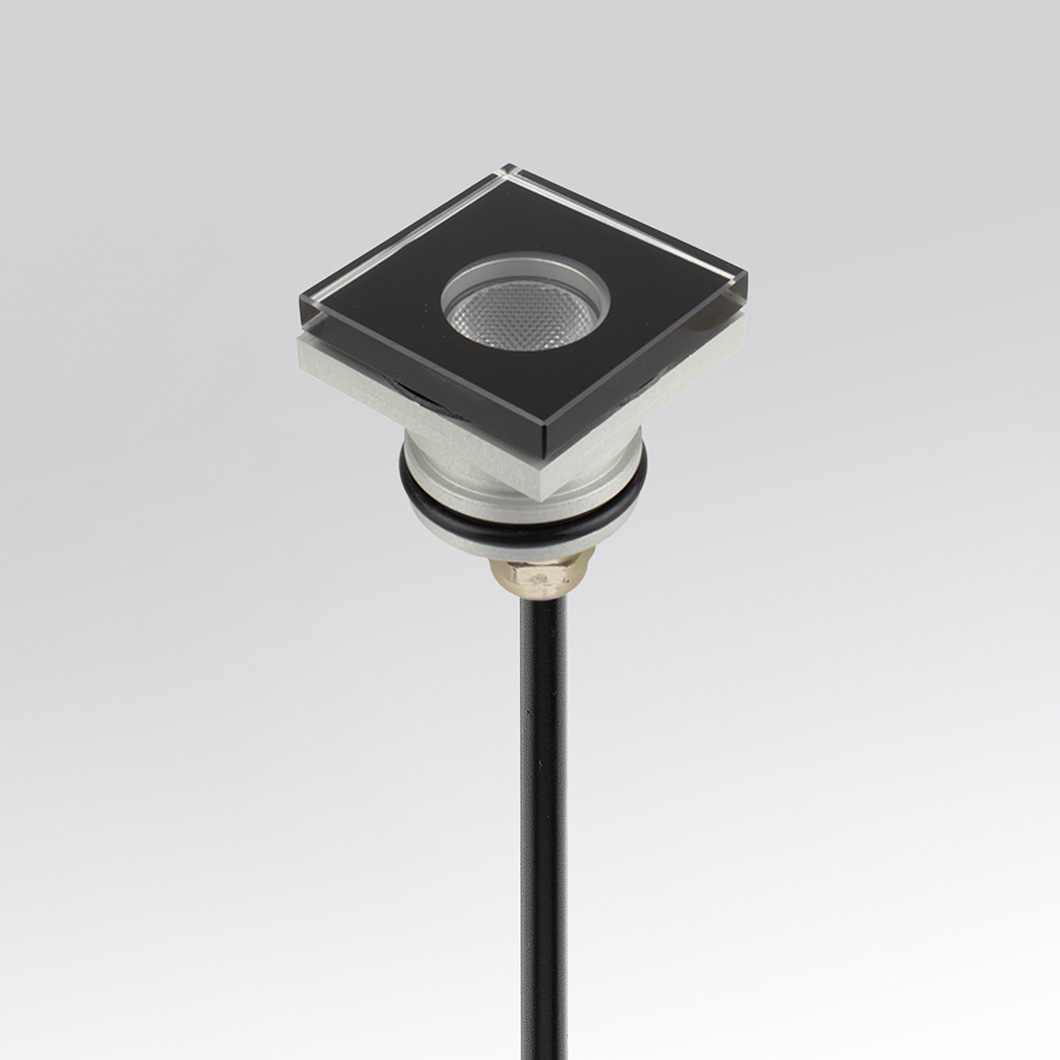

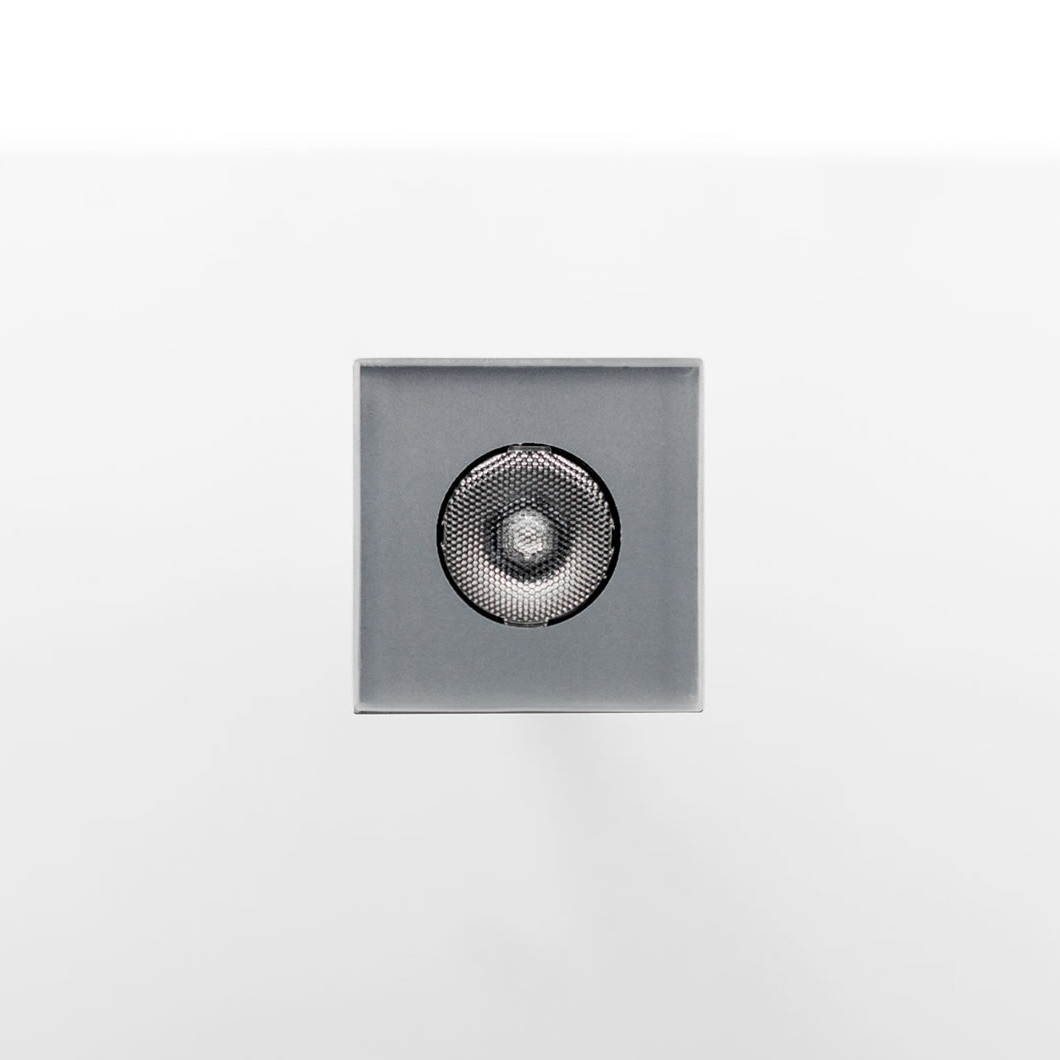

LLD Arke Square S Outdoor IP67 LED Recessed Path Light

Manufacturer: LLD Light

£158

Description

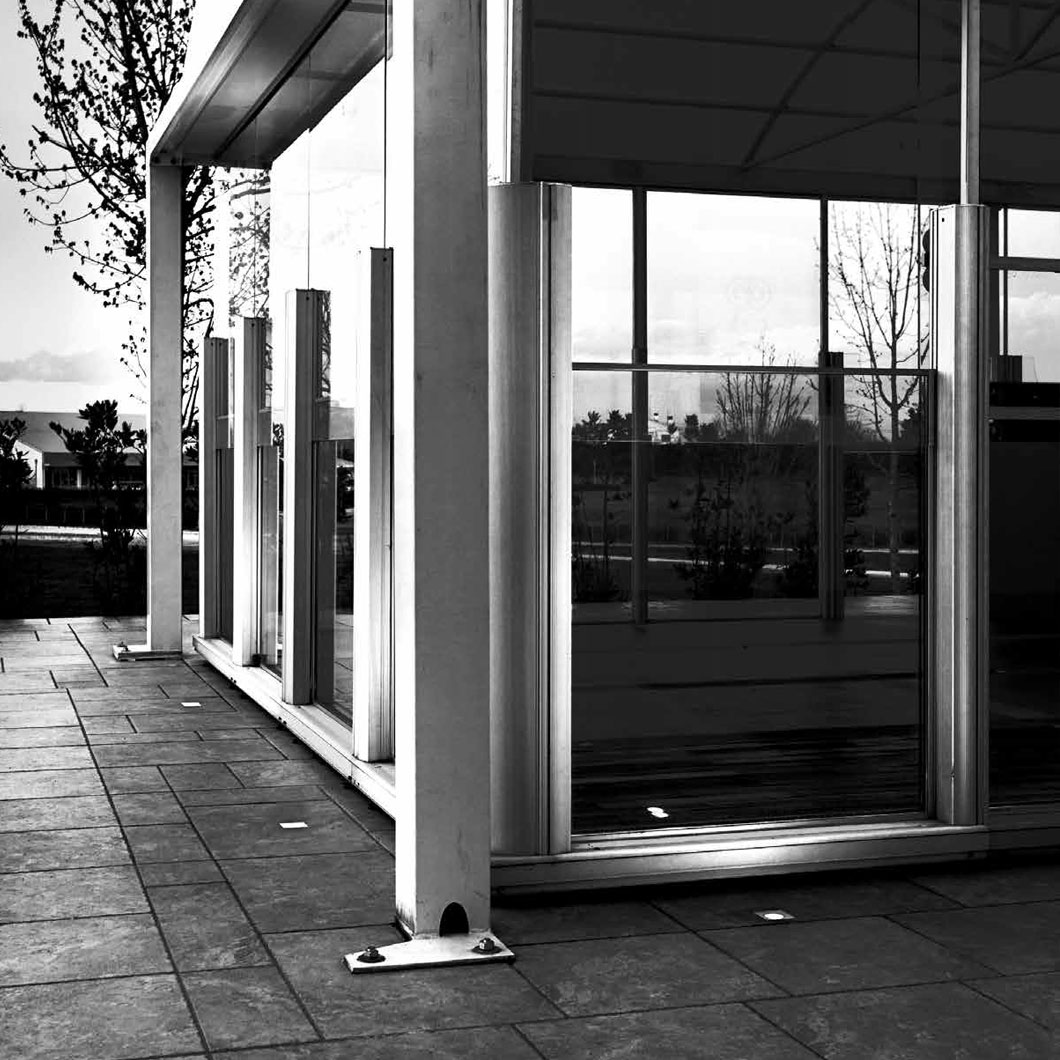

A versatile outdoor path light, the Arke Square S IP67 LED Recessed Path Light by LED Luce E Dintorni (LLD) has a minimal contemporary design. Suitable for wall or floor installation, Arke is amazing for lighting of paths, gardens, cobbled areas and porphyry stone floors. Available with a narrow 8° beam, a medium 23° beam or wider 43° beam, the Arke Square M has a rating of IP67 and can be walked upon.

An energy efficient 2W LED light source is utilised, along with a choice of 3000K or 4000K light temperatures. The 24VDC constant voltage Arke path light is made from anticorodal anodized aluminium with silk-screen printed tempered glass. Finished in matt white, matt grey or matt black. Supplied with a 500mm cable with WP System connection. The optional housing box should be used for installing Arke into the ground, allowing 30cm gravel drainage. Other sizes available - see below.

24VDC constant voltage driver (wired parallel) required. This fitting is compatible with non dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.

Delivery usually within 2 weeks

Specification

IP67
2W
Class III
500mm cable with Water Proof connection system
Push, 1-10V and DALI dimmable with compatible driver (not included)
Exposed lip depth: 12mm
Beam angle: 8°, 23°, 43°
Cutout: Ø32mm
Weight: 0.14kg
Walk-over: up to 500kg
30cm gravel drainage

24VDC constant voltage version - wired parallel

24VDC driver required

CCT | Lumens
3000°K | 170lm
4000°K | 180lm

Optional housing box (CAQ32): 43mm x 43mm D.123mm

Lamp type: LED 2W Lifespan 50,000hrs

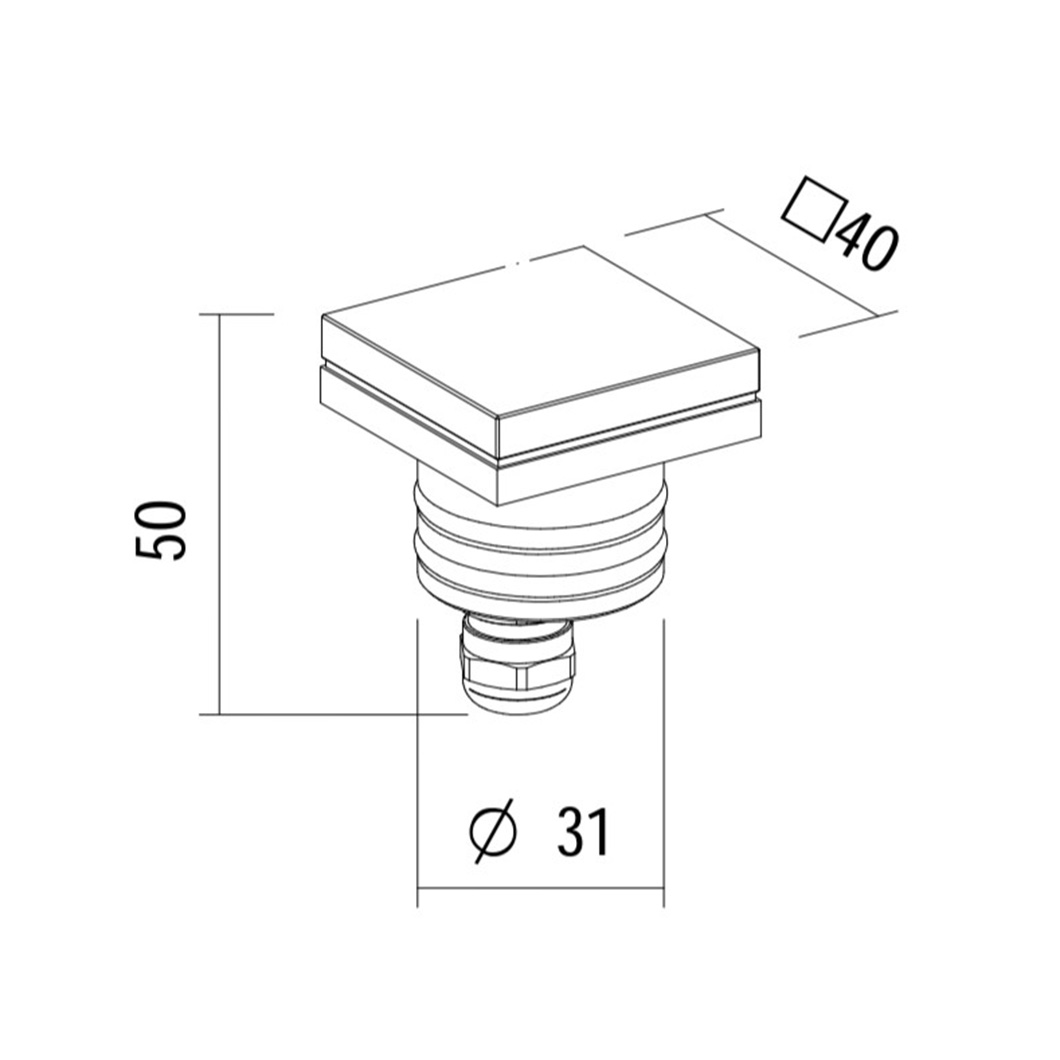

Dimensions

Product dimensions: W.40mm x D.40mm x H.58mm

Downloads
Delivery and warranty

Delivery usually within 2 weeks

Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:

  • damage caused by transport
  • the use of products in unsuitable environmental conditions
  • non-standard product use or stress including under/over voltage
  • damage caused by negligence or lack of maintenance
  • damage caused by the use of power supplies not provided or indicated by LLD Light
  • repair attempts or tampering performed by unauthorised staff
About the manufacturer

With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.

We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
