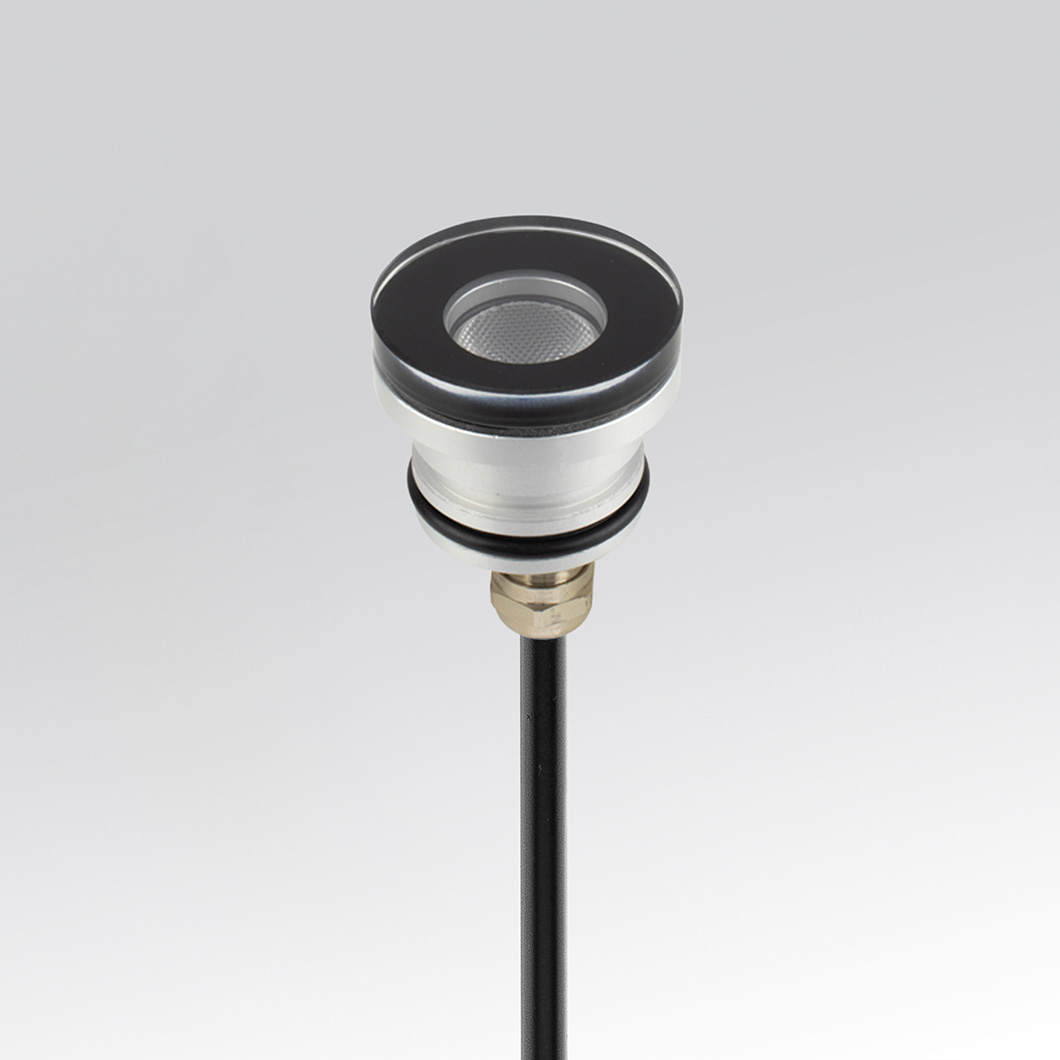

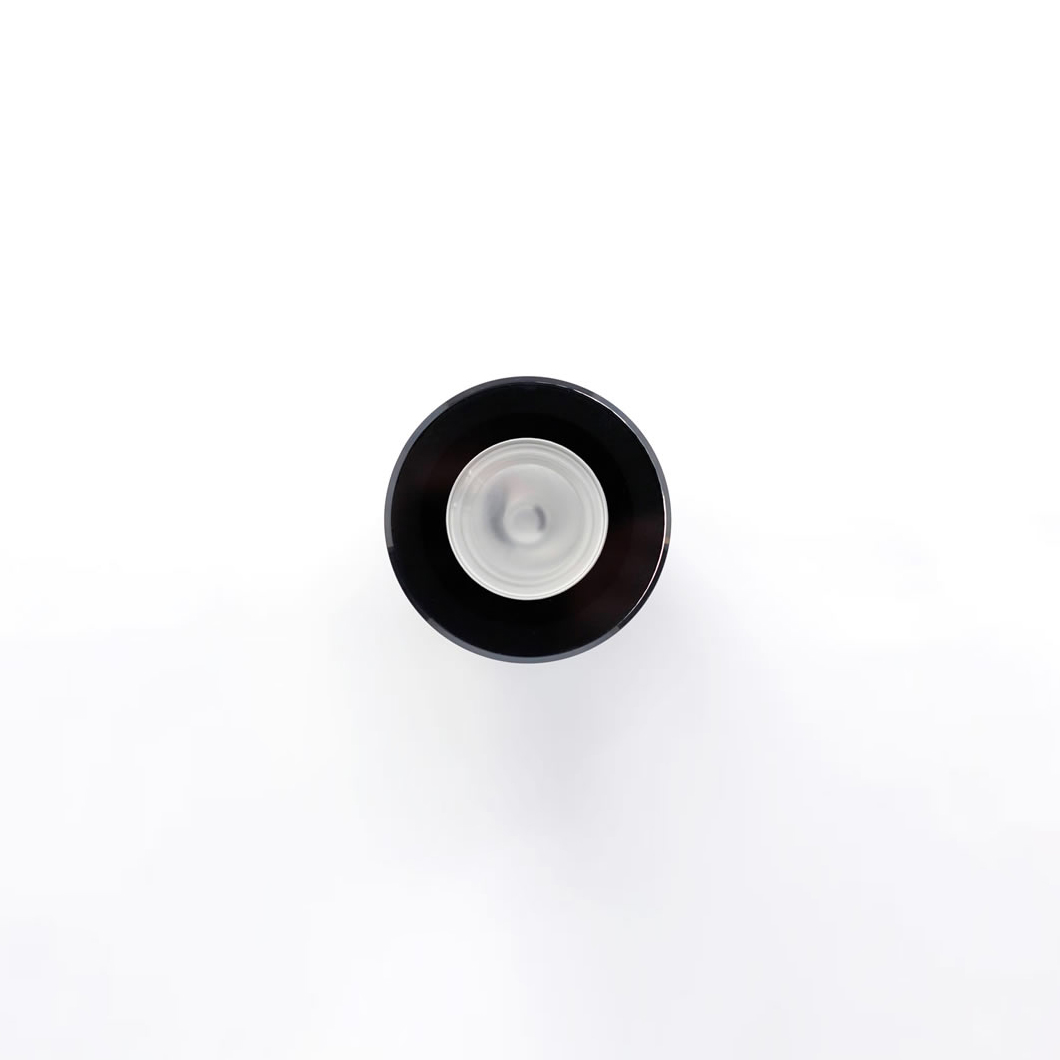

LLD Arke Round S Outdoor IP67 LED Recessed Path Light

Manufacturer: LLD Light

£144

Description

As an outdoor path light, the Arke Round S Outdoor IP67 LED Recessed Path Light by LED Luce E Dintorni (LLD) is versatile in its usage. With a choice of beams: a narrow 8°, a medium 23° or wider 43°, the Arke Round S has a rating of IP67 and can be walked upon. Arke can be installed in the wall or floor, ideal for lighting of paths, gardens, cobbled areas and porphyry stone floors.

The 24VDC constant voltage Arke path light uses an energy efficient 2W LED light source with a choice of 2700K, 3000K, 4000K, 5000K, red, green and blue light temperatures. The body is made from anticorodal anodized aluminium with silk-screen printed tempered glass. Finished in matt grey or matt black. Supplied with a 500mm cable with WP System connection. The optional housing box should be used for installing Arke into the ground, allowing 30cm gravel drainage. Other sizes available - see below.

24VDC constant voltage driver (wired parallel) required. This fitting is compatible with non dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.

Delivery usually within 2 weeks

Specification

IP67
2W
Class III
500mm cable with Water Proof connection system
Push, 1-10V and DALI dimmable with compatible driver (not included)
Exposed lip depth: 12mm
Beam angle: 8°, 23°, 43°
Cutout: Ø32mm
Weight: 0.13kg
Walk-over: up to 500kg
30cm gravel drainage

24VDC constant voltage version - wired parallel
24VDC driver required

CCT | Lumens
2700°K | 146lm
3000°K | 155lm
4000°K | 172lm
5000°K
Red
Green
Blue

Optional housing box (CAR32): Ø43mm D.123mm

Lamp type: LED 2W Lifespan 50,000hrs

Dimensions

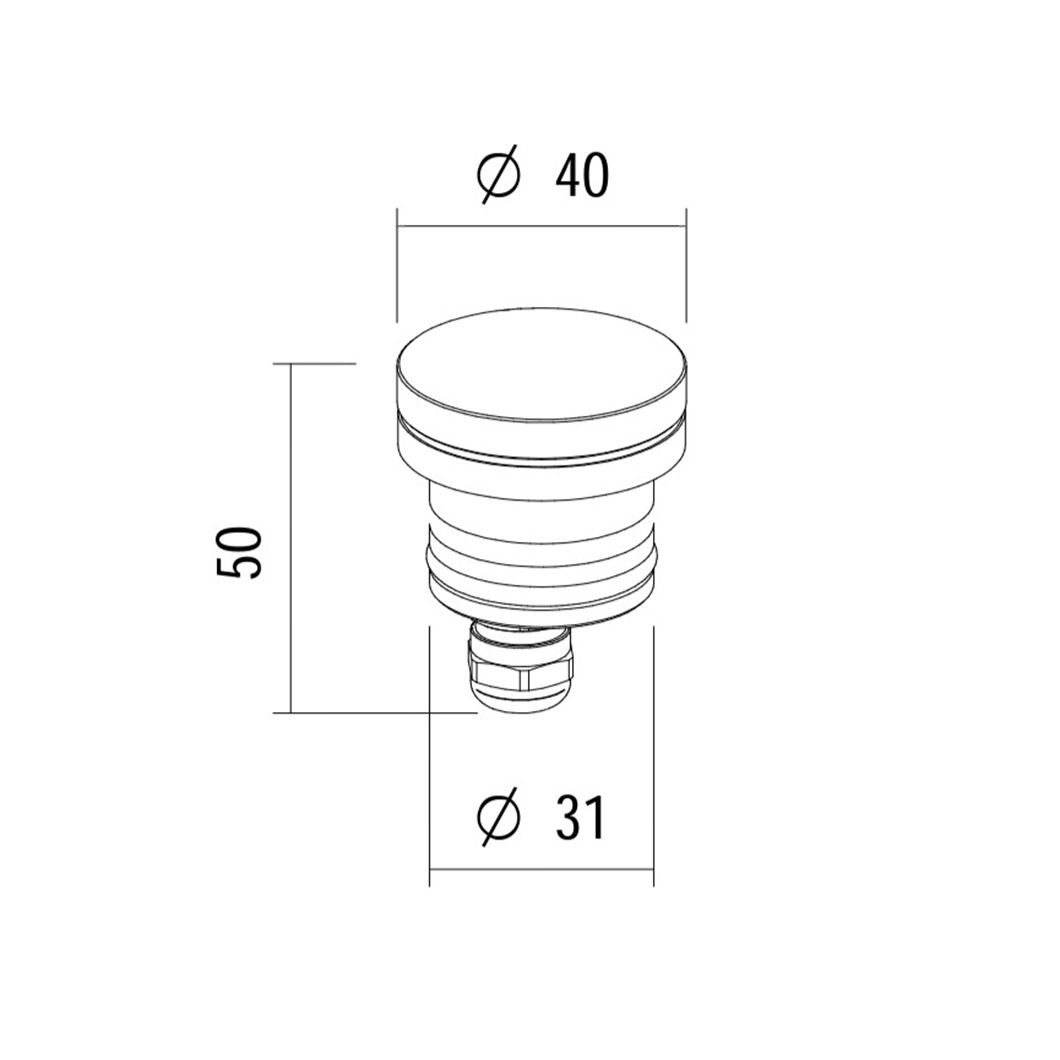

Product dimensions: H.58mm x Diameter.40mm

Downloads
Delivery and warranty

Delivery usually within 2 weeks

Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:

  • damage caused by transport
  • the use of products in unsuitable environmental conditions
  • non-standard product use or stress including under/over voltage
  • damage caused by negligence or lack of maintenance
  • damage caused by the use of power supplies not provided or indicated by LLD Light
  • repair attempts or tampering performed by unauthorised staff
About the manufacturer

With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.

We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
