- Description
-

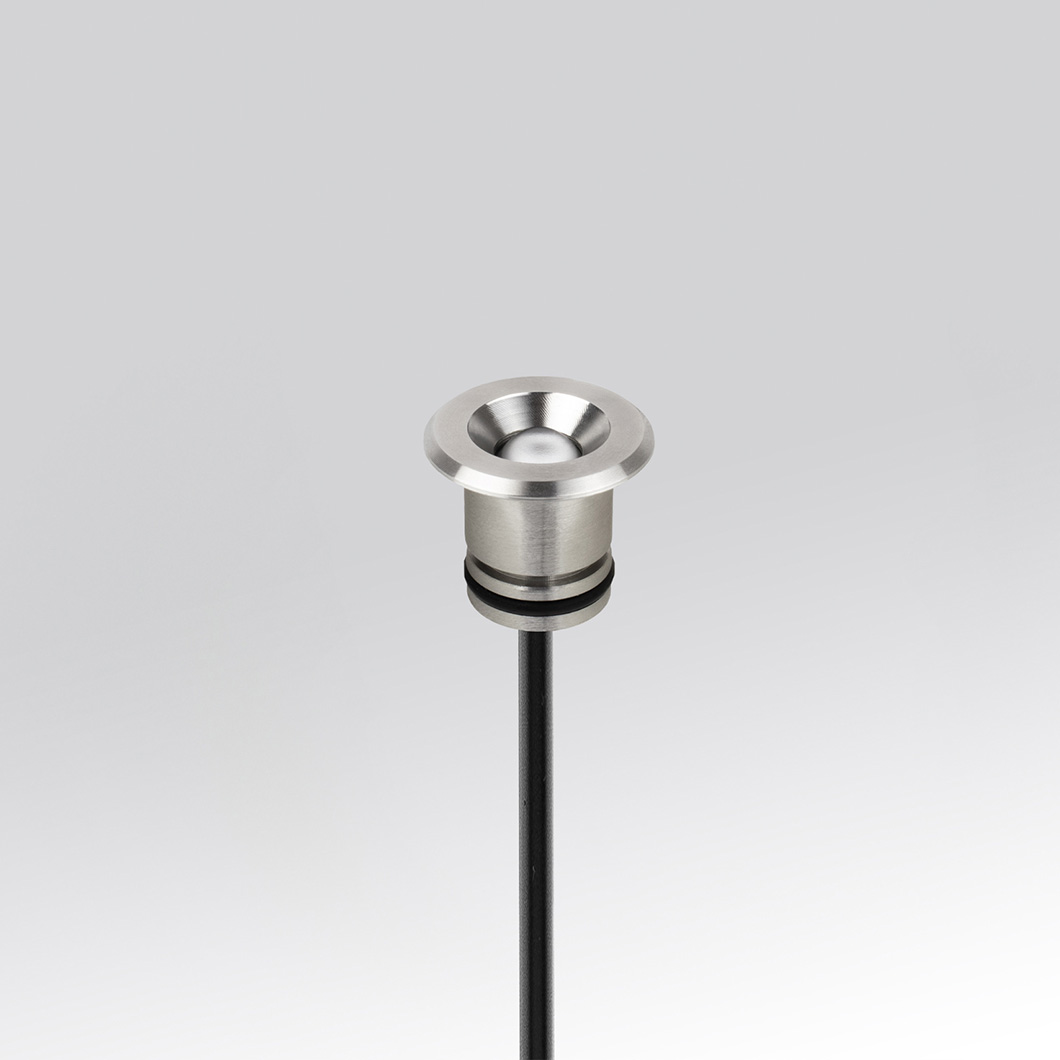

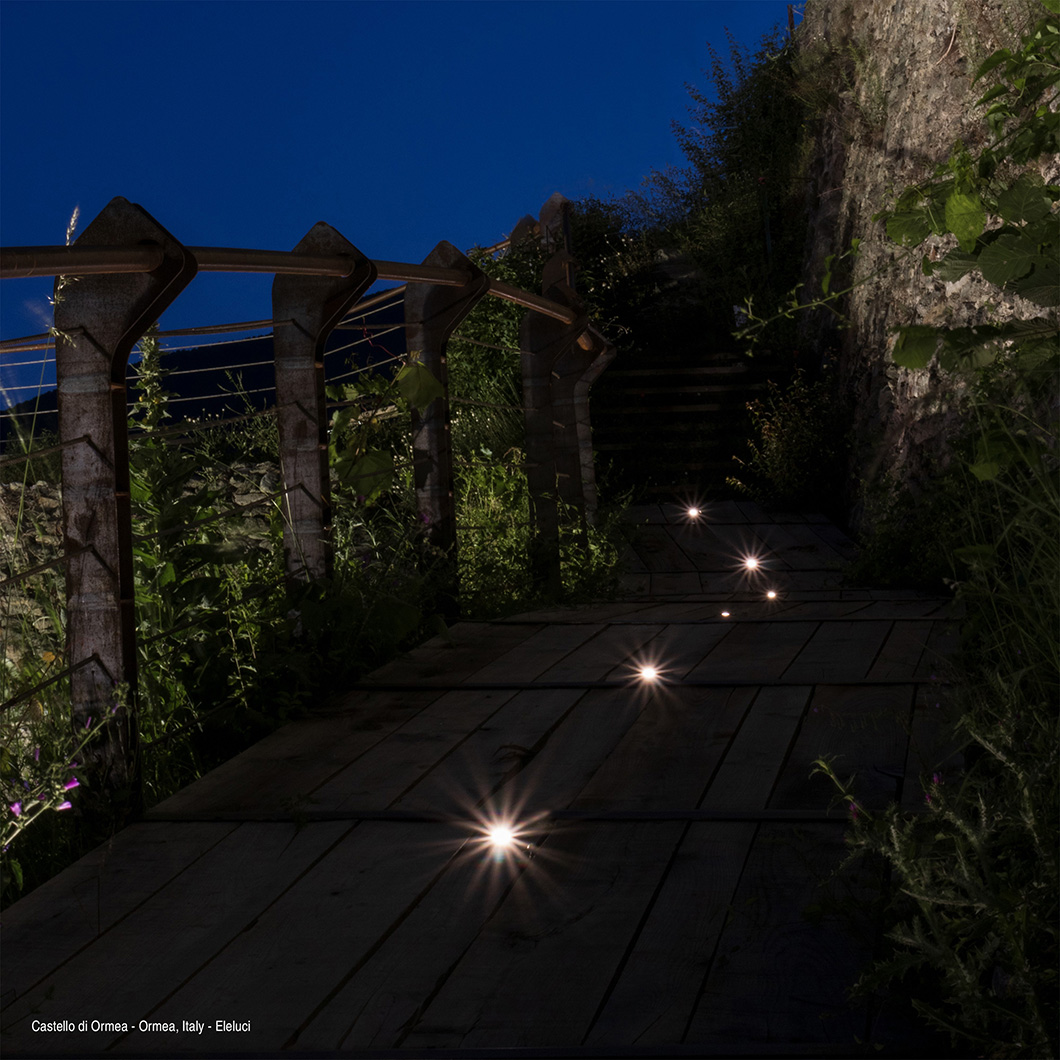

With a diameter of just over 2cm, the LLD Altea Micro Outdoor IP67 LED Recessed Floor Uplight is a sleek and sophisticated miniature outdoor luminaire. A fixed optic that is suitable for floor, wall or ceiling installation, the Altea Micro can be implemented to light pathways, steps and gardens as well as by the pool or a spa.
Altea Micro utilises an energy-efficient low-wattage 1W LED light source with a wide 60° beam angle. Available with 2200K, 2700K, 3000K, 4000K, red, green, or blue light temperatures, Atlea Micro is constructed from weatherproof AISI 316L stainless steel trim. Not suitable as a walk-over light fitting. Supplied with a 50cm, 5m, 10m, or 15m cable - optional housing box and torsion spring also available.
350mA constant current driver required. Dimmable with the correct dimmable driver.
Other sizes are available - see below in the 'More Like This' section.
- Specification
-
IP67
Anticorodal anodised aluminium body
Anodised aluminium or AISI 316L stainless steel trim
Transparent tempered glass and PMMA lens
Cable: 50cm, 5m, 10m, 15m
C.C.
1W
350mA not included
Connected in series
2200K / 2700K / 3000K / 4000K / RED/ GREEN / BLUE
CRI 80
Optics:
60°
Installation:
Recessed on ground with housing box (not included)
Recessed on plasterboard or wood with spring (not included)
Recessed on brickwork with housing box (not included)
Accessories:
Torsion spring (ML016)
Polypropylene housing box (CAS16): Ø16 x 80 x Ø19
Lamp type: LED 1W Lifespan 50,000hrs

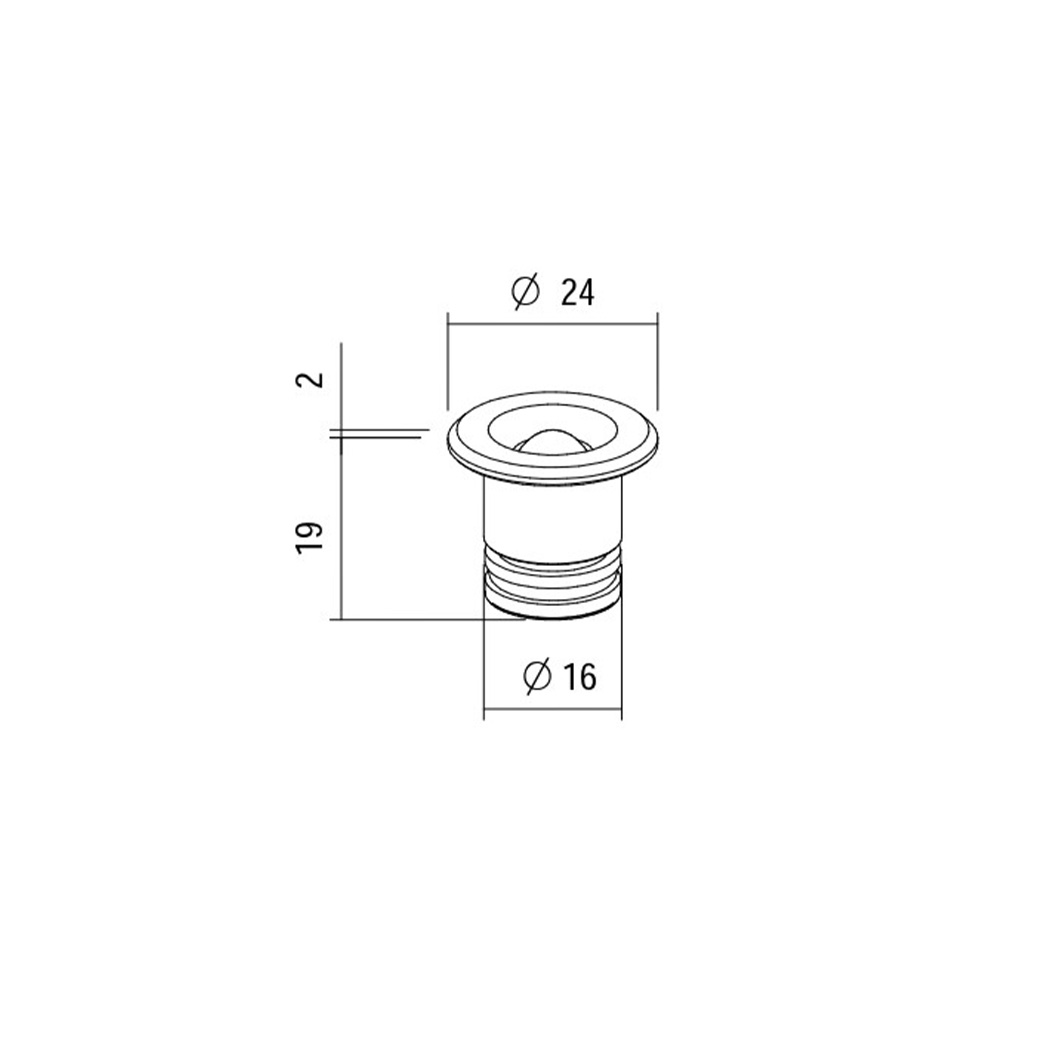

- Dimensions
-
Product dimensions: H.21mm x Diameter.24mm
Cutout dimensions: Dia.17mm
Lens dimensions: Dia.16mm
- Downloads
-
- Delivery and warranty
-
Delivery
Delivery usually within 2-3 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
Warranty
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
