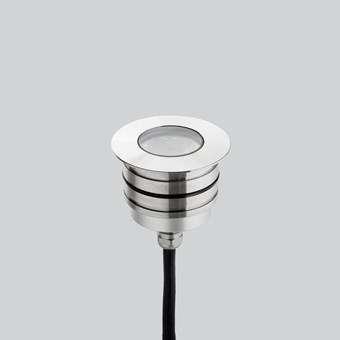

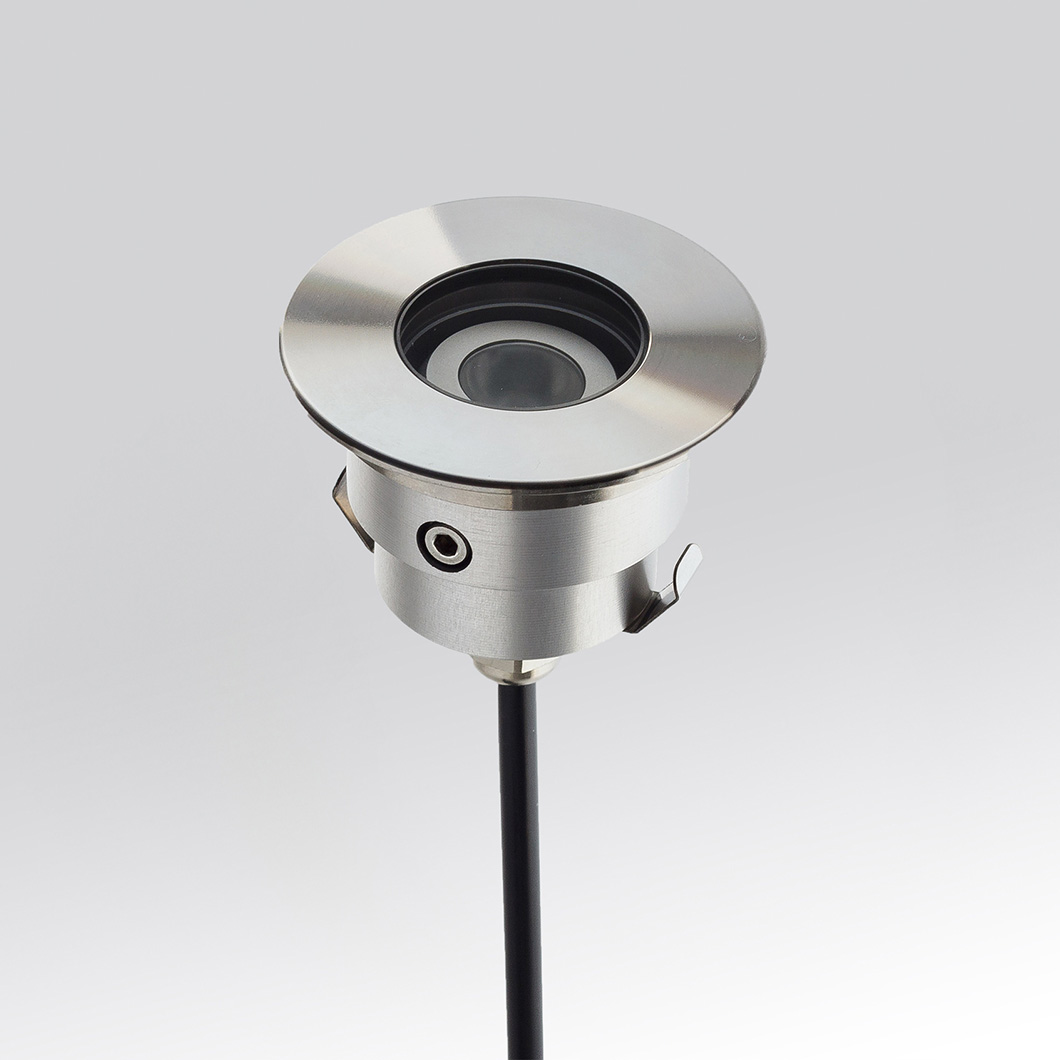

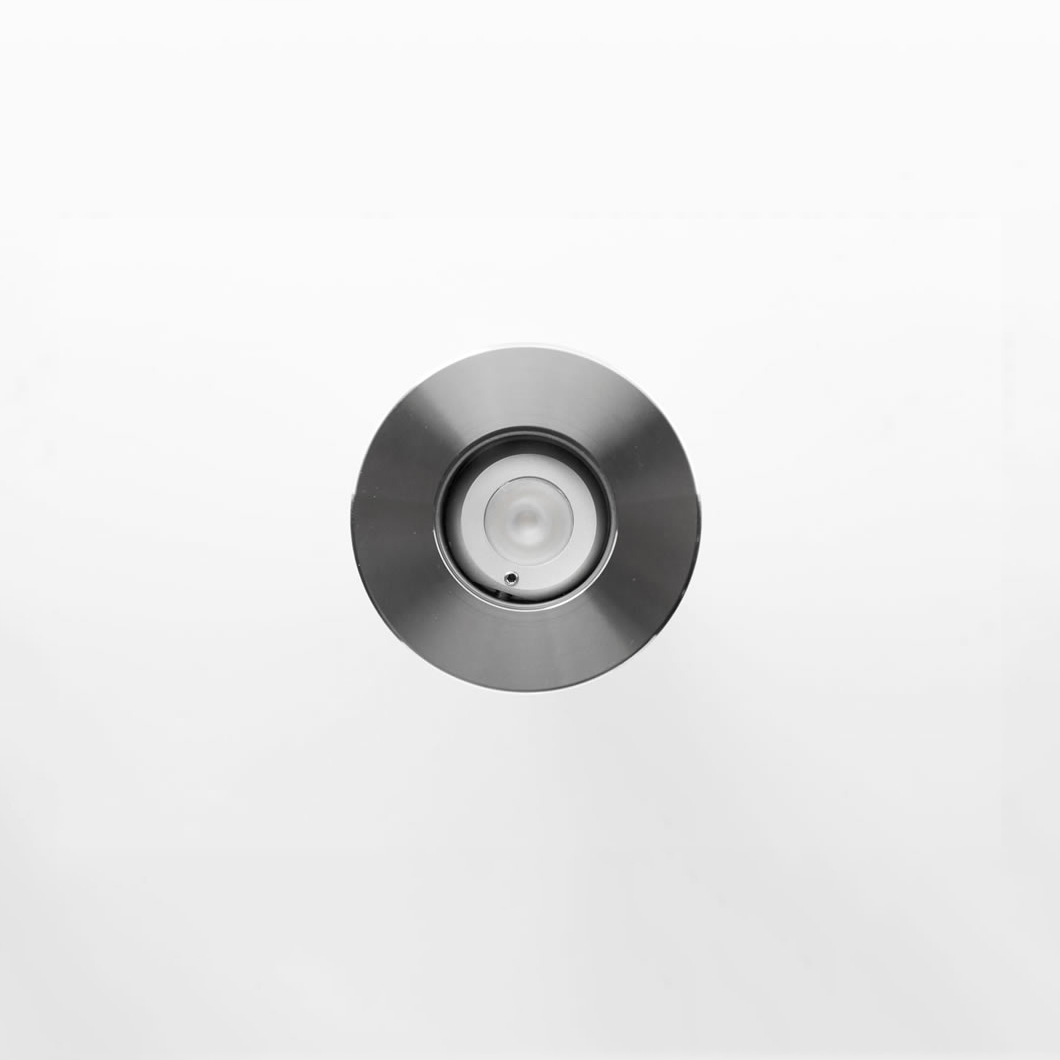

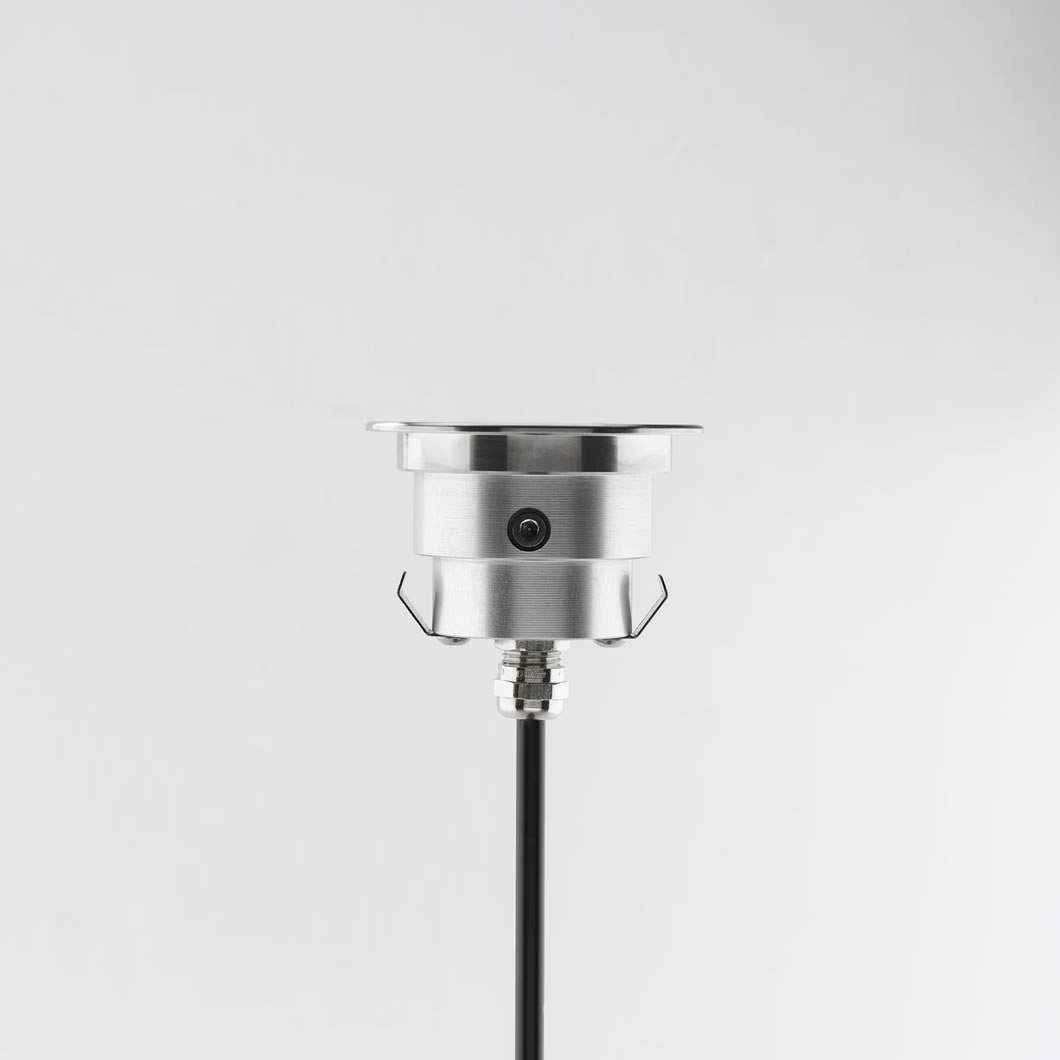

LLD Altea Maxi Round Adjustable Outdoor IP67 LED Recessed Floor Uplight

Manufacturer: LLD Light

£221

Description

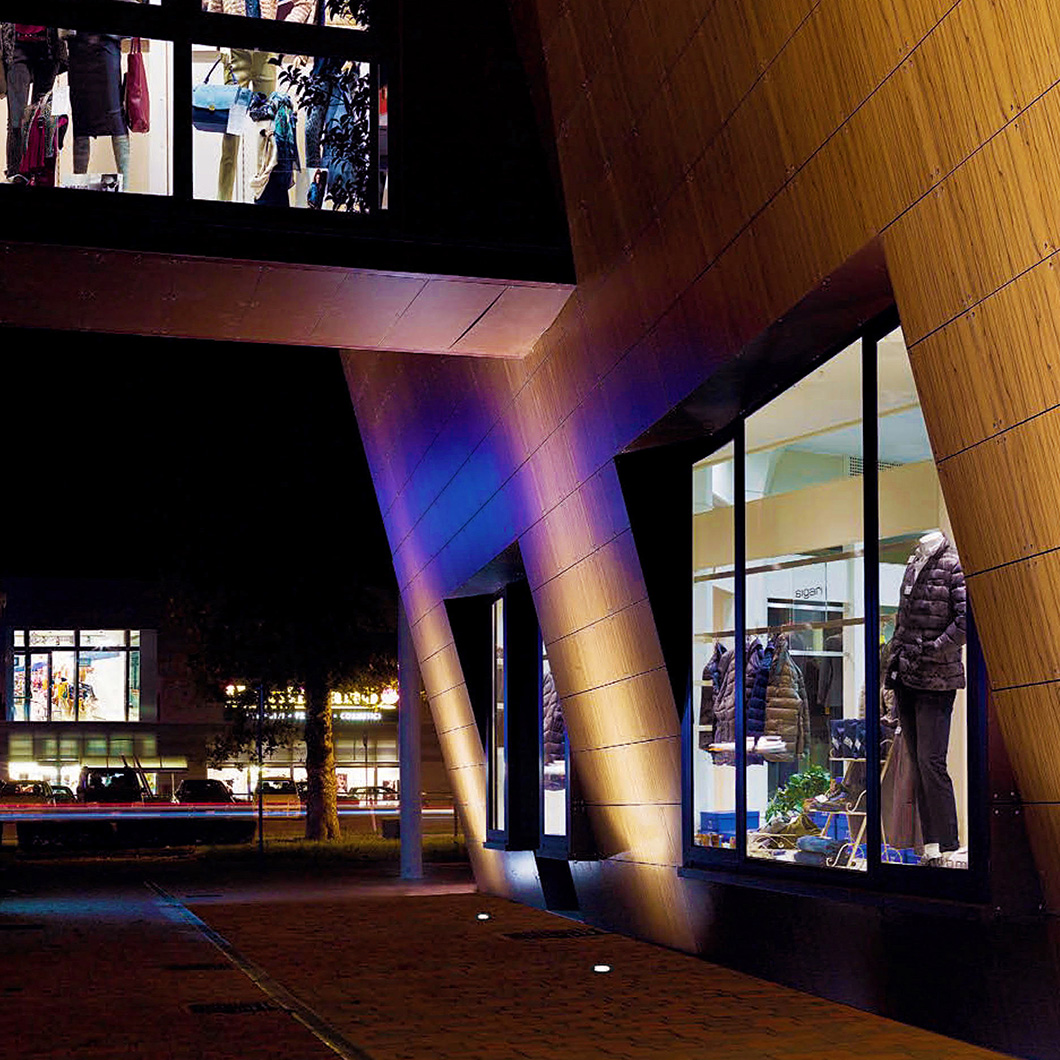

The LLD Altea Maxi Round Adjustable Outdoor IP67 LED Recessed Floor Uplight is a sleek and sophisticated outdoor luminaire that can take a walk-over weight up to 500kg. A fixed optic that is suitable for floor, wall or ceiling installation, the Altea has an IP67 rating that makes it suitable for lighting exterior pathways, steps and gardens. Adjustable with an Allen key set screw by 360° rotation and +/-15° tilt.

Altea Round Adjustable utilises an energy efficient low wattage 2W LED light source with 10°, 36° or 60° beam angle. Available in constant current or 24VDC constant voltage versions, and with a choice of 2700K, 3000K, 4000K, 5000K, red, green or blue light temperature. Constructed from an anticorodal aluminium body with weatherproof AISI 316L stainless steel trim & a tempered transparent glass / PMMA lens. Finished in steel or brushed steel. Supplied with a 500mm cable with WP System connection. The optional housing box should be used for installing Altea into brickwork or the ground. Other sizes available - see below.

Constant current 500mA  driver (wired in series) or 24VDC constant voltage driver (wired parallel) required. This fitting is compatible with non dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.

Delivery usually within 2 weeks

Specification

IP67
2W
CC 500mA | CV 24VDC
Class III
500mm cable with Water Proof connection system
Push, 1-10V and DALI dimmable with compatible driver (not included)
Lens diameter: Ø35mm

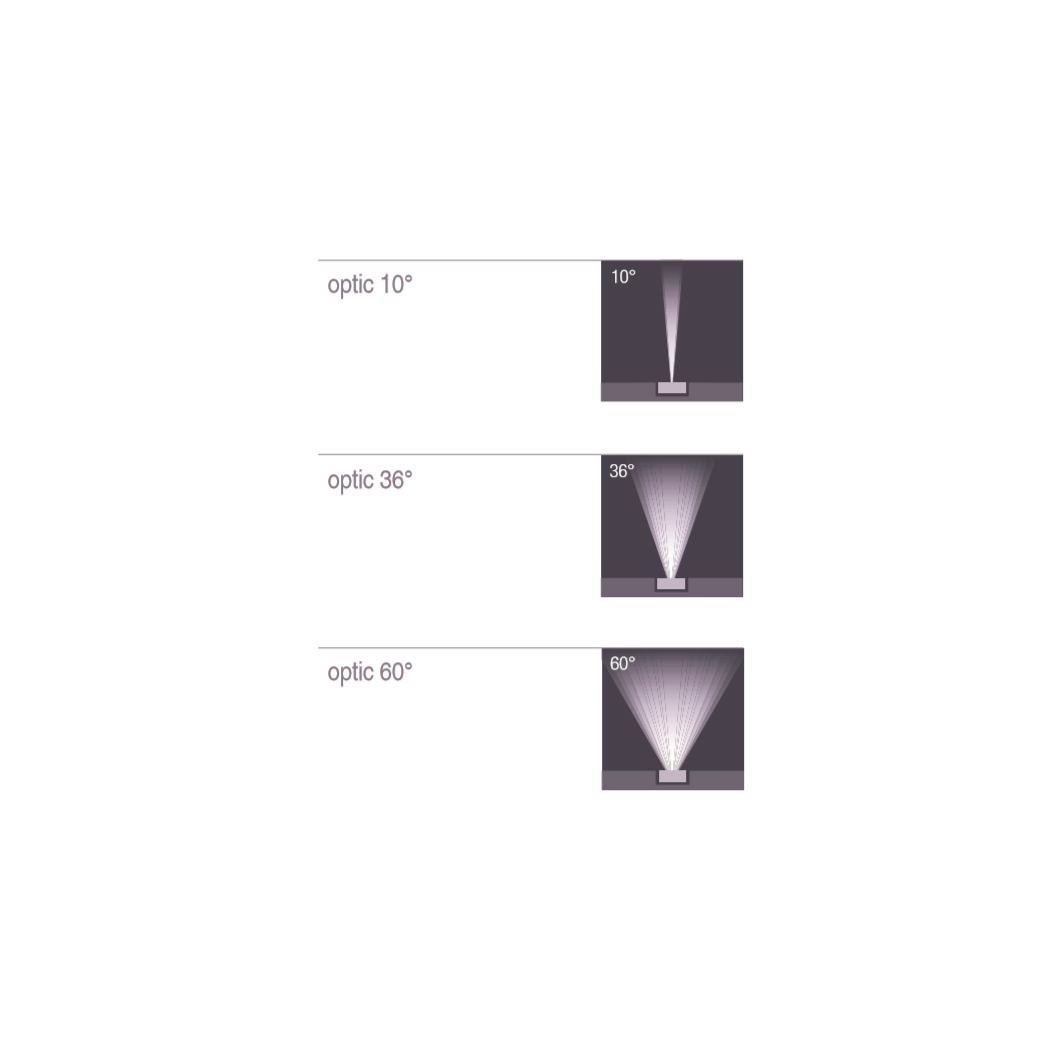

Beam angle: 10° | 36° | 60°
Adjustable rotation: 360°
Adjustable tilt: +/-15°
Cutout: Ø57mm
Walk-over: up to 500kg
30cm gravel drainage

Constant current version - wired in series
2W 500mA driver required

24VDC constant voltage version - wired parallel
2W 24VDC driver required

CCT | Lumens
2700°K | 146lm
3000°K | 155lm
4000°K | 172lm
5000°K
Red
Green
Blue

Optional housing box (CA050): Ø60mm D.100mm

Lamp type: LED 2W Lifespan 50,000hrs

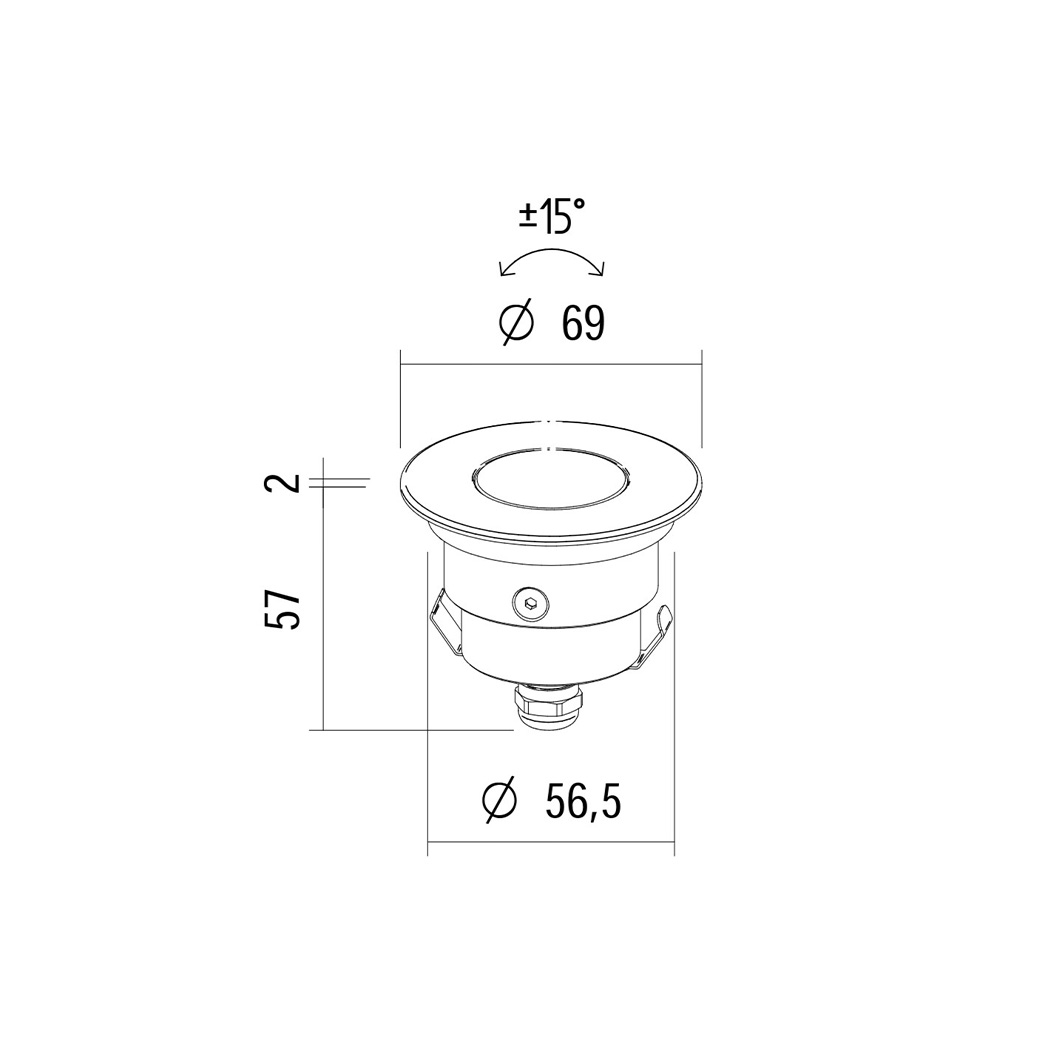

Dimensions

Product dimensions: H.57mm x Diameter.69mm

Downloads
Delivery and warranty

Delivery usually within 2 weeks

Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:

  • damage caused by transport
  • the use of products in unsuitable environmental conditions
  • non-standard product use or stress including under/over voltage
  • damage caused by negligence or lack of maintenance
  • damage caused by the use of power supplies not provided or indicated by LLD Light
  • repair attempts or tampering performed by unauthorised staff
About the manufacturer

With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.

We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
