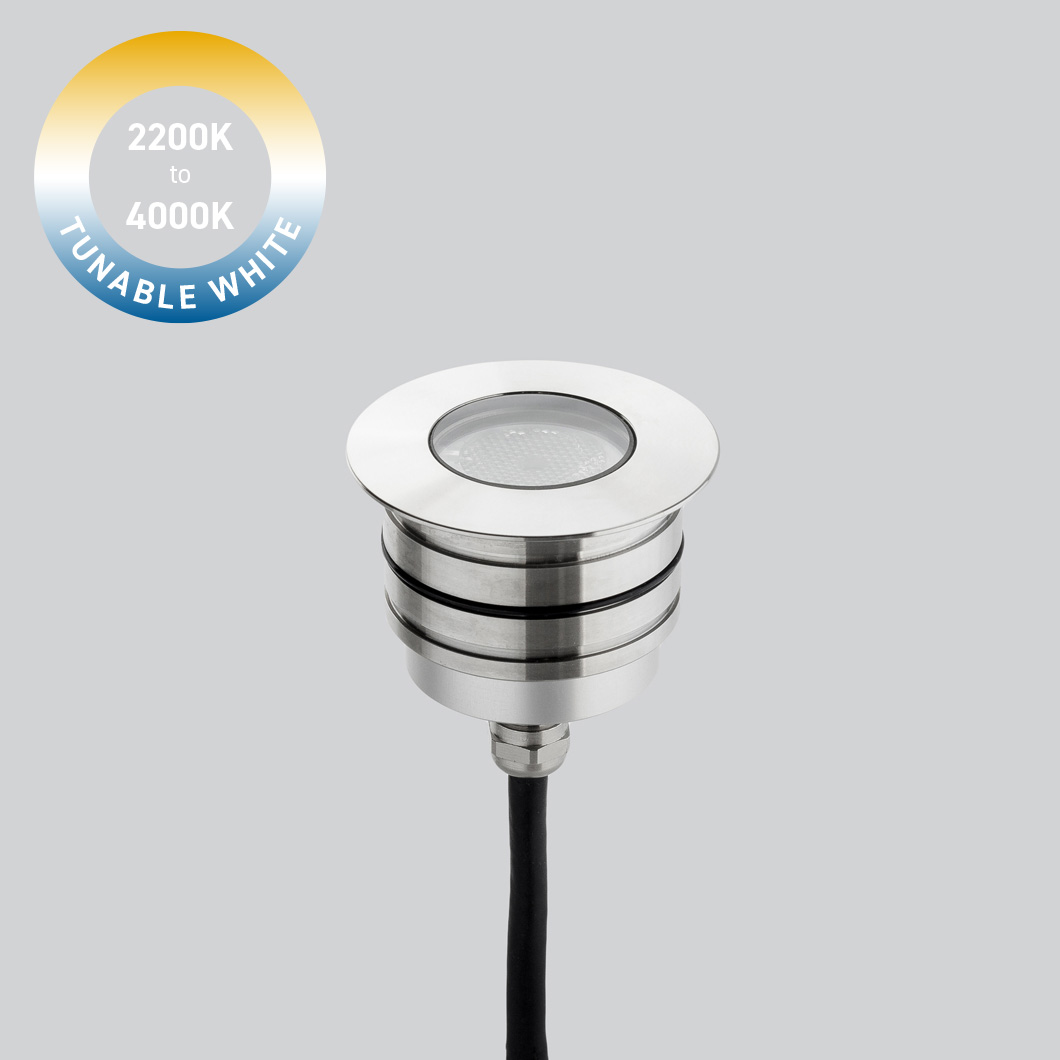

LLD Altea Maxi Round TW Outdoor IP67 Tunable White 2200-4000K LED Recessed Floor Uplight

The tunable white version of the popular Altea Maxi Round LED outdoor recessed floor uplight, the same sleek and sophisticated design now with adjustable LED from 2200K through to 4000K. With a waterproof IP67 rating and a drive-over weight up to 2000kg, the fixed optic Altea Maxi is suitable for floor, wall or ceiling installation and perfect for human centric projects that need lighting for exterior drives, pathways, steps and gardens.

State-of-the-art technology
Altea Maxi Round utilises an energy efficient low wattage 4W - 8W tunable white LED light source with a medium 30° or 40°, wider 64° or diffused beam angle. The tunable white LED can display any white light temperature between 2200K and 4000K, which can be preprogrammed using compatible drivers and software to automatically be in time with our natural circadian rhythm.

High quality materials
Constructed from an anticorodal aluminium body with weatherproof AISI 316L stainless steel trim & a tempered transparent glass / PMMA lens. Finished in anodised aluminium, steel or brushed steel. Supplied with a 50cm cable with WP System connection. The optional spring fitting should be used for installation into plasterboard or wood. The optional housing box should be used for installing Altea into the ground.

Compatible tunable white constant current driver (wired in series) required. This fitting is compatible with DALI dimmable and Casambi drivers.

About tunable white LED
Also known as variable white, dim-to-white, or custom temperature lighting, tunable white LEDs allow the light colour to be adjusted - usually from warm 2700K white, to a neutral 4000K white, through to a cool 6500K white. A flexible lighting solution that is perfect for human centric lighting schemes, the fitting easily switches from warm to cool depending on whether you need a calm ambiance or specific lighting for a task, usually automatically programmed to provide the correct white light temperature for the time of day. This fitting can be adjusted from 2200K to 4000K.

Read more about the benefits of tunable white lighting

IP67
IK08
Water-proof cable: 50cm
Cutout: Ø53mm

Constant current
4W - 350mA
8W - 700mA
Connected in series

LED: Tunable white 2200K - 4000K

Luminous flux:
2200K, 2W, 30° - 130lm
2200K, 4W, 30° - 179lm
4000K, 2W, 30° - 260lm
4000K, 4W, 30° - 359lm

Optics: 30°, 40°, 64°, diffused

Finish | Weight:
01. Anodised Aluminium | 0.23kg
06. Stainless Steel | 0.31kg
10. Brushed Steel | 0.31kg

Materials:
- Anticorodal anodized aluminium body
- Anodized aluminium or AISI 316L stainless steel trim
- Transparent tempered glass and PMMA lens

Accessories:
Torsion spring (ML053): Ø47 x 86 x 29
Housing box PVC (CAW53): Ø60 X 120
Housing box ABS (CAI53): Ø100 x Ø58
Honeycomb filter (HC) - with 16°, 30°, 40°, 64°, 16°x 40° lens only

Product dimensions: H.63mm x Diameter.60mm

Cutout dimensions: Dia.53mm

• Data Sheet | Altea Maxi R TW | PDF
• Altea Installation Instructions PDF
• Info on WP Water Protection System PDF
• Data Sheet | Sunricher Casambi Driver | PDF
• L-Tech NFC programmable DALI Driver PDF

 Delivery

Delivery currently around 6 weeks

 Warranty

Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:

• damage caused by transport
• the use of products in unsuitable environmental conditions
• non-standard product use or stress including under/over voltage
• damage caused by negligence or lack of maintenance
• damage caused by the use of power supplies not provided or indicated by LLD Light
• repair attempts or tampering performed by unauthorised staff

With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.

We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
