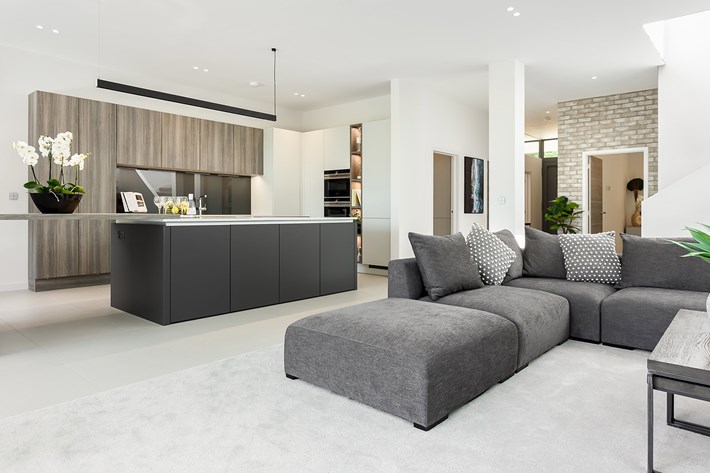

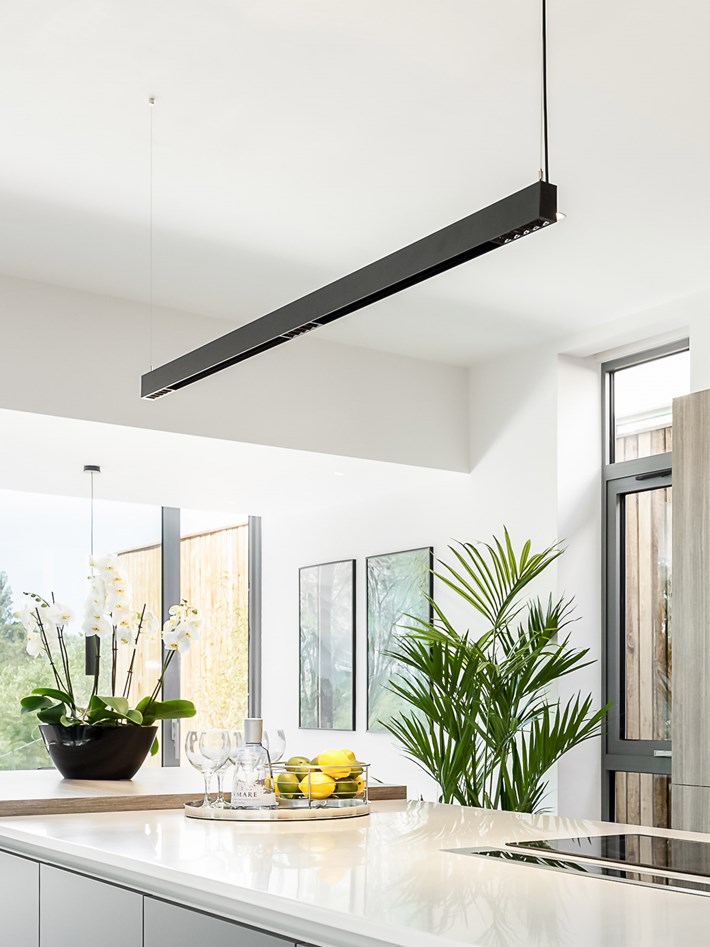

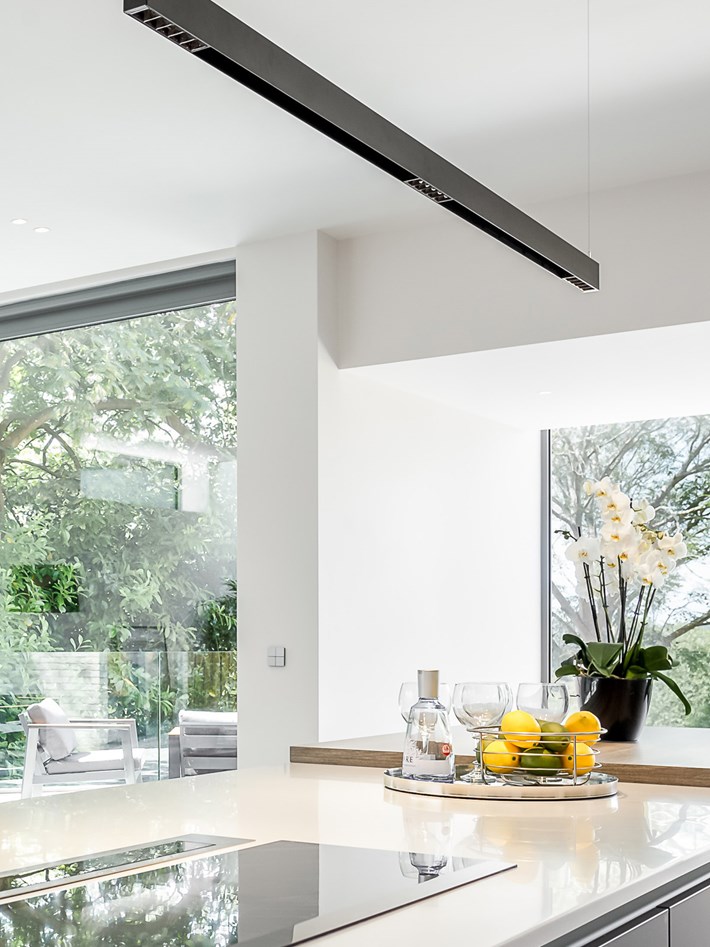

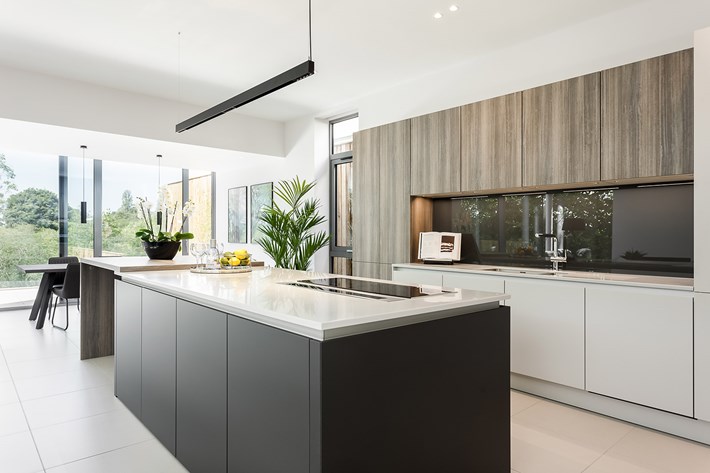

DLD Shadowline architectural modular track system in black, suspended over a kitchen worktop with modular downlights fitted
DLD Shadowline Suspension Track System Package| Image:1
DLD Shadowline Suspension Track System Package| Image:2
DLD Shadowline Suspension Track System Package| Image:3
DLD Shadowline Suspension Track System Package| Image:4
DLD Shadowline Suspension Track System Package| Image:5
DLD Shadowline Suspension Track System Package| Image:6
DLD Shadowline Suspension Track System Package| Image:7

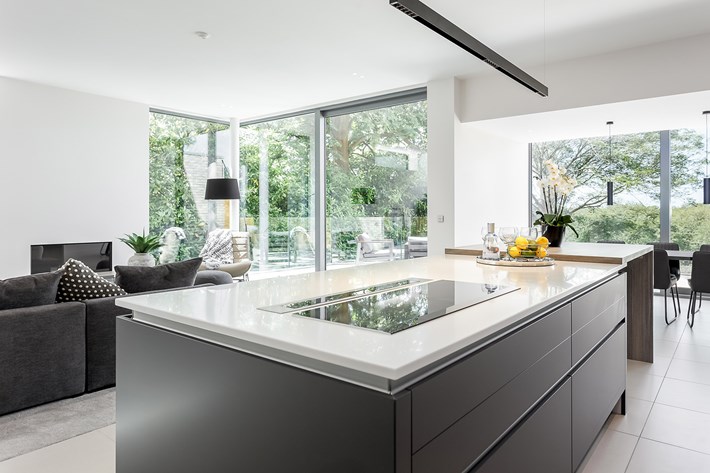

DLD Shadowline architectural modular track system in black, suspended over a kitchen worktop with modular downlights fitted
DLD Shadowline Suspension Track System Package| Image:0
DLD Shadowline Suspension Track System Package| Image:1
DLD Shadowline Suspension Track System Package| Image:2
DLD Shadowline Suspension Track System Package| Image:3
DLD Shadowline Suspension Track System Package| Image:4
DLD Shadowline Suspension Track System Package| Image:5
DLD Shadowline Suspension Track System Package| Image:6

DLD Shadowline Suspension Track System Package

Manufacturer: DLD Architectural

£550

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

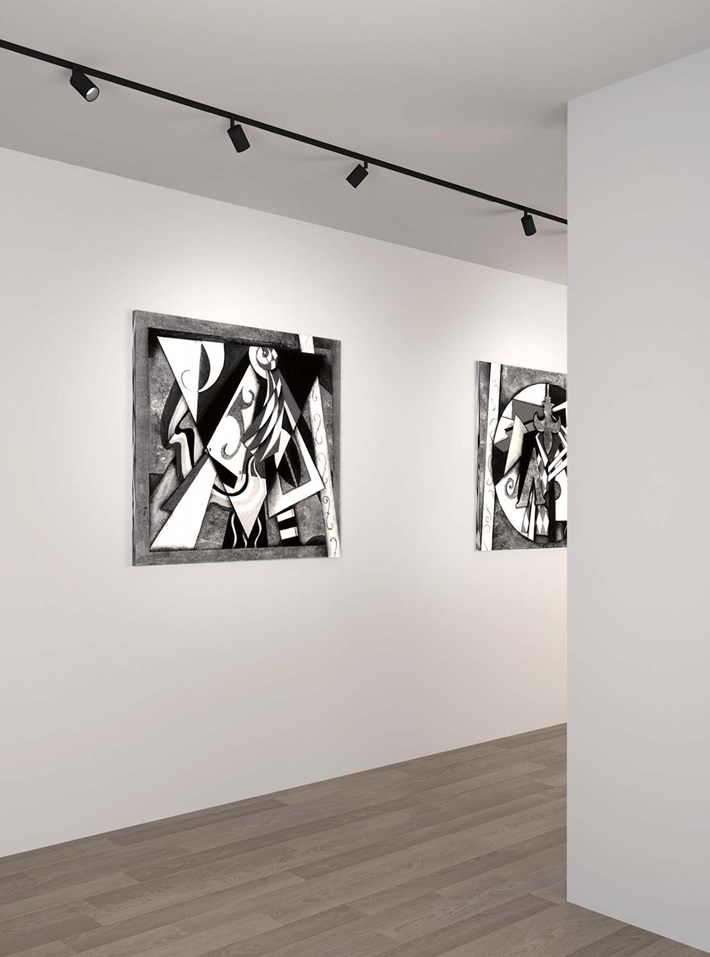

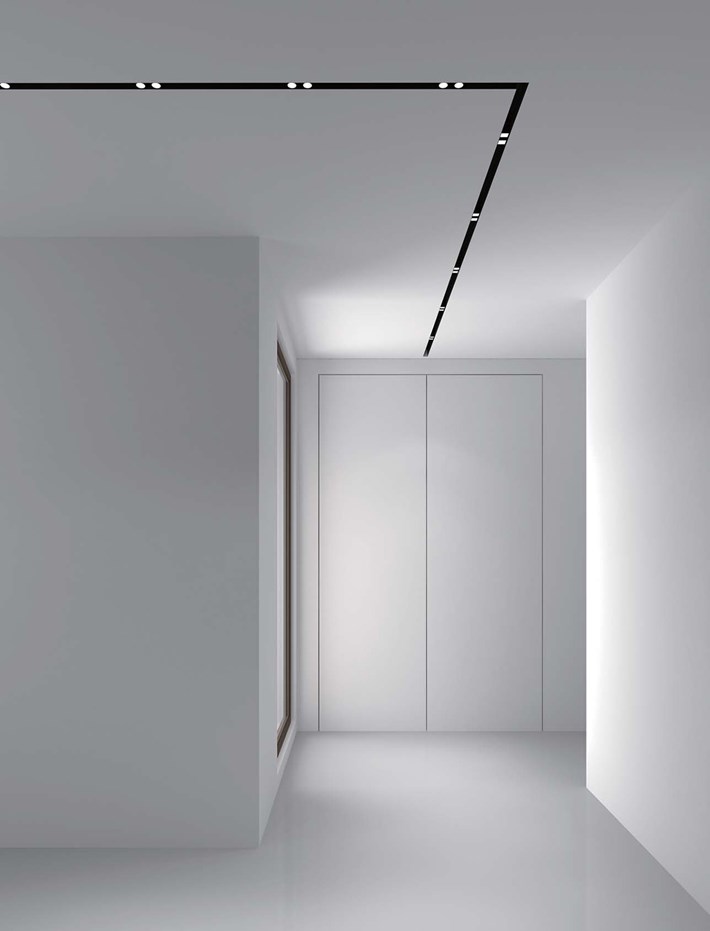

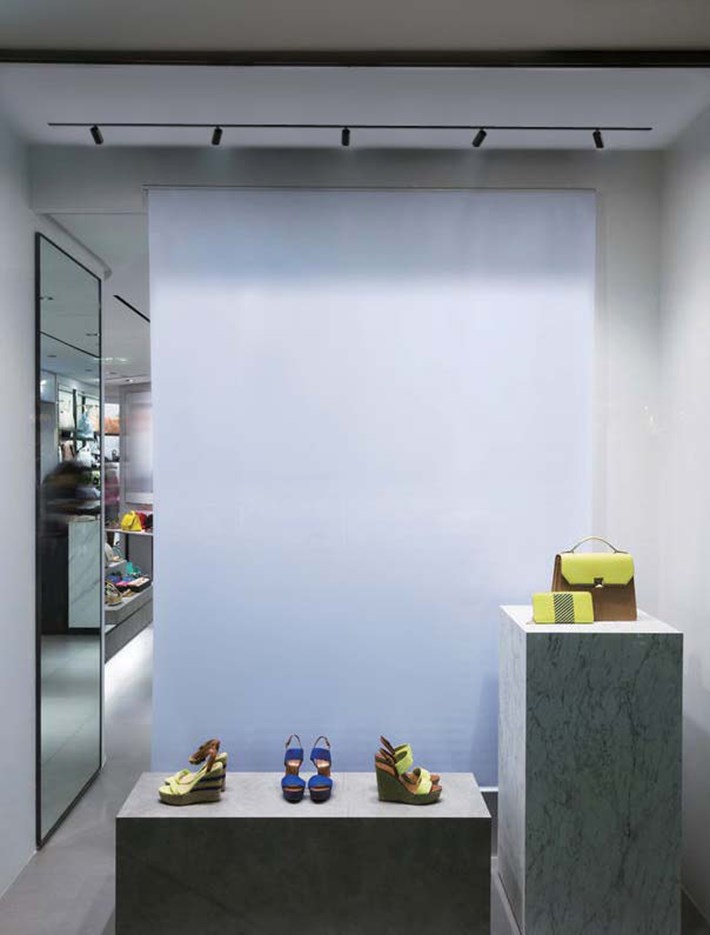

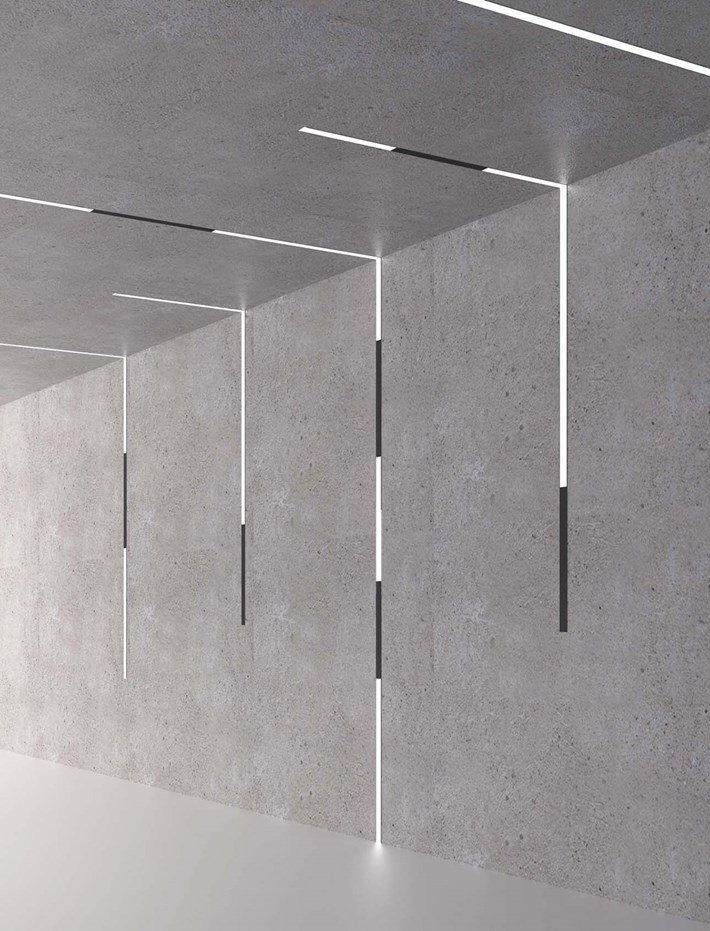

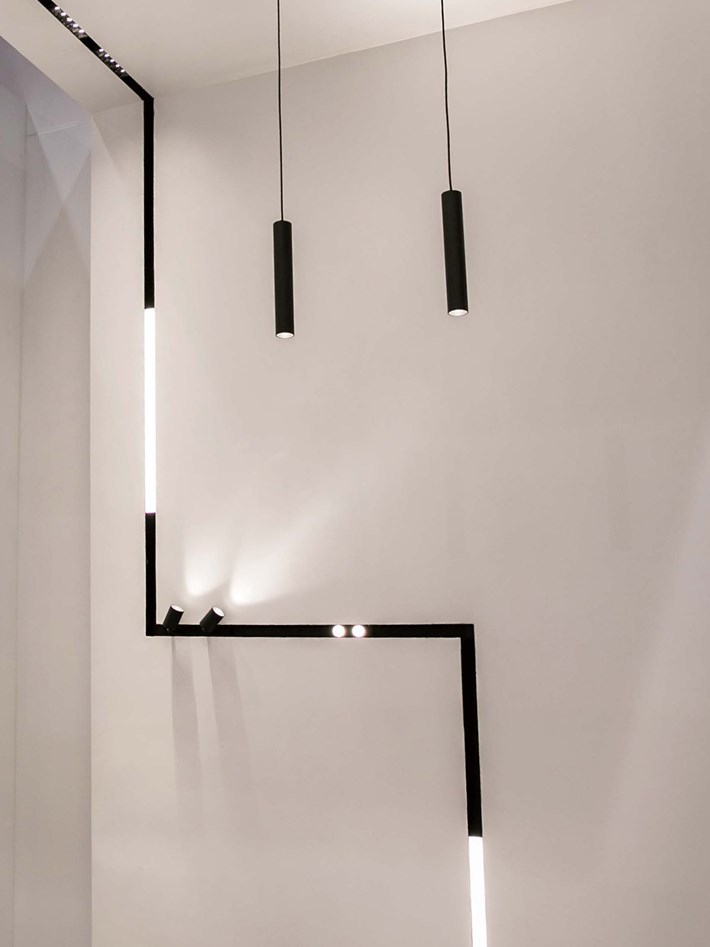

DLD Shadowline is a versatile modular track system that combines a modern style with cutting edge LED technology. The aluminium extrusion track can be recessed into the ceiling or wall and then plastered in and decorated, giving a seamless end result. Finished in black and white, with a PC extrusion cover and standard end caps. Can be wired to give either a continuous lighting effect, or sectioned off to allow control of light in different areas. The recessed track can be used in conjunction with the rest of the Shadowline range, allowing for horizontal and vertical corner connections and multiple choices of light output from linear LED strip panels, 5/10/15 LED downlights, twin head LED downlights, LED spotlights and LED pendants.

The compositions are designed and constructed shadowline tracks which are ready to be installed. Everything needed to power and run the specific compositions is included in the package. We also do additional components which you can add onto the pre-built tracks or build your own track on our website here.

Shadowline modules can be dimmed via 0-10V, TRIAC, or DALI. 0-10V or DALI drivers included. TRIAC dimming is available as an alternative option.

Please note: 4000K colour temperature for modules are available on request but may have longer lead times - please enquire for details.

Wireless dimming from your smartphone

This track can also be used with the Casambi dimming units to give flexible control of the lighting in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

For a smaller alternative, see 24V Minimal Track System Package from Arkoslight below in More Like This.

Usually in stock:
Orders placed before midday are delivered next working day
Please enquire about lead times if items are not in stock.

Specification

Internal dims: W.37mm
Aluminium extrusion

Finished in black or white

Composition 1
5x Twin Spot
1240 Lumens
26.5 Watts
75 Watt Driver, Triac Dimmable, L-Tech

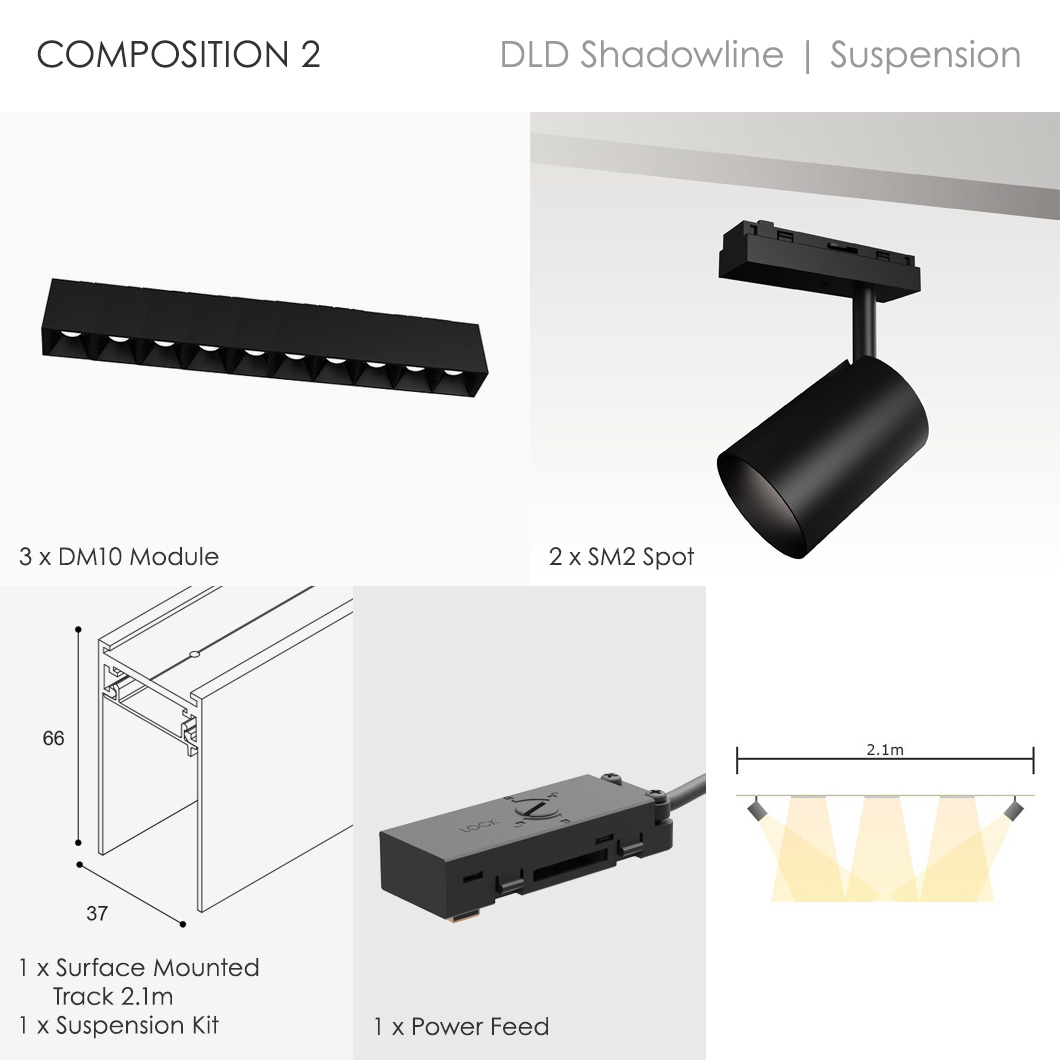

Composition 2
3x DM10 Module
2x S2 Spot
8228 Lumens
91.4 Watts
150 Watt Driver, Triac Dimmable, L-Tech

Composition 3
2x Linear 303
2x Pendant
2190 Lumens
30.8 Watts
75 Watt Driver, Triac Dimmable, L-Tech

Composition 4
2x S2 Spot
2x Twin Spot
2x DM5 Module
4724 Lumens
58 Watts
75 Watt Driver, Triac Dimmable, L-Tech

Composition 5
4x S2 Spot
4456 Lumens
50.8 Watts
75 Watt Driver, Triac Dimmable, L-Tech

All compositions come with 2.1m of shadowline track, appropriate drivers and end caps.

Dimensions

Product dimensions: W.2100mm x D.37mm x H.66mm
