DLD Atlas Mini True Colour CRI98 LED IP65 Adjustable Recessed Downlight - Next Day Delivery

Manufacturer: DLD Architectural

£70

Description

At just over 5cm diameter, the Atlas Mini Baffle LED adjustable recessed downlight is the smaller sibling in our ever popular Atlas range, designed for when a more subtle downlight is required. Featuring an easily removable 6W light engine - a simple twist mechanism allows for easy maintenance of the LED component. Adjustable by 25º and with a medium beam angle of 50º, Atlas Mini is a flexible downlight suitable for using as a focused spotlight or as a wall washer.

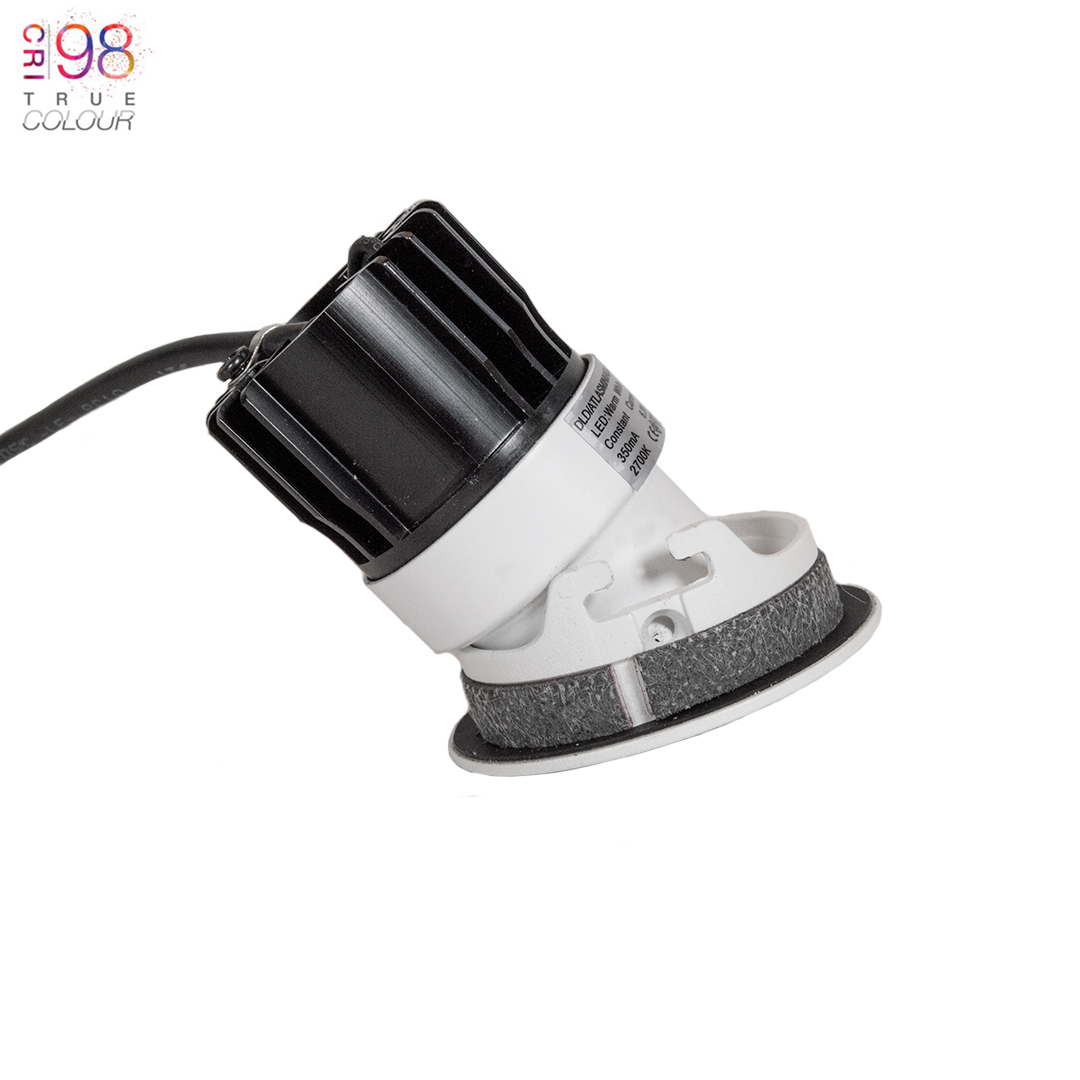

Made from die-cast aluminium with steel housing, while the forged aluminium heatsink allows the fitting to stay cool with optimum heat dissipation. Bezel available in black or white. Reflector in PC plastic. Atlas Mini has an IP65 rating* and is perfect for lighting bathroom zones 1, 2 and 3 and in outdoor lighting projects. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. Fully dimmable, supporting 0-10V, TRIAC or DALI drivers - see dropdown options.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.

Currently in stock:
Orders placed before midday are delivered next working day
When not in stock: delivery usually with 1-2 weeks

* The front of this fitting is IP65 whilst the back is not IP rated, meaning it will need to be installed in a watertight environment if used for outdoor or bathroom lighting

Specification

IP65 (front only)
IP20 (heat sink and back of the downlight)

Wattage: 6.3W
Current: 350mA
Lumen: 542lm
Beam angle: 50º
Adjustable tilt: 25º
Colour temperature: 2700ºK | 3000ºK
CRI: 90+
Dimmable: 1-10V | TRIAC | DALI
Aperture: Ø33mm

Cutout: Ø 48mm

Driver Options:

  • Mains dimmable driver: ELT DLC-B
  • 0-10V dimmable driver: EldoLED 0-10V ELD/SL0241A2-350
  • DALI dimmable driver: Osram OTi DALI 10/220…240/700 NFC
  • See datasheets in Downloads tab for further details

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

  • LED fitting removable from the plaster-in housing post installation
  • Driver fits through the cut-out hole diameter
  • Driver can be housed remotely from the fitting (check maximum distance with us)
Dimensions

Product dimensions: H.64mm x Diameter.55mm

Cutout dimensions: Dia.48m

Lens dimensions: Dia.33m

Downloads
Delivery and warranty

Delivery varies for each product, please see product description

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Darklight Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.

For more information on our products and services please call 01189 882294 or email design@darklightdesign.com.
