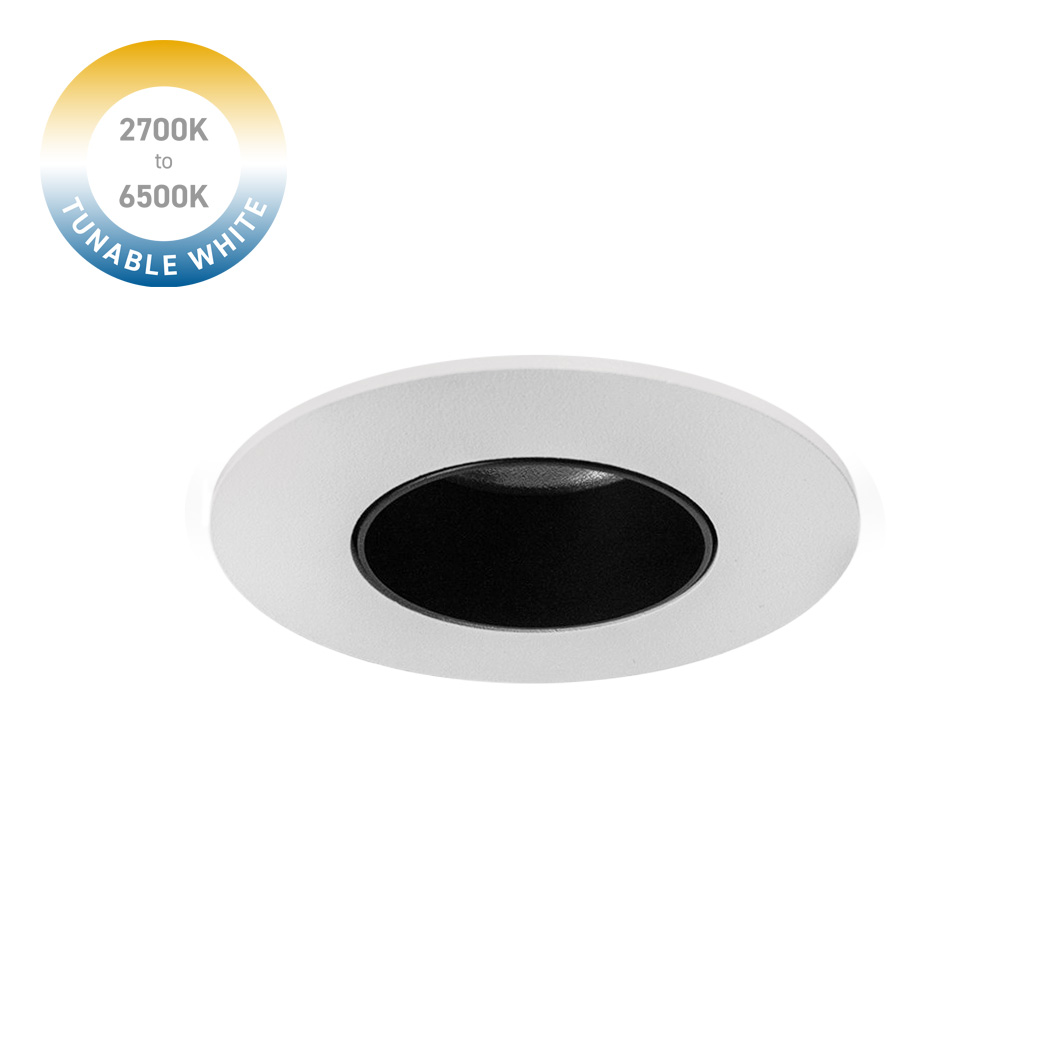

DLD Atlas Baffle Tunable White 2700K-6500K LED IP44 Fixed Recessed Downlight

Manufacturer: DLD Architectural

£105

Delivery

Usually within 8-10 weeks

Got a question? Email us or call 01189 882294

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

Designed specifically for human centric lighting projects, the tunable white version of our Atlas Baffle LED fixed recessed downlight features the same removable light engine with black baffle and white bezel. The Atlas Baffle Tunable White now has added control over the colour temperature, from a warm 2700K white through to a cool 6500K white, and any value in-between. The light engine can be simply accessed through a simple twist mechanism, which allows for easy maintenance. With a fixed downward beam angle of 13º or 31º, Atlas is a flexible fitting suitable for using as a focused spotlight / wall washer or to flood an area with light.

Luminaire in die-cast aluminium luminaire with steel housing with heat sink in forged aluminium for optimum heat dissipation. Bezel in black or white. Reflector in PC plastic. IP44 rated, suitable for installation in bathroom zones 1, 2 and 3. Complete with anti-glare frosted lens. Fixed version also available. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research.

View the Atlas collection

About tunable white LED
Also known as variable white, dim-to-white, or custom temperature lighting, tunable white LEDs allow the light colour to be adjusted - usually from warm 2200K white, to a neutral 4000K white, through to a cool 6500K white. A flexible lighting solution that is perfect for human centric lighting schemes, the fitting easily switches from warm to cool depending on whether you need a calm ambiance or specific lighting for a task, usually automatically programmed to provide the correct white light temperature for the time of day.

This fitting can be adjusted from 2700K to 6500K.

Read more about the benefits of tunable white lighting

Full control with NFC driver
Our range of tunable white downlights work best with the L-Tech NFC programmable DALI driver - see dropdown. No DALI master is needed, each NFC driver can be synced to one network and controlled via the app, allowing for the creation of light groups, scenes, fade timer, dimming, colour temperature. This driver is the winner of the 2022 Alighting award, and is the only indoor smart driver to win. Find out more in the videos below or view the data sheet.

Simple installation
It is simple to pop the LED light engine in and out of the frame, which allows for easy maintenance post installation. Available with a beam angle of 15º or 36º, allowing for a narrower or wider spread of light depending on the requirements. Made from die-cast aluminium with steel housing. Heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. Bezel ring in white or black finish with an inner black baffle. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research.

Wireless dimming from your smartphone
This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches, remote controller or with an off-the-shelf push dimmable on/off switch.  See dropdowns above and the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible
Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.

Specification

IP44

Wattage: 9W
Current: 250mA
LED input voltage: 36V
Lumen: 886lm @2700K | 1047lm @ 6500K

Beam angle: 13º | 31º
Adjustable: n/a
Colour temperature: 2700ºK - 6500°K
CRI >90

Cutout: Ø 68mm

Driver (required):
L-Tech NFC Programmable DALI
(
SE-20-100-700-W2D)
Dimensions: W127mm D230mm H40mm
Min cutout hole size: Ø48mm
View Data Sheet PDF

Sunricher 15W Casambi Bluetooth Driver
(SRP-CA9105N-15CCT100-700)
Dimensions: W135mm D350mm H20mm
View Data Sheet PDF

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

  • LED fitting removable from the plaster-in housing post installation
  • Driver fits through the cut-out hole diameter
  • Driver can be housed remotely from the fitting (check maximum distance with us)

Lamp type: Bridgelux LED Chip | 9W | 2700K-6500K | CRI90

Dimensions

Product dimensions: H.87mm x Diameter.76mm

Cutout dimensions: Dia.68mm

Downloads
Delivery and warranty

 Delivery

Delivery varies for each product, please see product description

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.

Get in touch for more information on our products and services, or for any questions or technical enquiries
