DLD Alps LED Plaster-In Trimless Modular Track System Components

Manufacturer: DLD Architectural

£0.00001

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

Now available as a modular trimless plaster-in LED track system, the architectural DLD Alps effortlessly blends minimalist style with functionality. Crafted from aluminium with precision for a sleek contemporary appearance combined with versatility, Alps 3 phase track is designed specifically for both residential or commercial applications with a wide selection of modules to build your perfect composition.

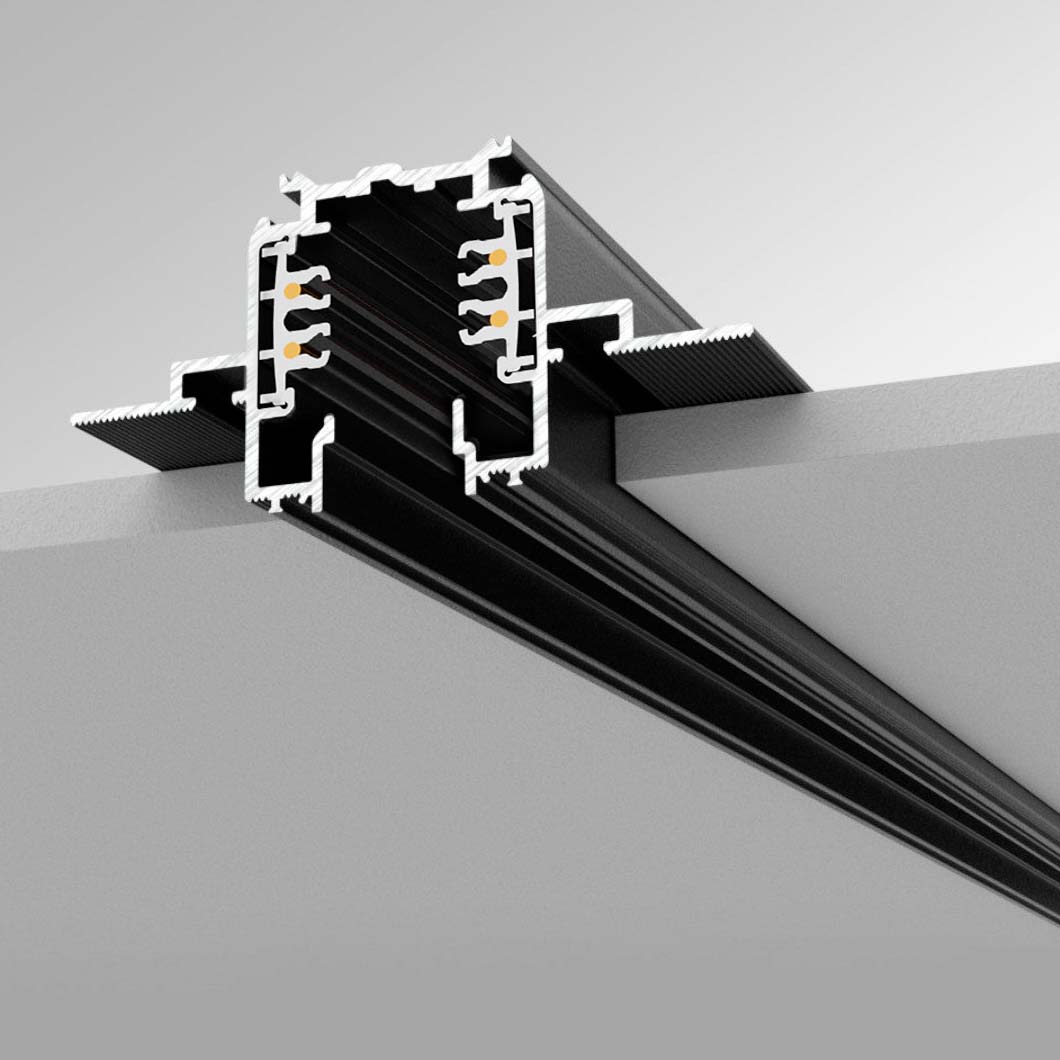

Plastered into the architecture

Minimalist and sleek, the Alps plaster-in trimless track solution is designed for contemporary spaces where the track needs to be hidden. Compile the perfect track system for each individual space of the room, with compatible track modules which can be installed to light in any direction desired with a range of options such as light intensity and colour temperature. The track and accessories are TRIAC (mains) dimmable. See the Alps Track data sheet for further info on track accessories.

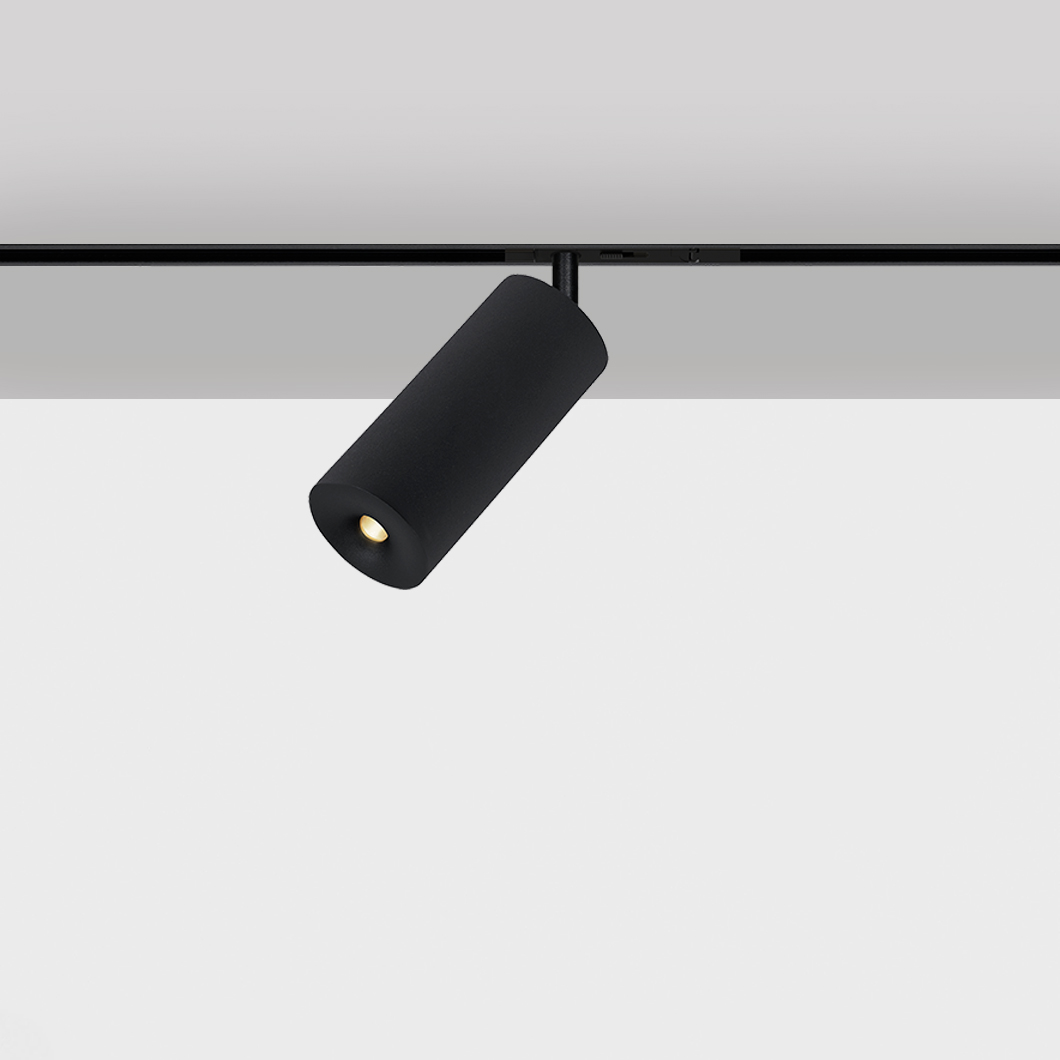

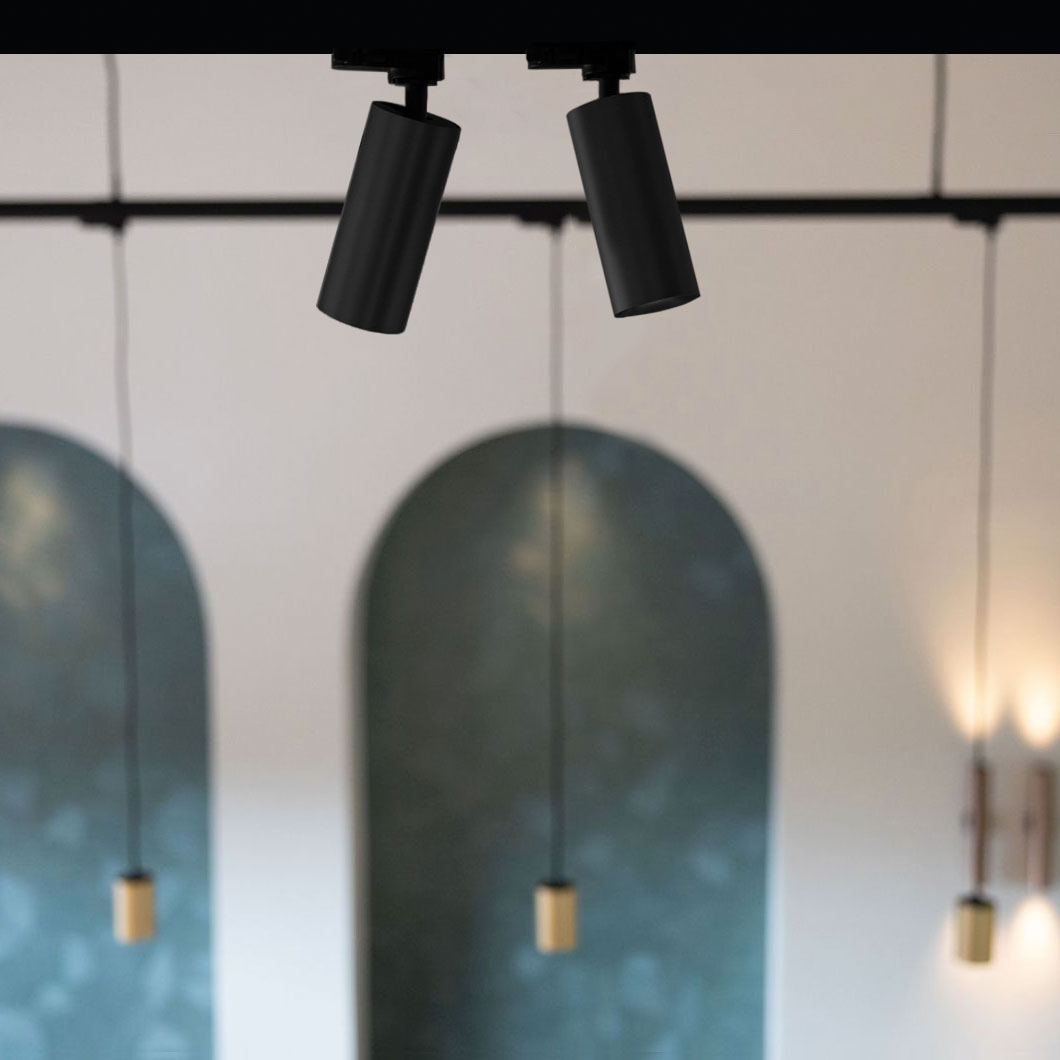

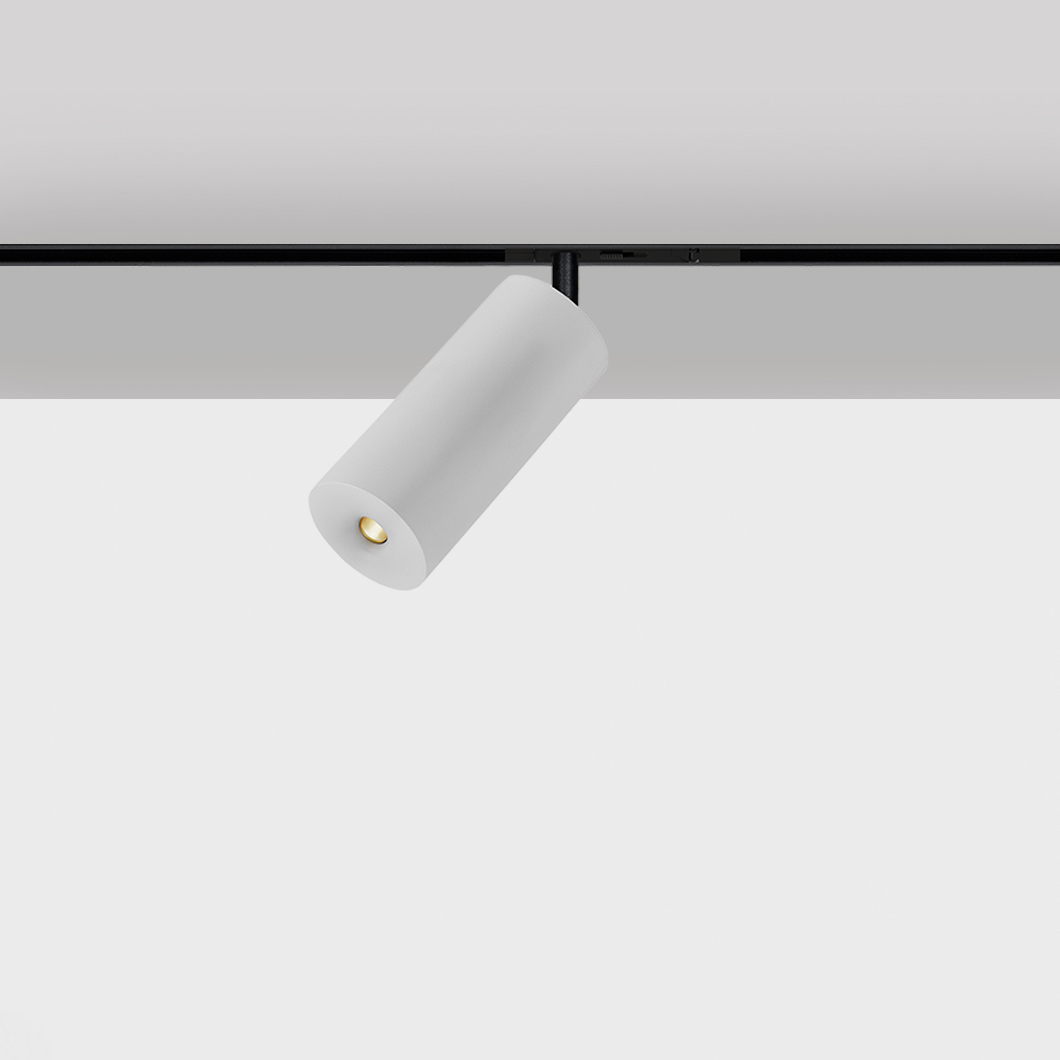

Versatile Alps Altera Spot Light module

Specifically to fit the Alps trimless track, the Altera spot light module has an integral driver built into the head. With a sleek and minimalist look, Altera offers 12W power and 36° beam angle.

  • Power: 12W Ø55mm L130mm
  • Adjustable: 0-90° tilt | 0-355° rotation
  • 3 colour temperatures: 2700K (3000K available on request)
  • Multiple beam angles: 36° (24° available on request)
  • Available in 2 finishes: matt black and matt white. (metallic on request)
  • Integral driver: non-dimmable or TRIAC (mains) dimmable (0-10V and DALI dimmable versions on request)

Alps Trimless track is not compatible with Alps Loco spot light modules, Alps Linea LED modules or Alps Pic Art Spot light modules (Alps surface mounted or recessed track only)

Looking for ready-made track packages?

With a choice of 6 ready-to-go track compositions with everything you need included, our Alps Surface Mounted Track Packages, Alps Recessed Track Packages and Alps Plaster-In Trimless Track Packages have got you covered.

Currently in stock:
Orders placed before midday are delivered next working day

Available on request:
3m track and 0-10V/DALI dimmable versions  - contact us for details

Lightbulb with brain filament icon
- Our Top Tips -

Alps Track System is compatible with Casambi bluetooth smart lighting system - see ‘You May Also Need’ below.

Still have track questions?
Contact us on 01189 882294 or [email protected]
We're happy to help :)



Specification

Track

IP20
3 phase/circuit track

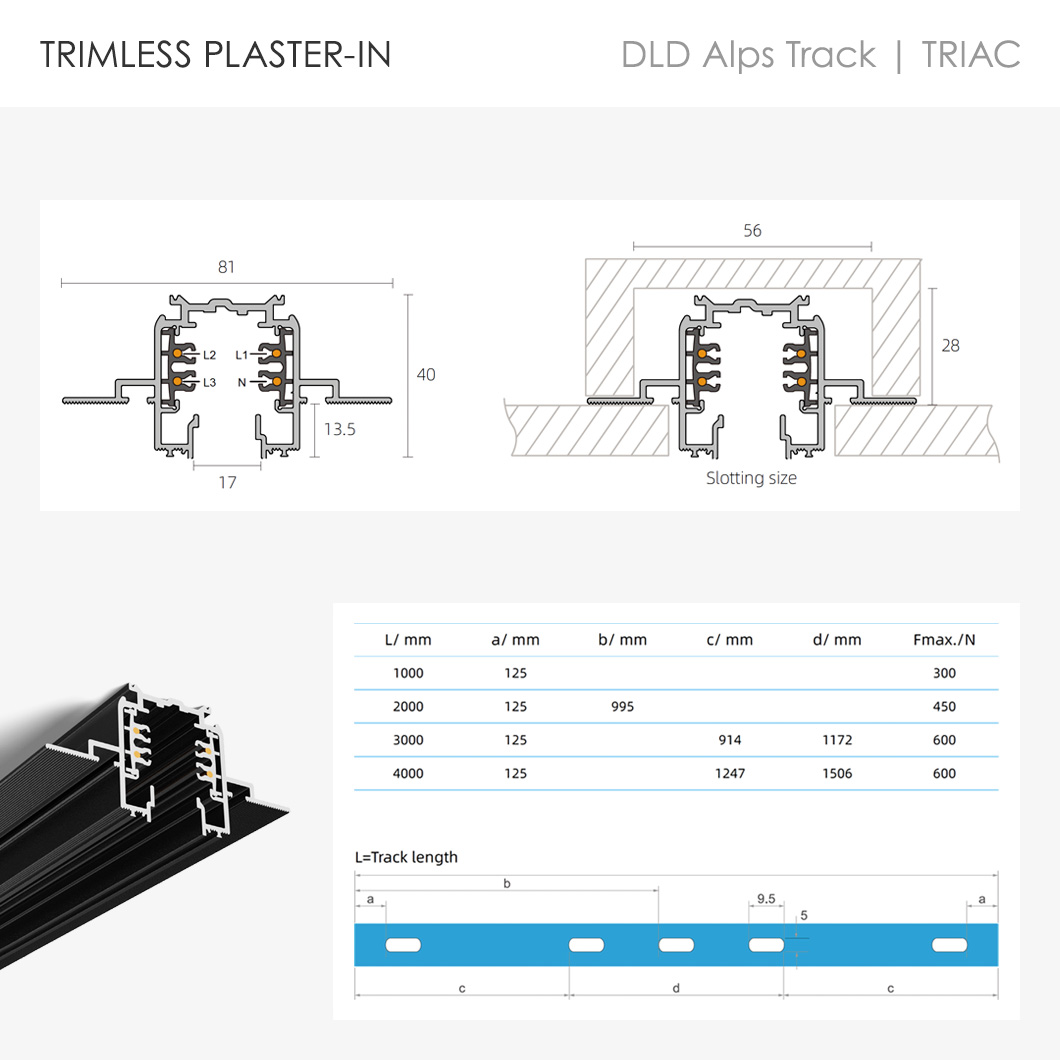

Track dimensions:
Width - 81mm
Height - 40mm
Length - 1m/2m

Available on request:
3m track and 0-10V/DALI dimmable versions  - contact us for details

Alps Altera Spot Module (integral driver):

Class I
IP20
3-phase track fixation
Aluminium housing
TRIAC dimmable driver
Adjustability - 0-90 degree tilt | 355 degree rotation
Integral driver inside base
Beam angle: 36° (24° available on request)
CCT: 2700K | CRI 98Ra | 800lm (3000K | 850lm available on request)
UGR: <13 for 24° | <17 for 36°
3 SDCM

Power: 12W
Module dimensions:
Dia.55mm L.130mm

Dimensions

Product dimensions: D.81mm x H.40mm

Downloads
Delivery and warranty

 Delivery

Delivery varies for each product, please see product description

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.

For more information on our products and services please call 01189 882294 or email [email protected].
