- Description
-

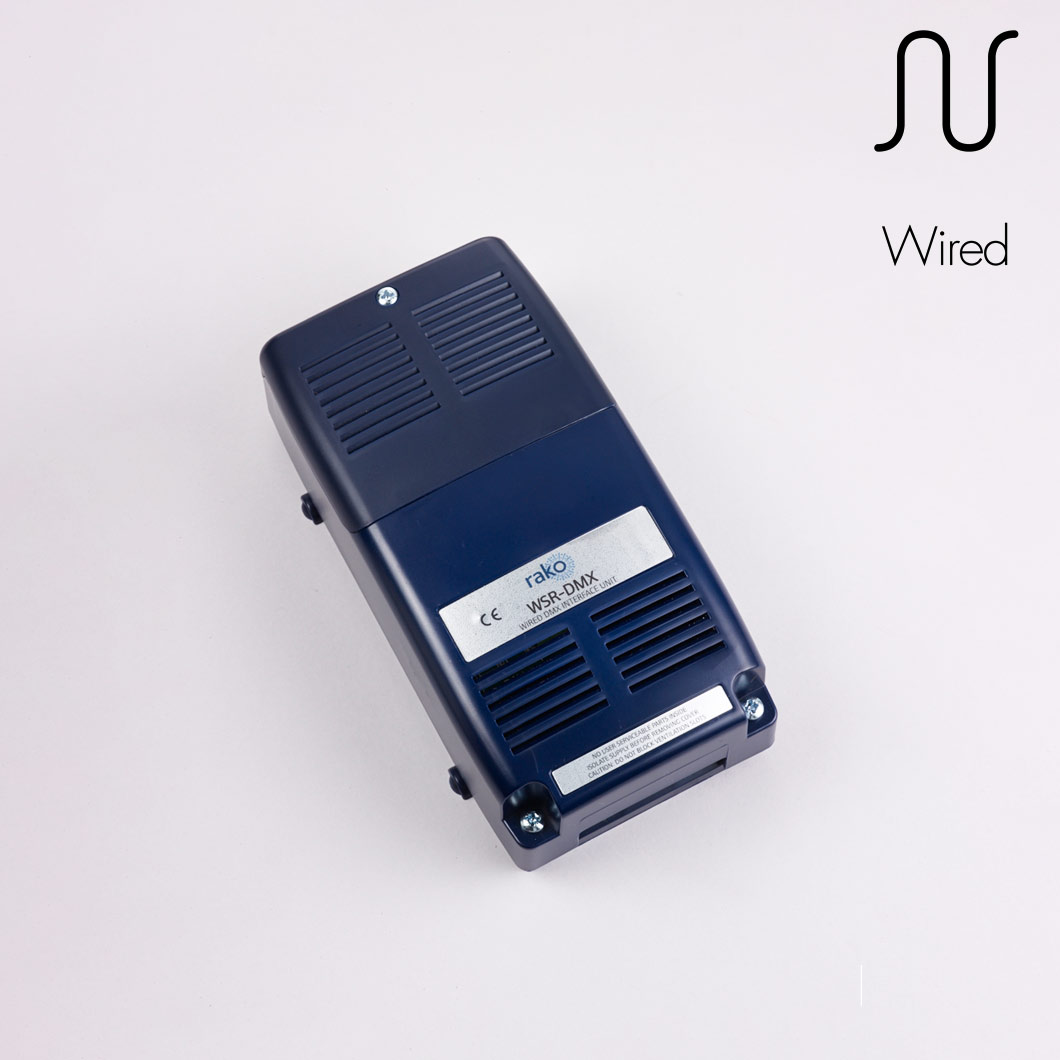

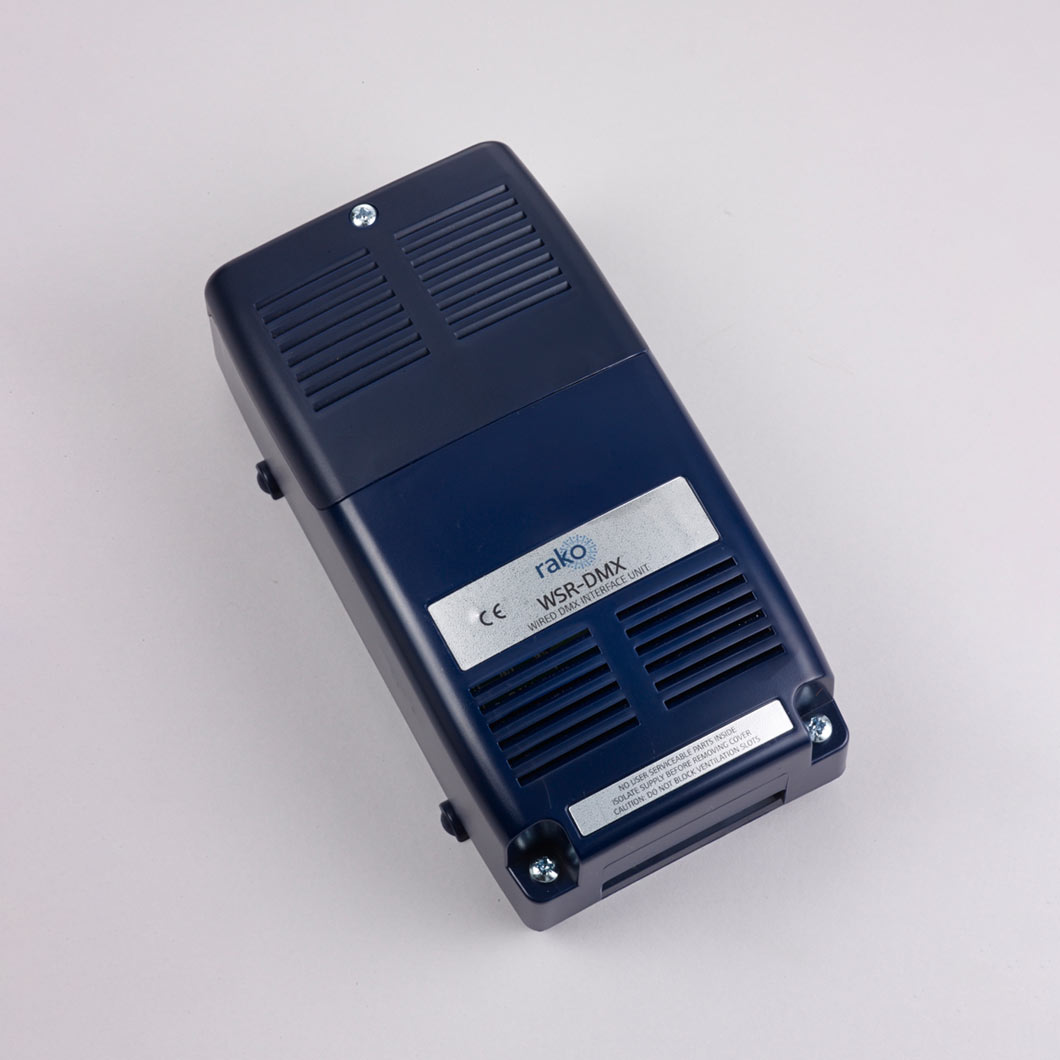

Rako WSR-DMX wired 15 channel DMX controller for DMX controlled LED and other DMX light fixtures.
- A 15 channel DMX controller for use with the Rako Rakom wired network.
- Can be used to control DMX light fittings or interfaces such as colour changing LED drivers and fibre optic projectors.
Designed to be connected to the Rako Rakom wired network via an RJ11 socket or punch-down Krone connector and control up to 15 channels of DMX512 compatible controllers or light fittings. The WSRDMX is addressed as a normal dimmer channel and automatically assigns the subsequent channels for DMX use.
The module is fitted with an RJ11 socket and lead and is designed to plug into an RJ11 socket, such as a WPCon or WPConC or be connected to the Rakom data network using the punch-down Krone connector. DMX connections are available using either screw terminals or an RJ45 socket.
For install enquiries contact us on:
[email protected]
01189 882294
or on our website Live Chat
- Specification
-
Housing:
UL V0 ABS
Weight:
280g
Climate Range:
Temperature +2C to +40C
Humidity +5% to 90% non condensing
Connections:
RJ11 or Krone punch-down
Rakom wired network 3 way screw terminal or RJ45 socket-DMX
Load Type:
Any DMX512 compatible interface
Maximum Load:
15 DMX channels
Standards:
Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007
Communication:
Flash memory (non volatile)
- Dimensions
-
Product dimensions: W.105mm x D.190mm x H.66mm
- Downloads
-
- Delivery and warranty
-
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
