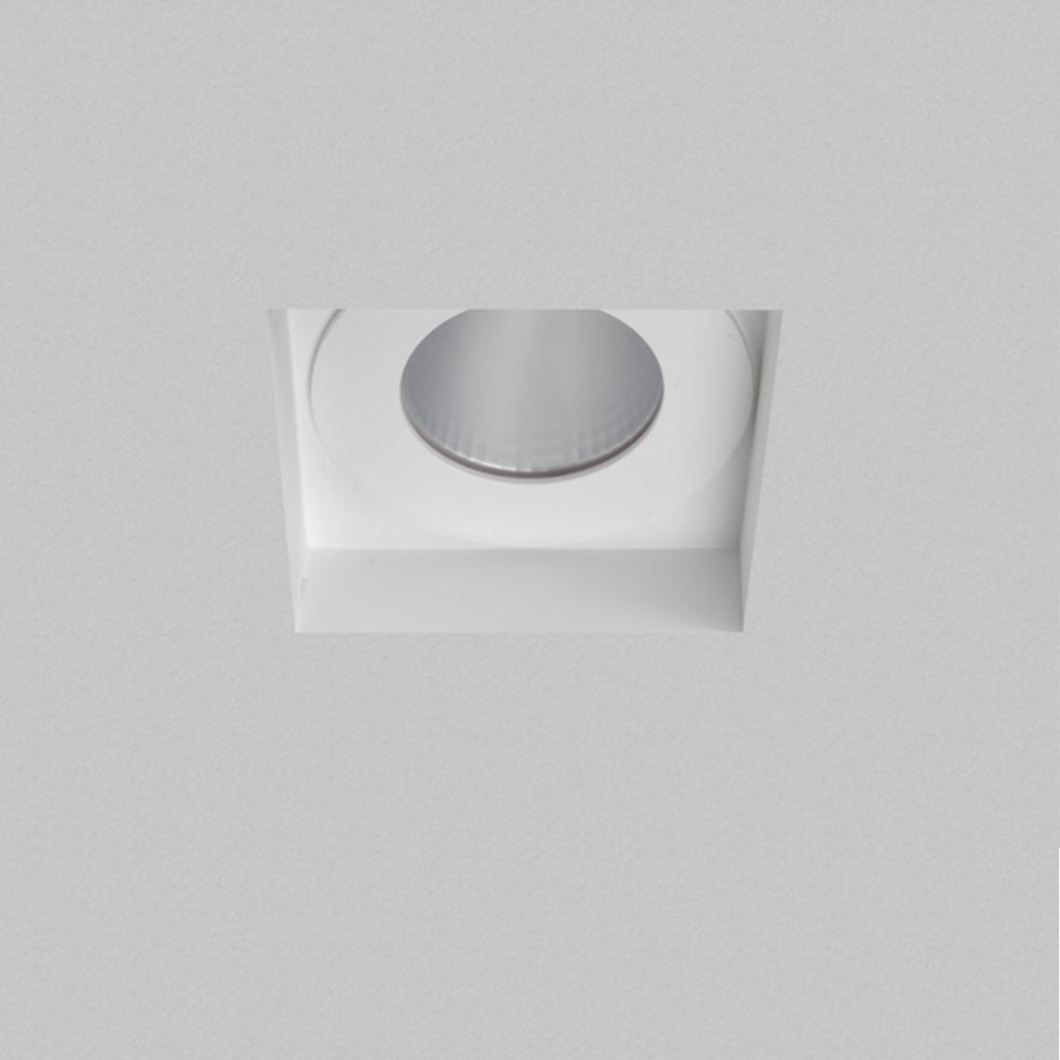

Recessed ceiling light with a plaster board background, square fitting
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:2
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:3
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:4
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:5
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:6
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:7
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:8
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:9
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:10
Adjustable light with plaster in fixing, great for ceiling mounting in the home
Recessed ceiling light with a plaster board background, square fitting
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:1
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:2
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:3
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:4
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:5
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:6
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:7
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:8
OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery| Image:9

OUTLET DLD Eiger 1-S LED Adjustable Plaster In Downlight True Colour CRI98 - Next Day Delivery

Manufacturer: DLD Architectural

£45

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

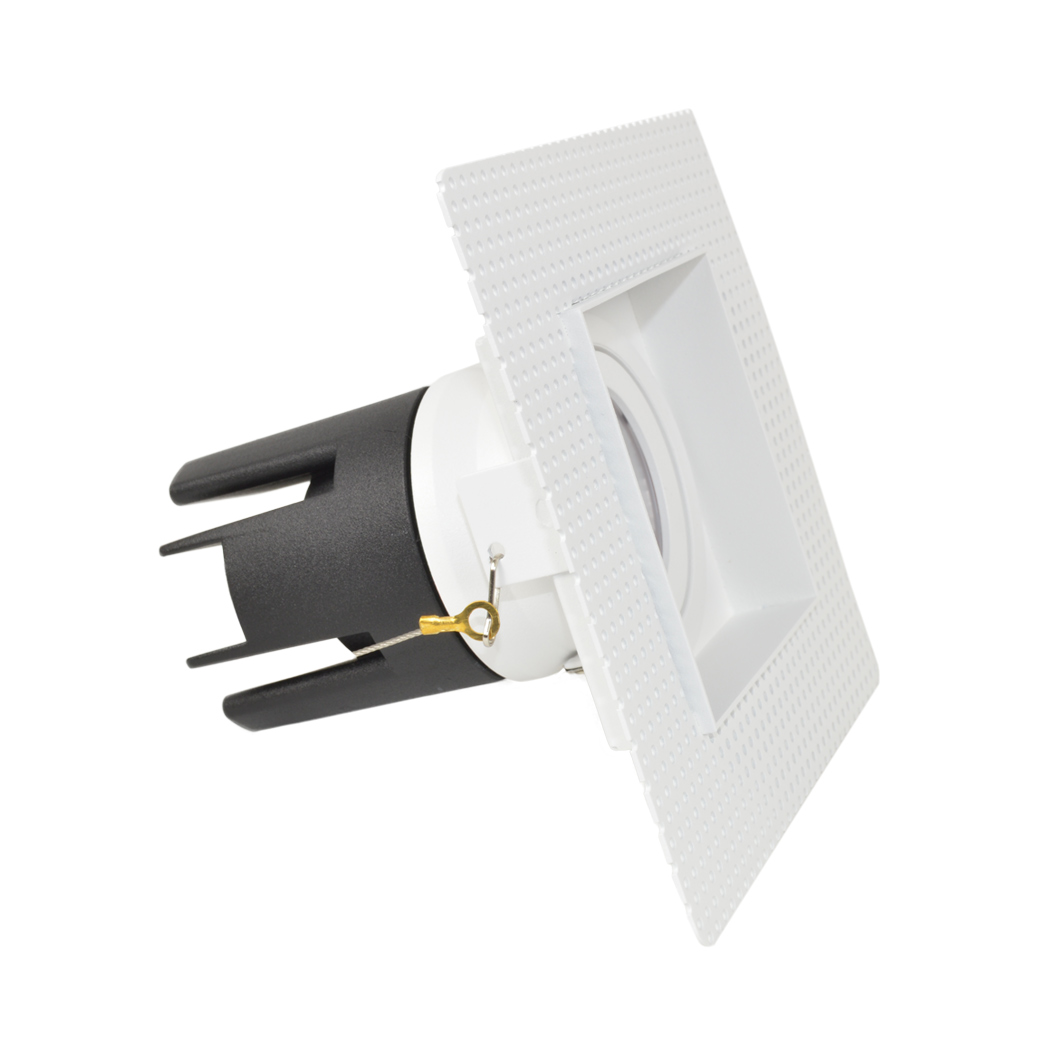

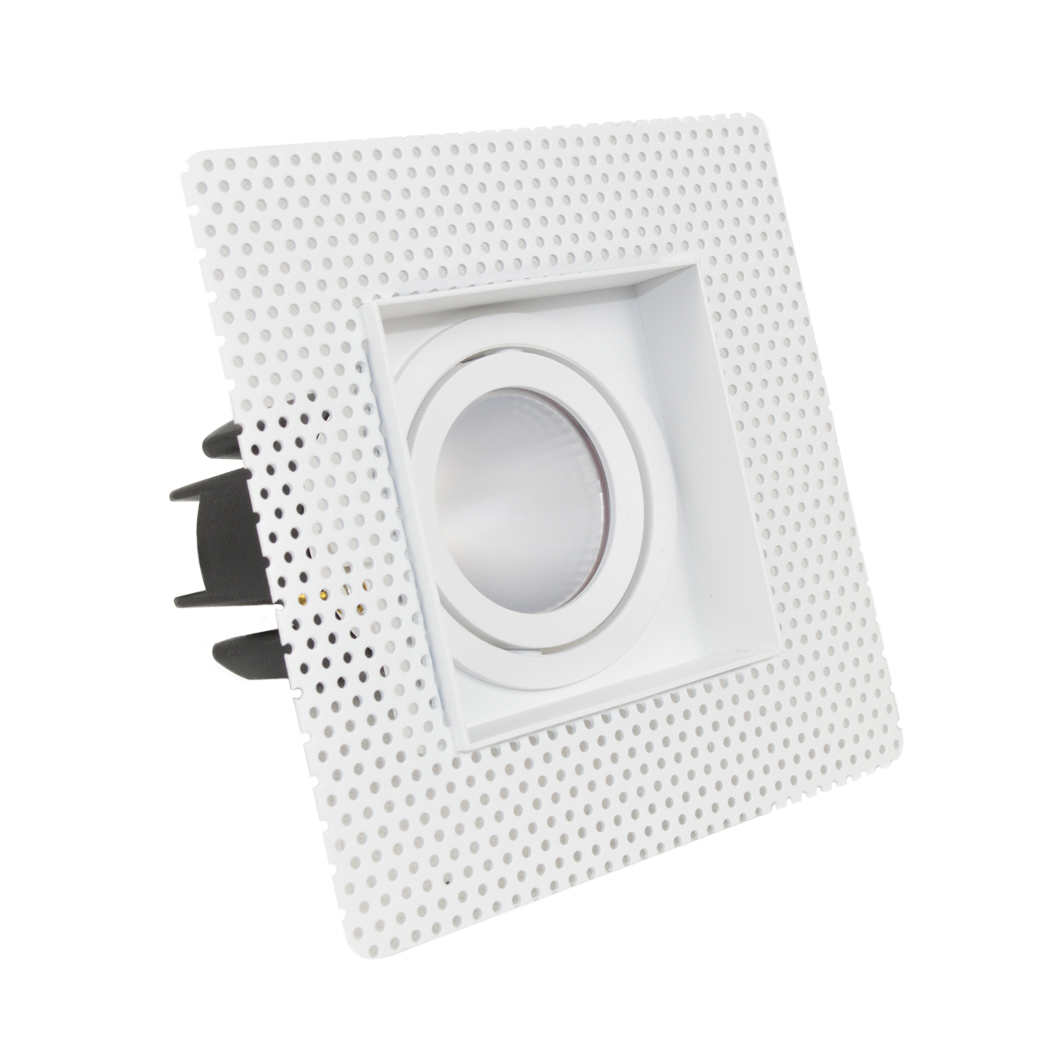

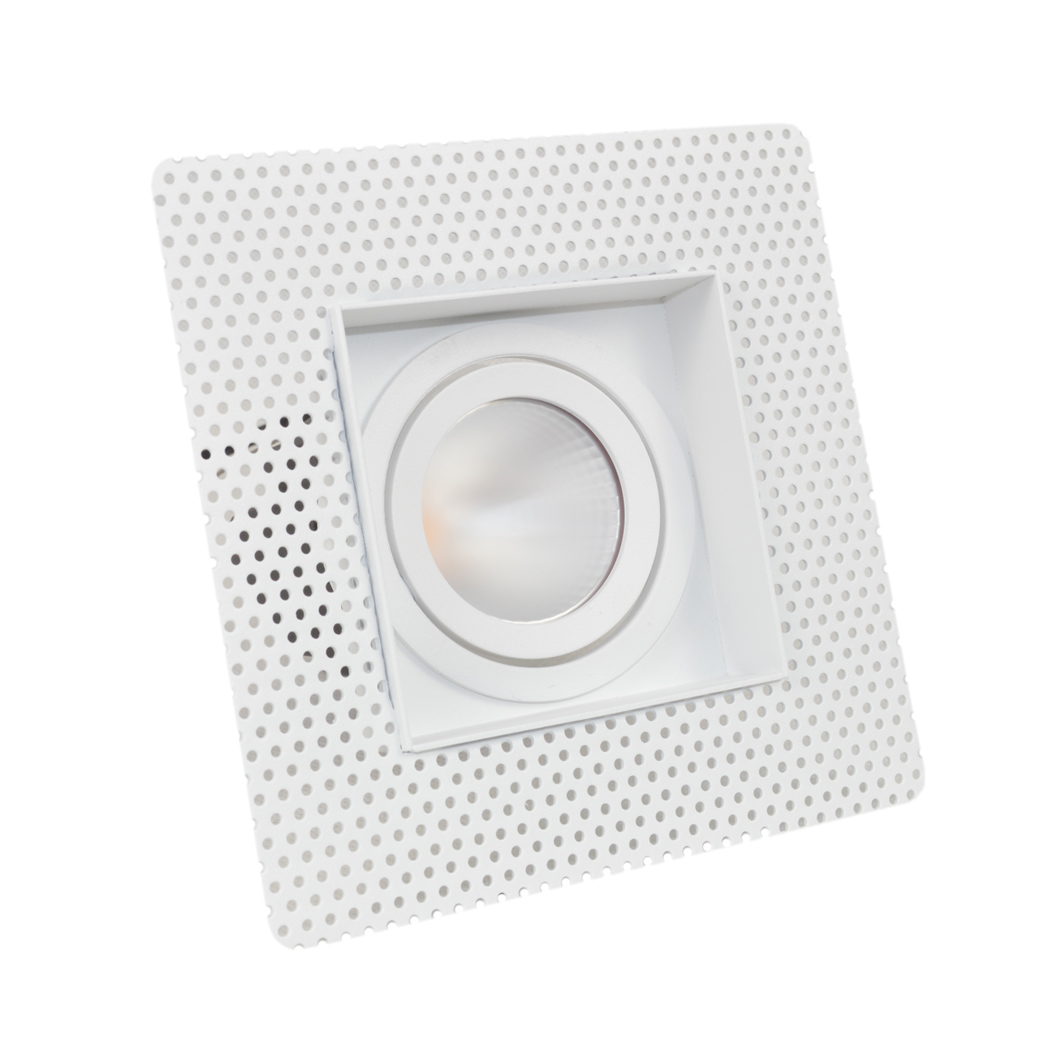

The square version of our flagship plaster-in downlight, the Eiger 1-S LED is recessed into the ceiling and plastered in to create a truly seamless finish. The Eiger produces roughly 800 lumens, which paired with an IP54 rating and a 24º adjustable tilt makes it the perfect trimless downlight for residential projects and in bathroom zone 2. Taking full advantage of the up-to-date True Colour CRI98 LED COB technology, all of our Eiger range render colours with outstanding accuracy. Once installed the light engine is easily removable through a simple twist mechanism, which allows for easy maintenance post installation. Available with a beam angle of 15º or 36º. Die-cast aluminium luminaire with steel housing. Heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. In white or black.

Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. Compatible with leading edge and trailing edge dimmers. Dimmable with either 0-10V, TRIAC or DALI dimming drivers - see dropdown for options. Eiger is available in multiple versions, and with or without trim.

4000K colour temperature on demand - please contact for details.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.

Currently in stock:
All versions - orders placed before midday are delivered next working day
When not in stock: delivery usually with 1-2 weeks

Specification

IP54 - suitable for bathroom zone 2
Wattage: 15W
Current: 350mA
Beam angle: 15º | 24º | 36º

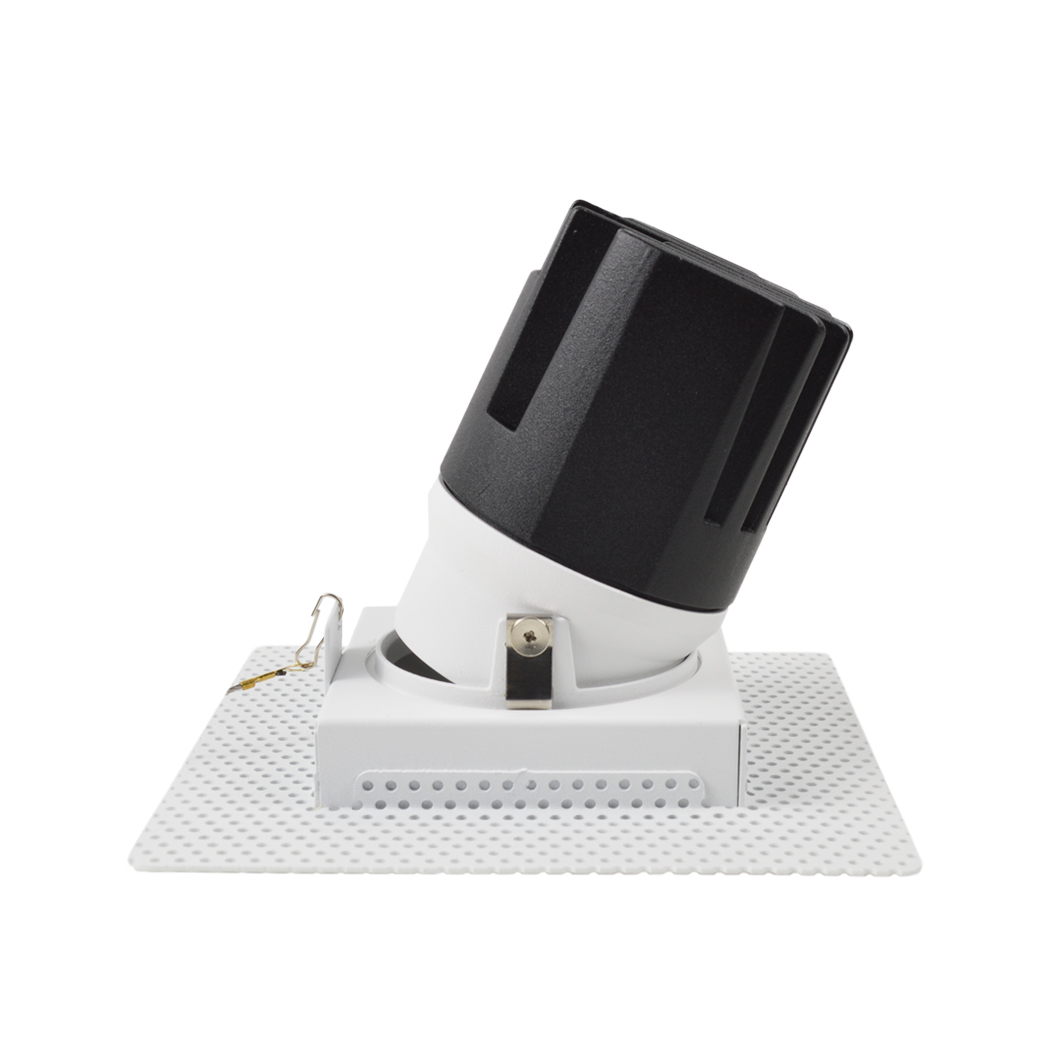

Adjustable tilt: 24º
Adjustable rotation: 355º
True Colour CRI 98

Colour Temperature:
2700ºK | 3000ºK | 4000ºK

Delivered Lumens:
Dependent on beam angle and colour temp - see datasheet in Downloads tab

Plaster-in frame: 128mm x 128mm

Driver Options:

  • Mains dimmable driver: Osram OT FIT 14W Phase Cut CC Driver
  • 0-10V dimmable driver: EldoLED 0-10V ELD/SL0241A2-350
  • DALI dimmable driver: L-Tech DALI-15-100-700-E1A1
  • See datasheets in Downloads tab for further details

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

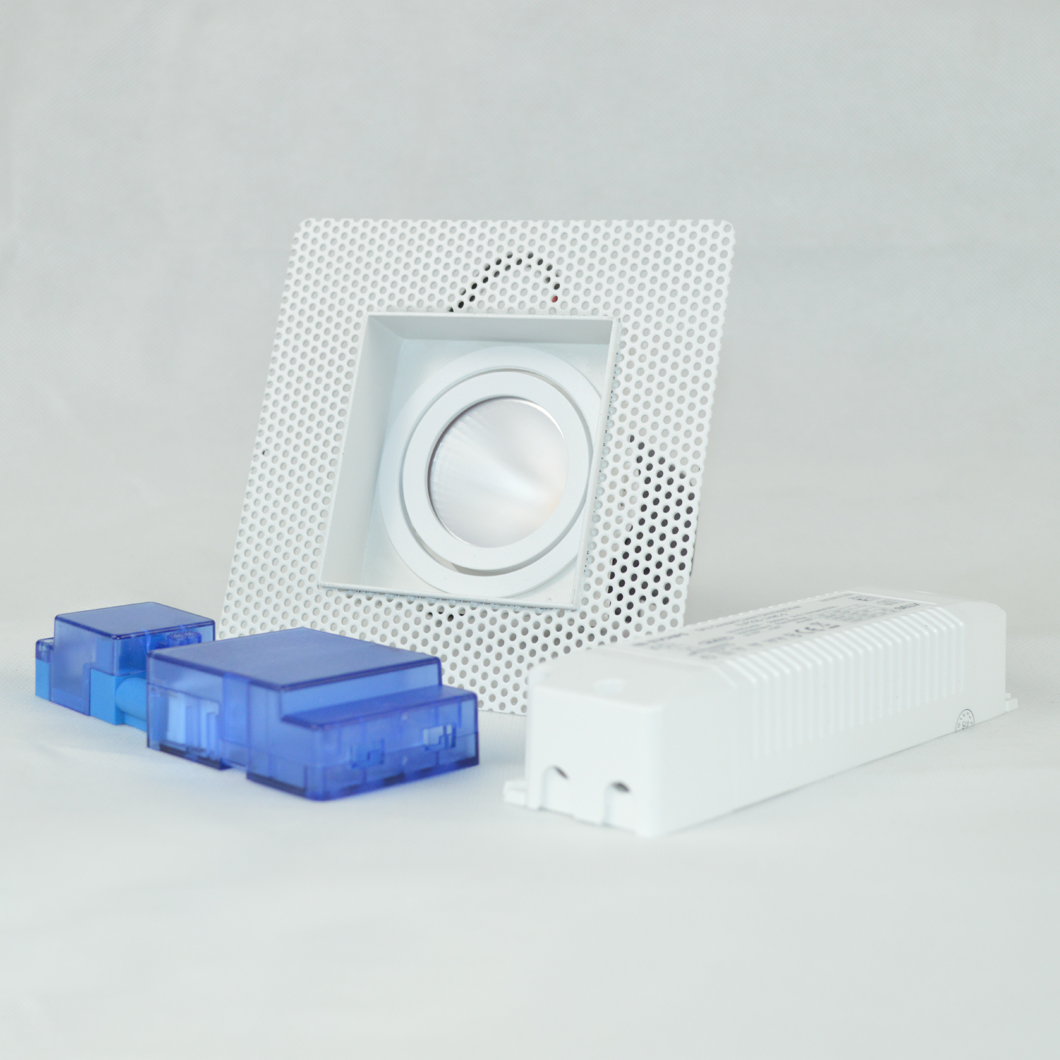

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

  • LED fitting removable from the plaster-in housing post installation
  • Driver fits through the cut-out hole diameter
  • Driver can be housed remotely from the fitting (check maximum distance with us)
Dimensions

Product dimensions: W.76mm x D.76mm x H.101mm

Cutout dimensions: W.80mm x H.80mm

Downloads
Delivery and warranty

Delivery varies for each product, please see product description

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.
