Arkoslight Linear 3L Flush Recessed Mounted 230V Modular Track System Components

Designer: Arkoslight

Manufacturer: Arkoslight

£0.00001

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

230V three phase track - for use with the following modules: Plus 3L, Plus Mini 3L, Six M, Six L, Fit 65, Fit 80, Zen 1, Zen 2, Zen 3, Zen Tube 1, Zen Tube 2, Zen Tube 3, Thor 1 and Thor 2.

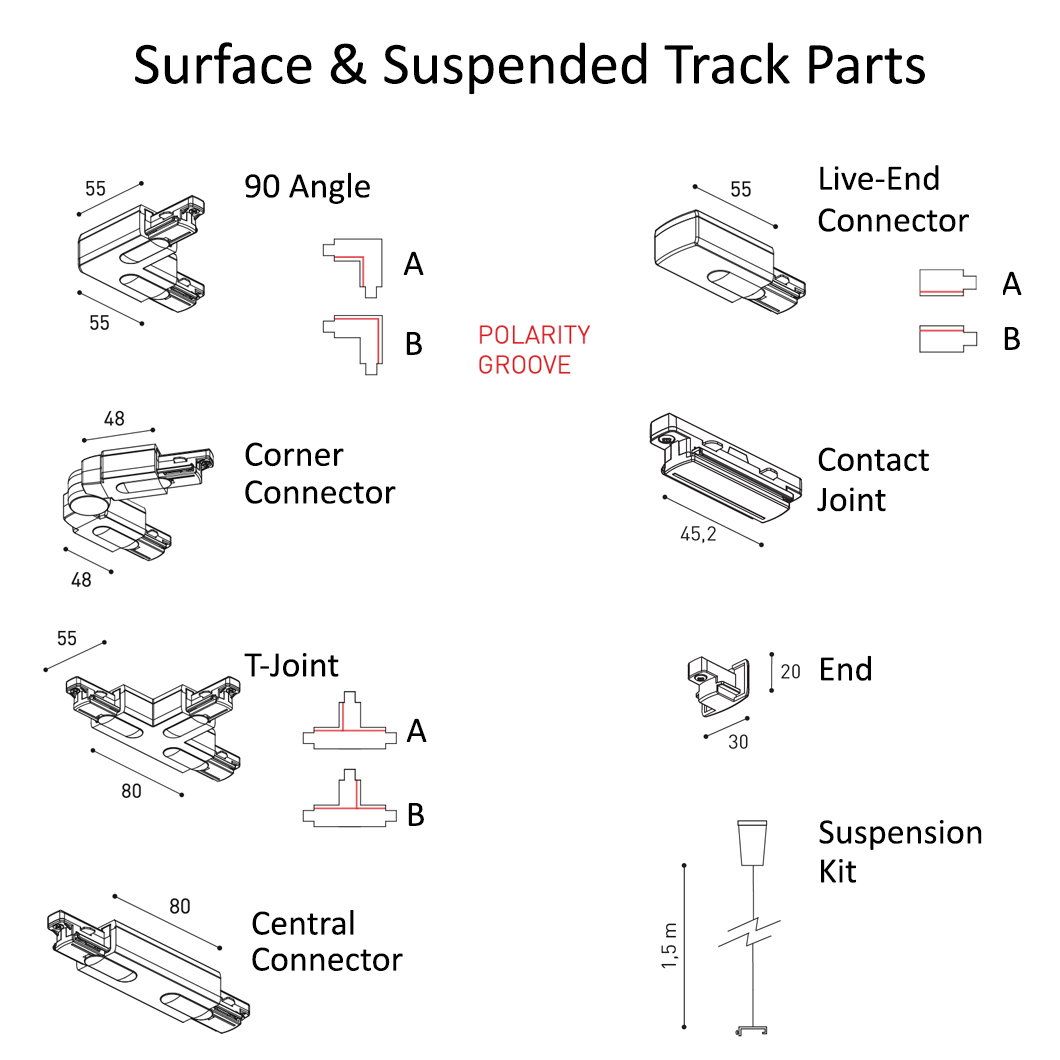

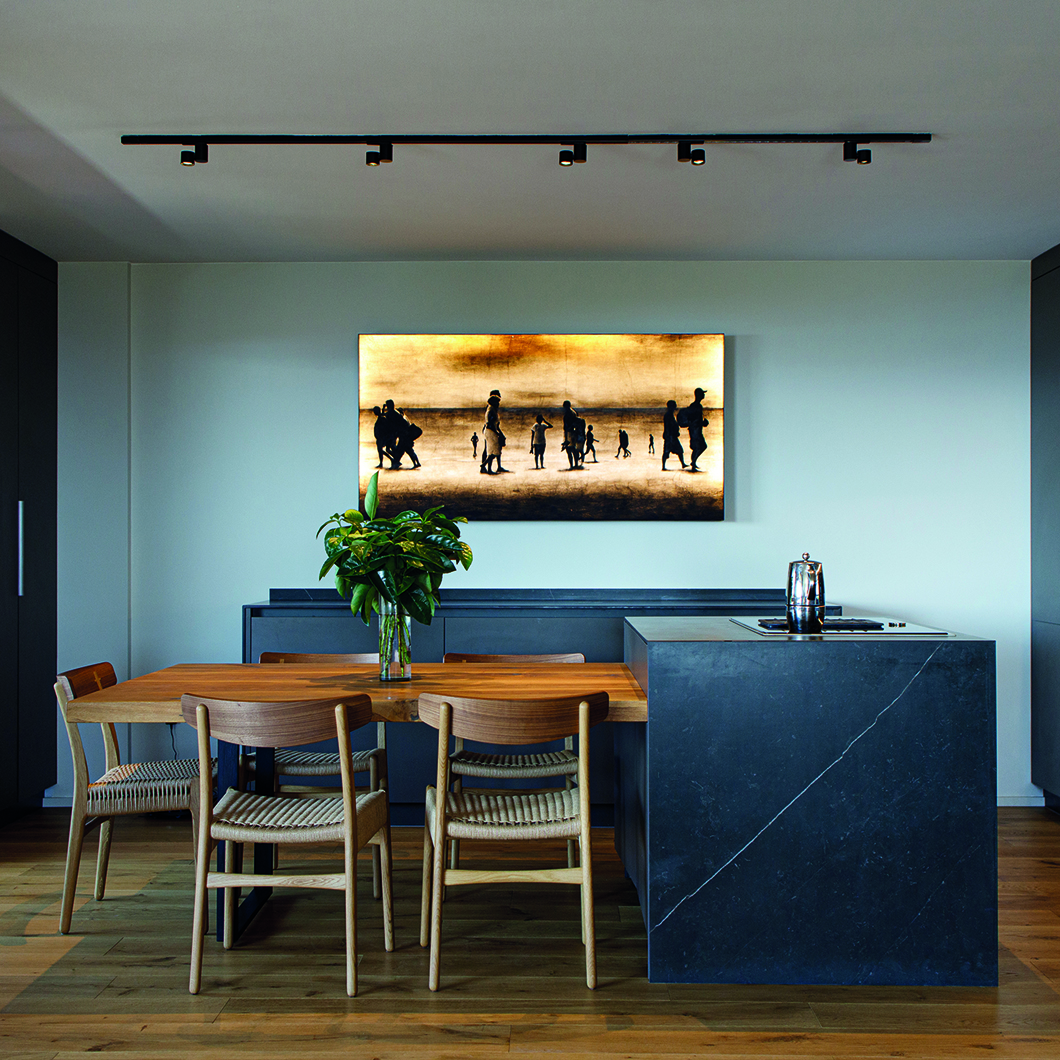

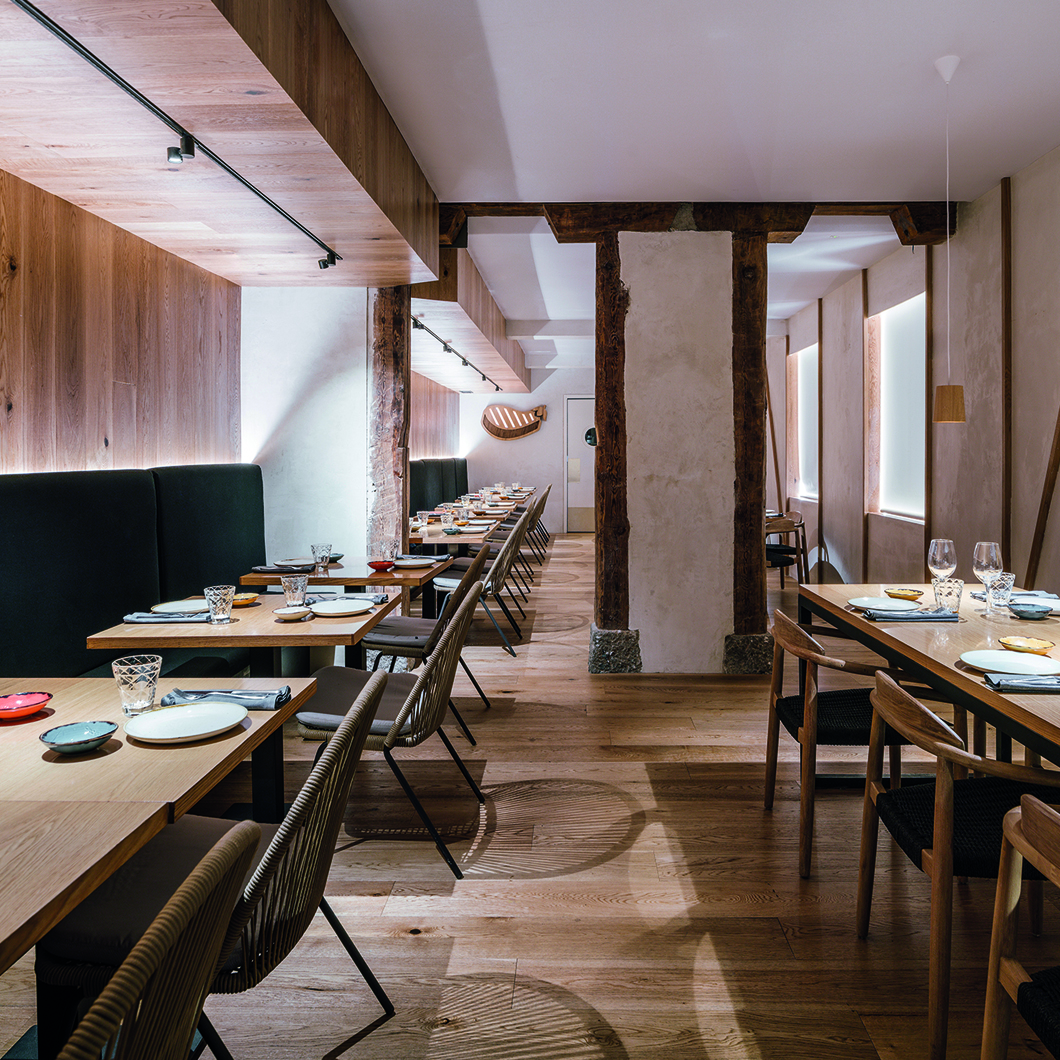

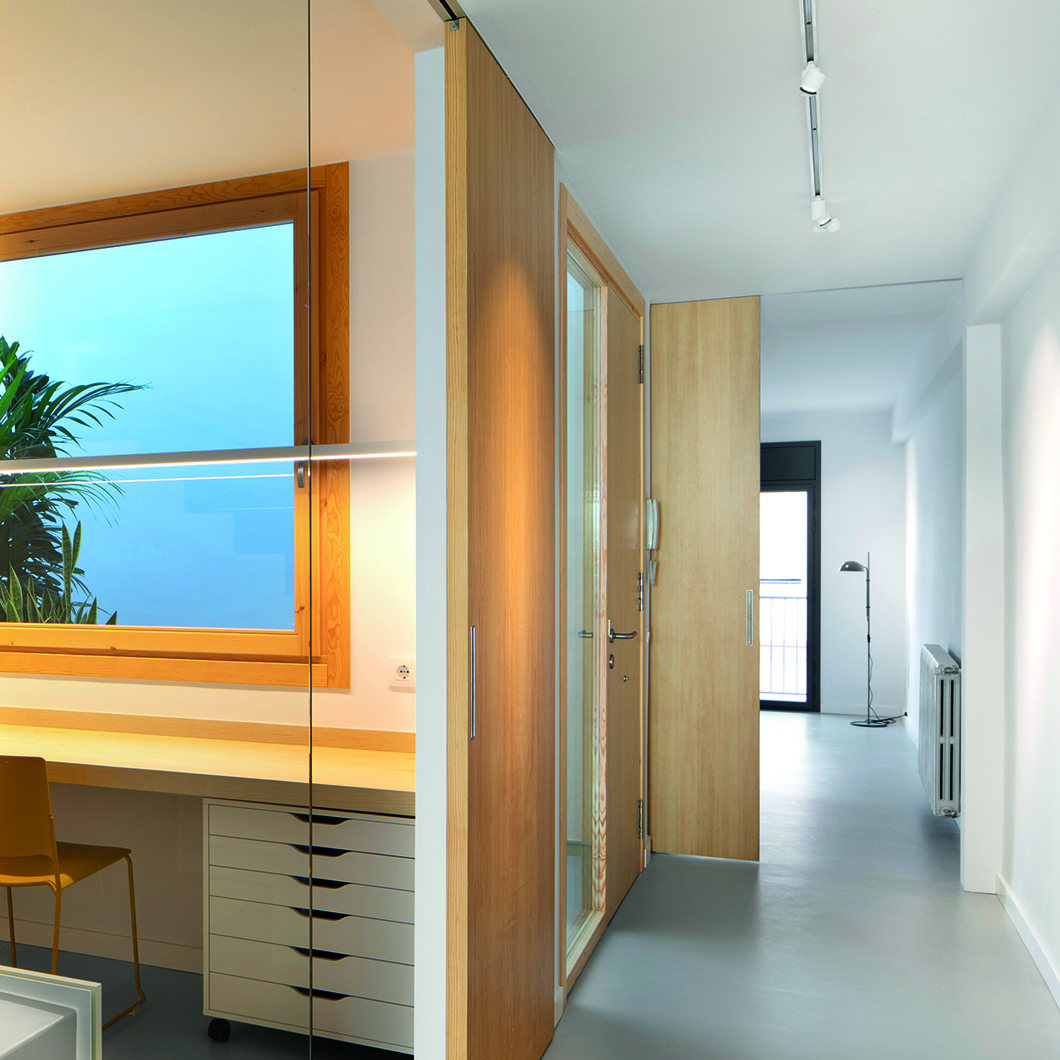

Track systems allow for versatility, as track lines and 90° angle corners can be created at will and a range of different lights can be installed on one track. Insert diffuse light modules, suspended lighting fixtures or spotlights onto the same track module. Simple installation means each luminaire can be easily removed or repositioned with no need for tools to create a unique composition of architectural lighting.

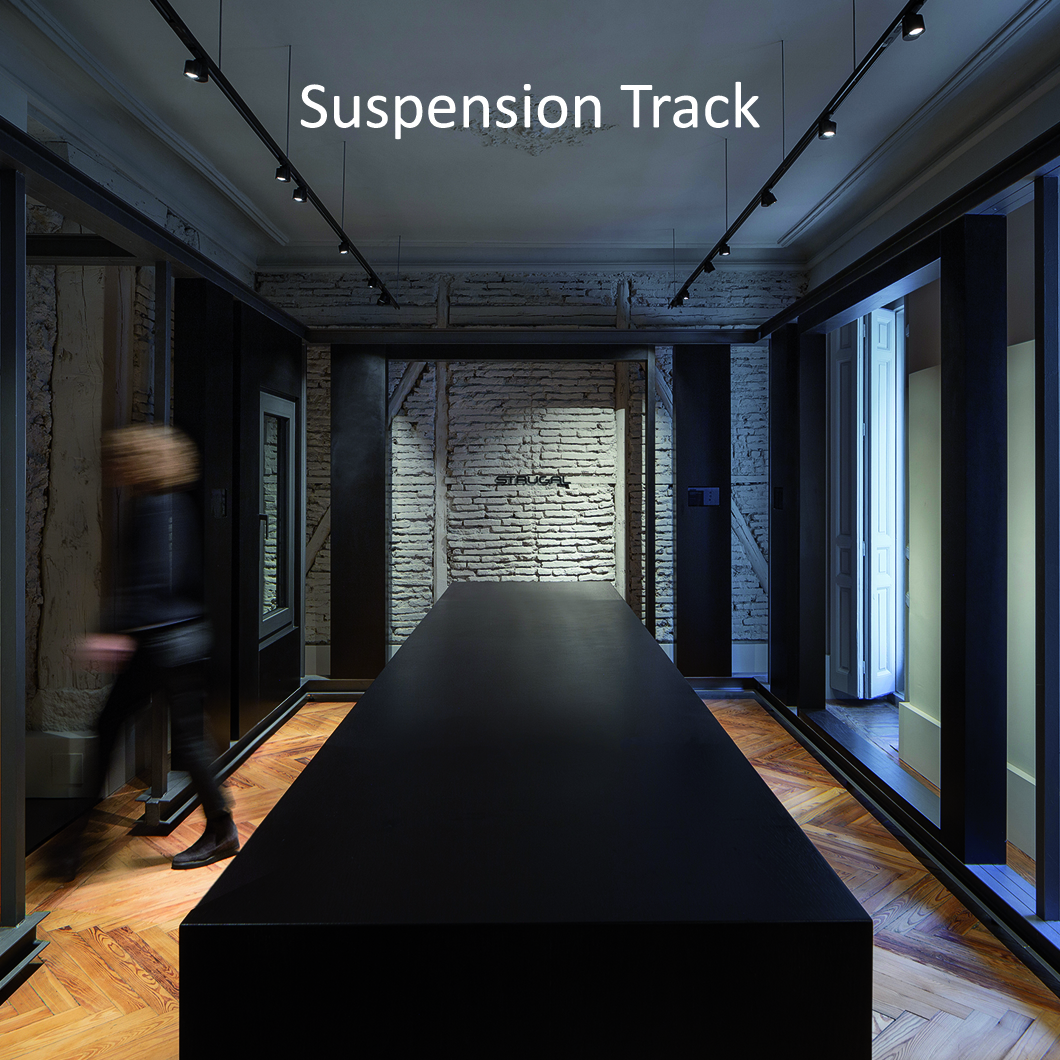

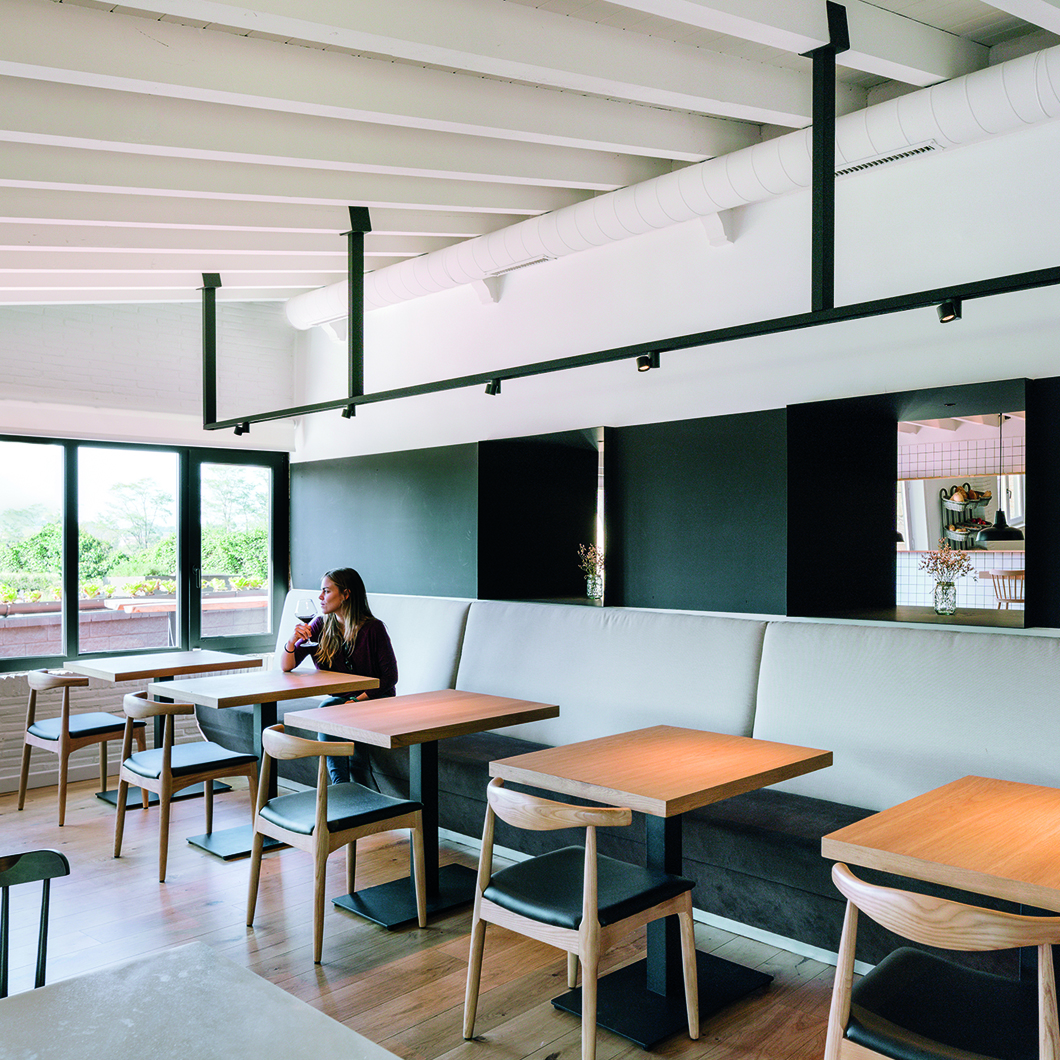

The track and its' accessories are available in classic white or black finishes. 3L track is also available in Flush Mounting and Suspended versions (see related products below). Alternate DALI version available on request.

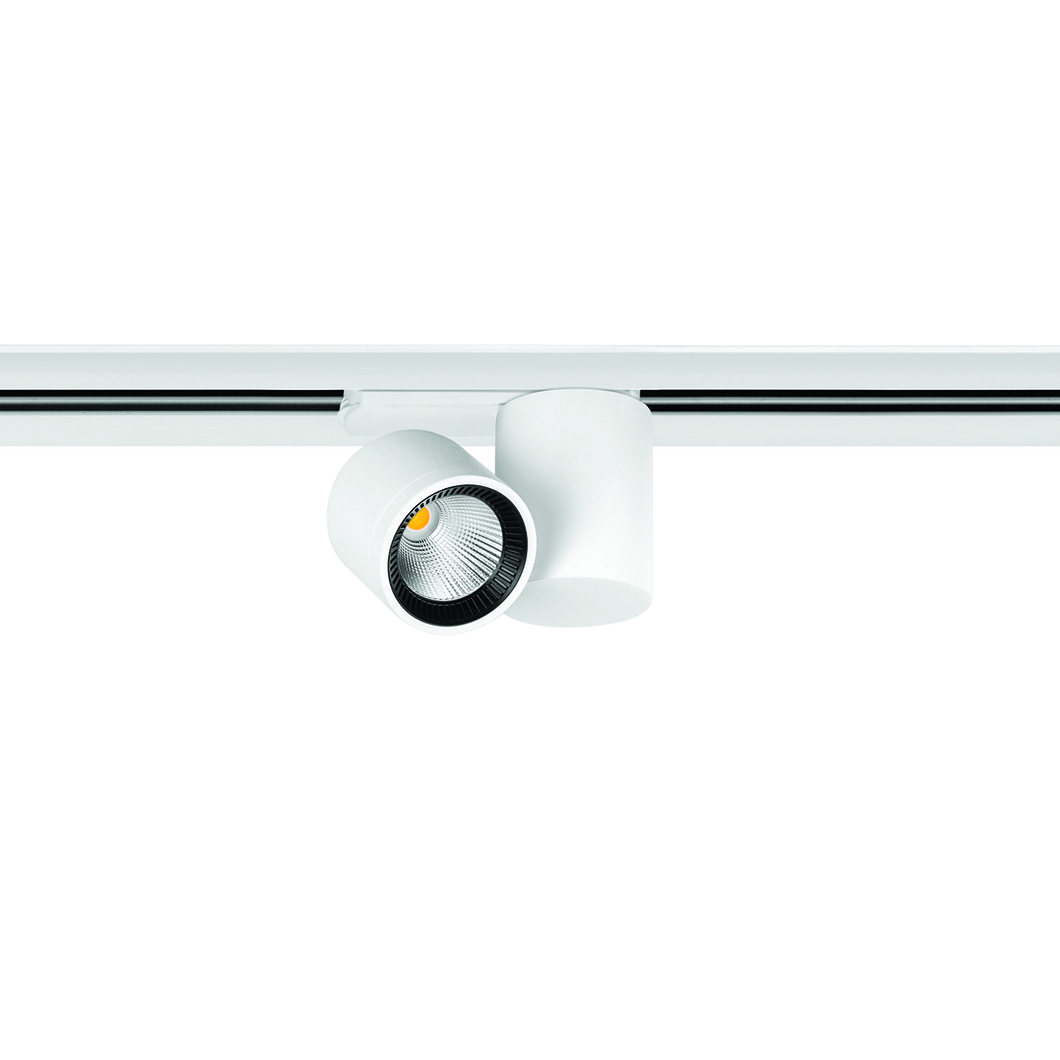

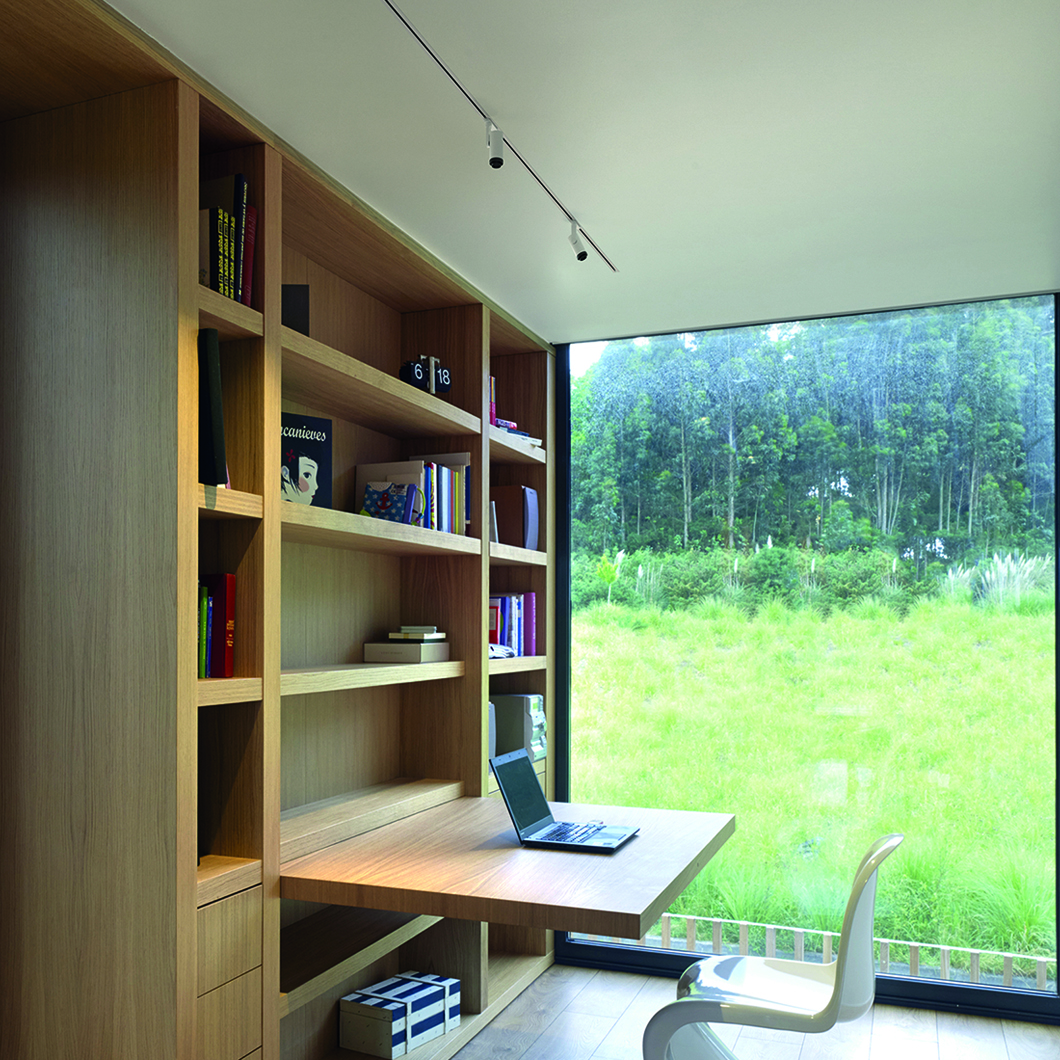

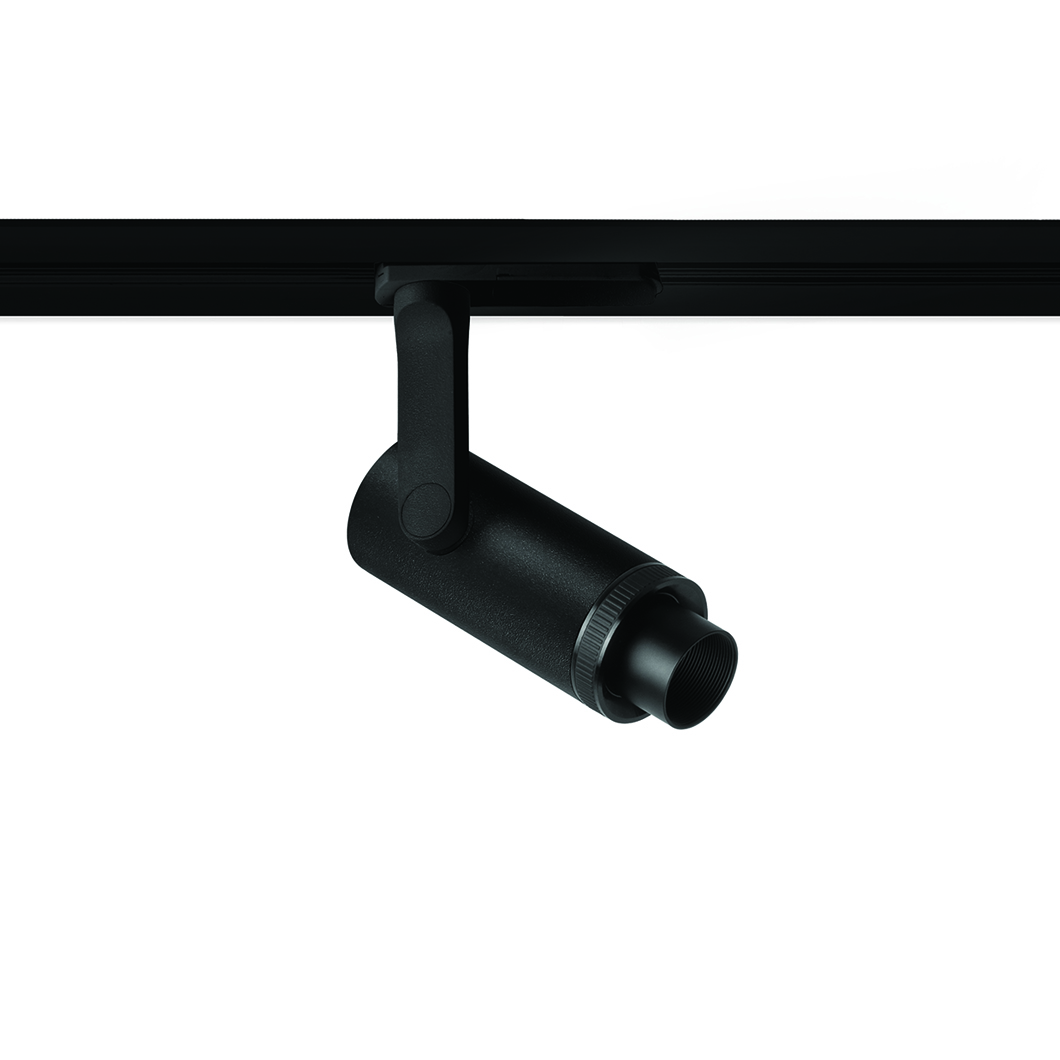

Plus/Plus Mini Track Spotlight:
Plus Track Spotlight is versatile, with an elegant and minimalist design. The stylish cylindrical structure is simple in design, which allows it to blend in well to any contemporary interior. Rotate the adjustable spotlight up to 350°, allowing the LED light to be focused on individual areas around a room. An innovative feature of the Plus family - the beam of light is able to be expanded or concentrated by using a simple manual gesture. This versatility means Plus is perfect for use in museums, exhibitions and retail stores, where beams of light will need to be precisely concentrated on providing illumination to certain objects. Plus Mini retains the same versatility as its larger sibling, only in a more compact form - ideal for smaller spaces such as display cabinets.

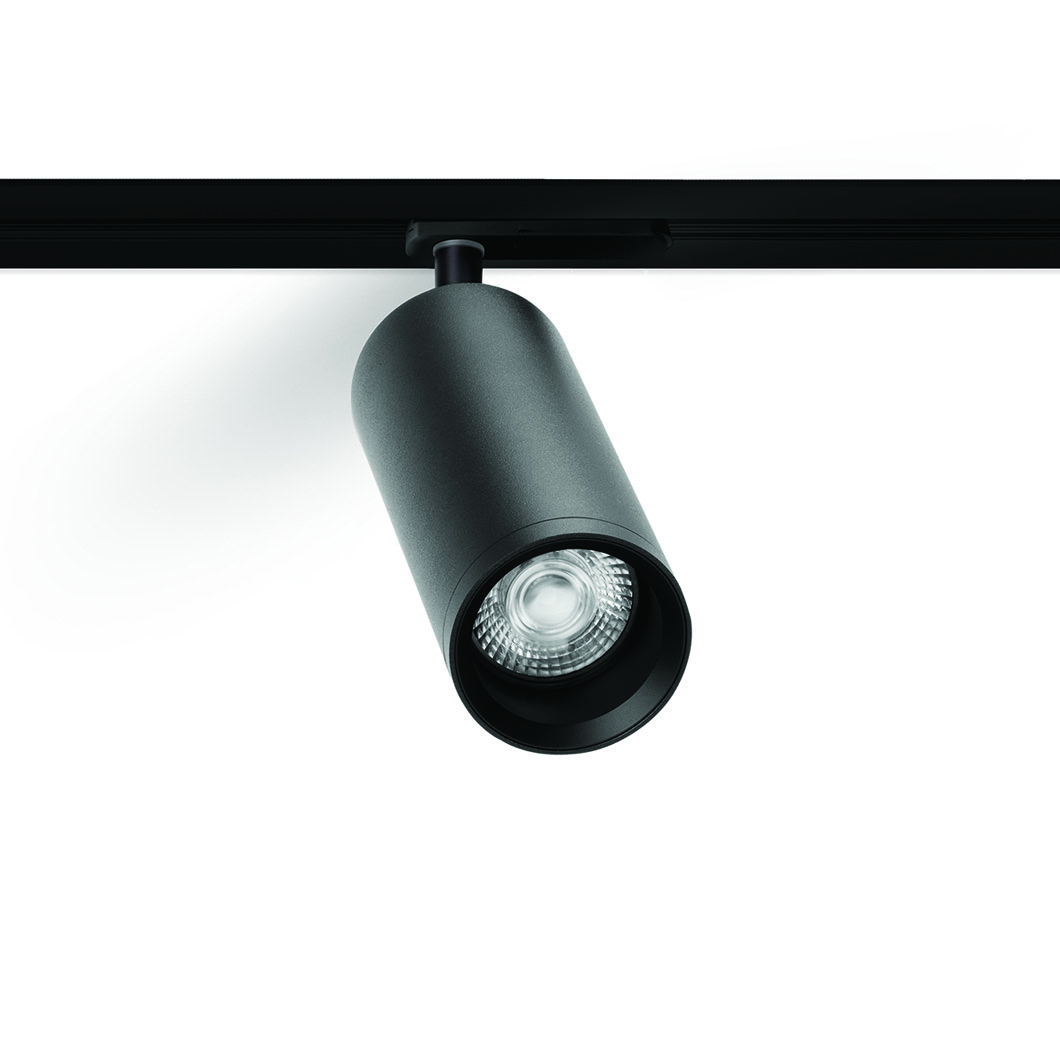

Fit Track Spotlight:
Fit 3L is a stylish LED spotlight boasting a minimalist geometric design. Crafted from aluminium, the cylindrical structure is minimal in its design. This allows Fit to easily harmonise with any contemporary space. The textured exterior excellently contrasts with the black perimeter around the inside of the spotlight, which creates an elegant aesthetic unique to the Fit family. The versatile spotlight can be fully rotated 360°, meaning the direction of light can easily be focused on individual objects around a room. When installed with the optional anti-glare honeycomb diffuser, Fit projects a unique light and shadow effect. 2 sizes available: 65 (H.162mm, Dia.65mm) and 80 (H.200mm, Dia.80mm).

Six Track Spotlight:
A family of spotlights available in different sizes and output options, Six stands out for its elegance and sleek design. With an adjustable disk-shaped head, Six’s innovative lens and reflector allows for an even spread of light from a minimalist structure. Choose between the M and L - each with 2 output options (see Specification tab for info).

Zen Track Spotlight:
The Zen spotlight range is Akoslight's most accoladed, notably for its sleek and compact shape, high LED performance and exceptional adjustable possibilities.

Zen Tube Track Spotlight:
Zen Tube is part of Arkoslight's highest awarded spotlight range for its elegant and unique design. The high performance from such a minimalist fitting is unparalleled with 3 output options to choose from depending on the environment and what's being lit.

Thor Track Spotlight:
Thor can be adjusted to illuminate in any direction thanks to its symmetrical shape and functional design. With a built in driver that's central to its mass, the LED's direct light produces a high luminous flux and in the bracket of best on the market.



Lightbulb with brain filament icon
- Our Top Tips -

How do I order a track? We know track lighting can be confusing so we've simplified it the best we can for you!

  • Use the dropdown options to select an individual component of the track system you want to build, along with the finish and a colour temperature (for modules) - then simply add to your basket with the desired quantity.
  • You can then continue to do this until all the required components for your system are in the basket. Once you're happy with everything selected, progress to the payment page.
  • It's as easy as that!
  • Of course, if you would like any help with anything, we are more than happy for you to email us at sales@darklightdesign.com or call us on 01189 882294

Do I need a driver?

  • Arkoslight Linear 3L is a 230V track and all the modules have built in drivers at the base. No additional remote drivers are needed - just wire the track direct to mains!
Specification

Surface Mounted Track:
W. 56mm, H. 32.5mm, (D. 1000mm, 2000mm, 3000mm)
220V - 240V

Fit 65 LED Track Spotlight:
H. 162mm, Dia. 65mm
LED 10.3W / 300mA
Beam angle - 26 degrees (18 degree and 36 degree on request)
Accessories (on request) - anti-glare honeycomb louvre

Fit 80 LED Track Spotlight:
H. 200mm, Dia. 80mm
LED 19W / 550mA
Beam angle - 28 degrees (19 degree and 37 degree on request)
Accessories (on request) - anti-glare honeycomb louvre

Plus Mini LED Track Spotlight:
W. 63mm, Dia.42mm, H. 100mm, D. 112mm
LED 4.5W / 500mA
Beam angle - adjustable 10-41 degrees
Accessories (on request) - high chromatic LED

Plus LED Track Spotlight:
W. 85mm, Dia. 63mm, H. 125mm, D.42mm
LED 10.4W / 300mA
Beam angle - adjustable 12-51 degrees
Accessories (on request) - high chromatic LED

Six M LED Track Spotlight:
W. 89mm, Dia. 80mm, H. 122mm, D.29mm
Six M1 - LED 11.5W / 350mA
Six M2 - LED 17W / 500mA
Beam angle - 28 degree (19 degree and 38 degree on request)
Accessories (on request) - high chromatic LED
Accolades - Good Design Award, German Design Award Winner 2019

Six L LED Track Spotlight:
W. 113mm, Dia. 102mm, H. 148mm, D.37mm
Six L1 - LED 11.5W / 350mA
Six L2 - LED 24.5W / 700mA
Beam angle - 26 degree (17 degree and 34 degree on request)
Accessories (on request) - high chromatic LED
Accolades - Good Design Award, German Design Award Winner 2019

Zen LED Track Spotlight:
W. 150mm, Dia. 90mm, H. 118mm, D.42mm
Zen Tube 1 - LED 12W / 350mA
Zen Tube 2 - LED 17W / 500mA
Zen Tube 3 - LED 23W / 700mA
Beam angle - 24 degree (16 degree and 42 degree on request)
Accessories (on request) - high chromatic LED, anti-glare honeycomb louvre, elliptical refractor, beam mixer diffuser
Accolades - IF Product Design Award 2014, Delta Awards 2013 Selection, A'Design Award winner 2014 bronze

Zen Tube LED Track Spotlight:
W. 145mm, Dia. 90mm, H. 190mm, D.80mm
Zen Tube 1 - LED 12W / 350mA
Zen Tube 2 - LED 17W / 500mA
Zen Tube 3 - LED 23W / 700mA
Beam angle - 24 degree (16 degree and 42 degree on request)
Accessories (on request) - high chromatic LED, anti-glare honeycomb louvre, elliptical refractor, beam mixer diffuser
Accolades - IF Product Design Award 2014, Delta Awards 2013 Selection, A'Design Award winner 2014 bronze

Thor LED Track Spotlight:
W. 163mm, Dia. 126mm, H. 290mm
Thor 1 - LED 23.5W / 700mA
Thor 2 - LED 32.5W / 950mA
Beam angle - 28 degree (17 degree and 40 degree on request)
Accessories (on request) - high chromatic LED, anti glare screen, anti-glare honeycomb louvre, elliptical refractor, beam mixer diffuser
Accolades - Iconic Awards 2016 Interior Innovation winner, German Design Award nominee 2016, A'Design Award Winner 2015 Silver

Lamp type: Integral LED

Dimensions
Delivery and warranty

Approximately 2 weeks lead time.

About the manufacturer

Boasting more than three decades experience in the lighting field and offering an extensive range of luminaires, Arkoslight have established themselves as a brand built on providing the best possible lighting solutions. Each and every product in this range has been thoroughly researched to feature state-of-the-art technological innovations. These distinguished creations have been designed to assure they meet their high standards of quality.
