Apure Velo Trimless Plaster In Downlight

Designer: Porsche Design Studio

Manufacturer: Apure

** Bespoke Specialist Product **

Please call for price and availability on +44 (0)1189 882294 or email [email protected]

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

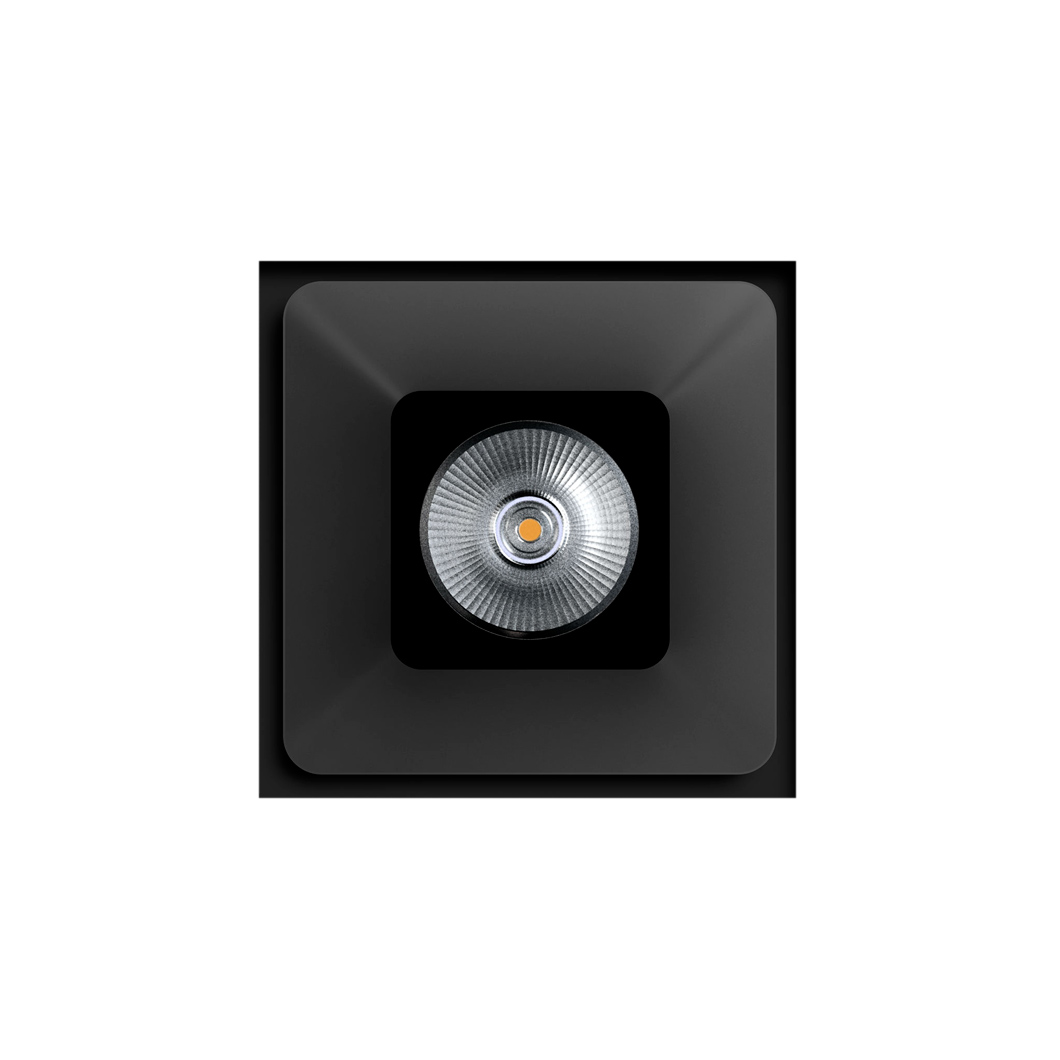

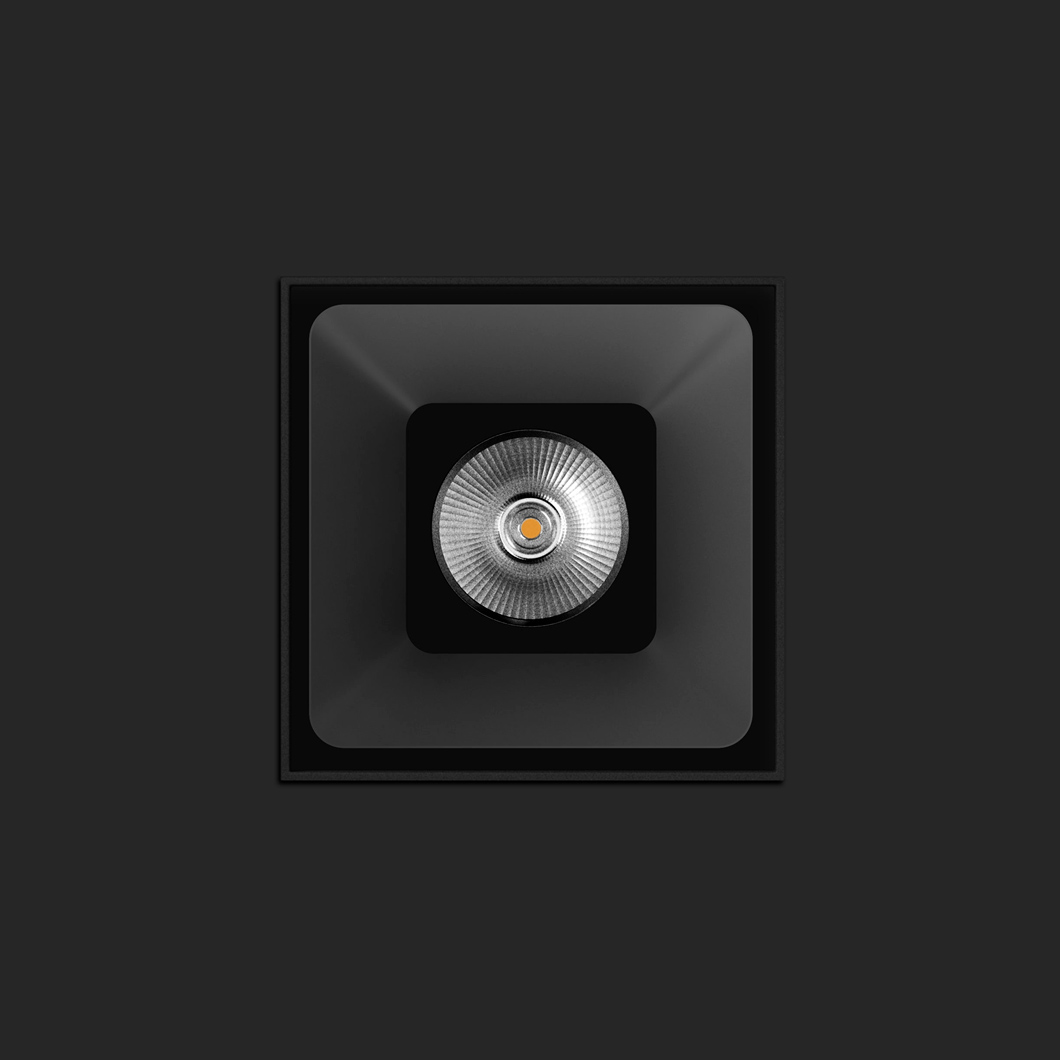

The Velo by Apure is the plaster in version of the classic Clarus downlight, offering the same outstanding lighting performance in a trimless design (with a minimal 2mm edge). Combining cutting edge technology with the latest engineering techniques, VELO offers a downlight that can fulfil multiple requirements:

- VELO a high performance waterproof fixed downlight

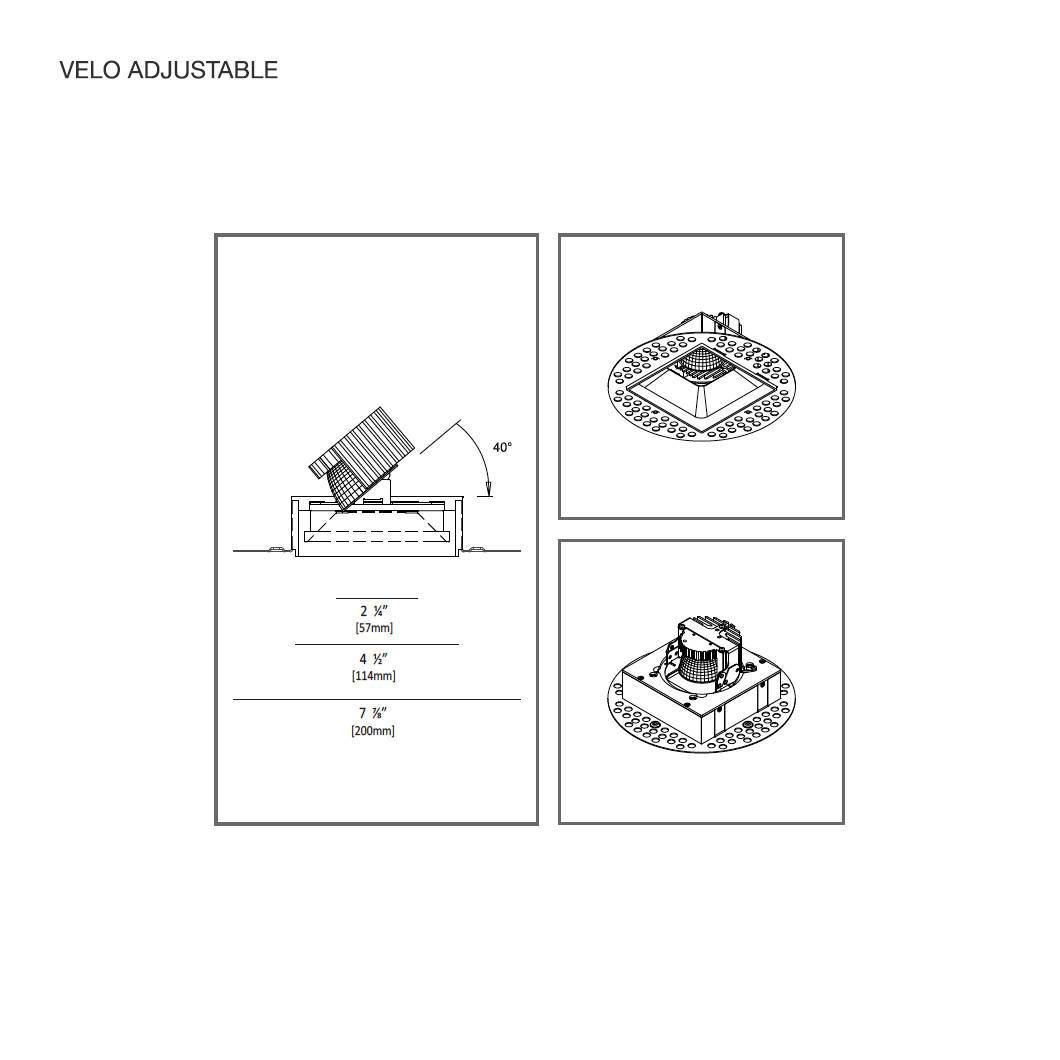

- VELO RADIUS adjustable (360° rotation and 40° adjustment)

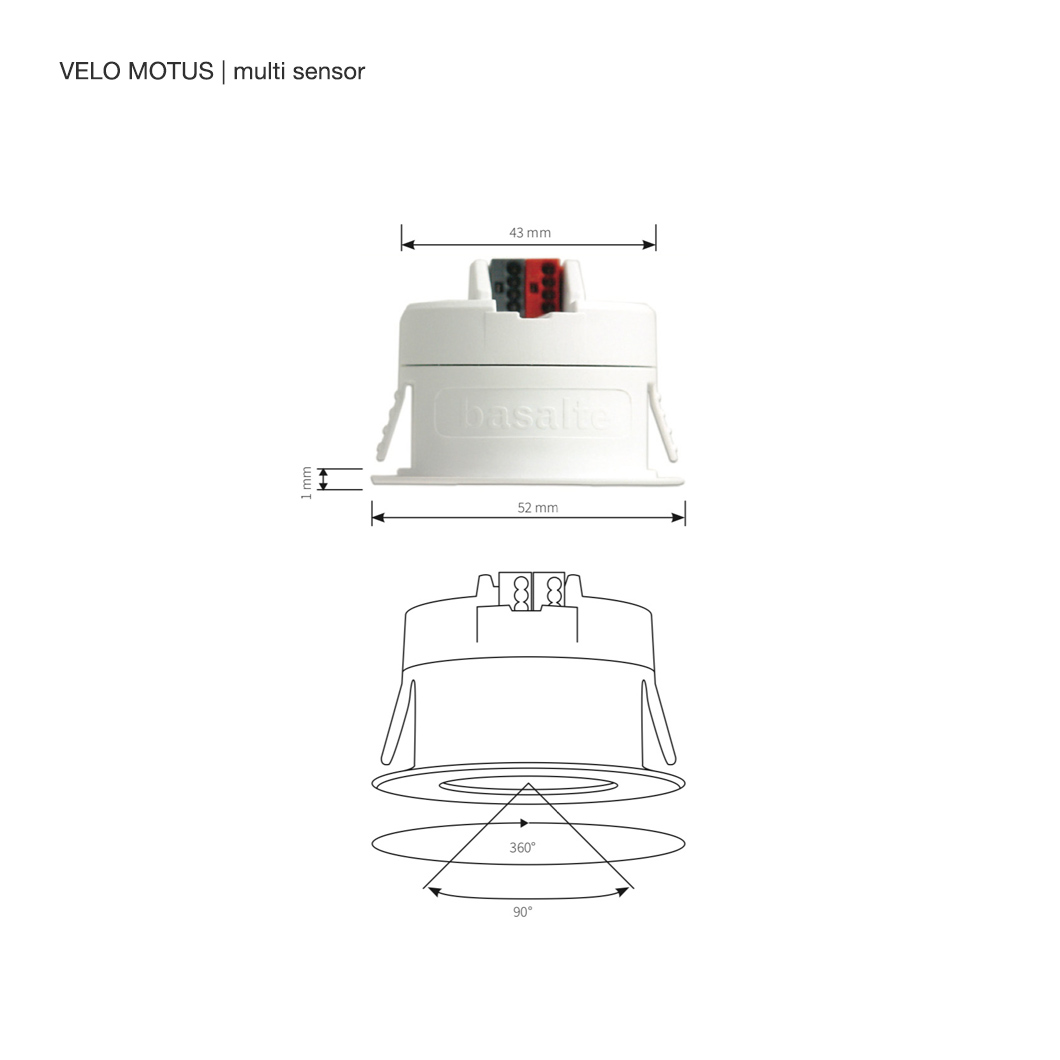

- VELO MOTUS multi-sensor
- VELO VOX speaker.

Fixture Details
Powered by a single high-performance 13W CREE LED, VELO is available in multiple colour temperatures, and anodised finishes. The interchangeable magnetic louver is available in white powder coat, natural anodized, black anodized, titan anodized, gold anodized, bronze anodized, gun metal anodized and rose gold anodized finishes. Each downlight features incredible dimming, colour accuracy and fixture to fixture colour consistency.

Recessed Trimmed Speaker
Powered by James Loudspeaker, the VELO Vox delivers peformance sound with integrated compact subwoofers, coupled with a module to handle high and midrange frequencies. See Data Sheet PDF for more details.

Specification

Construction

  • Formed steel trim with powder coat paint finish combined with signature aluminum apure© louver, available in various colours and combinations.
  • 350mA LED driver required for optimal performance and LED longevity.

Electrical

  • 13W Electrical Consumption, 350ma Maximum current, 36V Typical forward voltage.
  • Driver not included

Related Accessories (one reflector per fixture required)

  • AA010 - 10° aluminum LED reflector
  • AA017 - 17° metalized molded plastic LED reflector
  • AA024 - 24° metalized molded plastic LED reflector
  • AA025 - 25° aluminum LED reflector
  • AA036 - 36° metalized molded plastic LED reflector
  • AA045 - 45° aluminum LED reflector

Additional Information

  • Drivers available for purchase (AA3-300 & AA3-350) as a separate accessory for use with LED fixtures.
  • Easy installation when used in conjunction with Velo installation board (AP7-BRD-EU).
  • Damp location.
  • Minimum ceiling depth - 100mm

VELO VOX SPEAKER

Construction

  • Formed steel trim with powder coat paint finish combined with signature aluminum Apure© louver and speaker grille, available in various colours and combinations.
  • Made in Germany - Design by Porsche Design Studio.
  • High excursion woofer and coaxial tweeter.
  • Speaker comes with a built in crossover network and 20 Watt low-loss, toroidal 70 Volt transformer.
  • Low acoustical impedance expanded steel mesh cover for crisp unobstructed sound

Performance

  • Nominal Impedance: 4 ohms
  • Frequency Response: 38Hz-22kHz +/-3dB
  • Sensitivity: 88dB 2.83V/1m
  • Integrated subwoofer

Electrical / Sensor Protocol

  • Power Required: 25-125W (Protection limited)
  • Minimum 18AWG cable required

Speaker Housing Ordering Codes

  • Required Housing Depth: 7” (177.80mm)

Listings

  • UL Rated
  • Dry Location Only

Lamp type: 13W CREE LED | 50,000 hours lifetime

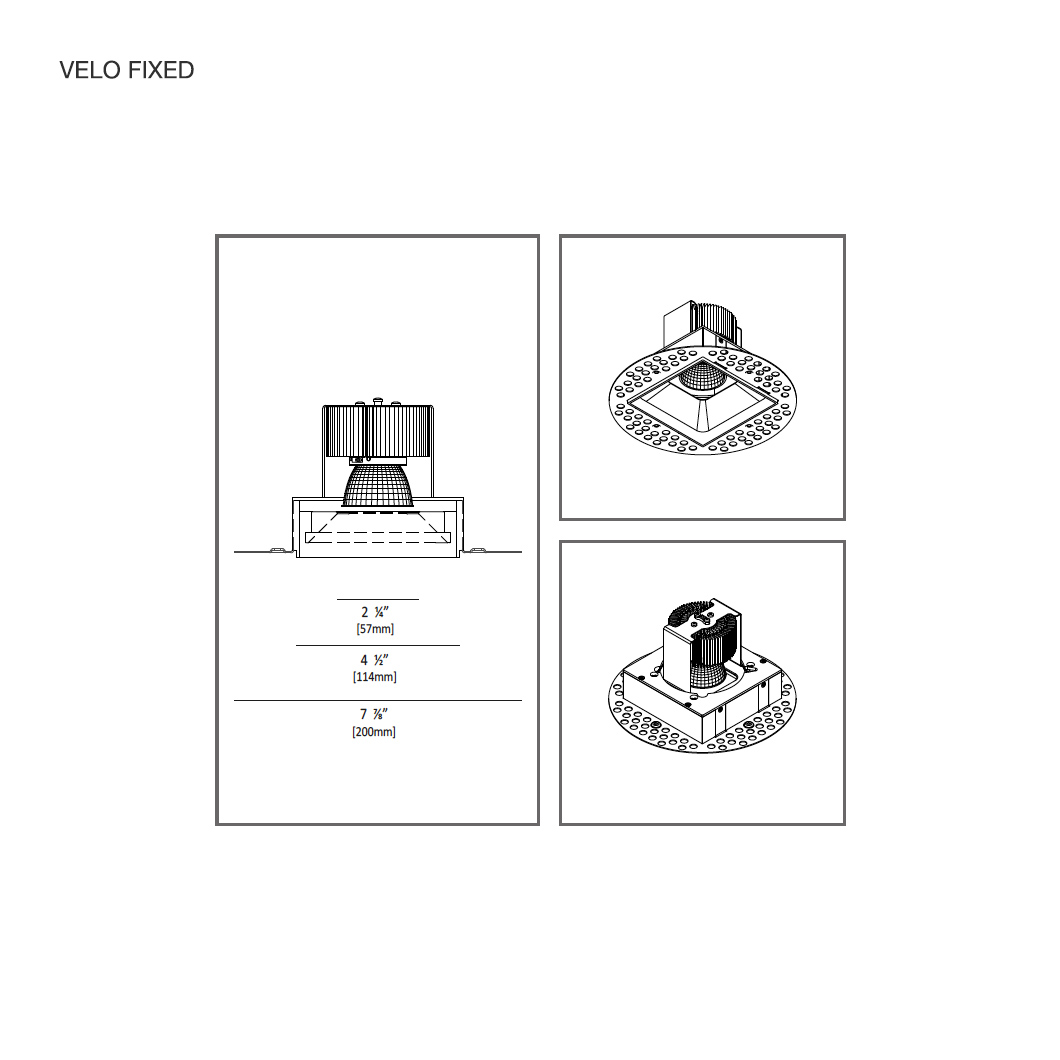

Dimensions

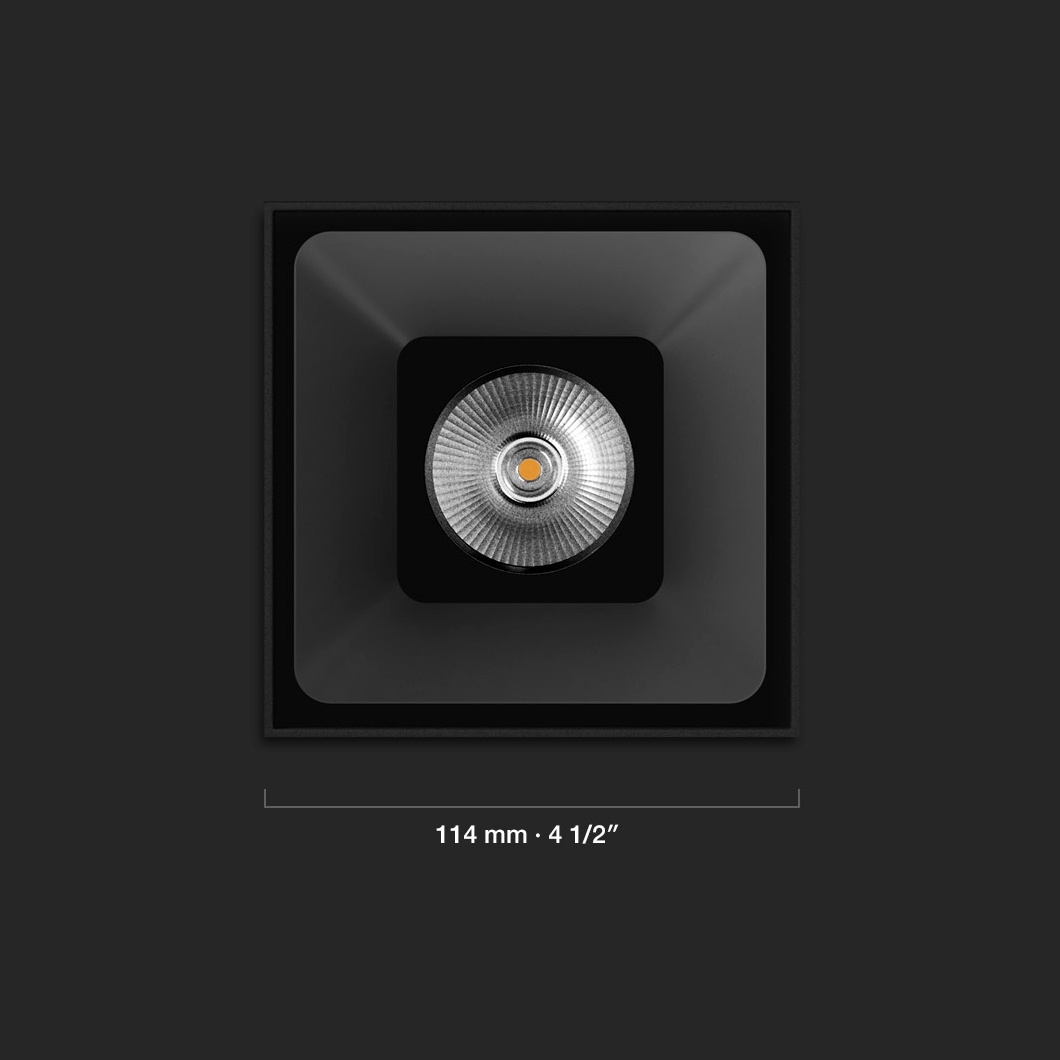

Product dimensions: W.137mm x D.137mm

Lens dimensions: Dia.57mm

Downloads
Delivery and warranty

Usually delivered in 6-8 weeks

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

LED Lighting Fixtures – 2 Years*
Power Supplies & Drivers – 2 Years*
Linear Profiles – 5 Years*
Housings – 5 Years*
*From delivery date

Apure Warranty PDF

About the manufacturer

Created in 2013, Apure develop state-of-the-art architectural lighting whilst maintaining a minimalist aesthetic. In collaboration with the world-renowned Porsche Design Studio, each product is designed and engineered in Germany with a clear purpose to solve a specific problem. Combined with a tradition of fine craftsmanship and attention to detail, Apure has achieved its goal with a line of sophisticated and specialised products that are perfect for architects, interior designers and lighting professionals.
