- Description
-

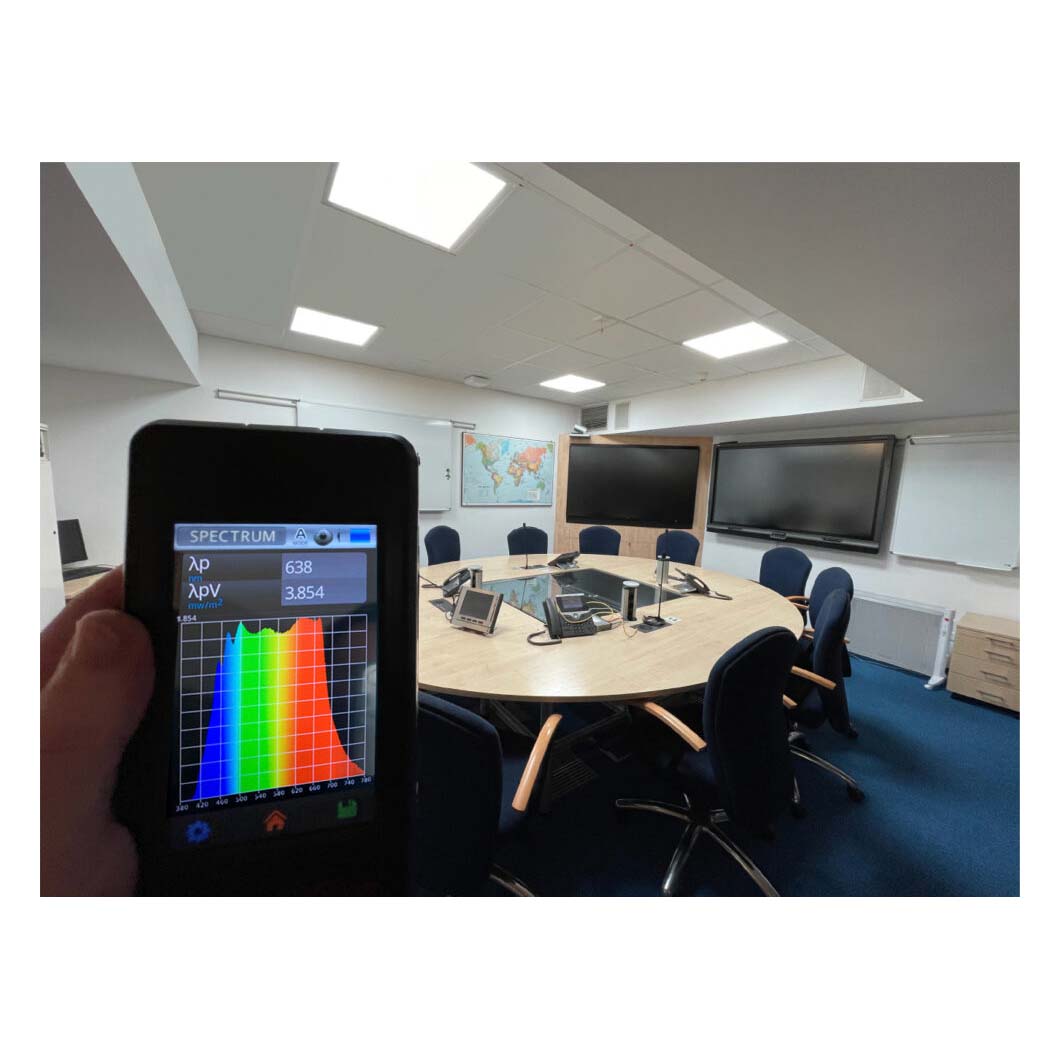

The patented Spectrasol IBP Alfa LED grid or soffit recessed panel light illuminates interiors with an artificial light as close to natural sunlight. Thanks to its balanced spectral composition (SPD), which positively influences the body's circadian rhythms through the non-visual system of the eye ( NIF), you get biologically optimised full-spectrum lighting that supports overall health, physical and mental vitality, and cognitive functions (cognitive performance and endurance, concentration, attention, speed of thinking, ability to understand information, memorisation and recall) indoors during the day.
Spectrasol luminaires do not emit concentrated energy in the short wavelengths of the blue part of the light spectrum in the harmful blue light range, which increases the risk of macular degeneration. Spectrasol, on the other hand, regenerates the eyes by emitting energy in the red, photobiomodulation part of the light spectrum, which acts as a compensatory factor for harmful blue light with both preventive and therapeutic effects.

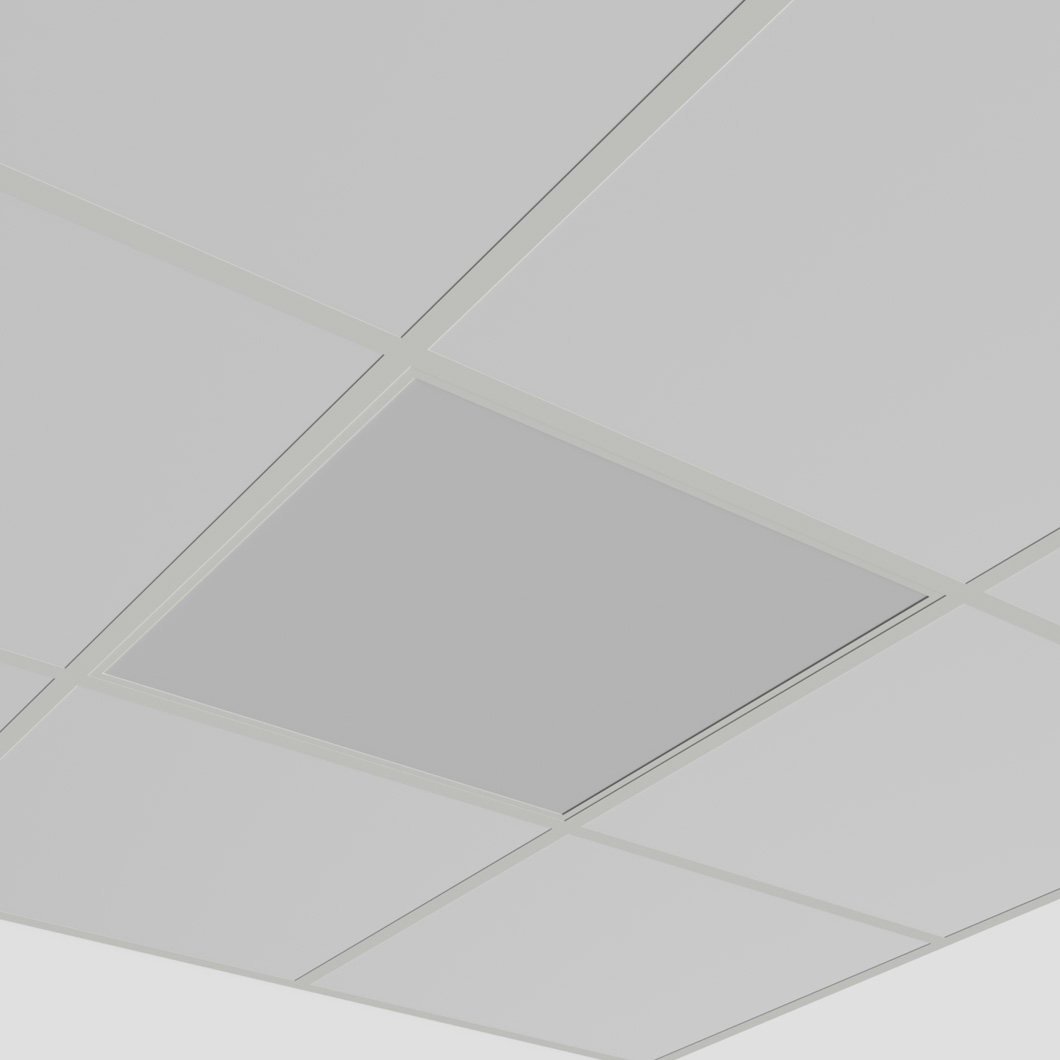

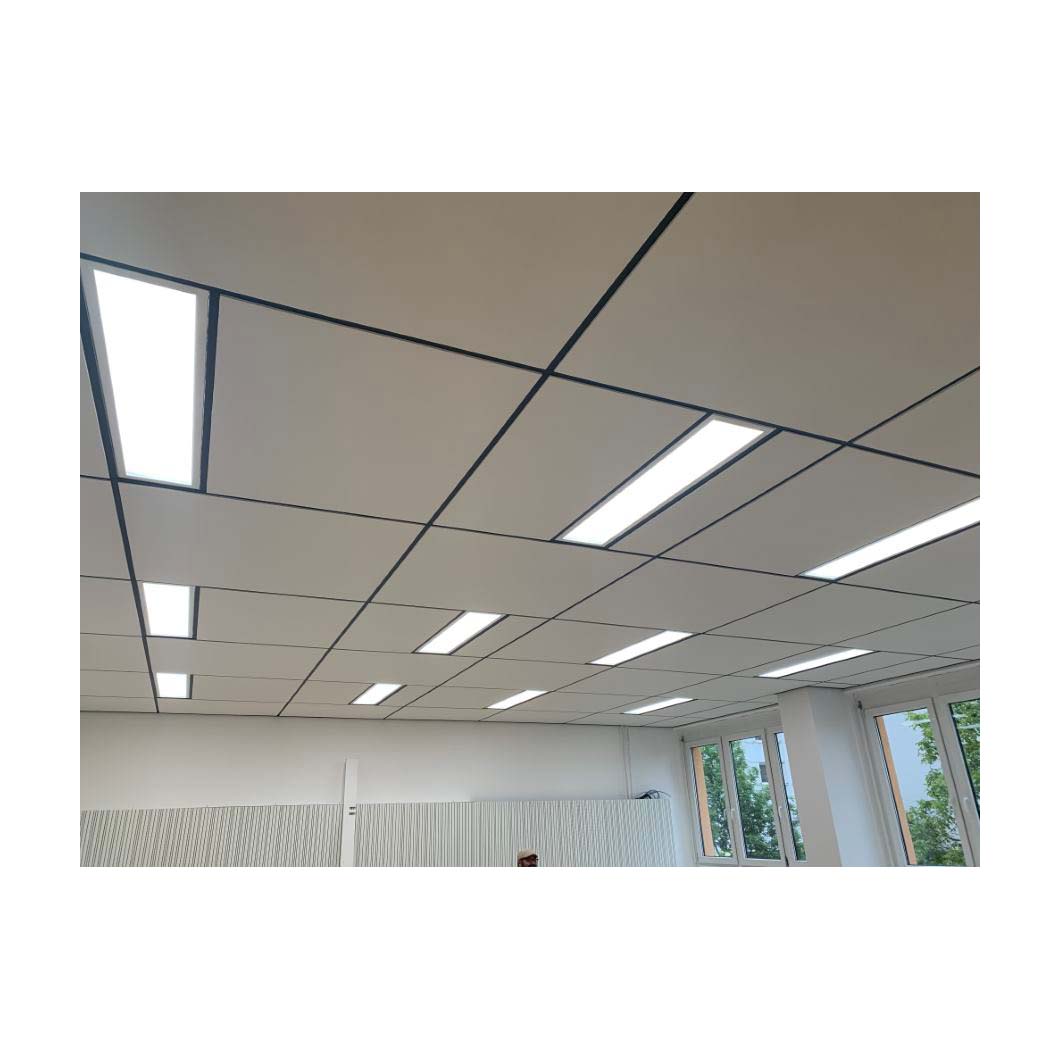

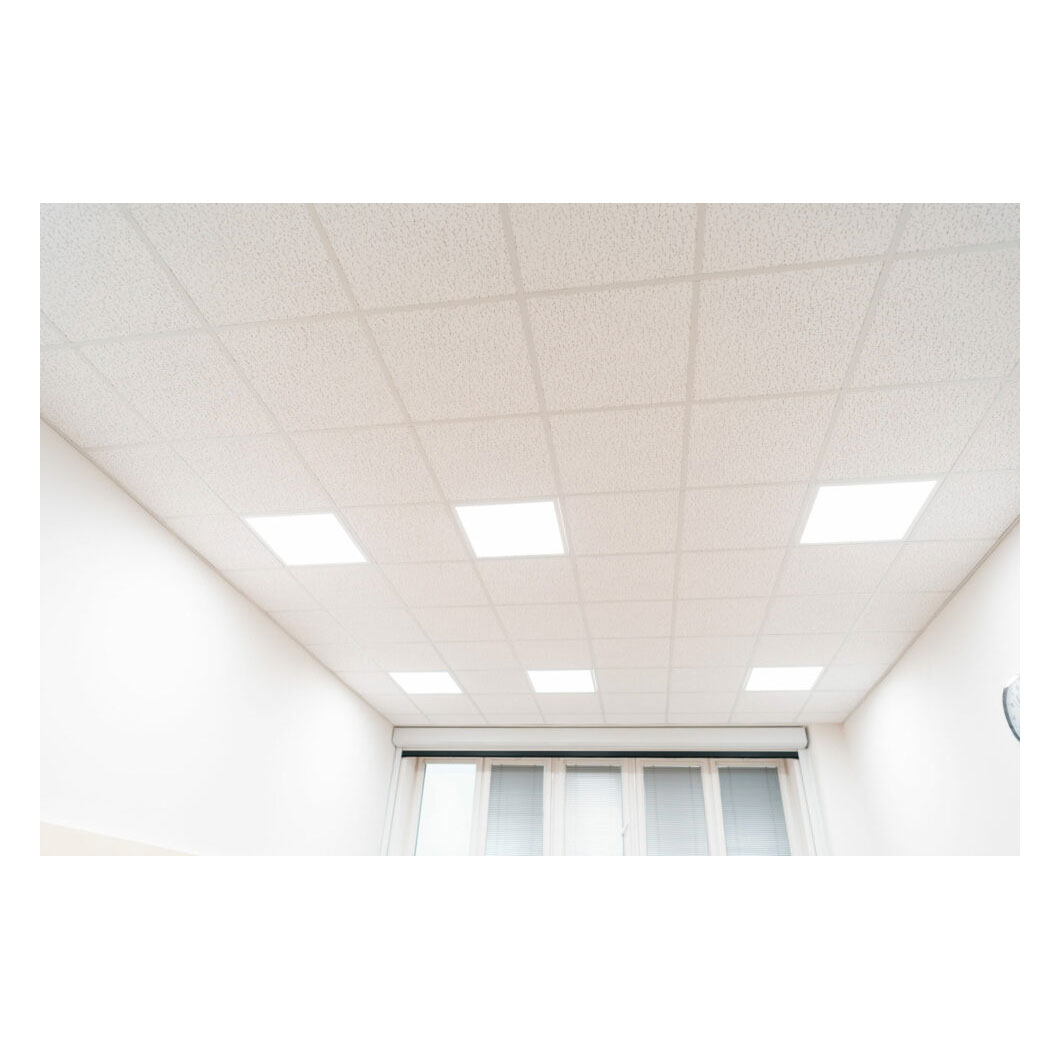

Spectrasol IBP ALFA luminaires are procognitive LED luminaires with a large emission area, designed for installation in cassette and plasterboard ceilings. They are suitable for offices, surgeries, classrooms and other spaces where daily activities take place.
The IBP ALFA light fitting is an economical luminaire that supports cognitive functions with a large radiation area and a maximally optimized price. Its simple design, excellent patented spectrum, and large-area light distribution make this model the ideal choice for all offices, clinics, classrooms, and staff rooms where it is important to support cognitive performance, work and learning abilities, attention, concentration, and vitality. It is equipped with an LED driver with low flicker effect.
- Specification
-
Versions

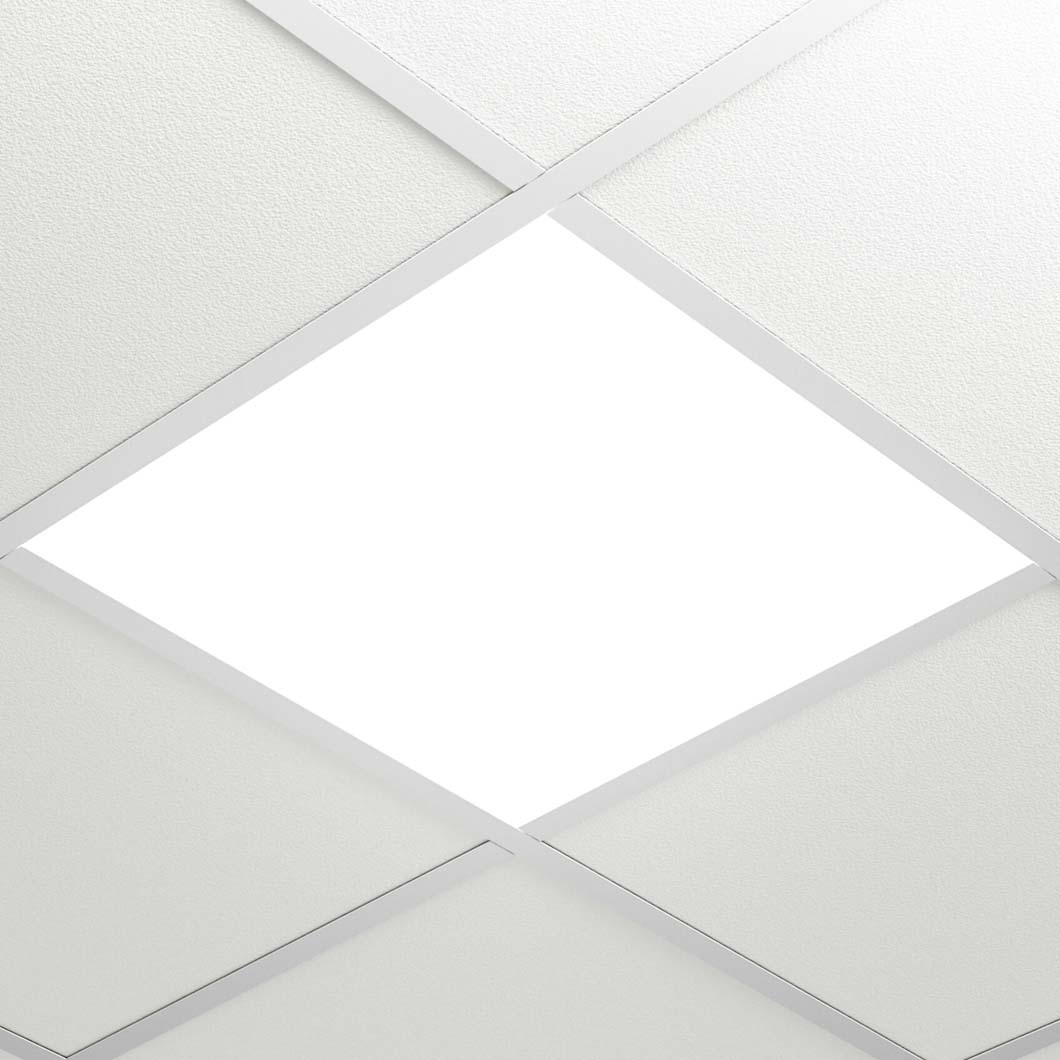

600x600
Power consumption: 45W:
Size: 596 x 596 x 90mm
Procognitive LED Spectrasol 5000K
Luminous flux: 4500 lm
EDImel (D65;D50): 3910;4500 lm
ON/OFF | 2.7kg
DALI | 2.9kg

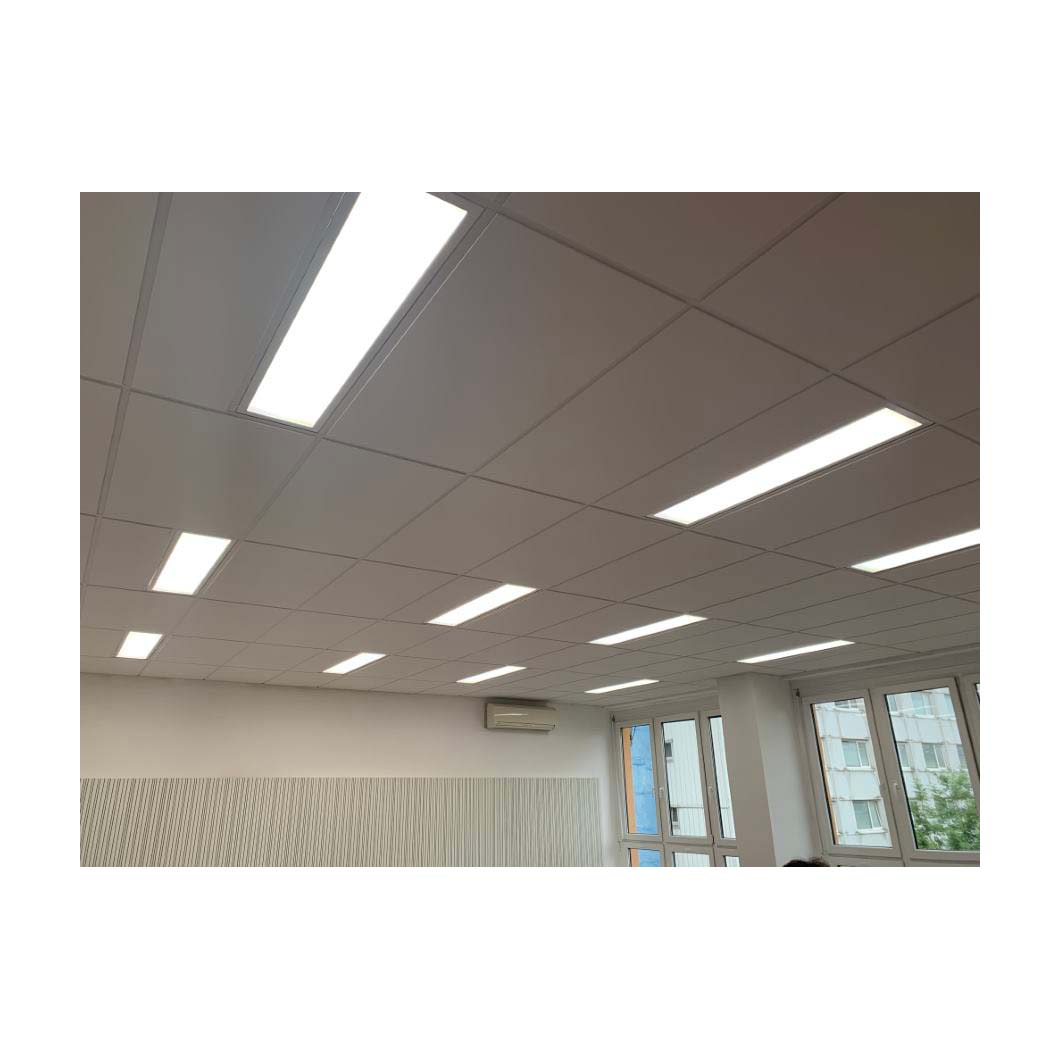

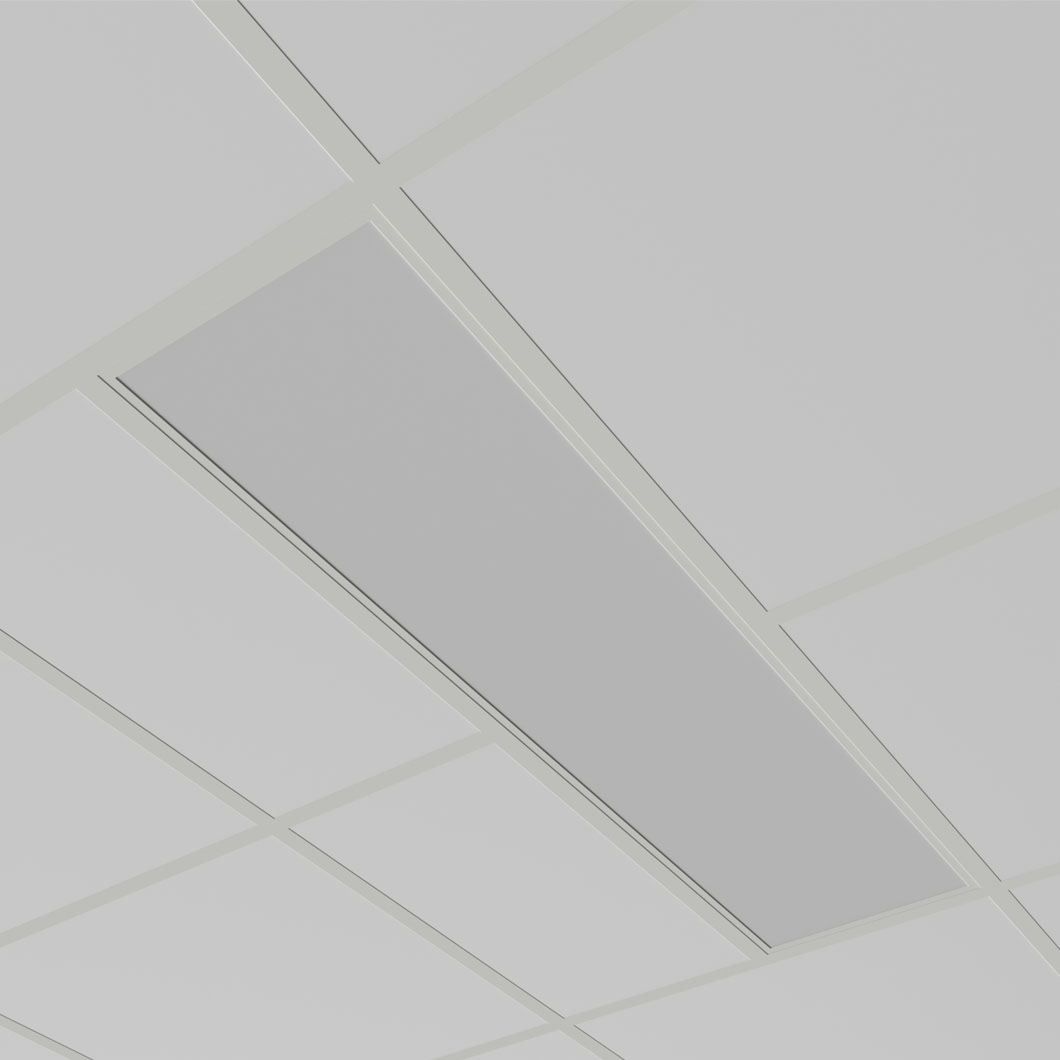

1200x300
Power consumption: 45W:
Size: 1195 x 296 x 90mm
Procognitive LED Spectrasol 5000K
Luminous flux: 4500 lm
EDImel (D65;D50): 3910;4500 lm
ON/OFF | 2.8kg
DALI | 3.0kg
Light parameters
Light distribution: Direct
Optical system: Opalescent PS cover
UGR: <19
CCT real1: 4800K (2700K)3
CCT measured2: 5000K (3000K)3
CRI: >95
DER mel (daytime): (D65)=0,87 ; (D50)=1
Flicker: Flicker free
Calculated LED lifetime: L80B20 70.000h
Electrical parameters
Power supply: 220-240V 50-60Hz
Connection: Screwless terminal block ready for looping
Control options: ON/OFF, DALI, SWITCH DIM
Mechanical parameters
Body: Steel sheet
Surface finish: Powder coating white RAL 9016
Maximum ambient temperature: 25°C
Protection: IP20 + IP54
Packaging: Recyclable cardboard
Warranty: 7 years
1real CCT in a typical illuminated room
2dimensional CCT of luminaires (spherical integrator)
3second CCT value for BD variants
tolerance of photometric values +/- 10%
- Dimensions
-
- Downloads
-
- Delivery and warranty
-
Delivery
Lead times TBC
Warranty
3, 5 or 7 year guarantee / warranty
See product for specific details
- About the manufacturer
-
Proudly introducing SpectraSol, a pioneer in "Biological Procognitive Lighting" that is the closest on the market to bridging the gap between artificial indoor lighting and the natural light of the sun.
Standard LED lighting is mostly harmful to eyesight, cognition, sleep and health, due to its high blue-light peaks, spectral gaps and high levels of harmful invisible LED flicker. SpectraSol’s patented technology is flicker-free and engineered to replicate the full, continuous spectrum of natural sunlight by suppressing the harmful blue light range and balancing the precognitive cyan and regenerative red light ranges.
The human centric lighting of Spectrasol supports circadian rhythm, enhances cognitive function, and provides an indoor environment that supports health and wellbeing in the workplace. And all whilst providing superior visual comfort and energy efficiency.
Where can I use Spectrasol light fittings?
Spectrosols cutting-edge range of full spectrum LED lighting can be used in pretty much any working environment, and is especially suited to industries that rely on high cognitive output or have limited natural light. Examples include:
Education Sector:

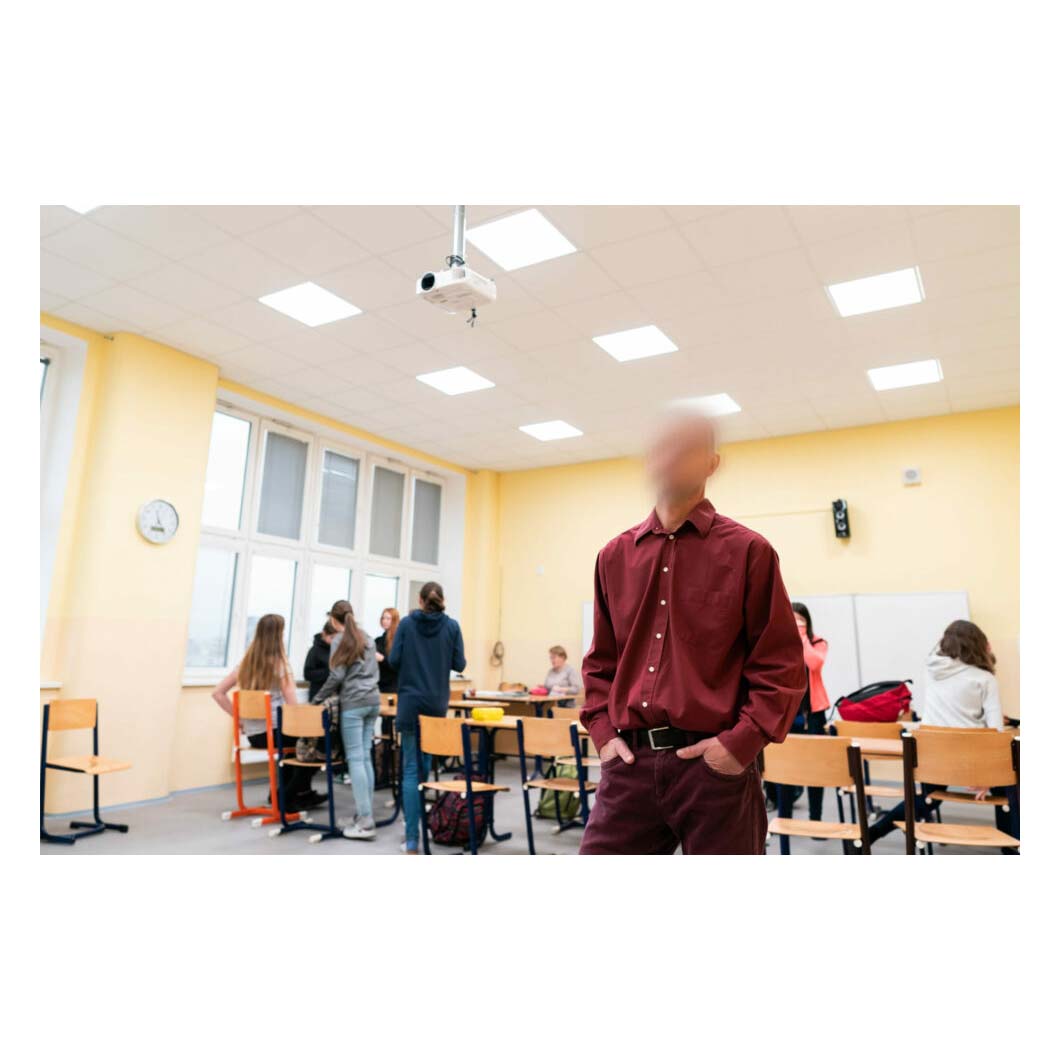

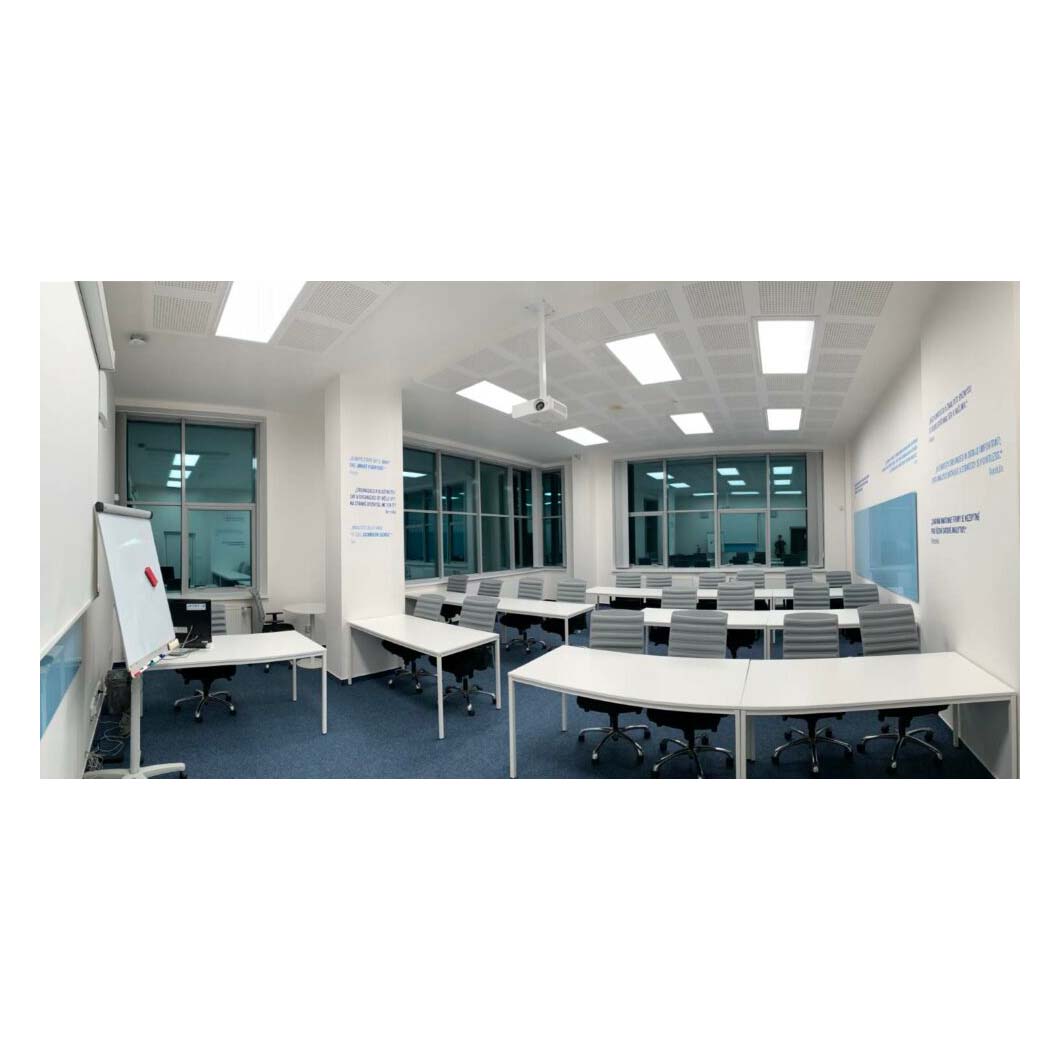

Classrooms, auditoriums, assembly halls & training rooms
Work areas:

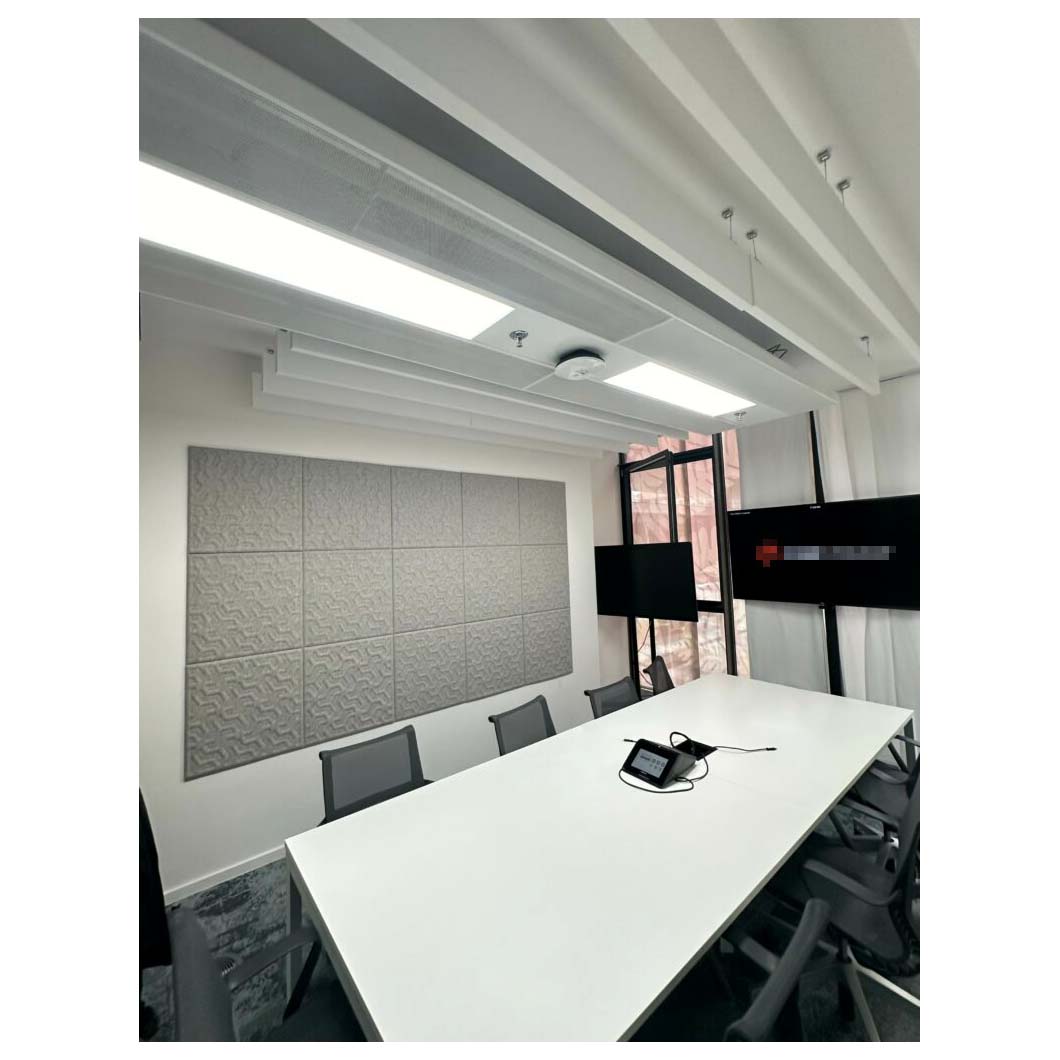

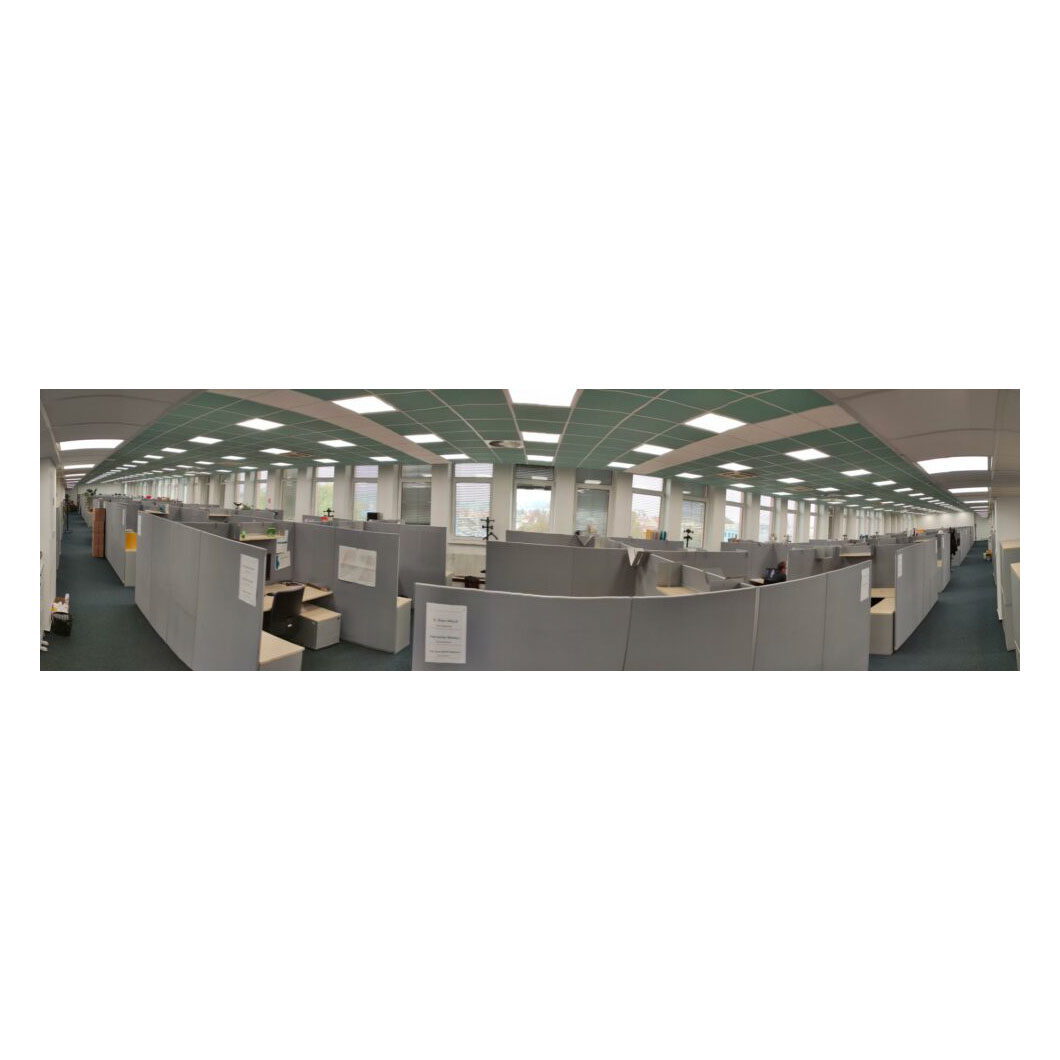

Offices, production spaces, meeting rooms, laboratories & dust-proof environments
24/7 Workplaces:

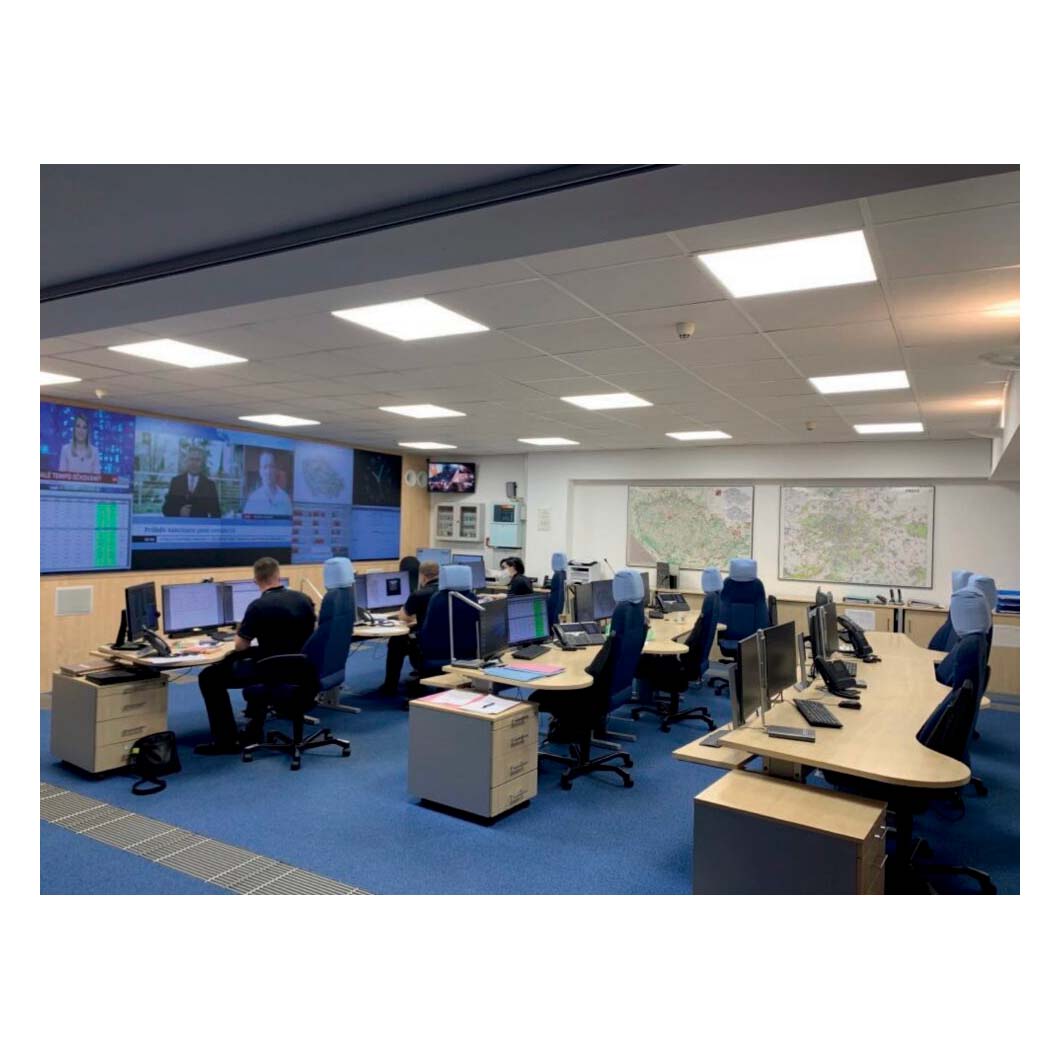

Dispatch Centres & control rooms
Healthcare Sector:

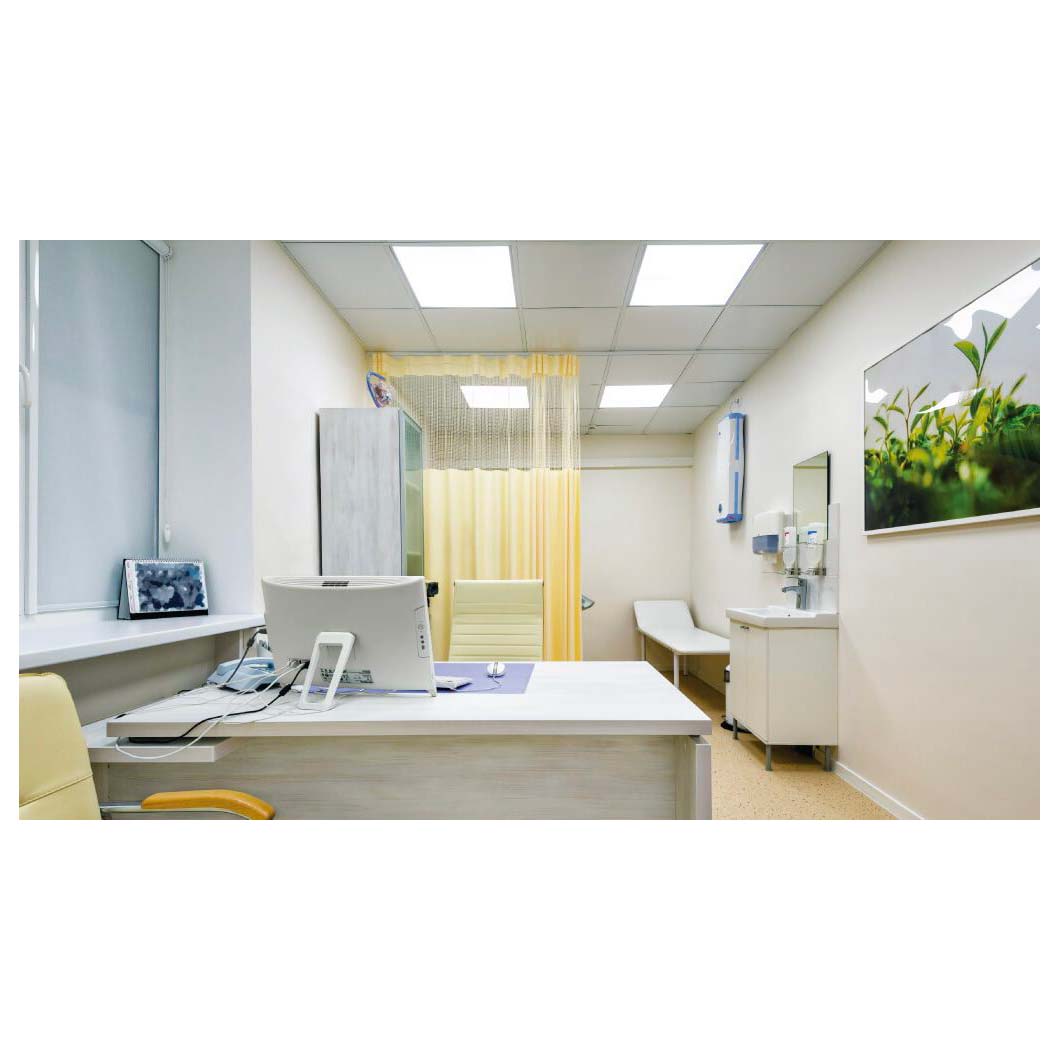

Medical offices, outpatient clinics, nurse stations, inpatient facilities, phototherapy & care homes
Security & Defence Sectors:
Police stations, prisons, reform centres, laboratories & exposed workplaces
