Rako WK EOS Wired Wall Plate Control Module

Manufacturer: Rako

Please select

£352

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

The Rako WK-EOS wired push button wall plate controller combines minimalist styling with a modern edge. The screwless keypad design creates a sleek aesthetic with finishes to suit contemporary and traditional interiors.

  • A hard wired 3 or 6 button, push button control module.
  • Customisable and programmable using Rasoft Pro Software.
  • Each input is fully customisable, can be addressed to separate Rako Rooms or Channels and activate on press or release, giving a 'Press and Hold' function. Additionally each input can trigger an internal macro function.
  • WK-EOS control modules are designed to be flush mounted to a UK back-boxes.

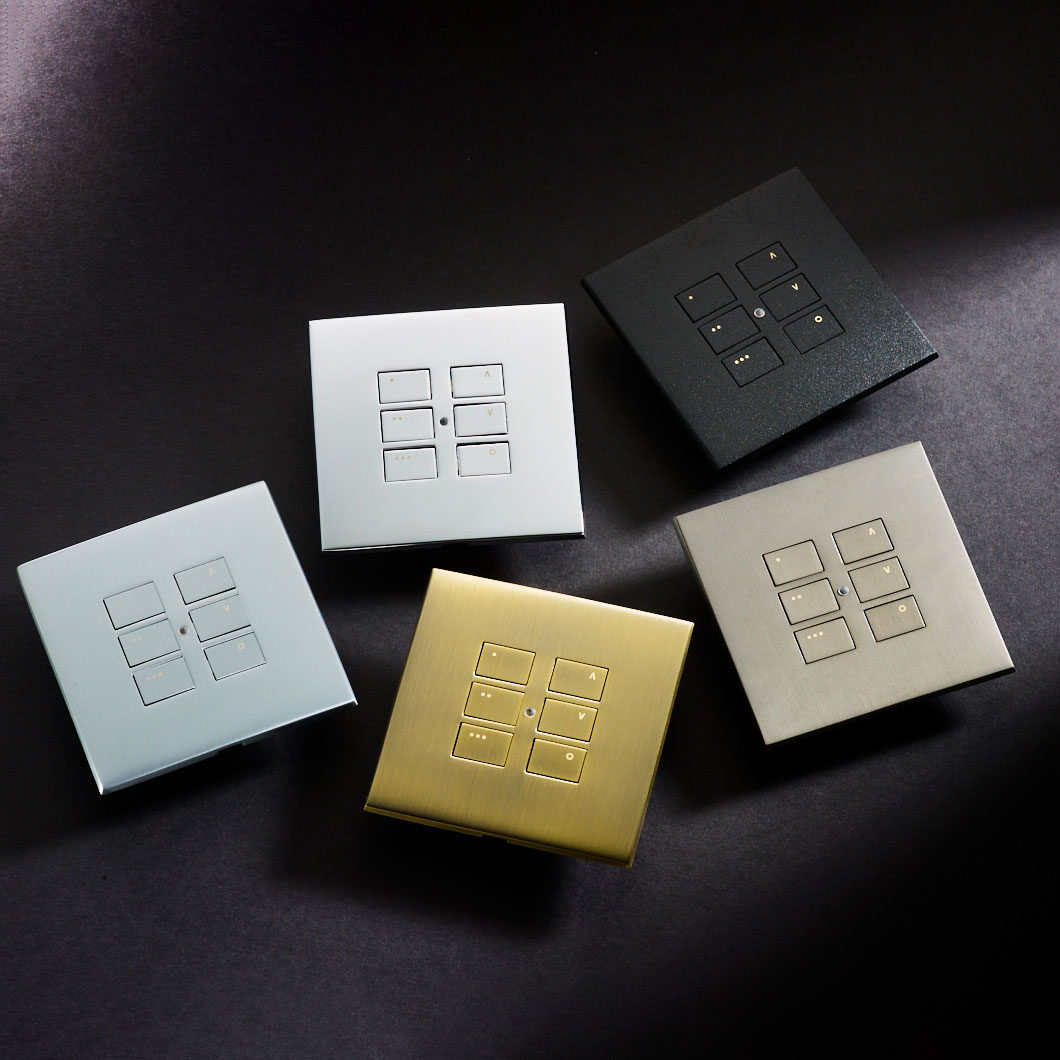

  • Rako EOS screwless plate kits are available in the following selection of finishes:

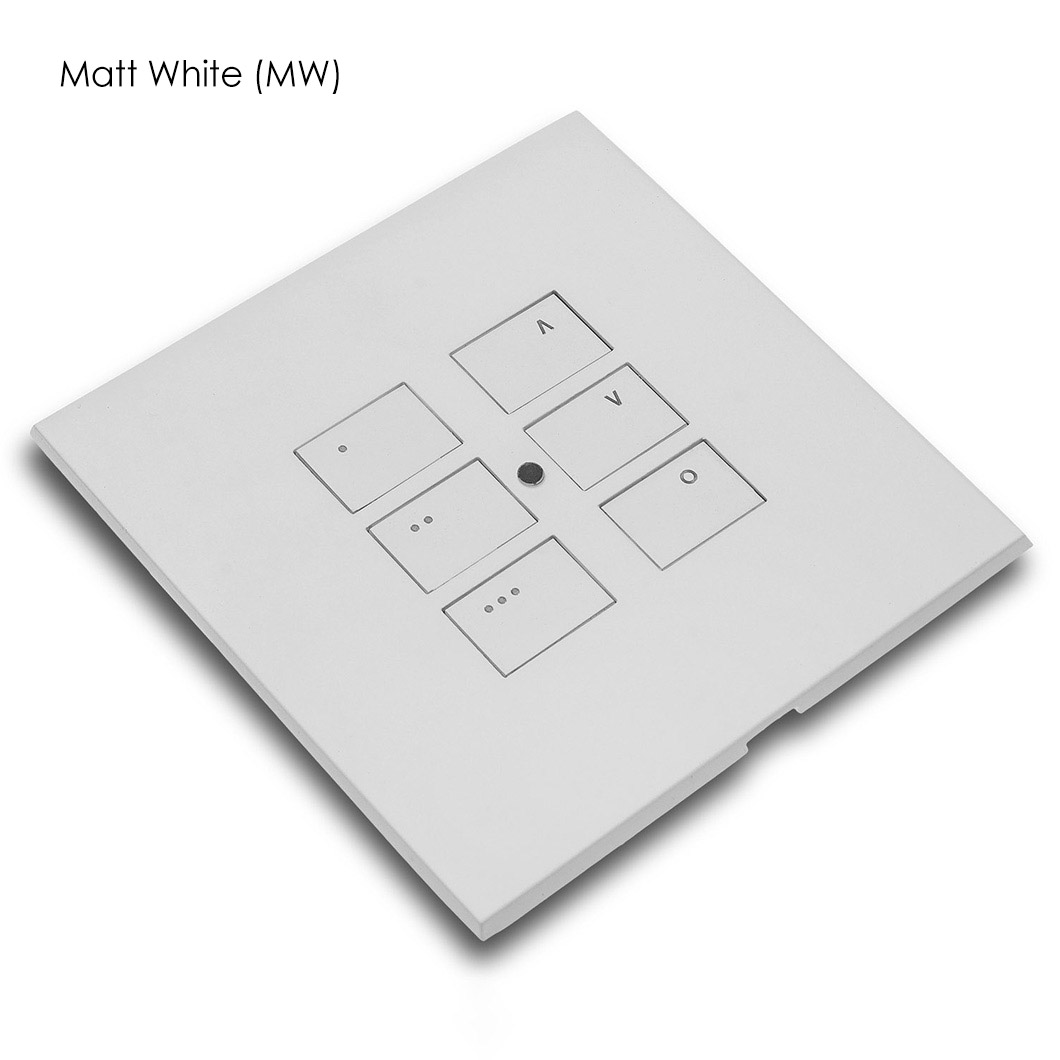

    - Matt White (WH)

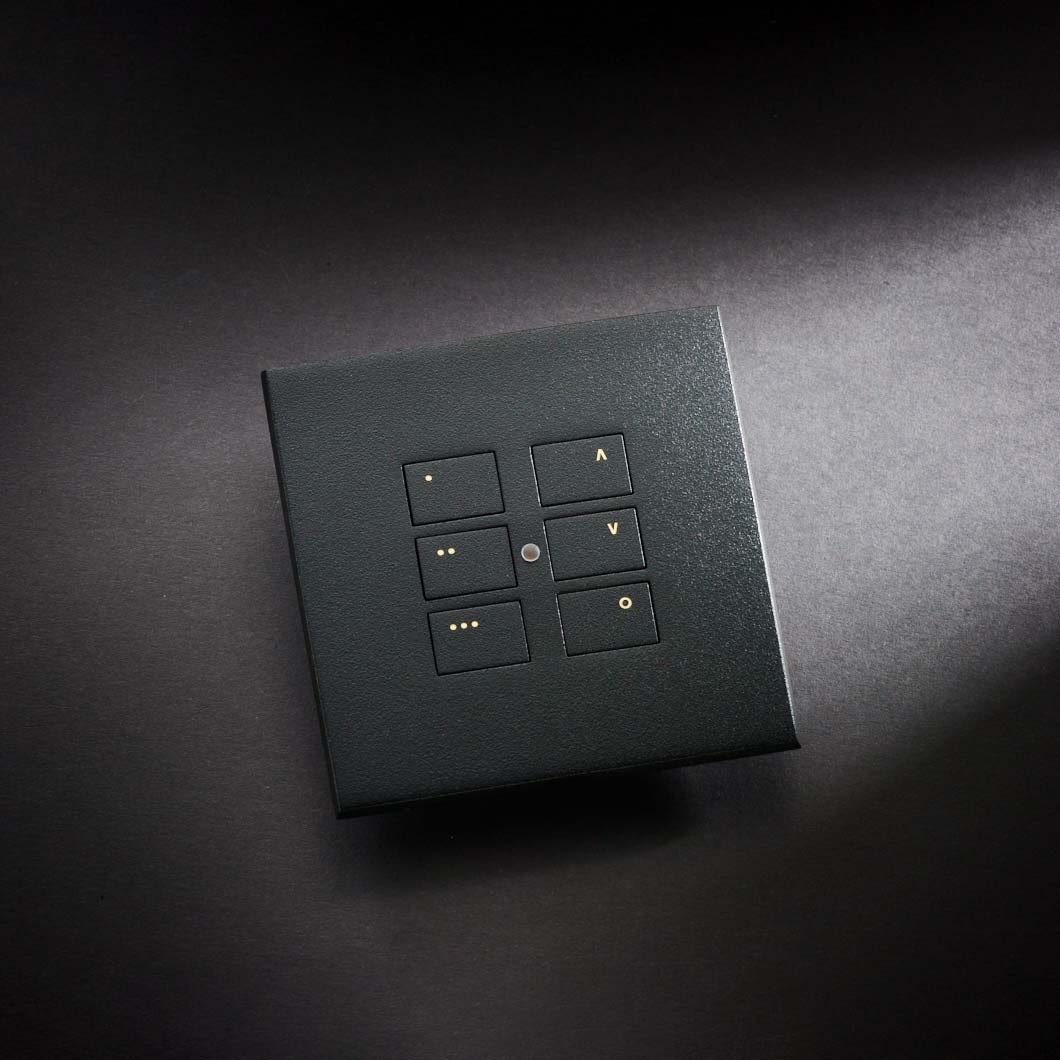

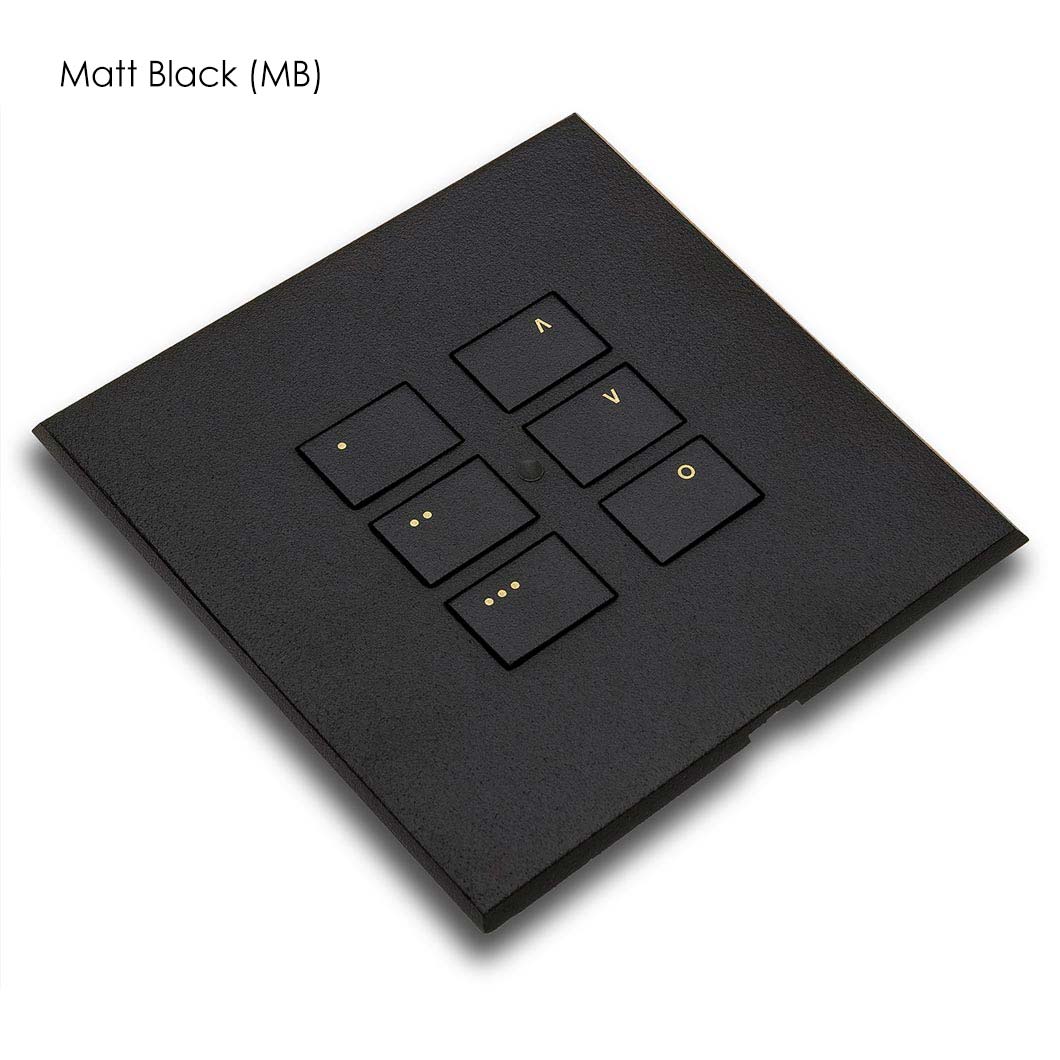

    - Matt Black (MB)

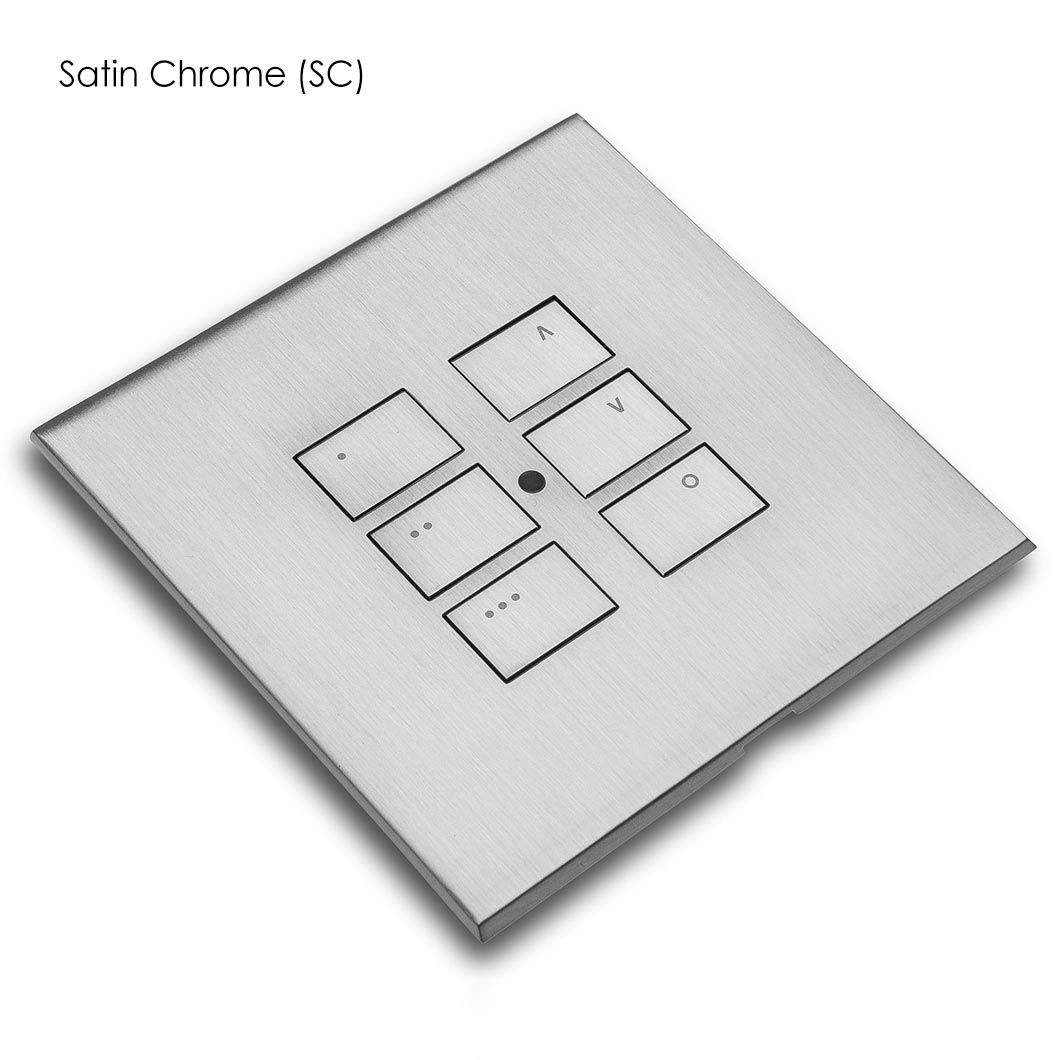

    - Satin Chrome (SC)

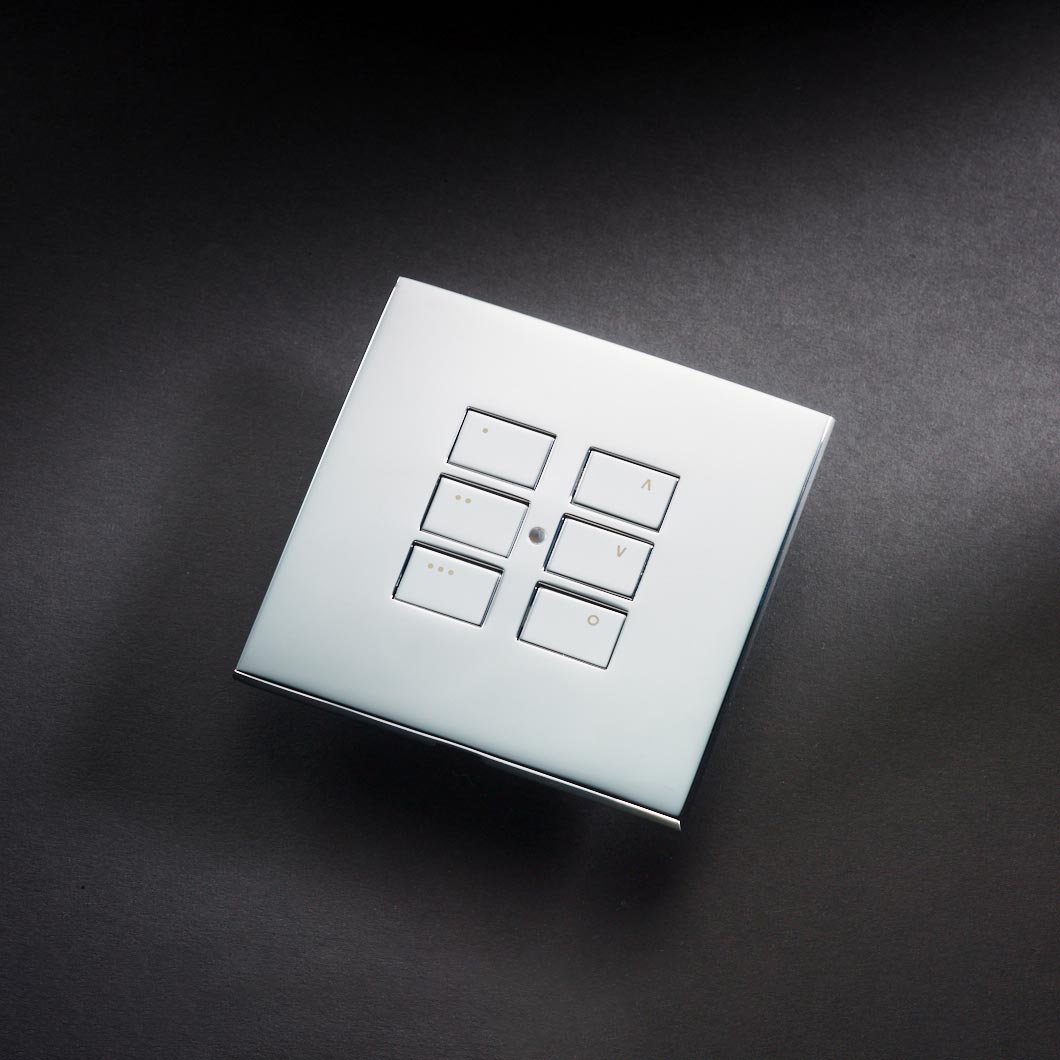

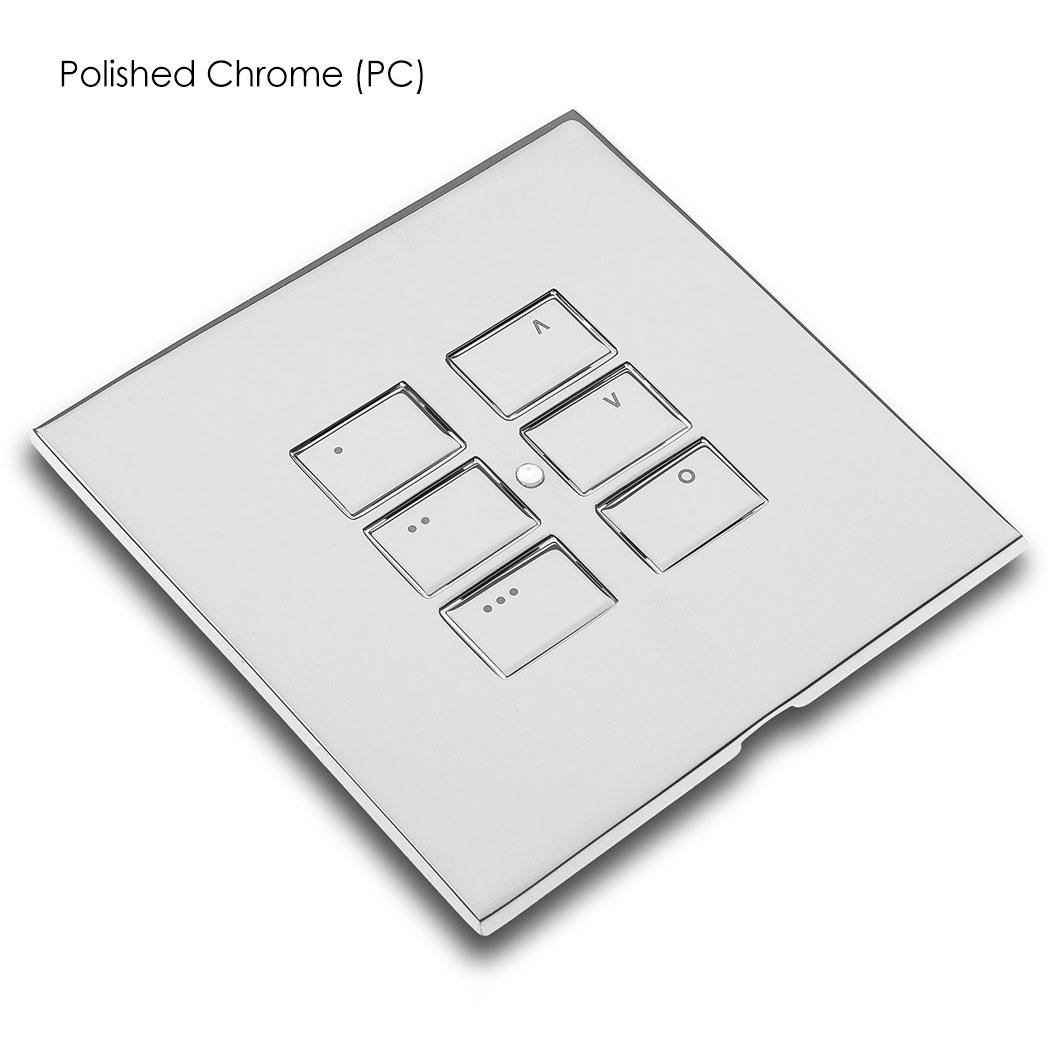

    - Polished Chrome (PC)

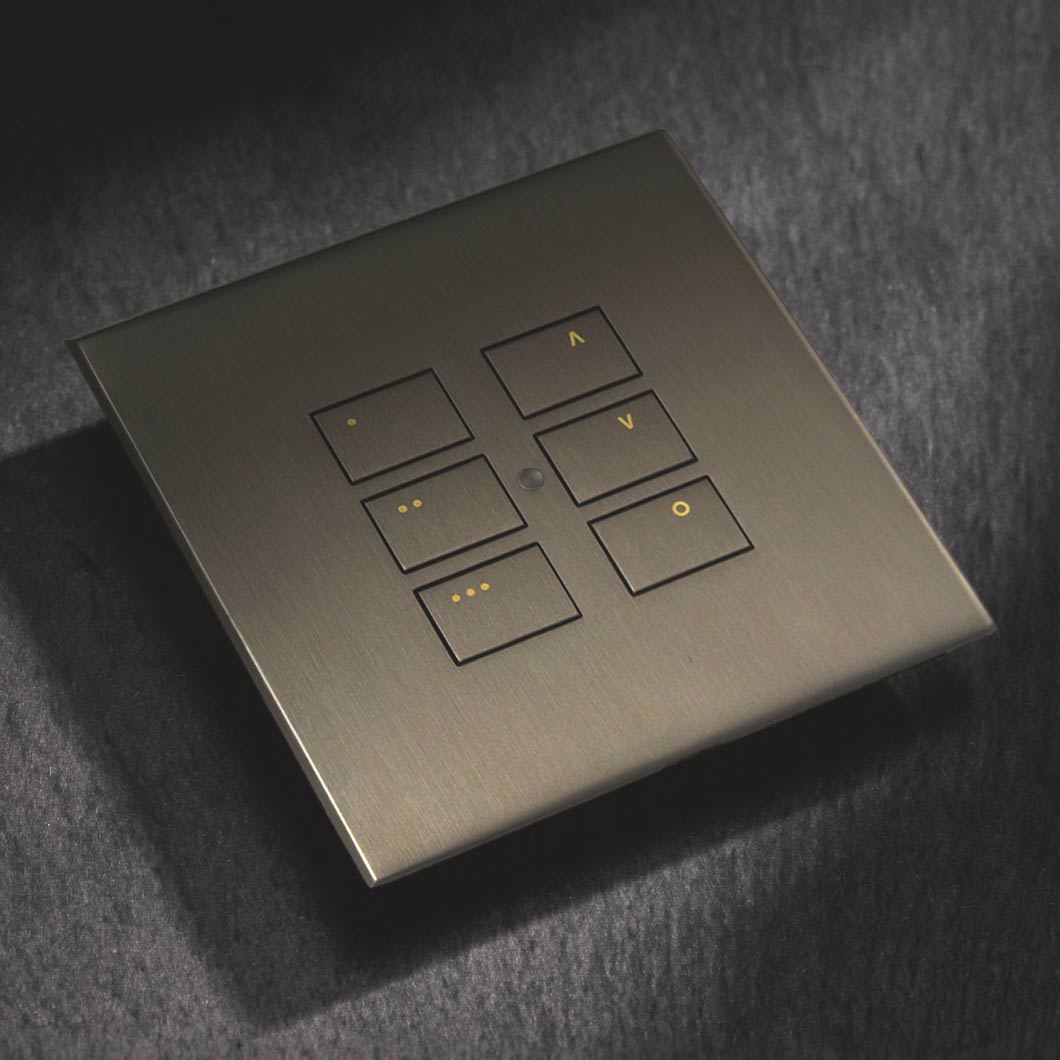

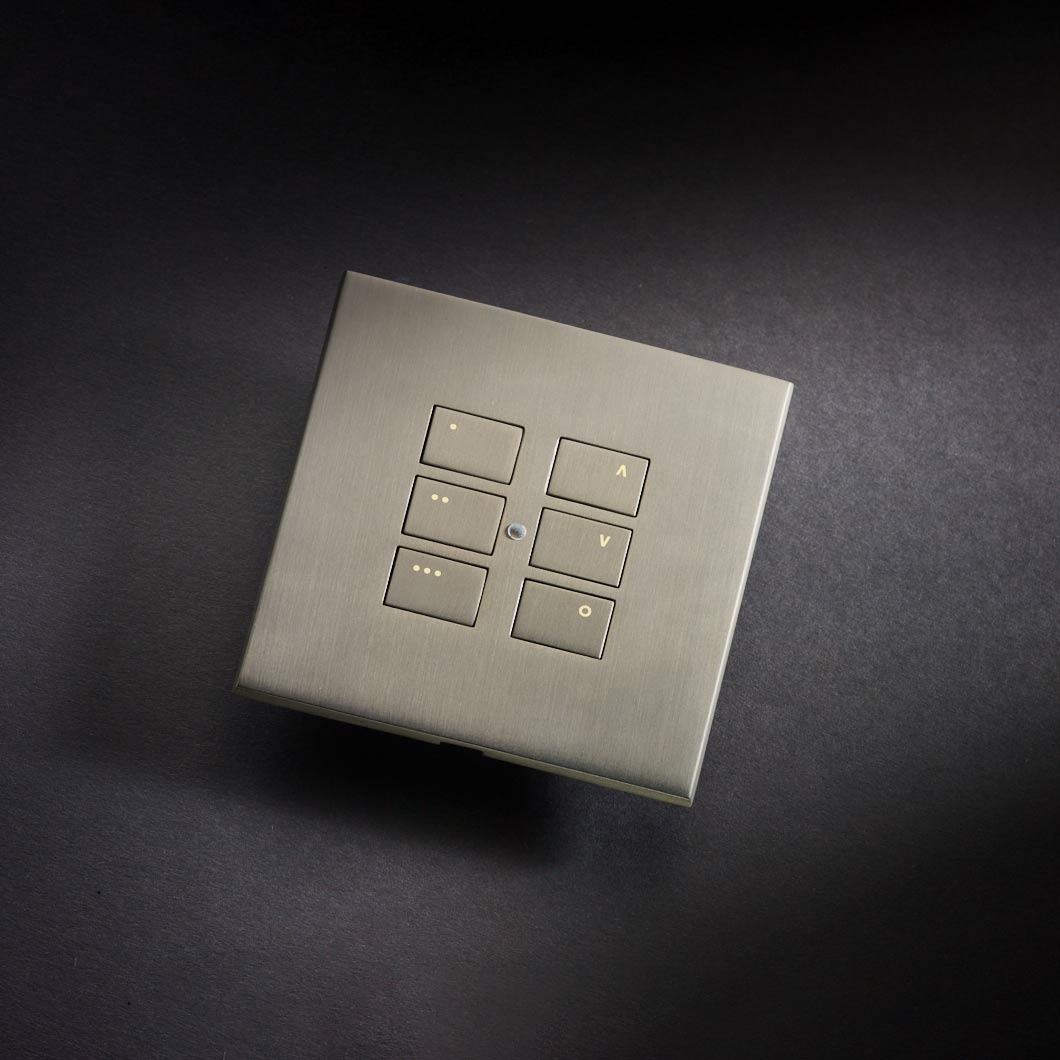

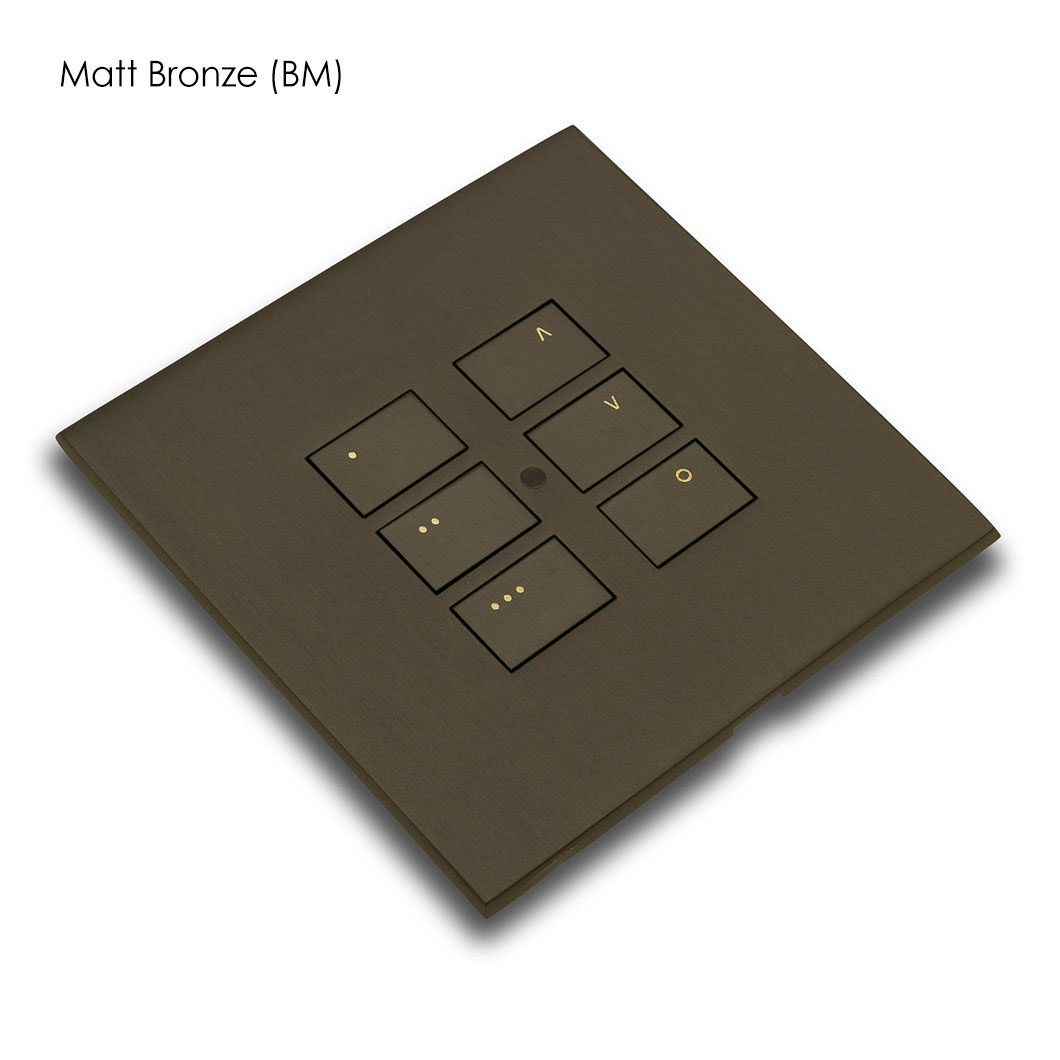

    - Matt Bronze (BM)

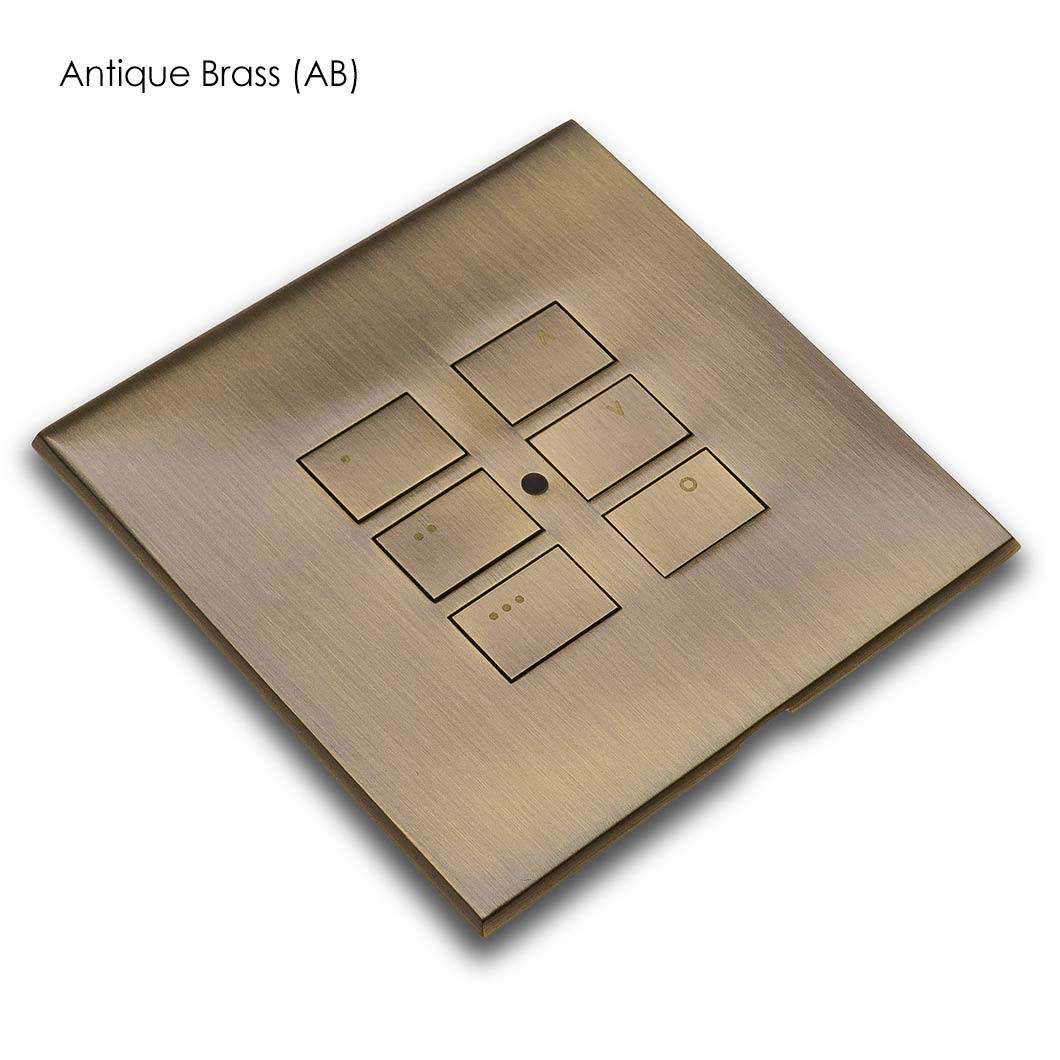

    - Antique Brass (AB)

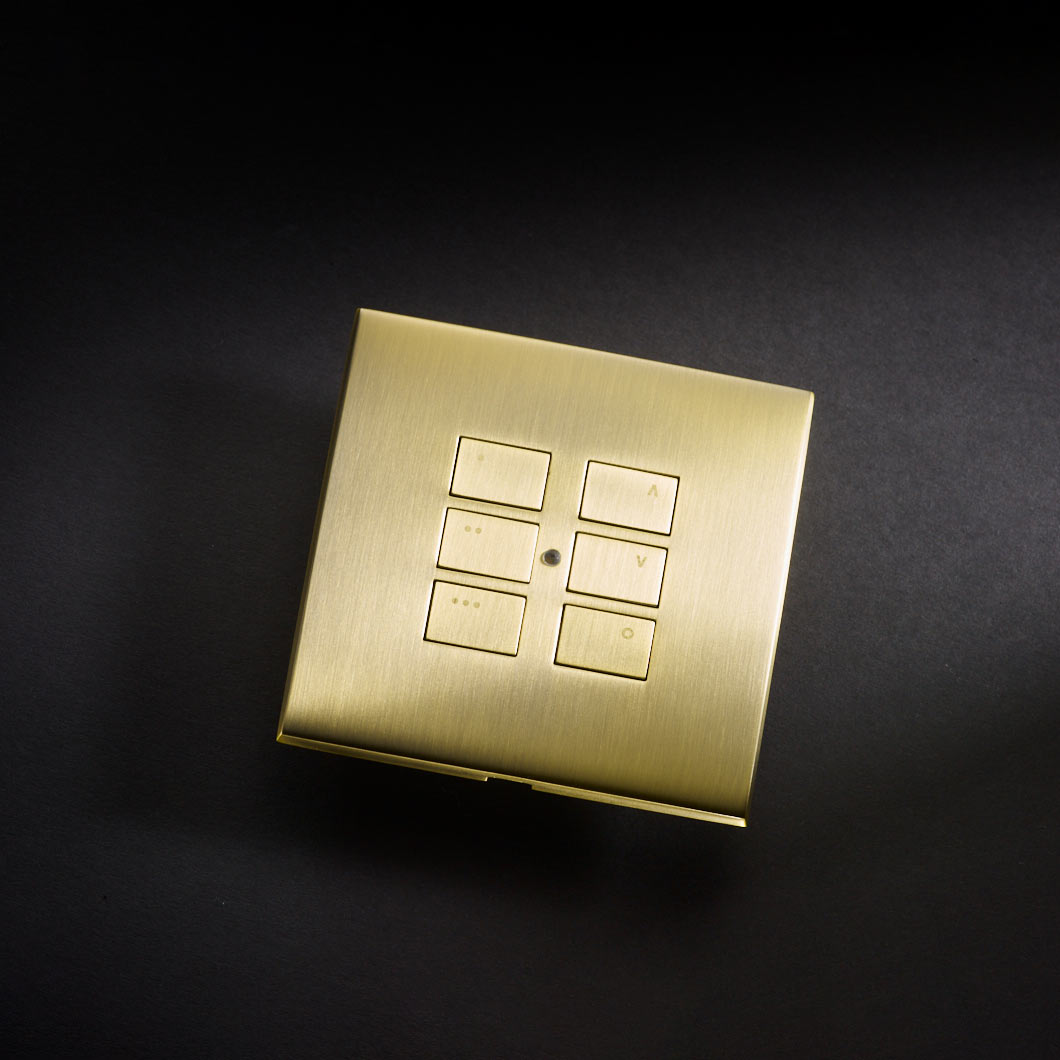

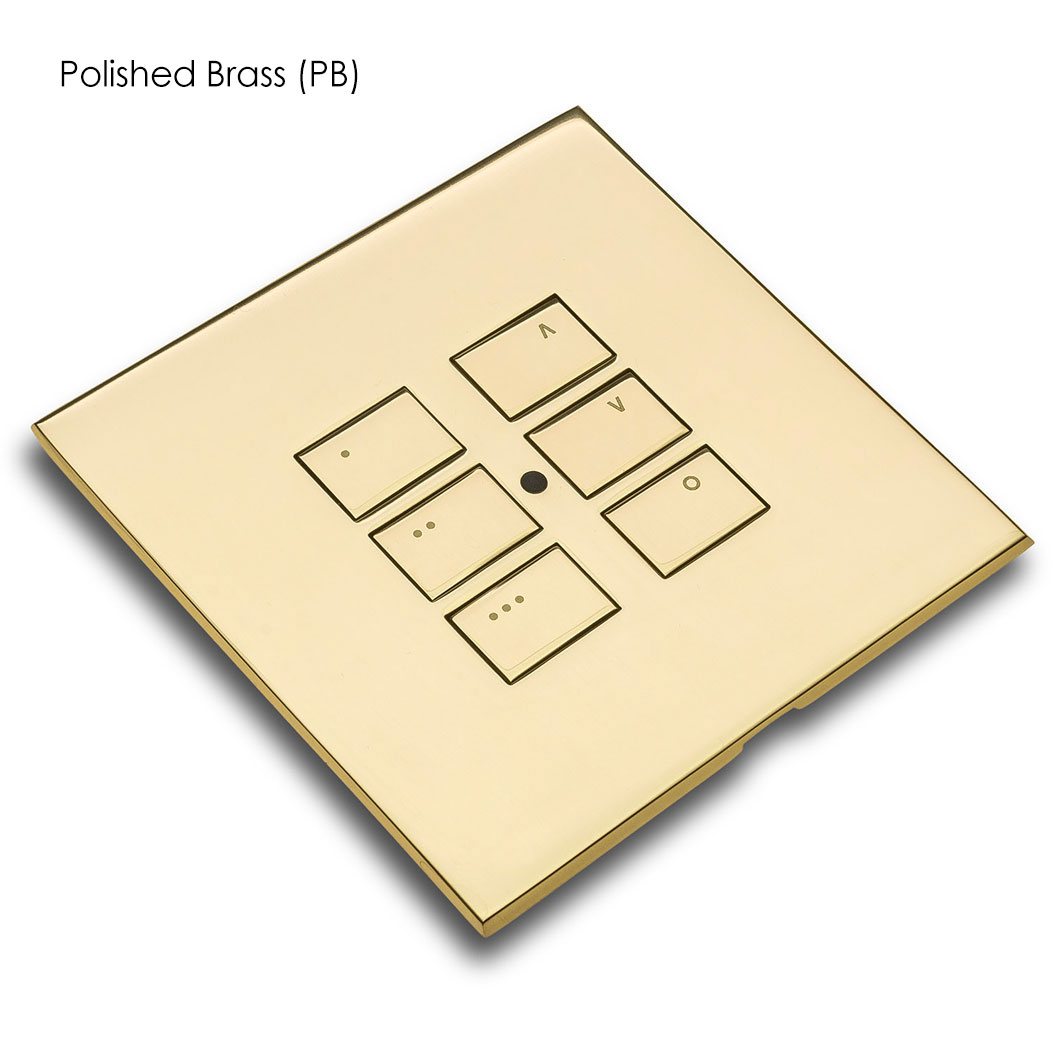

    - Polished Brass (PB)

The WK-EOS push button wired control module is programmable via Rako’s Rasoft Pro software. Easy connection to the Rakom wired CAT5 network is by a removable 8 way Krone punch down module that can be installed at first fix stage prior to the push button front control module. This protects the control module from being damaged while building works are being finished. WK-EOS control modules are designed to be flush mounted to a UK back-boxes

Wireless version available.

Customisable button engravings available, contact us for details.


For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

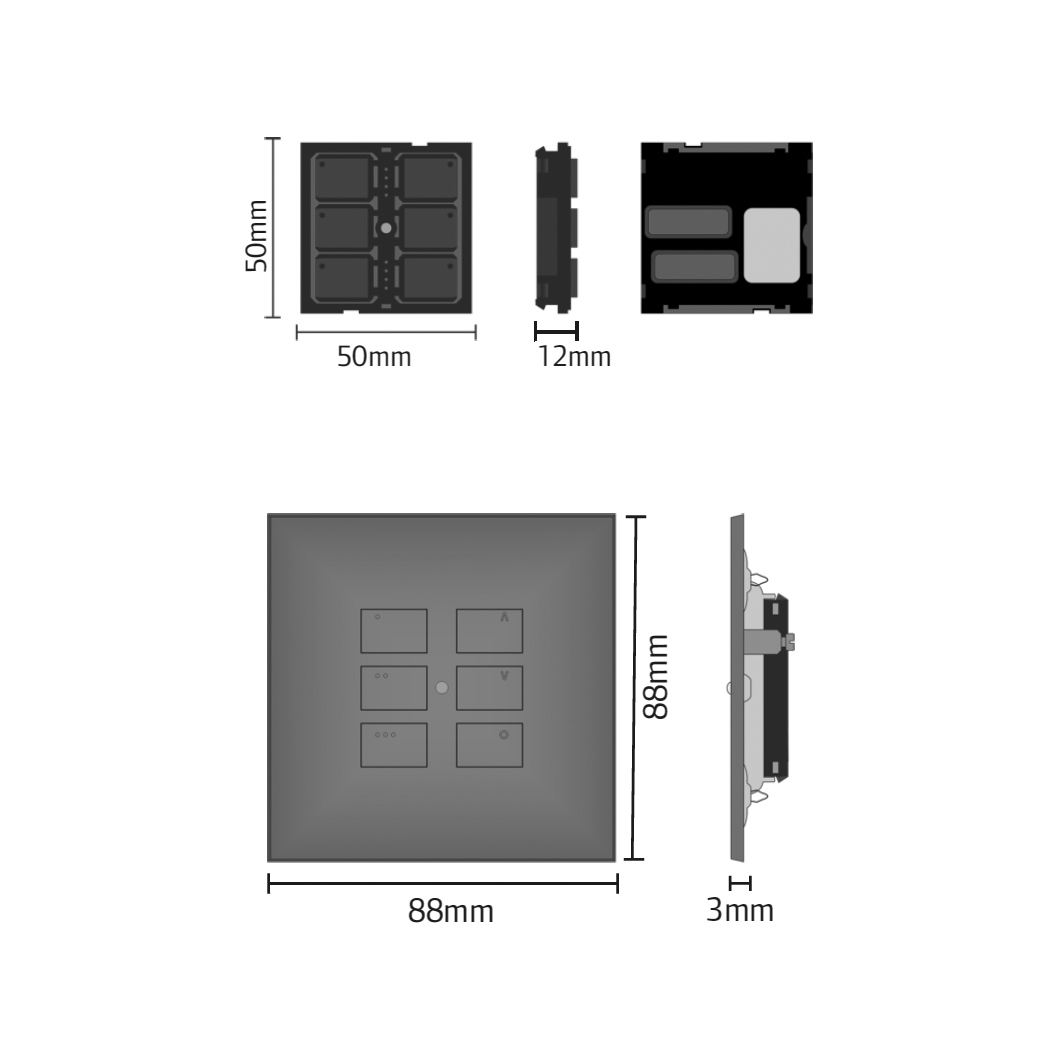

Dimensions:
PCB - 50x50x12mm (flush mount only)
Cover plate - 88x88x3mm

Fixing:
Flush mounting into standard UK single gang box (min 35mm deep)

Input supply:
12-18vdc supply from Rakom CAT5 wired network.

Weight:
Electronics 37g
Plate & Grid 141g

Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing

Cable Type:
UTP CAT5e or CAT6

Terminal Type:
8 way Krone punch down (screw terminal option available)

Standards:
Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007

Communication:
Rakom wired network

Memory:
Flash memory (non volatile)
Firmware upgrades via RASOFT programming software

Dimensions

Product dimensions: W.88mm x D.3mm x H.88mm

Downloads
Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty
