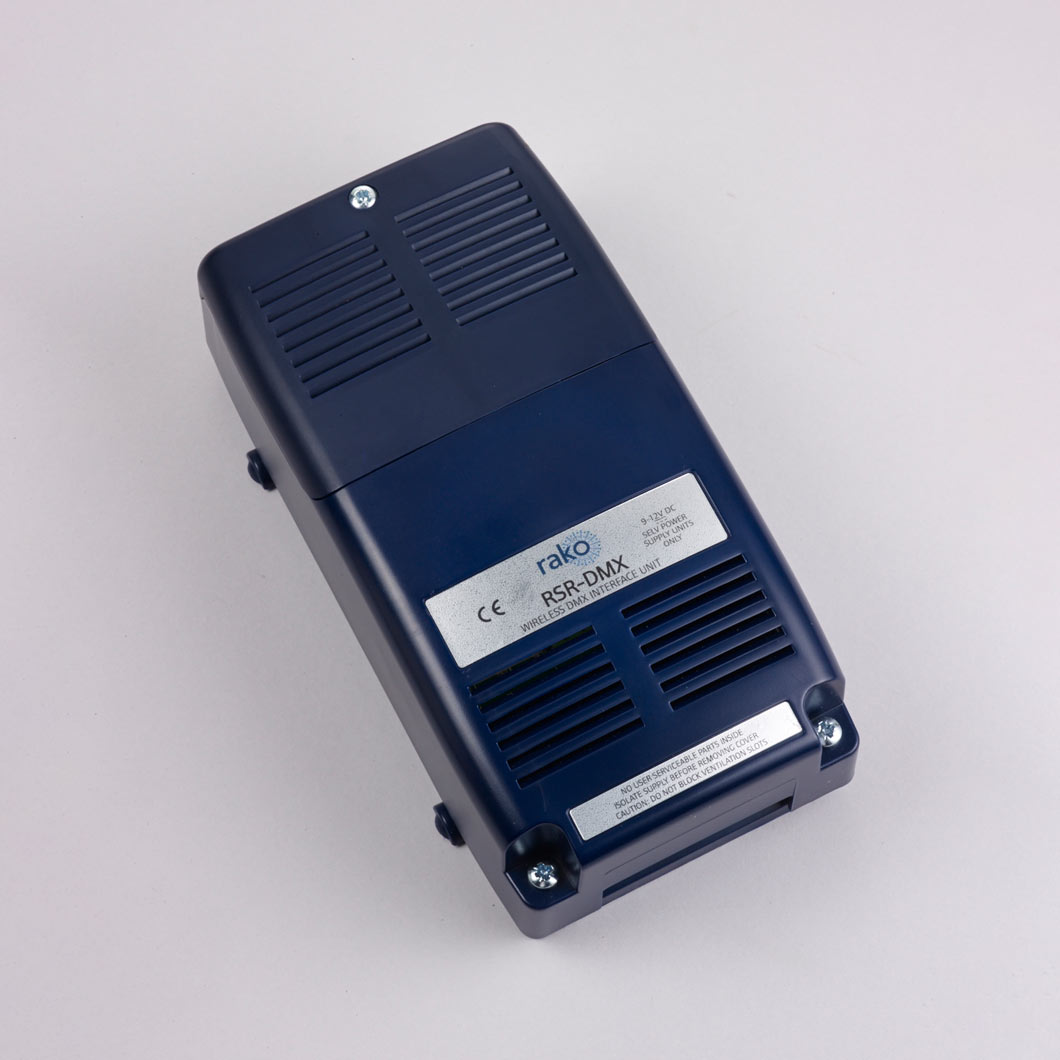

The Rako RSRDMX wireless 15 channel DMX controller for DMX controlled LED and other DMX light fixtures.
Designed to be connected to the Rako Rakom wireless network and be controlled by any Rako wireless transmitter device such as the RCM wallplates or RA/RTC Bridges. The RSRDMX is addressed as a normal dimmer channel and automatically assigns the subsequent channels for DMX use.
DMX connections are available using either screw terminals or an RJ45 socket.
Input supply: 9-12V DC from SELV power supply unit (included)
Housing: UL V0 ABS
Temperature +2C to +40C
Humidity +5% to 90% non condensing
Connections: 3 way screw terminal or RJ45 socket dmx
Load types: Any DMX512 compatible interface
Maximum Load: 15 DMX channels
Terminal Sizes: 4mm2
Emissions - EN61000-6-3: 2007
Immunity - EN61000-6-1: 2007
LVD - EN 60950-1: 2006
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
Product dimensions: W.105mm x D.190mm x H.66mm
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
