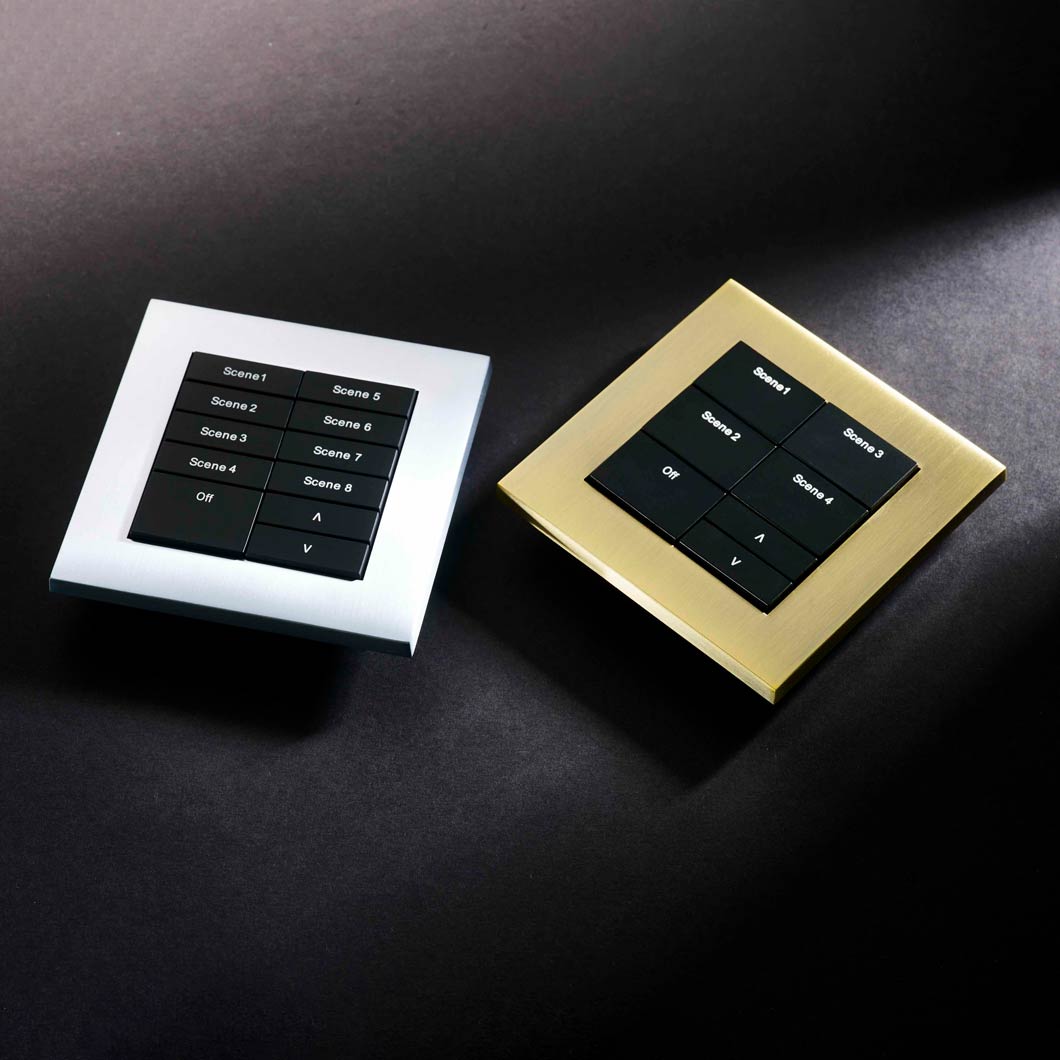

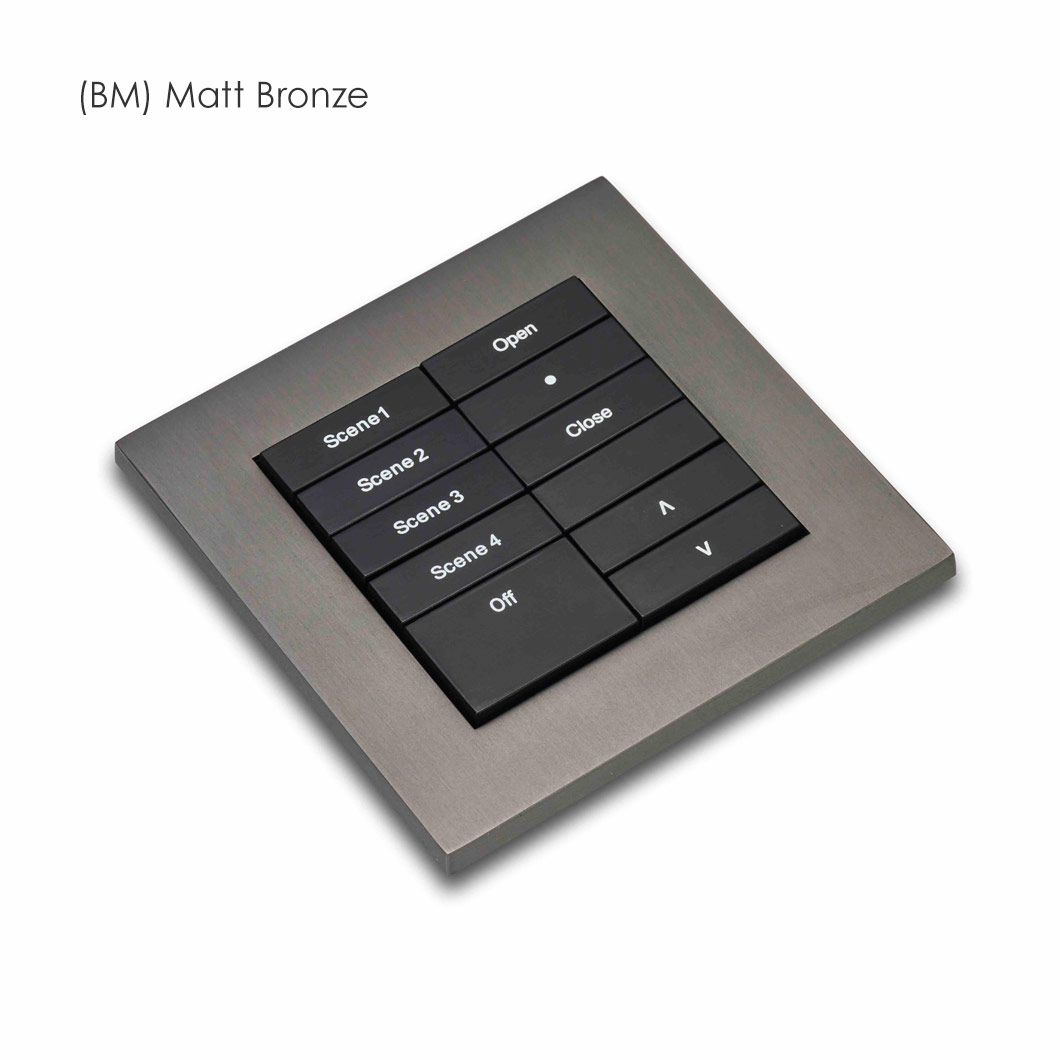

The Rako RK-MOD wireless push button wall plate with up to 12 push buttons. Customisable and programmable via NFC communication

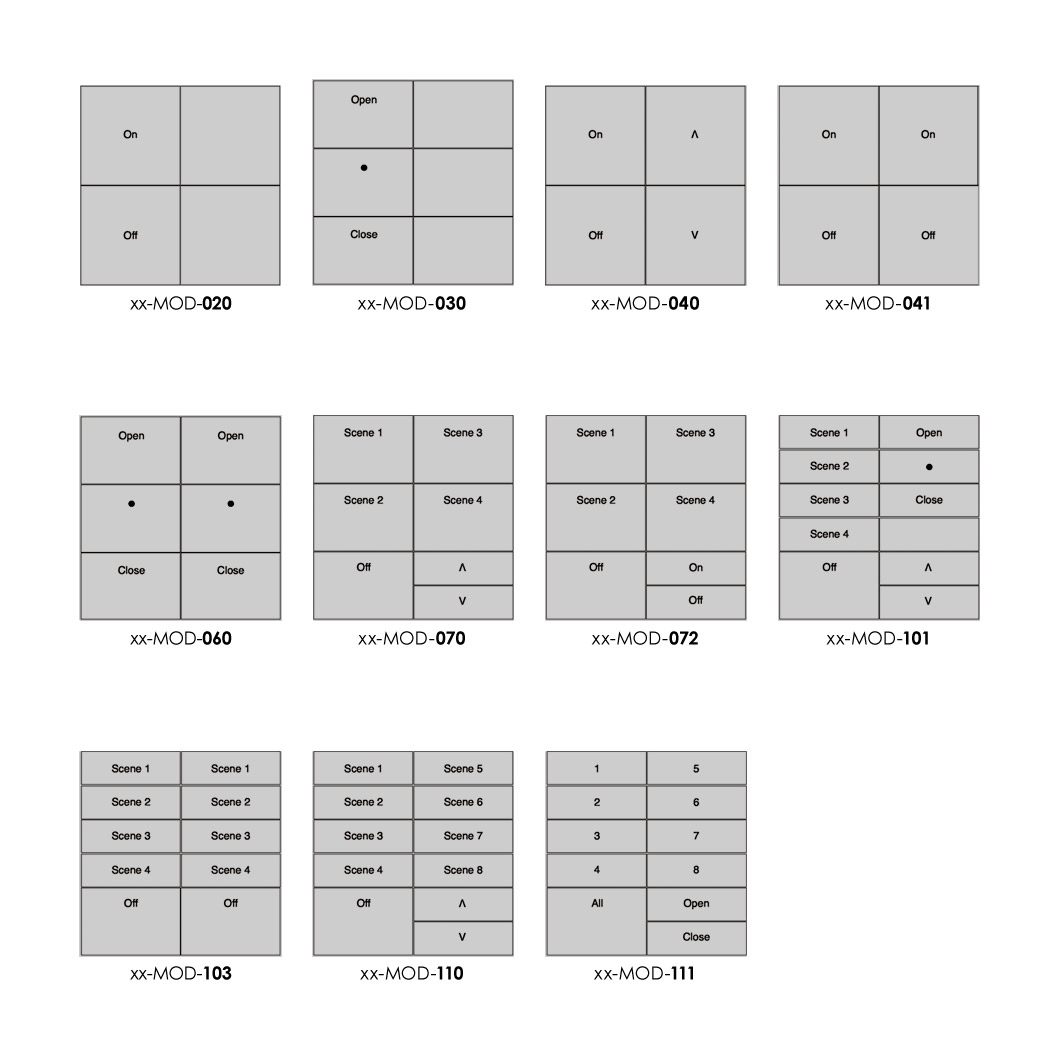

The RK-MOD-xxx-x uses three different button sizes across a range of keypad layouts. This offers a truly flexible range of designs to suit all your lighting control requirements including: Curtain, Blind, Audio, Multi and Single Room layouts.
A RAMPI or RK-HUB and Rasoft Pro programming software is required for setup and configuration of the RK-MOD-xxx-x. Once addressed it is possible to control any Room/Channel in the system, sending commands to each including:
- Scene selection
- Scene toggle
- Level toggle
- Room/Channel raise & lower
- Macro start/stop/control
- House Master controls
Rako’s coded radio transmission eliminates the need for any data cables ensuring the system can be installed with minimum fuss or disruption.
Wired version available.
Customisable button engravings available, contact us for details.

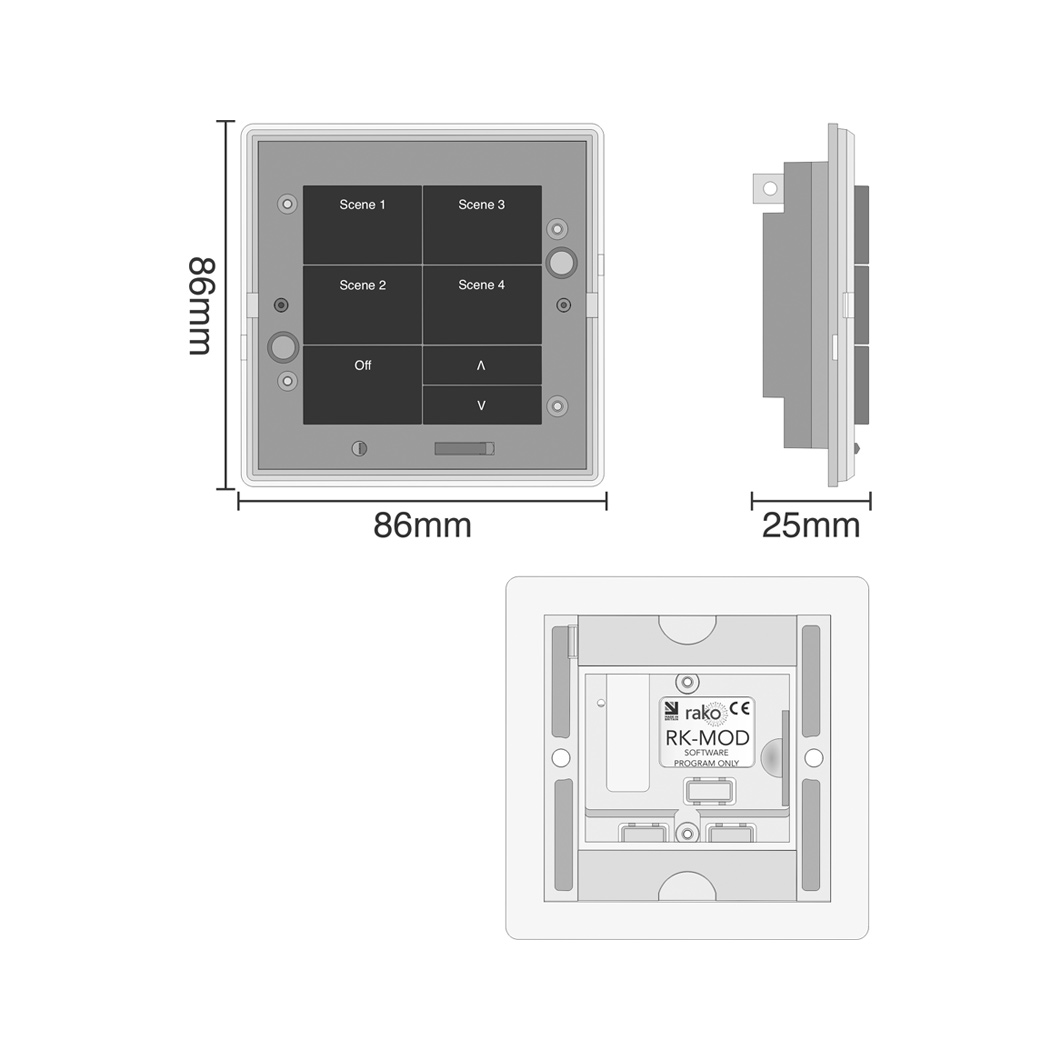

Control Panel: 86x86x25mm
Flush mounting into standard UK single gang box (min 25mm deep)
6V DC - 2x 3V Lithium coin cell CR2016 (remote power supply version available)
Greater than 3 years
Temperature +2C to +40C
Humidity +5% to 95% non condensing
433.9MHz coded FM radio
Programming via NFC
Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007
Flash memory (non volatile)
Firmware upgrades via RASOFT programming software
Product dimensions: W.86mm x D.25mm x H.86mm
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
