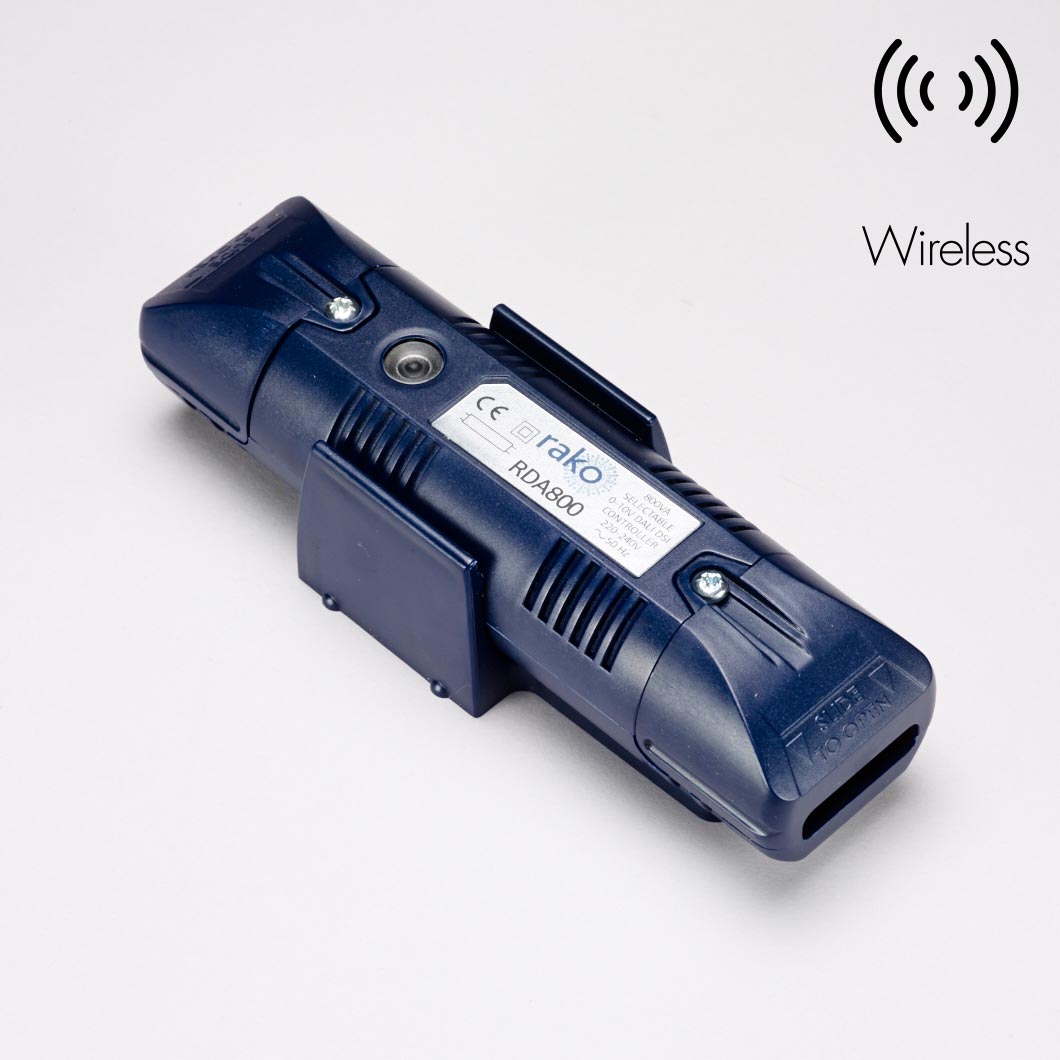

Rako RDA800 Inline RF 1-10V, DLI & DSI dimmable Wireless switch module with wireless icon
Rako RDA-800 Wireless Inline RF 1-10V / DLI / DSI Dimmer| Image:1
Rako RDA-800 Wireless Inline RF 1-10V / DLI / DSI Dimmer| Image:2
Rako RDA800 Inline RF 1-10V, DLI & DSI dimmable Wireless switch module with wireless icon
Rako RDA-800 Wireless Inline RF 1-10V / DLI / DSI Dimmer| Image:0
Rako RDA-800 Wireless Inline RF 1-10V / DLI / DSI Dimmer| Image:1

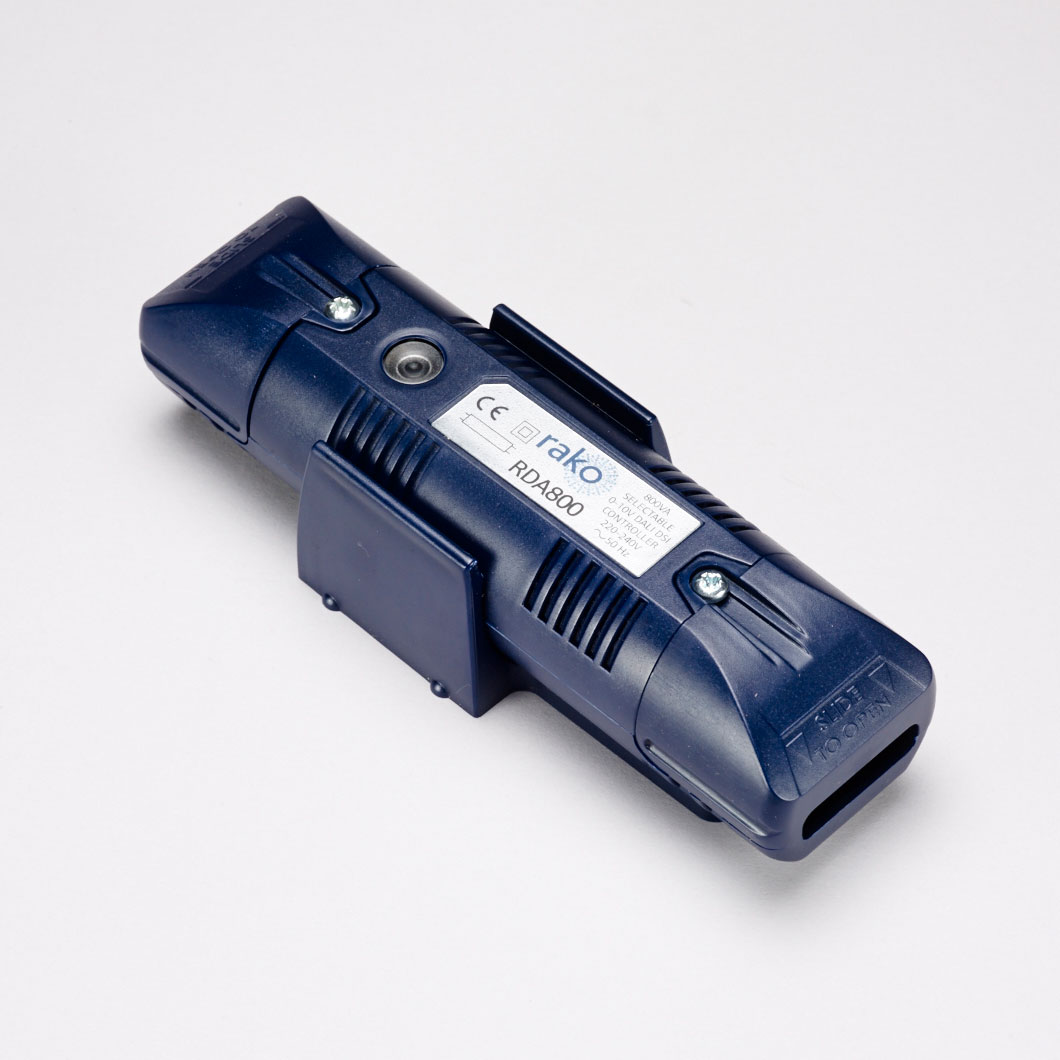

Rako RDA-800 Wireless Inline RF 1-10V / DLI / DSI Dimmer

Manufacturer: Rako

£213


One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

The Rako RDA800 wireless in-line RF dimmer for 1-10V, DLI and DSI controllable loads .

  • Connected in-line before the first lighting fitting the RMS800 enables switching of up to 800VA of 0-10V, DLI and DSI controllable loads such as LED drivers and dimmable fluorescent ballasts.
  • Controlled from any Rako Rakom RF device, for example the RCM/RNC push button RF wall-plates.
  • Designed to fit in a ceiling void or cupboard.

Control signal output mode (0-10V, DLI or DSI) is user selectable via a connecting link. The unit can also be used for exterior lighting control applications, with the use of a weatherproof IP rated enclosure.

16 Scene memory capacity, can be fully integrated into Rako wired systems. Easy set-up and manual On/Off control using the set-up button. Full rising clamp terminals and mounting bracket for easy installation.

Programmed using either an RCM/RNC RF wall-plate or RASOFT PC software suite, the RDA800 stores the House, Room and Channel address plus 16 preset scene levels in a non-volatile memory.

The RDA800 can be controlled from any Rako transmitter such as RCM/RNC wallplates, hand-helds and Bridge modules and forms the foundation of any Rako wireless scene-set system.


For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Input supply: 230V AC +/-10% 50Hz

Weight: 220g

Ceiling mount cutout: 50mm or larger

Housing: UL V0 material

Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing

Connections:
3 way screw terminals for mains power 2 way screw terminals for ELV output

Protection:
Over current protection
Voltage surge protection

Load types:
Selectable
0-10V Controllable loads
DLI Controllable loads
DSI Controllable loads

Minimum Load: N/A

Maximum Load:
240V Switching
800VA
Control output - max 25 devices

Terminal Sizes: 4mm2

Standards:
Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007

Communication: Rakom coded fm radio, 433.9MHz

Memory: Flash memory (non volatile)

Dimensions

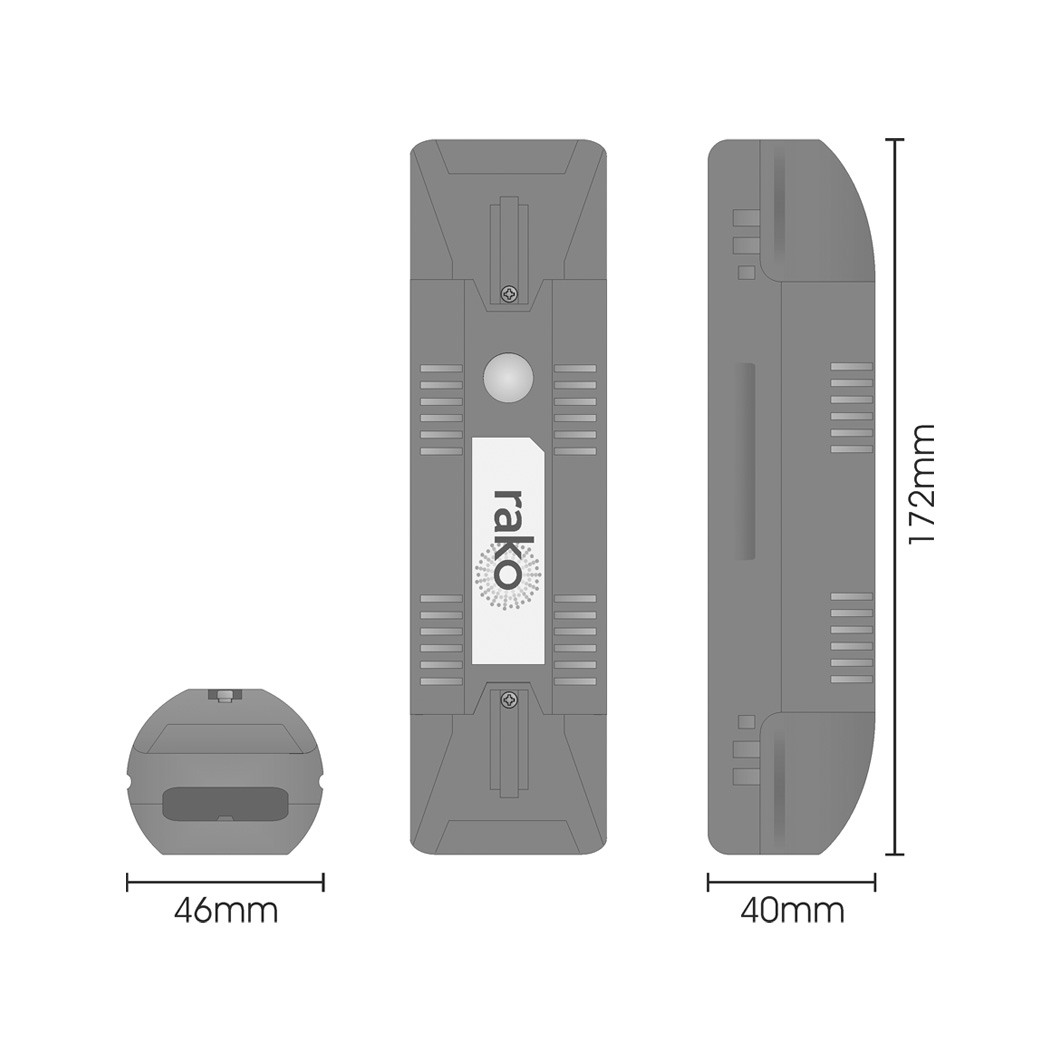

Product dimensions: W.46mm x D.172mm x H.40mm

Downloads
Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty
