Rako RCI-4L Wireless Switch Interface Unit

Manufacturer: Rako

£161

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

The Rako RCI-4L is a lithium-battery powered interface unit for up to 4 x 2 way latching volt-free switch inputs.

  • A battery powered interface unit for up to 4 x 2 way latching volt-free switch inputs.
  • Programmed by NFC (Near Field Communication) with macro capability.
  • For use when integrating third party wall-switches into a Rako environment.
  • Can only be programmed with a laptop and the Rako RAMPI programming interface.

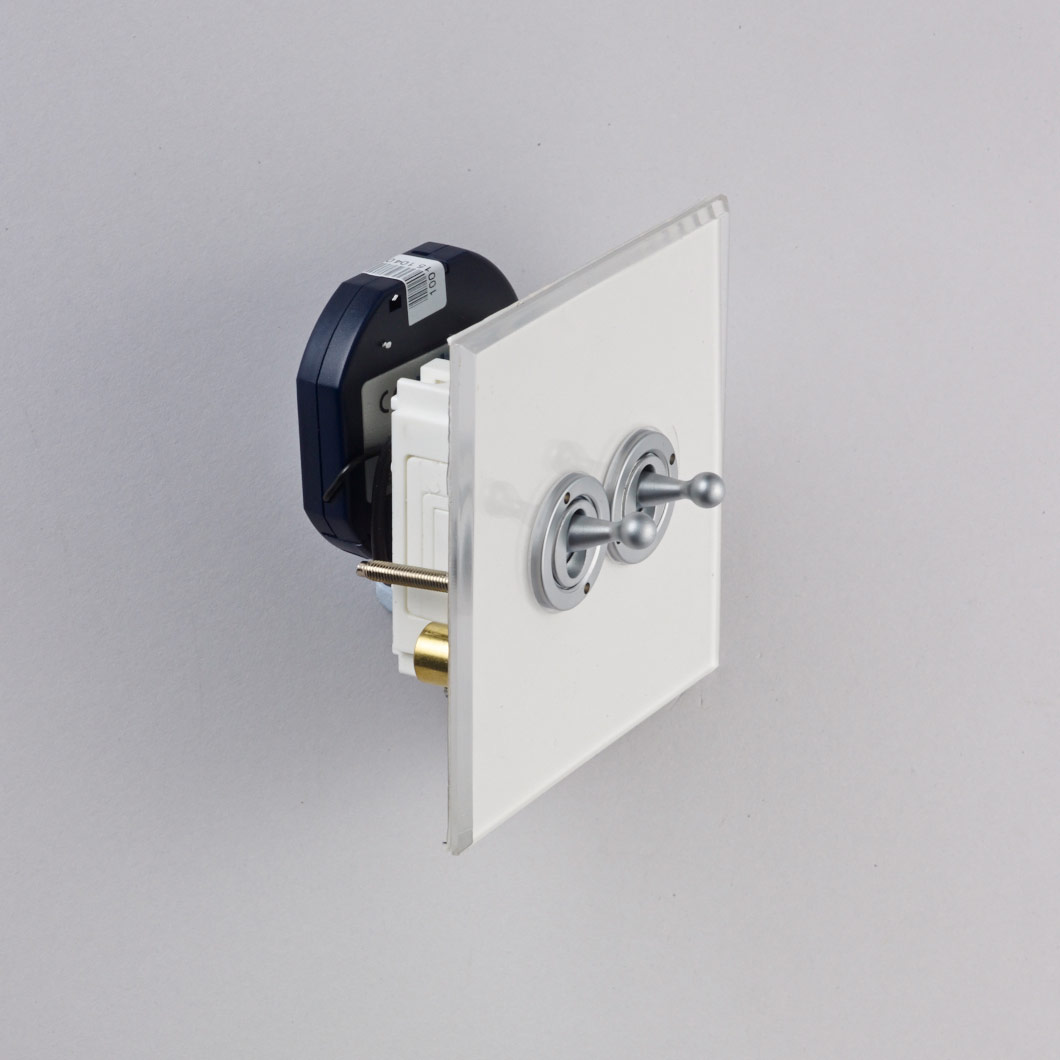

The RCI-4L accepts volt-free latching switch inputs and transmits wireless Rako coded Rakom messages to other Rako wireless receiver and Bridge units. The module is battery powered and is designed to fit in a standard UK backbox.

Programmable via Rako's patented NFC (Near Field Communication) technology each of the 4 inputs can trigger a single command or start a macro function on each state change of the switch, making the unit the ideal device for integrating third party wall-switches into a Rako environment.


For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

input supply: 3V DC - 1 x 3V Lithium coin cell CR2032 battery

Weight: 121g

Housing: UL V0 material

Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing

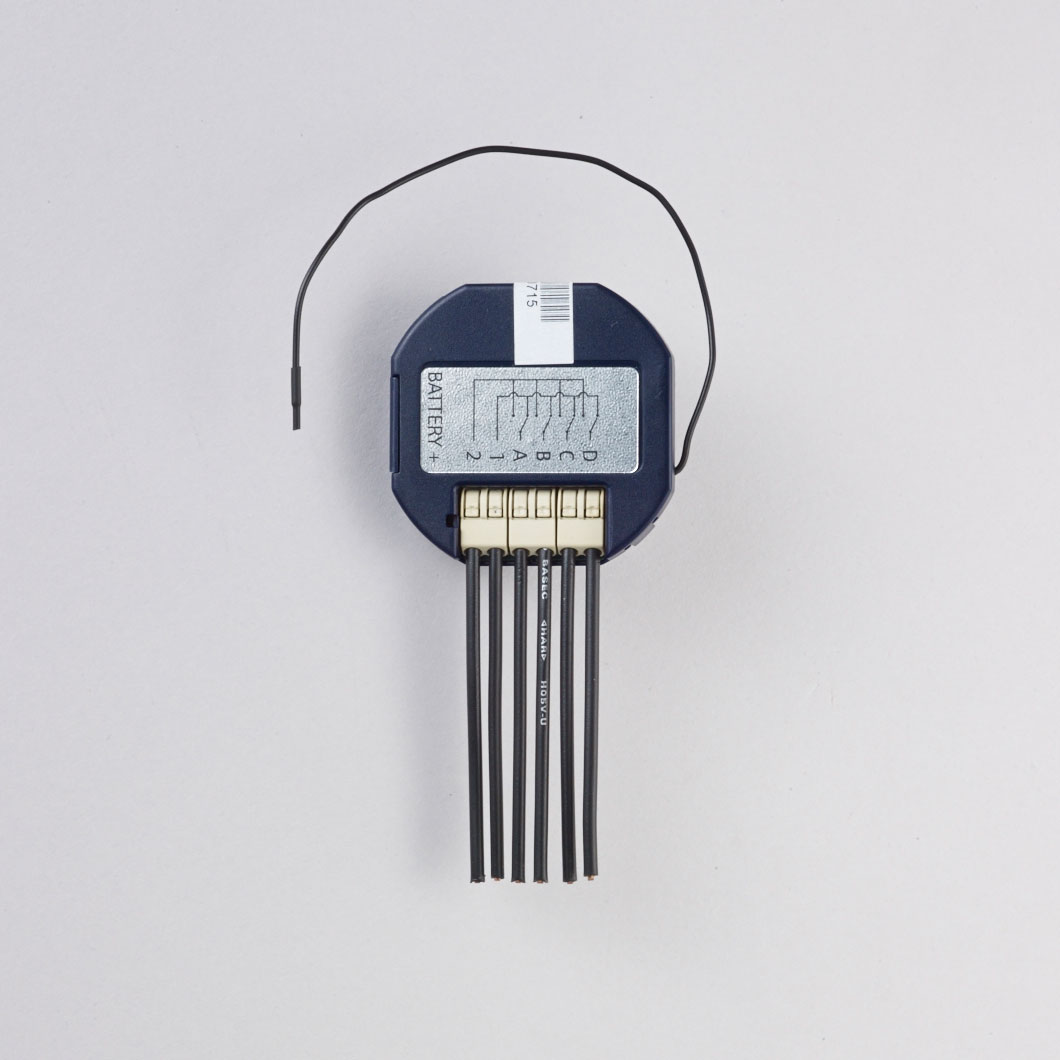

Connections:
6 way direct push-in
Maximum lead length 300mm

Terminal sizes: 0.75mm2 max

Standards:
Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007

Communication: Rakom coded fm radio, 433.9MHz

Memory: Flash memory (non volatile)

Dimensions

Product dimensions: W.48mm x D.9mm x H.48mm

Downloads
Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty

About the manufacturer

Made in Britain, Rako smart lighting controls and systems are easy to use, easy to install & cost effective. Leading the way in providing state-of-the-art digital dimming technology, Rako provides innovative solutions for both wired systems (perfect for new build projects), wireless systems (ideal when it isn't possible to replace wiring) or a hybrid of both.

Perfect for modern living, Rako systems can be easily controlled with tablets, smartphones and smartwatches. Set up lighting scenes that  allow you to select a pre-set lighting scene or change the mood lighting at the touch of a button. Rako offer a full suite of control panels, cover plates, control modules and dimmers, hubs and interfaces. If you're looking for fully integrated smart home mood lighting systems, you're in the right place.

Rako won the Smart Building Awards for Best Lighting Control product and the CEDIA EMEA Award for Best New Hardware for 2022.
