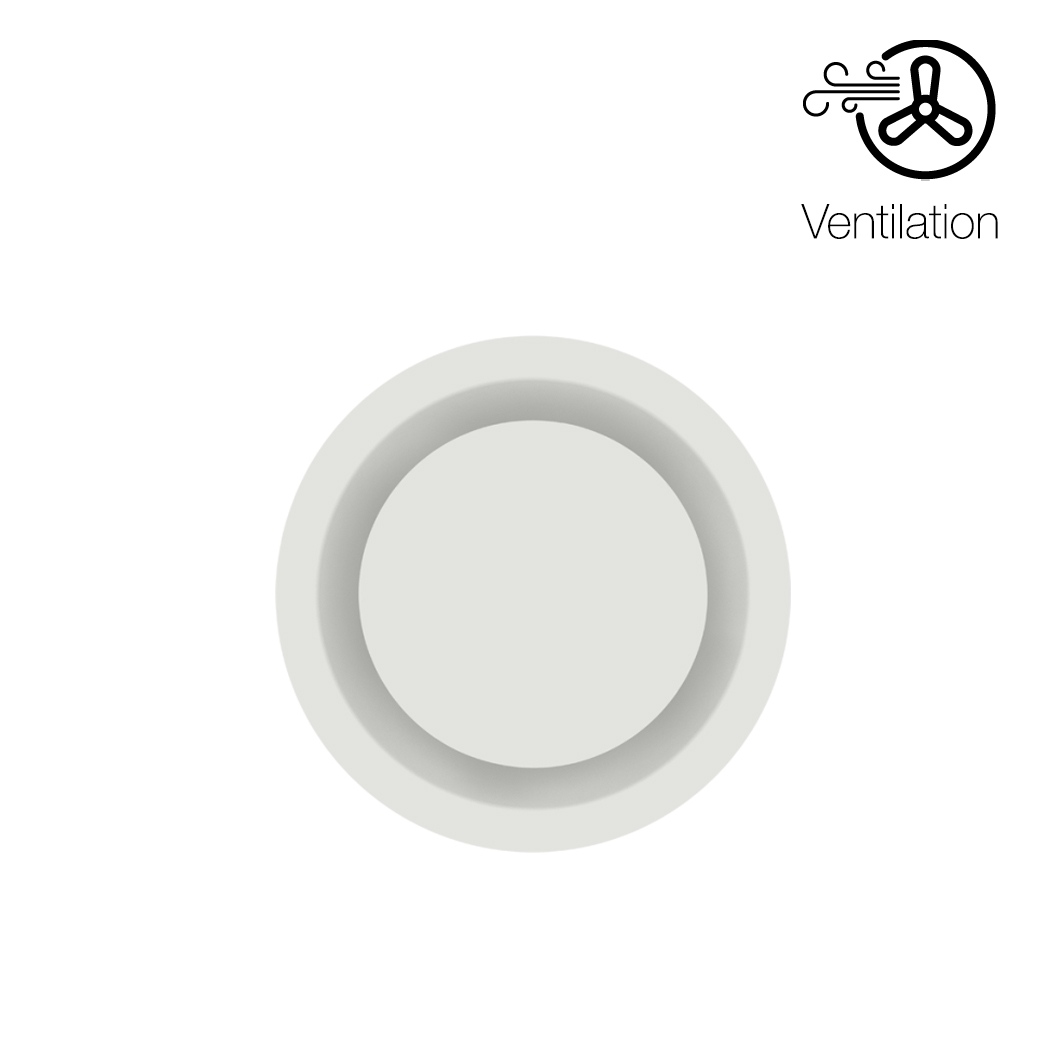

Prado Pradovent Ø100 Trim Recessed Ventilation Valve

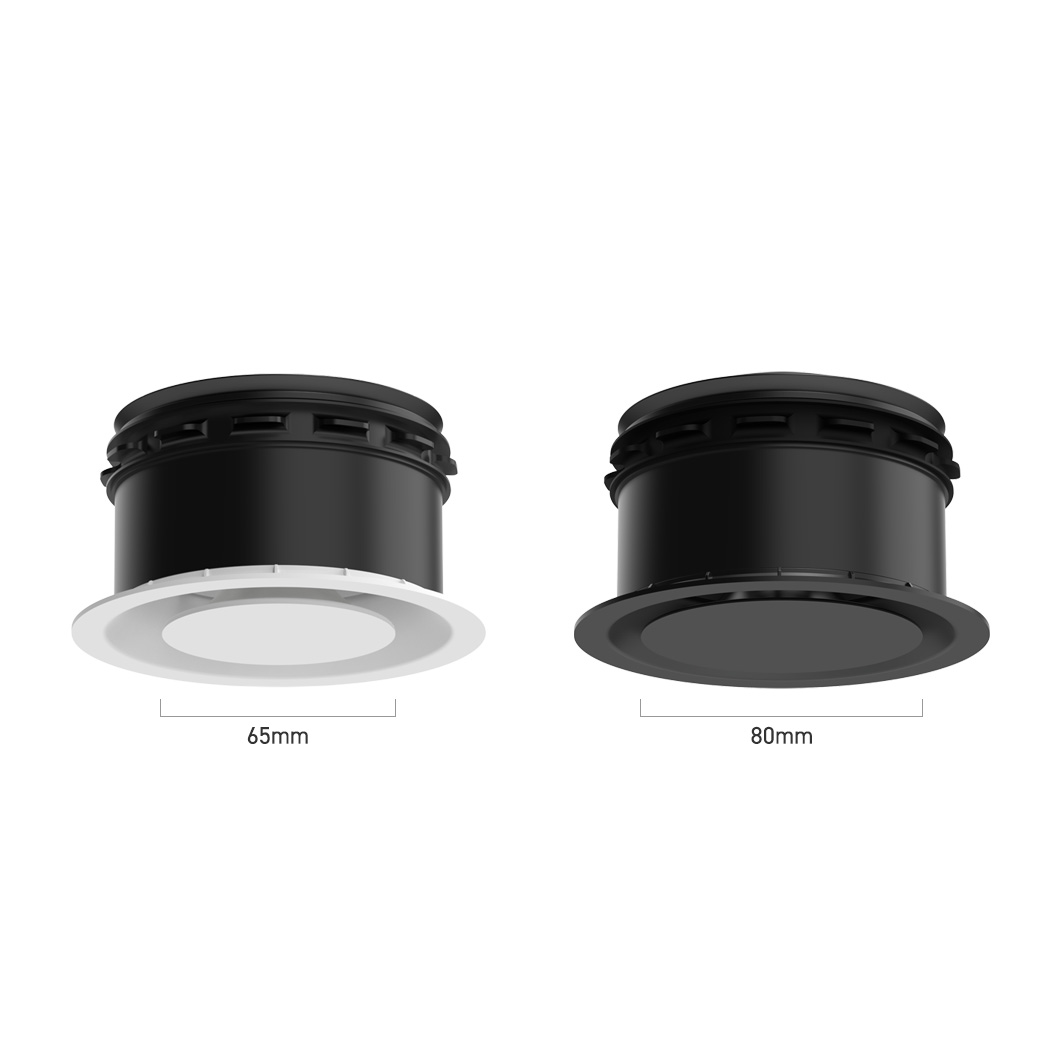

Meet Pradovent Ø100 Trim. Fully adjustable and designed for air extraction up to 50m³/h. The airflow is fully adjustable in 34 steps. Pradovent Ø100 Trim fits into all Ø100mm ventilation ducts, and is supplied with a choice of 2 cover plates, 65mm and 80mm. Show what you want, hide what you need.

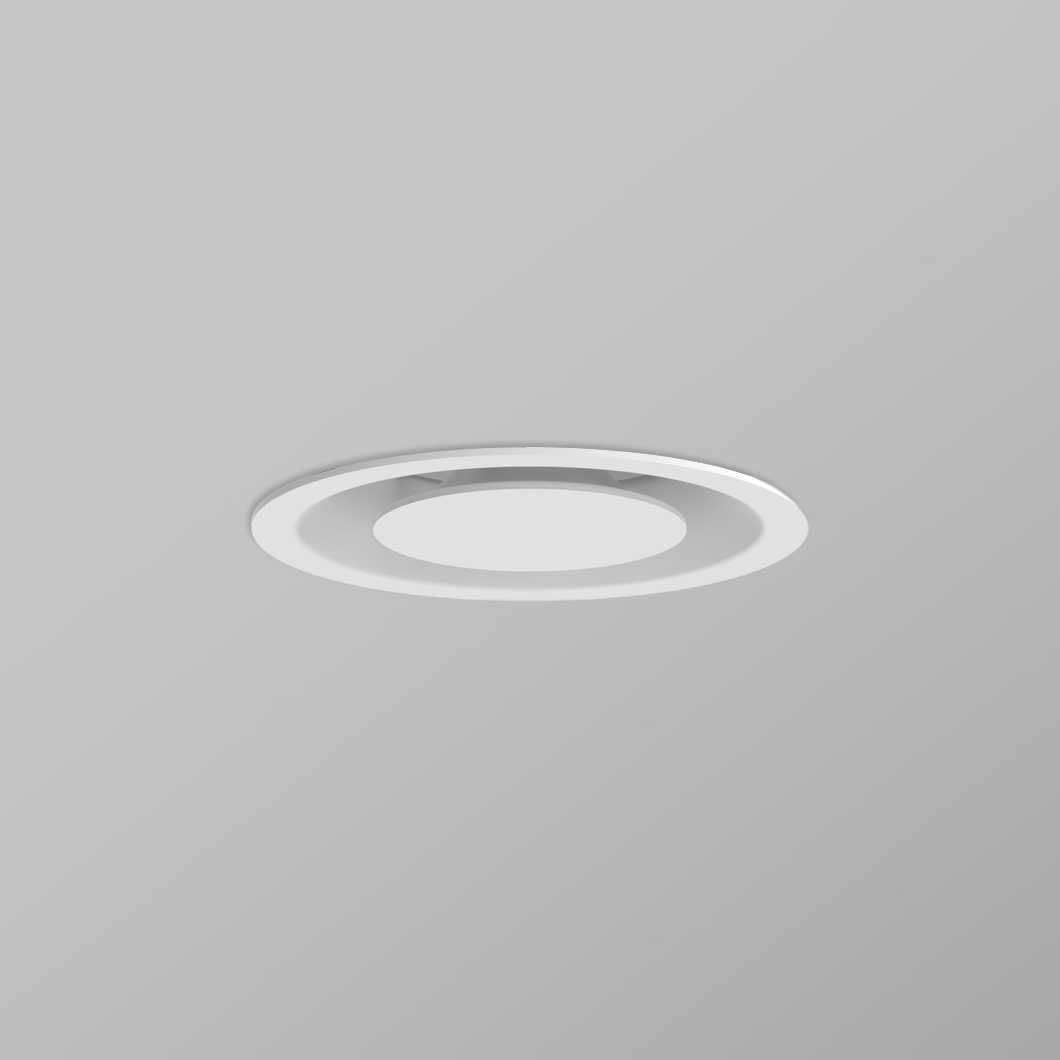

Award winning design makes ventilation disappear
Invisible air supply and extraction, up to 50m³/h. Waterproof IP65 rated - perfect for your bathroom. Ideal for kitchens. Works for any other room. Trim design with paintable design ring to match the colour scheme of the ceiling.

Ventilation valves that work with every system
Extract up to 50m³/h. Completely invisible and incredibly quiet. Introducing a ventilation valve that effortlessly works with every ventilation system. Works with DUCO, works with Renson, works with every other ventilation system.

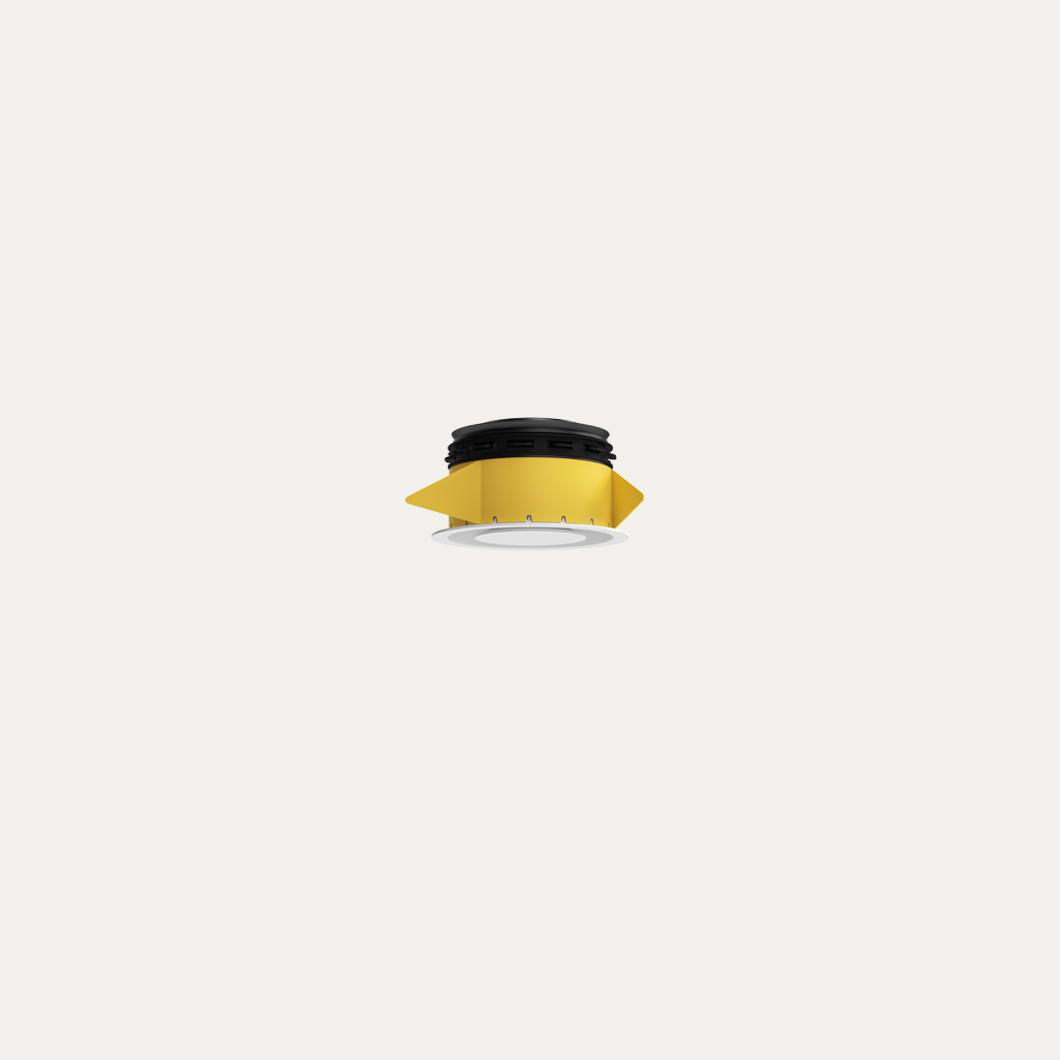

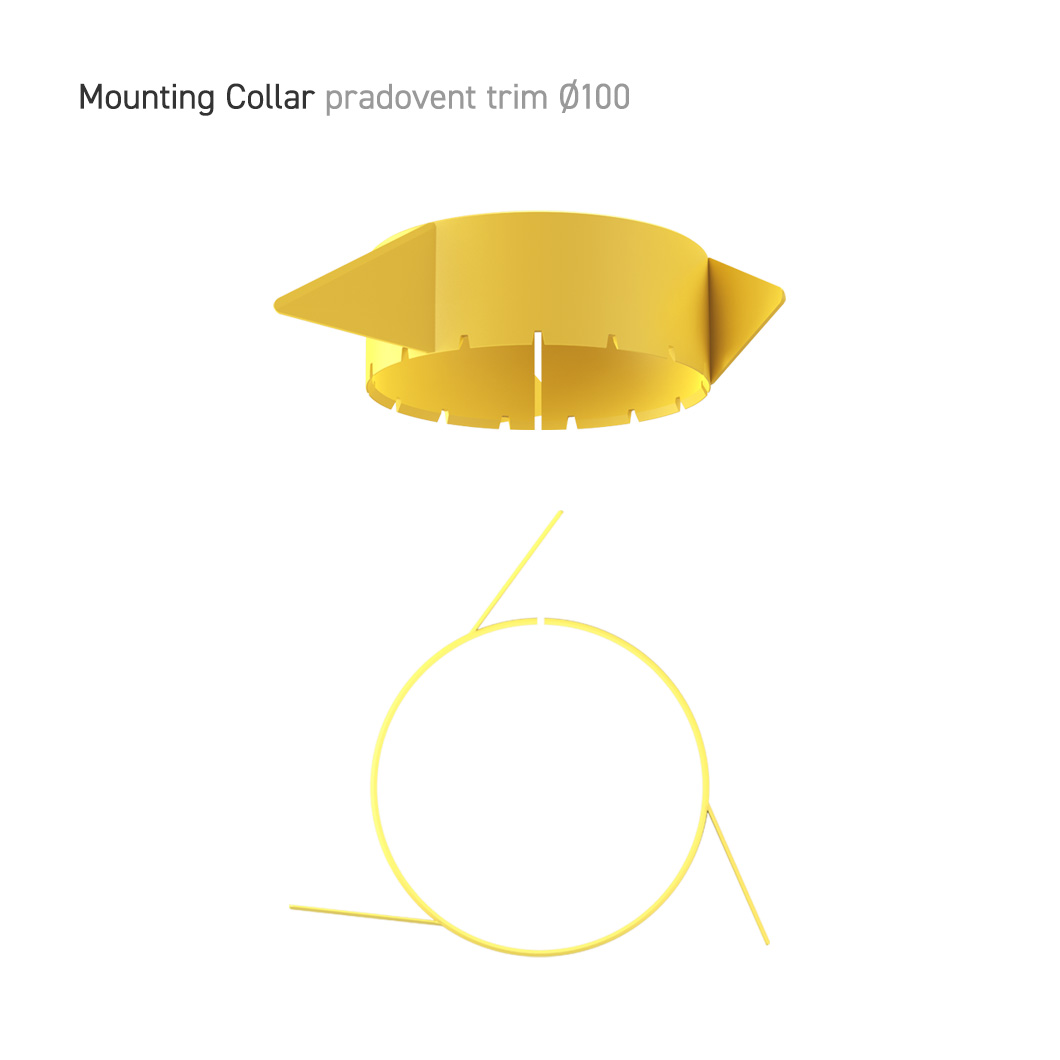

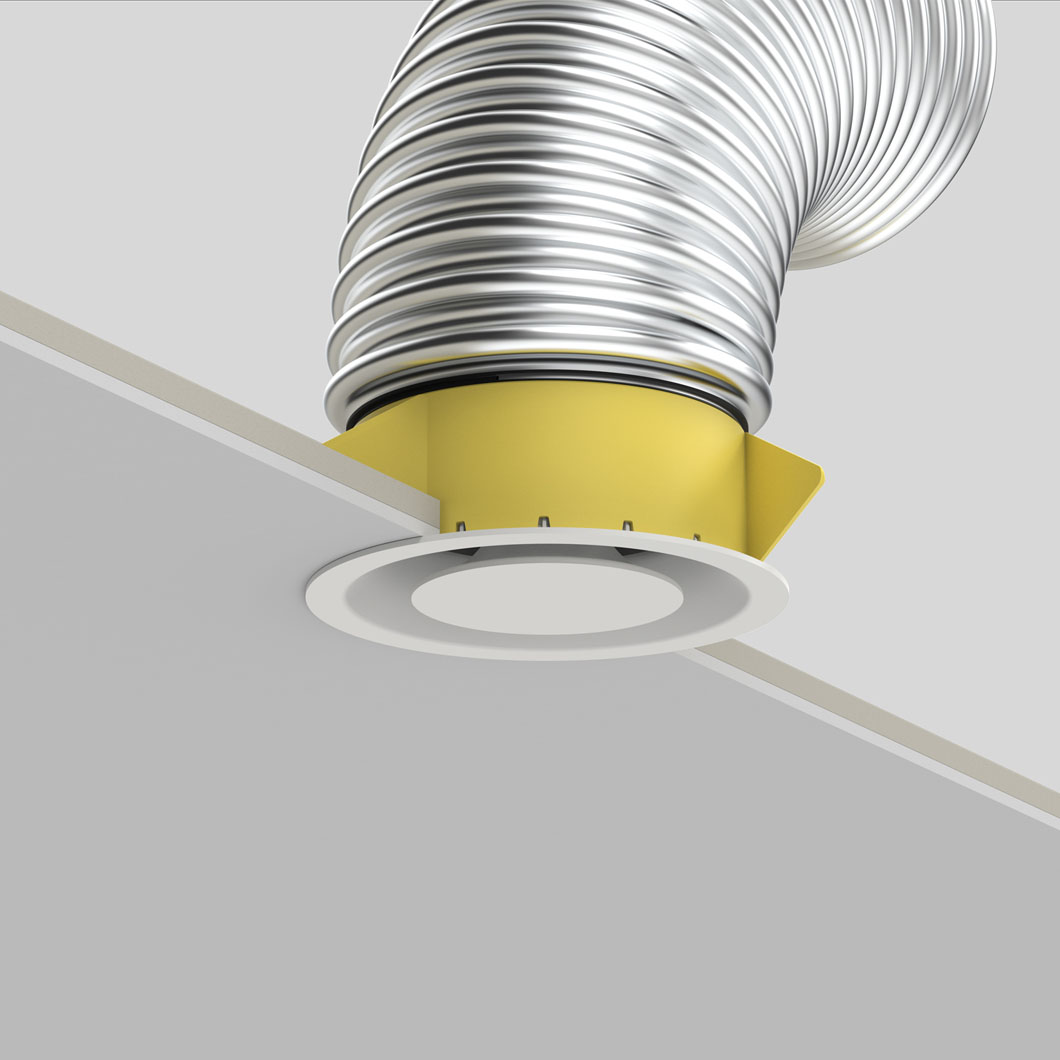

A flexible duct? Use a mounting collar.
This accessory enables the installation of the Pradovent Ø100 Trim in gypsum ceilings when connecting to Ø100 flexible ducts.

Type: extraction
Air flow: max. 50 m³/h
Noise: < 27 dB(A)
Pressure: 19 – 95 Pa

Adjustability: 34 steps
Colour: white RAL 9003 | black RAL 9005
Paintable: with synthetic primer
Compatibility: fits all Ø100mm ducts
Other: patent pending

Mounting collar: (for gypsum ceilings and flexible ducts)
Data Sheet PDF - Mounting collar for Pradovent Ø100 Trim (8001-1005)

Lamp type: Integrated LED

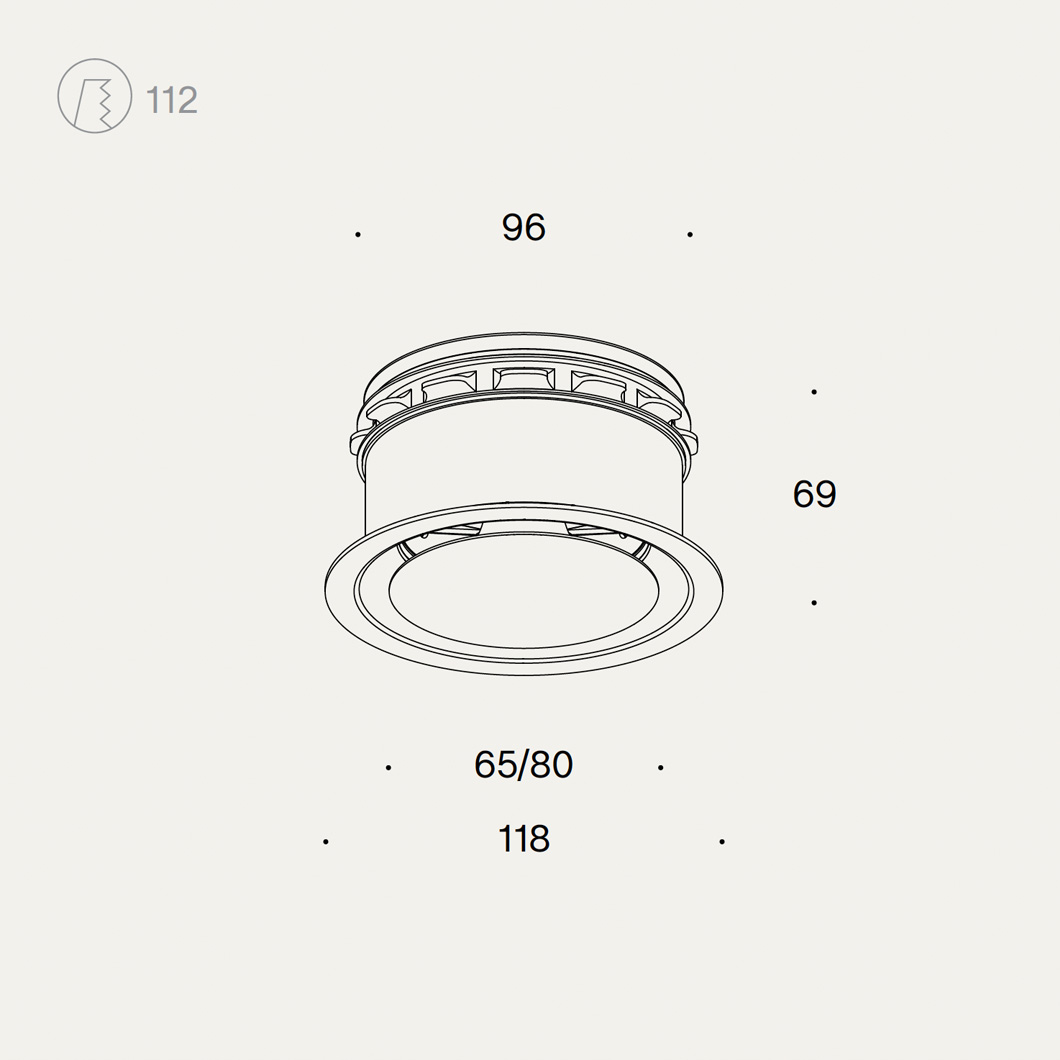

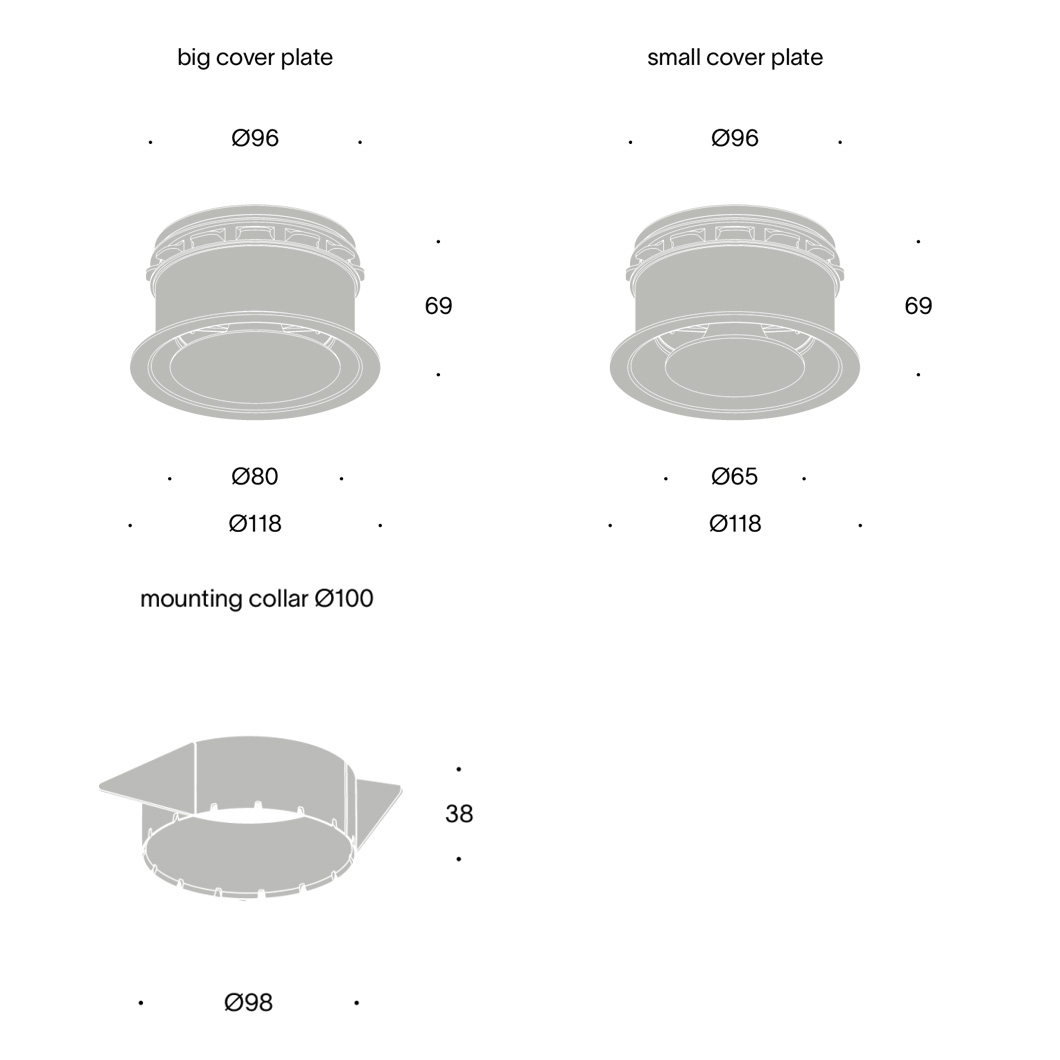

Product dimensions: H.69mm x Diameter.118mm

Cutout dimensions: Dia.112mm

• Data Sheet PDF
• Install Instructions PDF
• Data Sheet | Mounting Collar Ø100 | PDF
• Install Instructions | Mounting Collar Ø100 | PDF

 Delivery

Delivery usually within 2-3 weeks

 Warranty

- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES

PDF Full guarantee and terms
