Prado Light + Ventilation Mini 2.0 Trimless Plaster-In Adjustable Downlight

Description

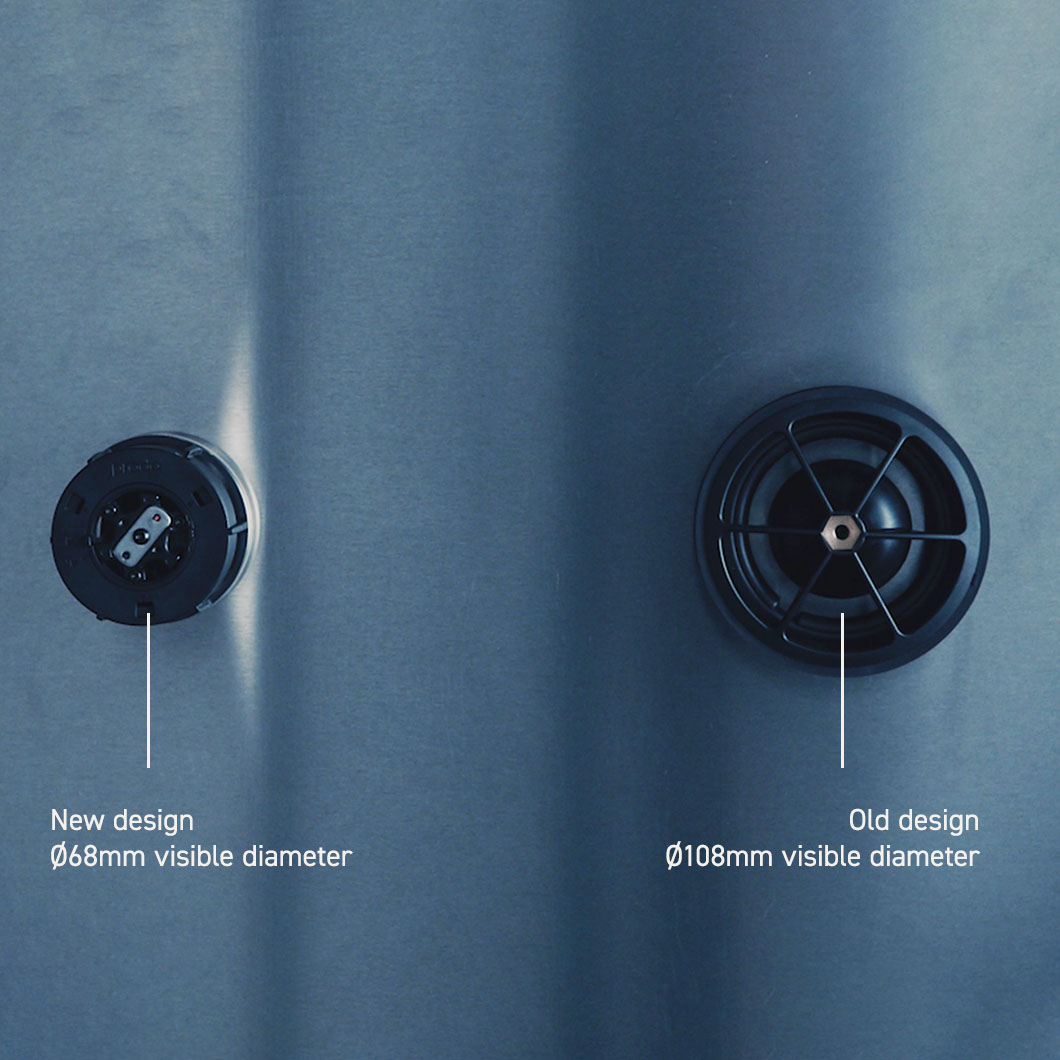

Meet the Light + Ventilation Mini 2.0 trimless downlight. The next evolution of Prado's iconic mini trimless fitting, Light + Ventilation Mini 2.0 is now 60% smaller than the previous version. The visible diameter has shrunk from  Ø108mm, and is now a more refined and compact Ø68mm when plastered into the ceiling. With performance that extracts up to 30 m³/h and delivers up to glare-free 700 lumen, Light + Ventilation Mini 2.0 is the culmination of years of design and technical experience.

Award winning design makes ventilation disappear
Invisible air supply and extraction, up to 30m³/h. Waterproof IP65 rated - perfect for your bathroom. Ideal for kitchens. Works for any other room.

Ventilation valves that work with every system

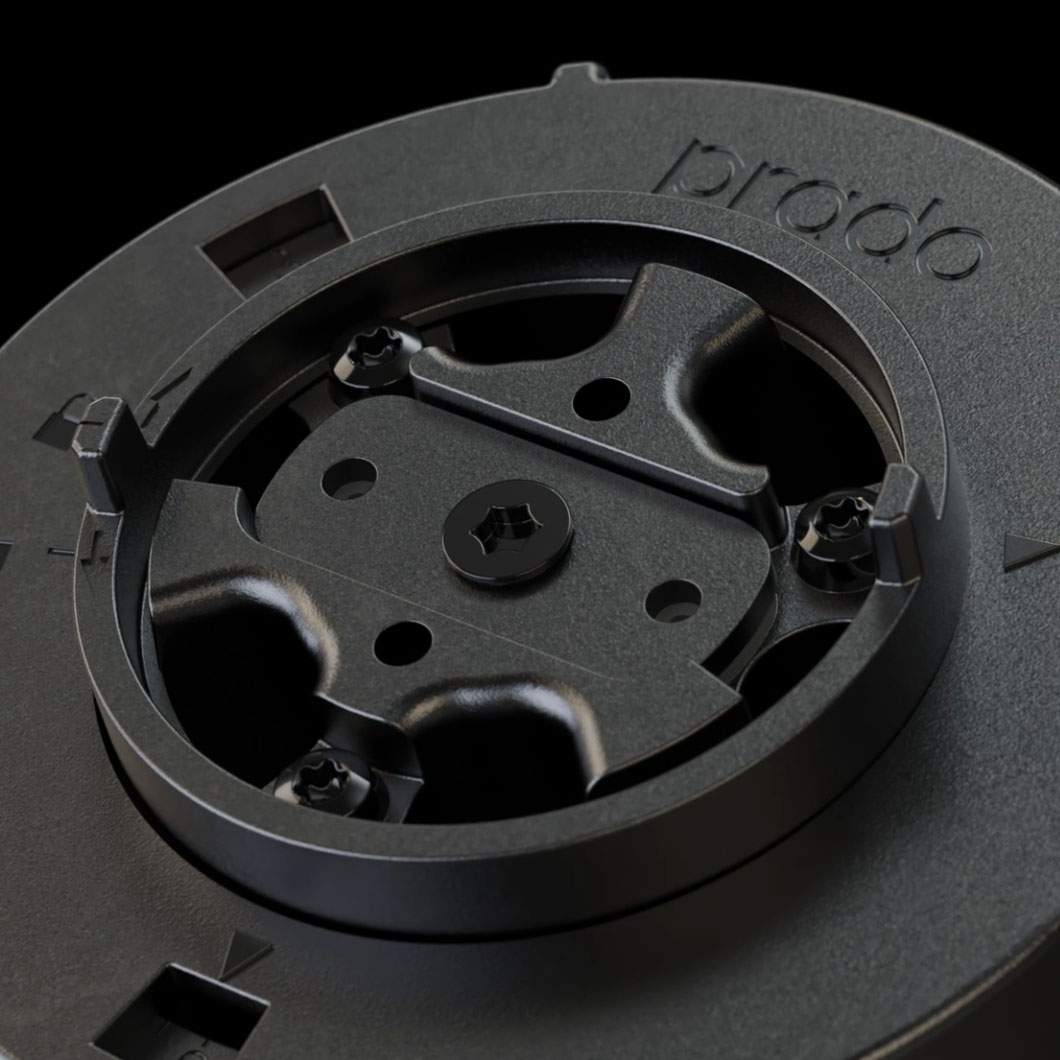

Extract up to 30m³/h. Completely invisible and incredibly quiet. The adjustable plaster ring adapts to different ceiling finishes and is compatible with Ø100mm and Ø125mm ventilation ducts. Works with DUCO. Works with Renson. Works with every other ventilation system. An intuitive airflow mechanism offers 20 adjustable steps with an integrated lock.

• The installation ring fits into a standard Ø100mm or Ø125mm ventilation duct
• Requires either an inline fan or MVHR system (not included)
• The installation ring fits in every Ø125 ventilation duct, a flow setting scale and rasterized adjustment positions allow easy and accurate adjustment. Simply twist the light to start tweaking
• Light and ventilation valve are easily retractable, ideal for maintenance
• An integrated lock prevents from accidentally modifying the air flow after installation

Beautiful luminaires that deliver sublime light
Pure cylindrical forms crafted from precision milled anodised aluminium and brass. A custom-built glass lens that brings you a low glare light experience. Industry leading LED technology, delivering up to 700 lumen. The IP65 rating make it perfect for any type of room. Introducing a fixture that’s stunning in every way you look at it.

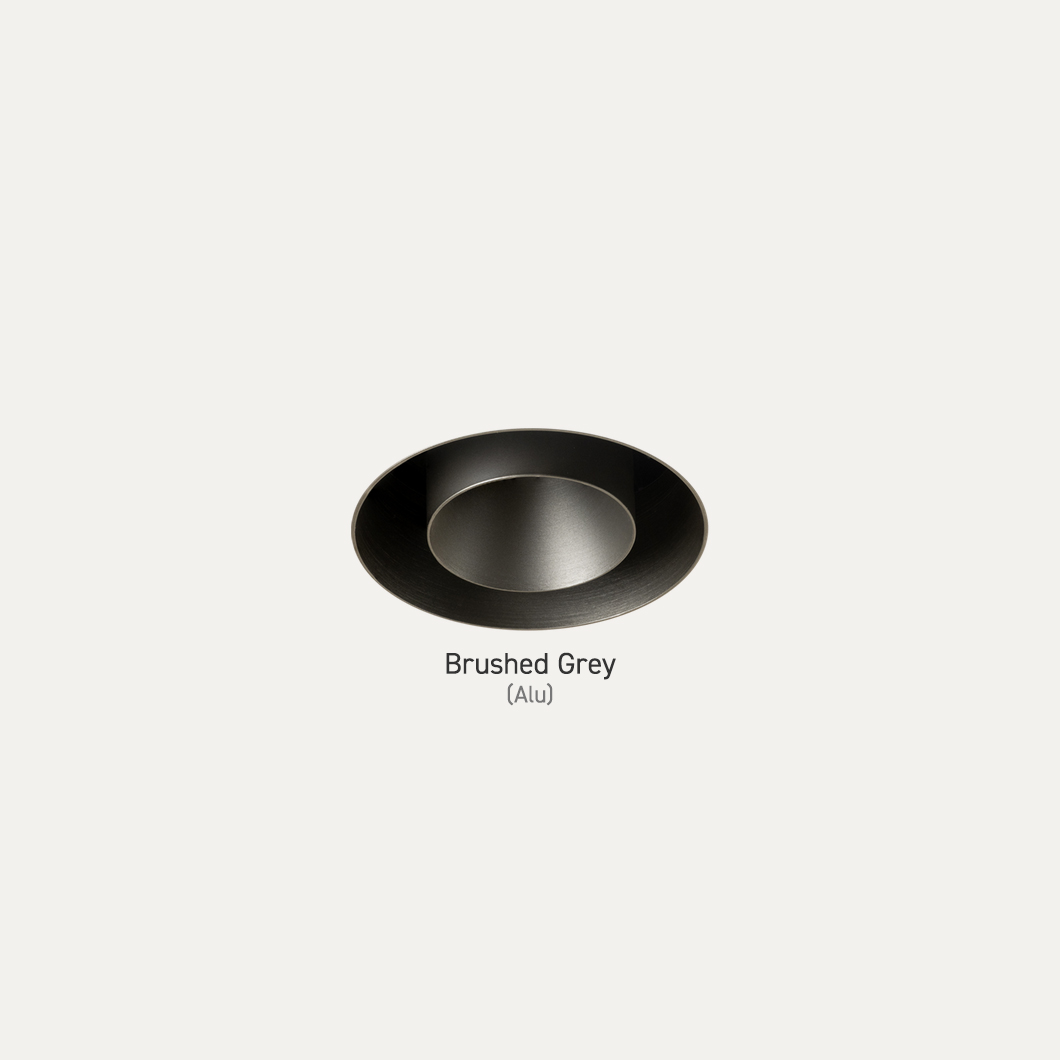

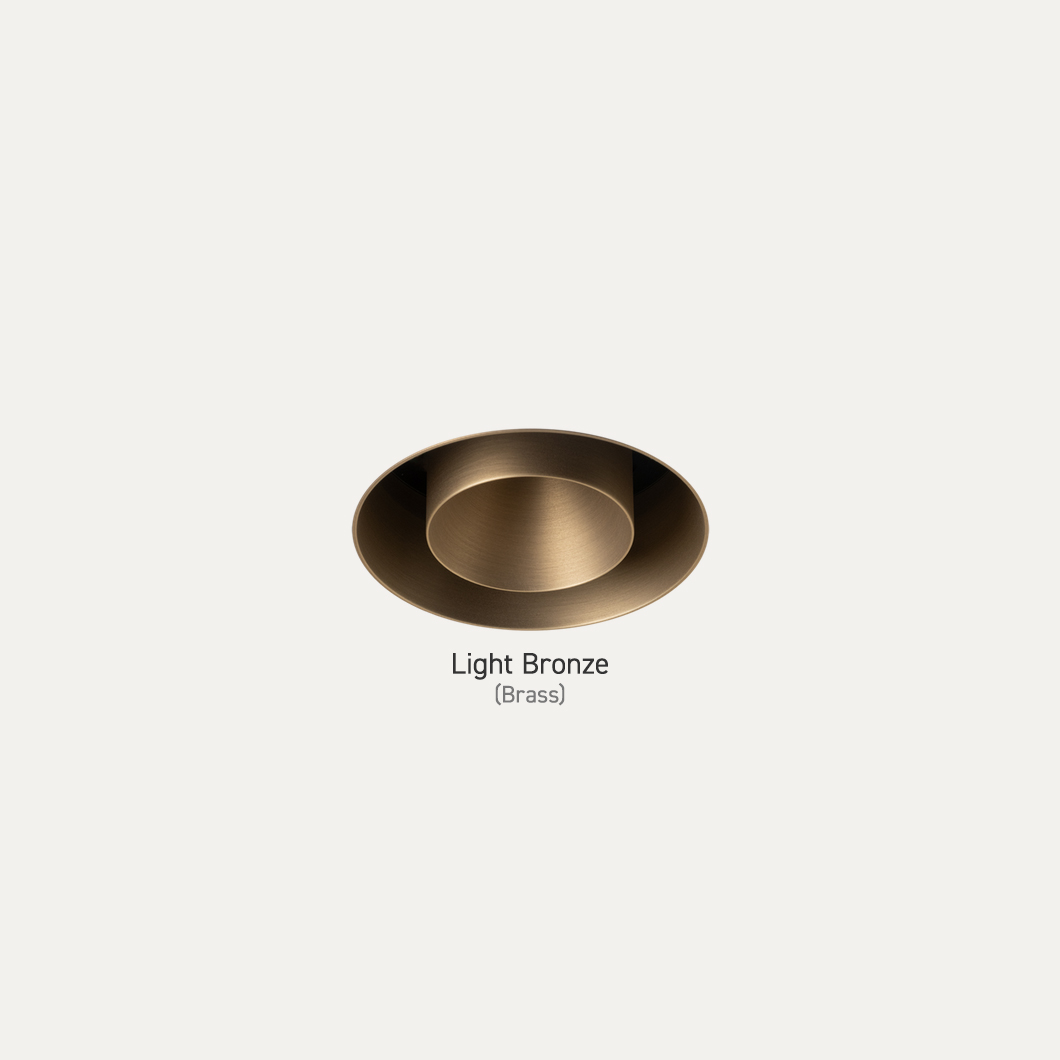

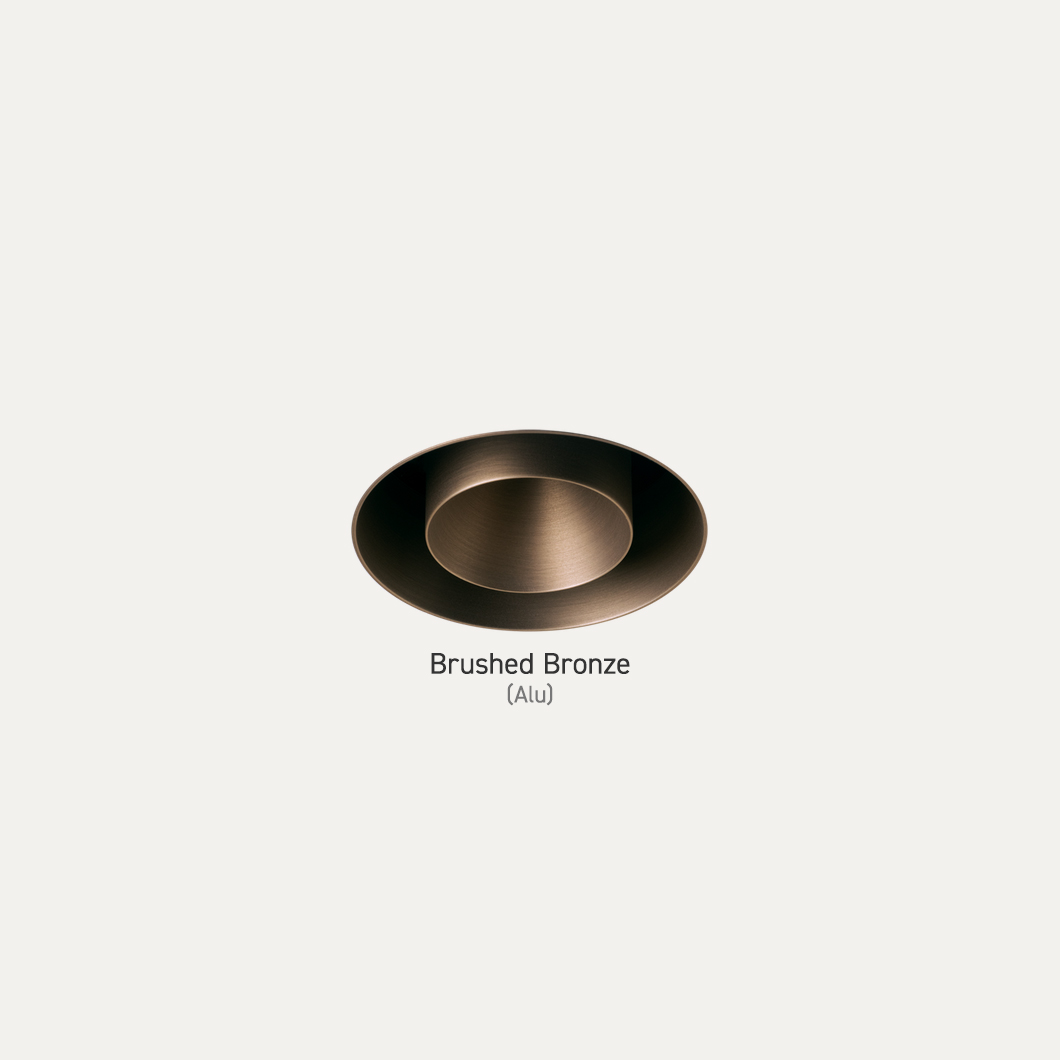

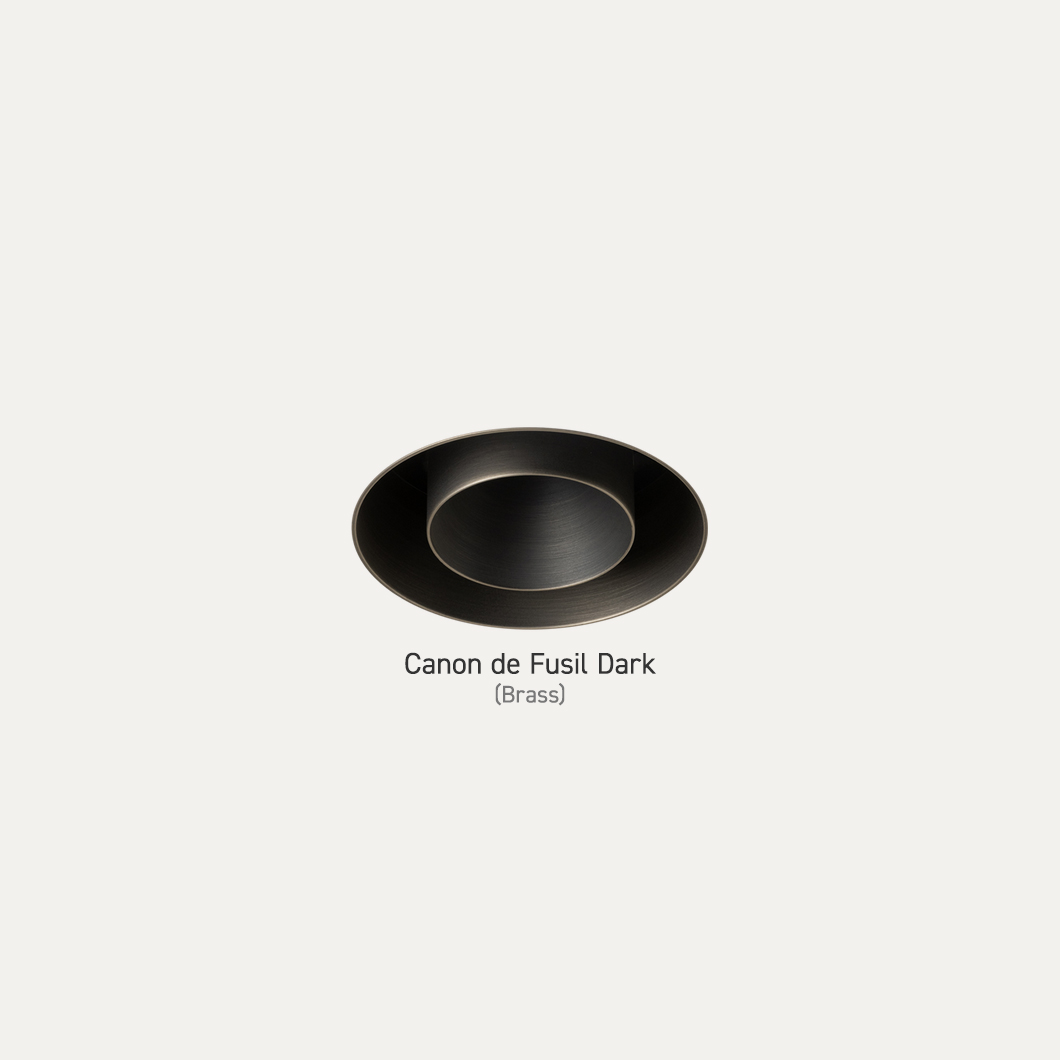

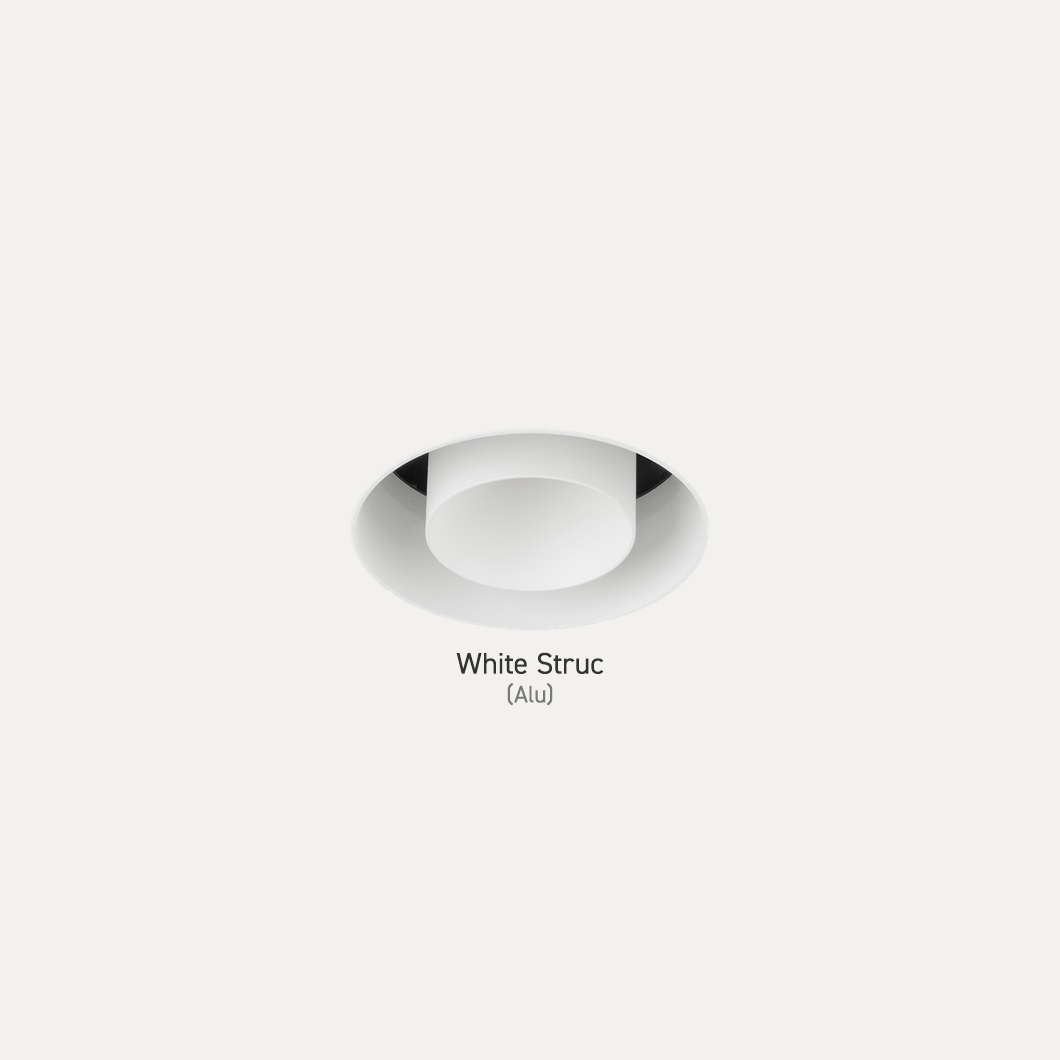

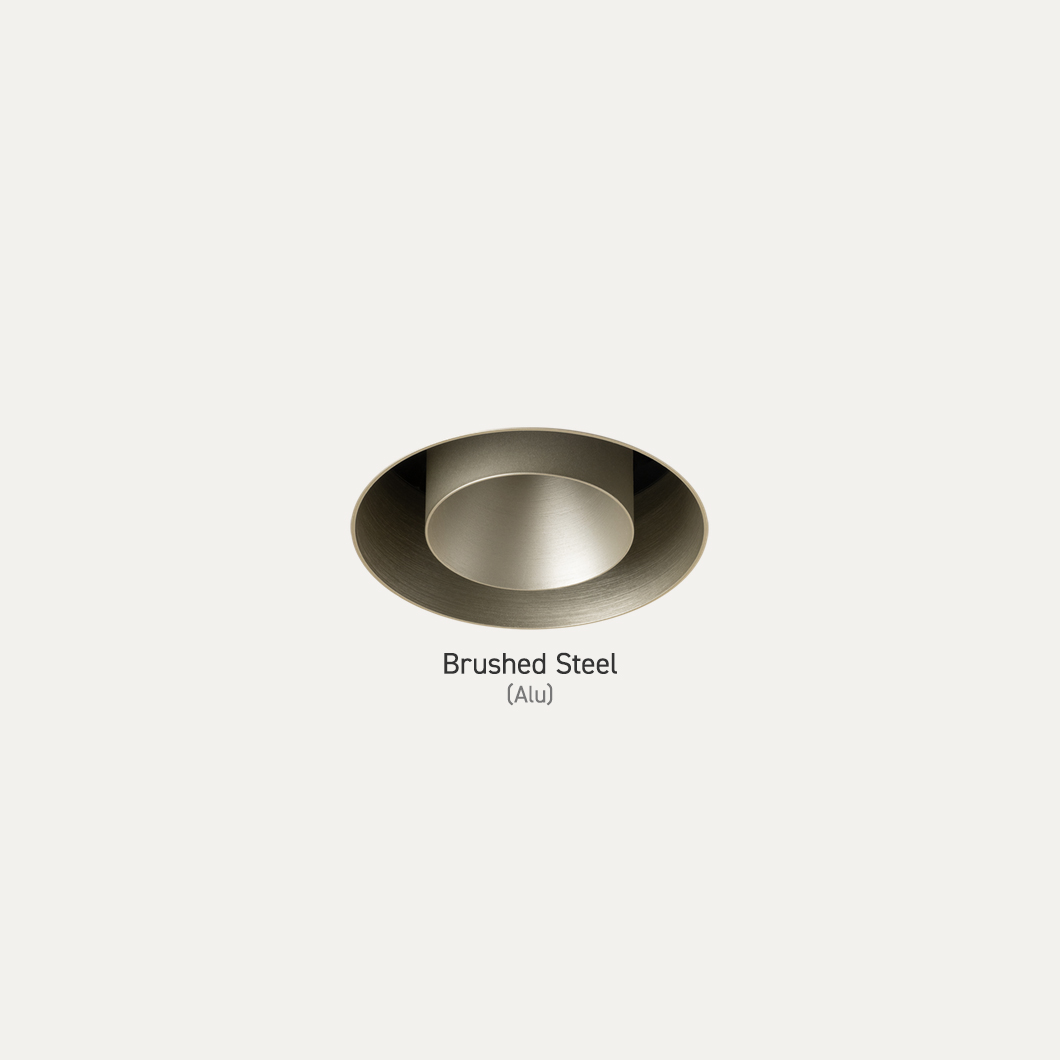

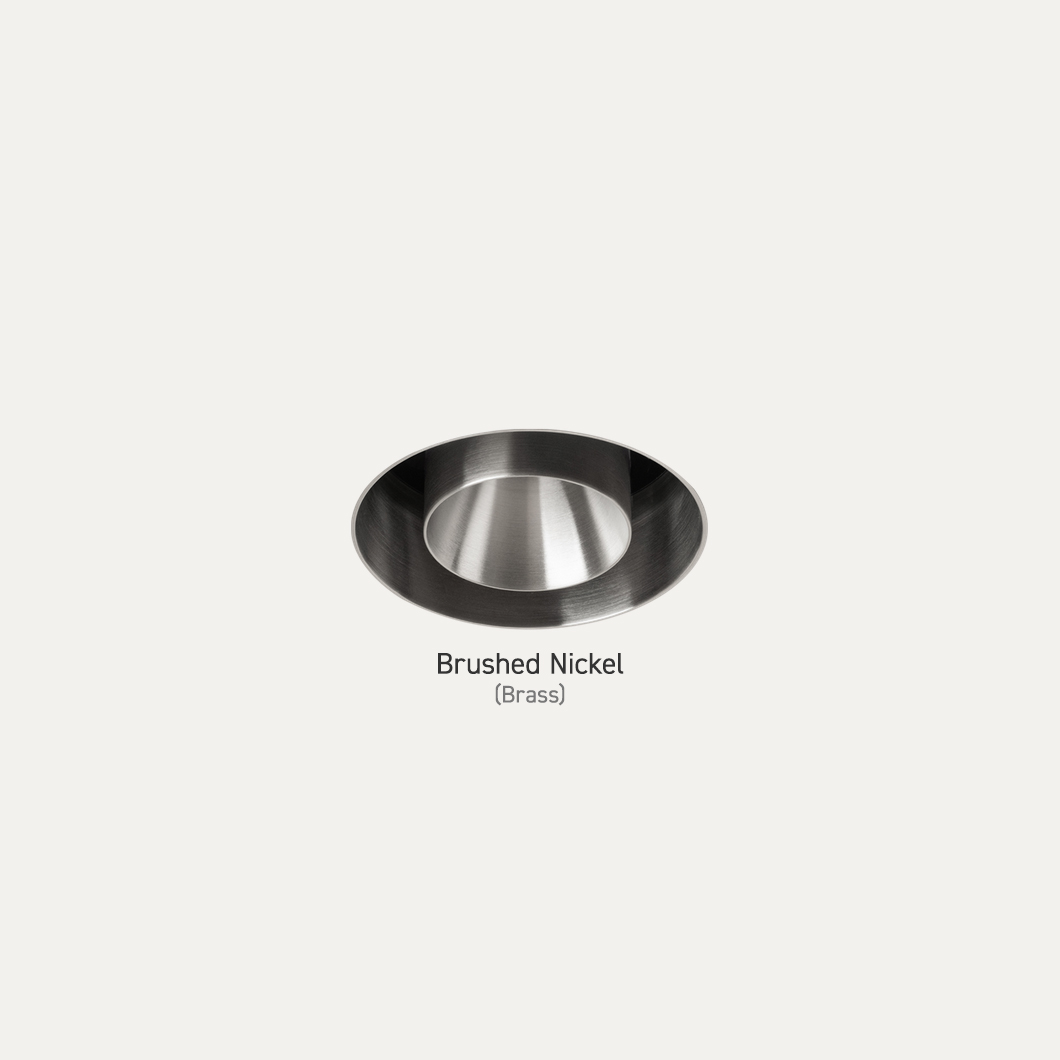

Multiple finishes
Available in a wide choice of luxurious finishes to fit any project.

- Our Top Tips -

This fitting needs a driver. You can pick a driver:

(1) from the dropdown above, or
(2) from ‘You May Also Need' below, or
(3) once you add this product to your basket

Fits into a standard 100mm or 125mm ventilation duct
Ventilation fan not included
Compatible with an inline ventilation fan or MVHR system

Driver questions? Contact us - we're happy to help :)



Specification

Installation Video

Reflector: glass lens

Beam angle: 40°
Light temperature: 2700K | 3000K

Power | Light Temp. | Lumen Output:
350mA (6W) | 2700K | 475lm
350mA (6W) | 3000K | 500lm
500mA (8.9W) | 2700K | 650lm
500mA (8.9W) | 3000K | 675lm

CRI: CRI 97
IP rating: IP65
Class: III
Tilt: 0°

Ventilation: air extraction
Air flow: max. 30 m³/h
Noise: < 25 dB(A)
Pressure: 15 – 65 Pa
Adjustability: 20 steps
Locking mechanism: integrated
Other: patent pending

Plaster Kits: (required)
Data Sheet PDF - Adj. plaster ring Ø68 - ventilation duct Ø100 - cutout Ø112mm (8000-8460)
Data Sheet PDF - Adj. plaster ring Ø68 - ventilation duct Ø125 - cutout Ø132mm (8000-8461)

Driver: not included - see 'You May Also Need' below
L-Tech 15W 350-700mA CC Phase Dim LED Driver
L-Tech 20W 100-700mA NFC CC 0/1-10V LED Driver
L-Tech 15W 100-700mA CC DALI LED Driver

Lamp type: Integrated LED

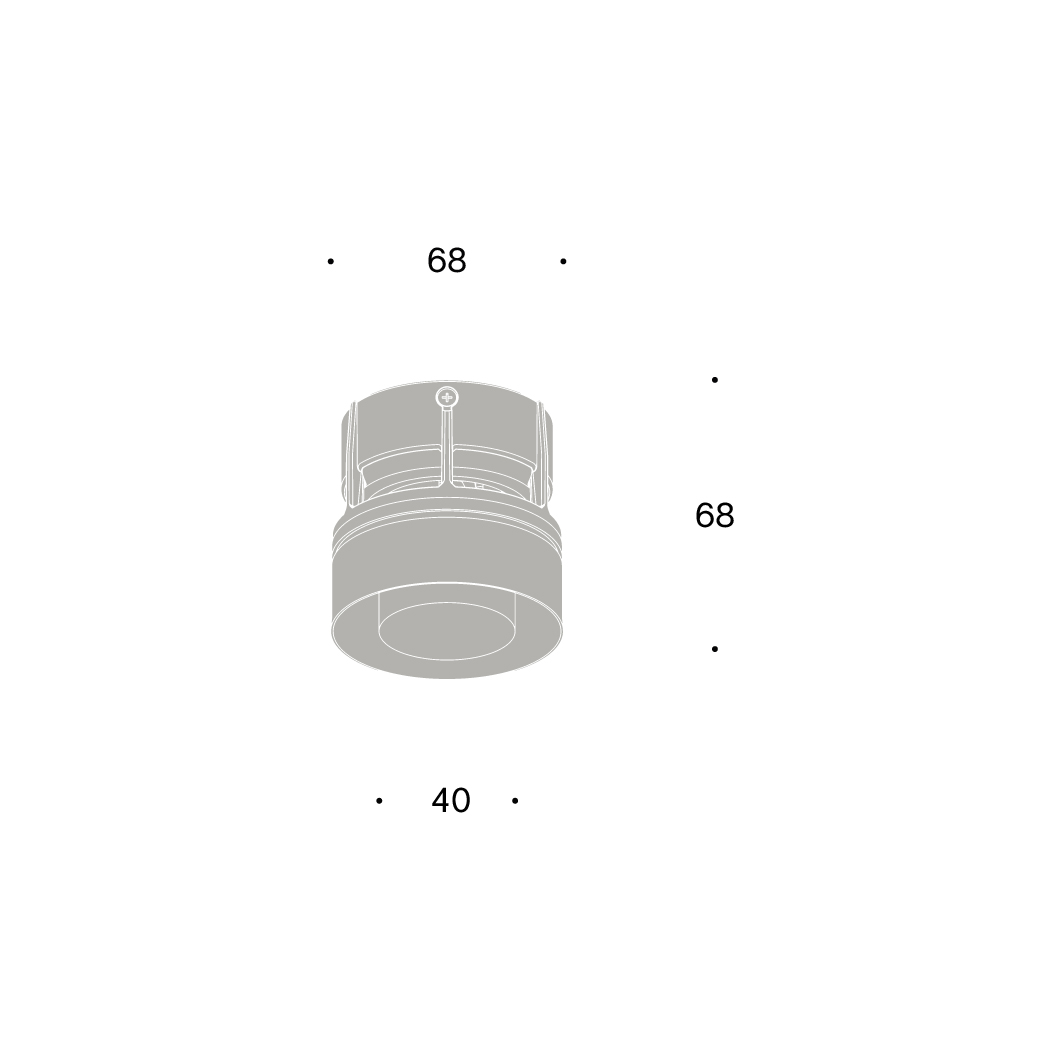

Dimensions

Product dimensions: H.68mm x Diameter.68mm

Lens dimensions: Dia.40mm

Downloads

• Data Sheet PDF
• Install Instructions PDF
• Power Entry Cross Section Diagram PDF
• Bathroom Zones & IP Ratings Explained PDF
• 8000 8460 | Adjustable Plaster Ring Ø68mm Duct Ø100mm | Data Sheet PDF
• 8000 8461 | Adjustable Plaster Ring Ø68mm Duct Ø125mm | Data Sheet PDF

Delivery and warranty

 Delivery

Delivery usually within 2-3 weeks



 Warranty

- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES

PDF Full guarantee and terms

About the manufacturer

Invisible home technology. Highlighting what really matters and hiding what does not, that's what Prado stands for. By developing invisible home solutions, Prado are helping to create more peaceful home environments. Come home to an interior where function, form and sustainability are in harmony. Functional minimalist lighting with state-of-the-art invisible ventilation. Modern downlights with integrated motion sensors that you cannot see. All using high quality materials for a high-end finish.



Available now for EU but coming soon in UK versions - Rond by Prado applies the same minimalist principles to the wall with a beautiful range of round UK switchless power sockets and data ports with a unique design.

Got a question? Email us or call 01189 882294
