- Description
-

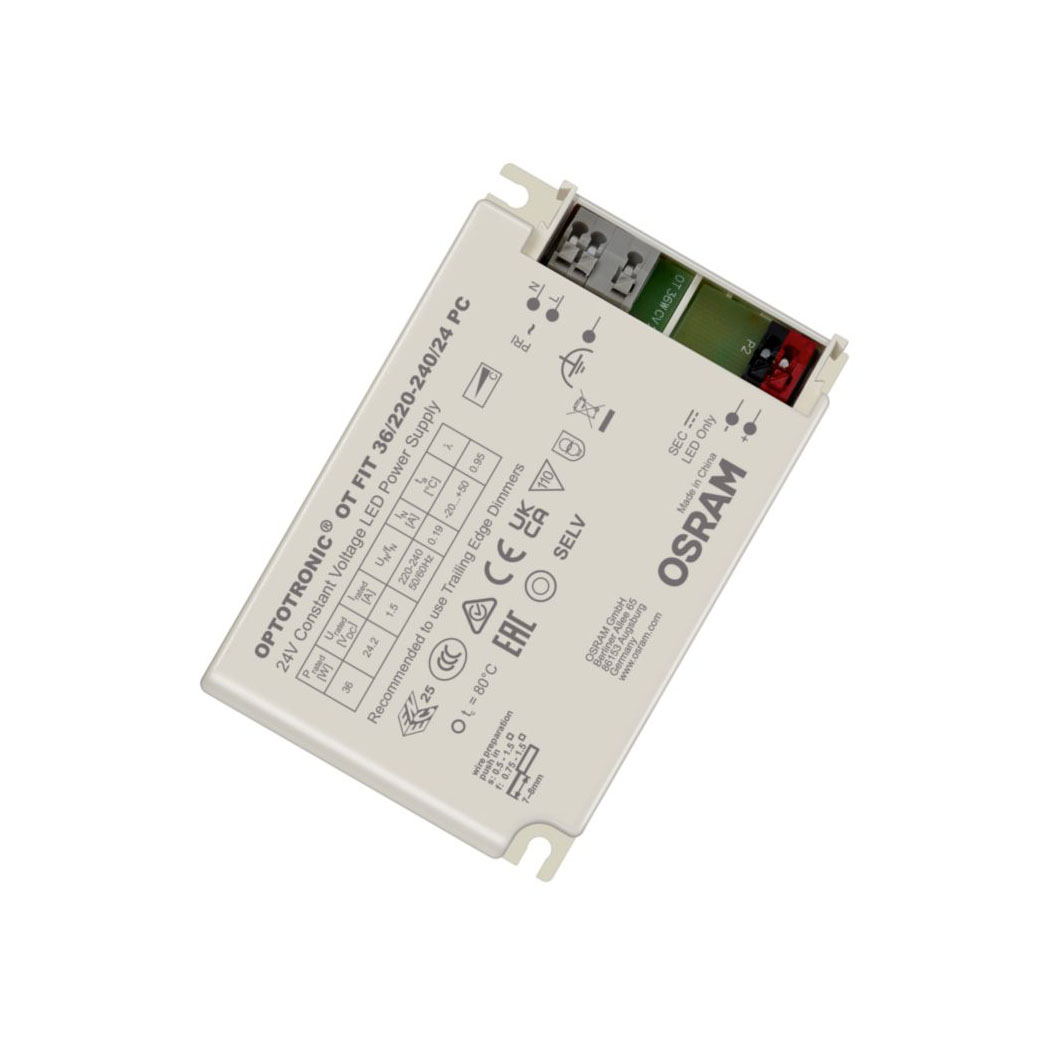

OT FIT 36W is a 24V constant voltage driver, recommended for use with Trailing edge dimming.
Features:
- 24 V constant output voltage
- SELV
- Wide Ta range -20 – +50 ℃
- Lifetime 50 000 h at tc max
- Dimming range: 3…100 % luminous flux
- Recommended to Use Trailing Edge dimmer
Benefits:
- IP rating: IP20
- High efficiency
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Independent installation possible
Application:
- Suitable for luminaires of protection classes I and II
- Hospitality – decorative lighting, night light
- Restaurants – decorative lighting
- Shops – decorative lighting, shelf lighting
- Residential – cove lighting, under cabinet lighting
- Specification
-
Electrical data
Nominal input voltage: 220…240 V
Mains frequency: 50/60 Hz
Input voltage AC: 198…264 V
Total harmonic distortion: < 15 %
Power factor: > 0.95
Efficiency in full-load: 85 % (1)
Device power loss: 6.0 W (2)
Inrush current: < 25 A (3)
Max. ECG no. on circuit breaker 10 A (B): 21
Max. ECG no. on circuit breaker 16 A (B): 33
Surge capability (L/N-Ground): 2 kV
Surge capability (L-N): 1 kV
Nominal output voltage: 24.2 V
Output ripple current (100 Hz): < 5 %
Nominal output power: 2.42…36.3 W
Maximum output power: 36.3 W (4)
Galvanic isolation: SELV
1) at 230 V, 50 Hz
2) At Full load, 230 V, 50 Hz
3) twidth = 250 μs (measured at 50 % Ipeak)
4) at steady state

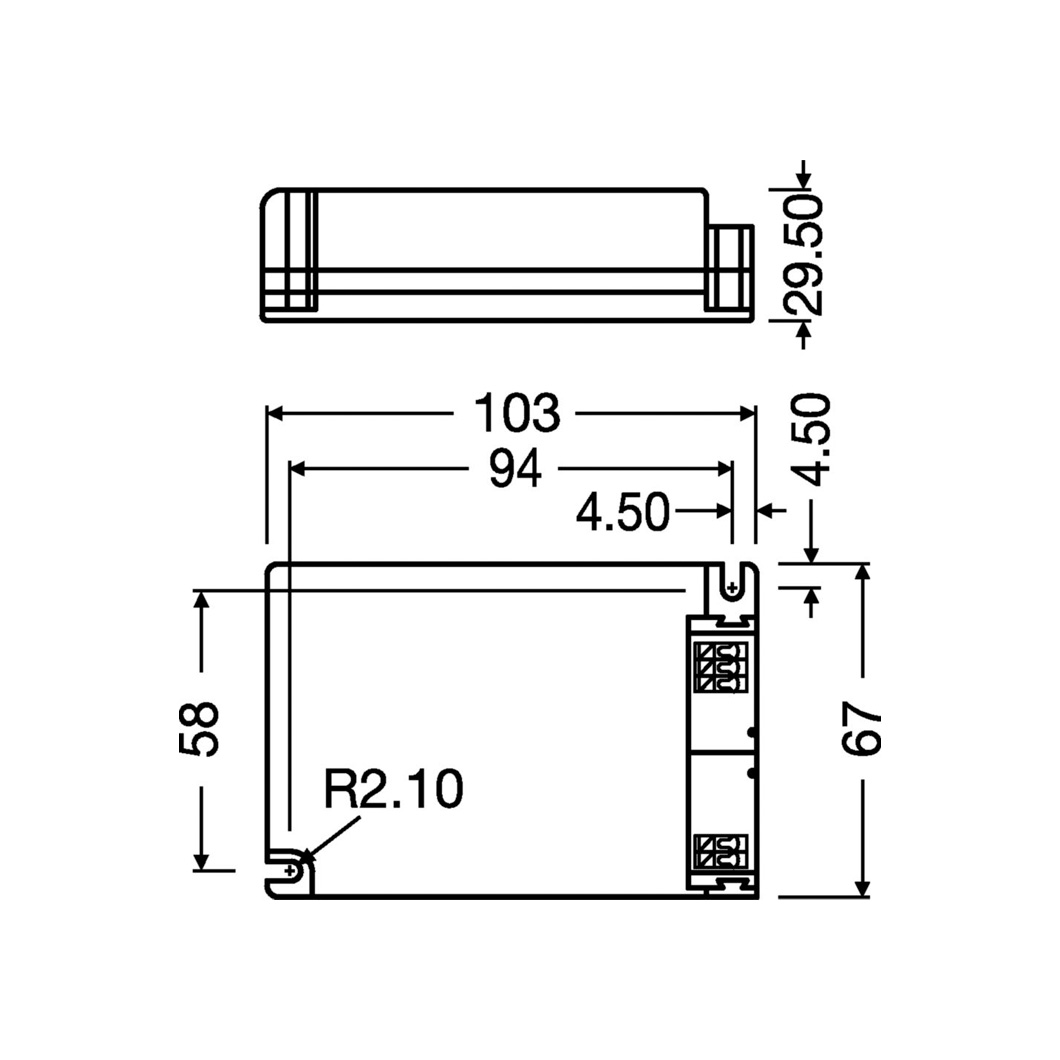

- Dimensions
-
Product dimensions: W.103mm x D.67mm x H.30mm
Cutout dimensions: Dia.58mm
