Lodes Focus LED Outdoor Spot Light

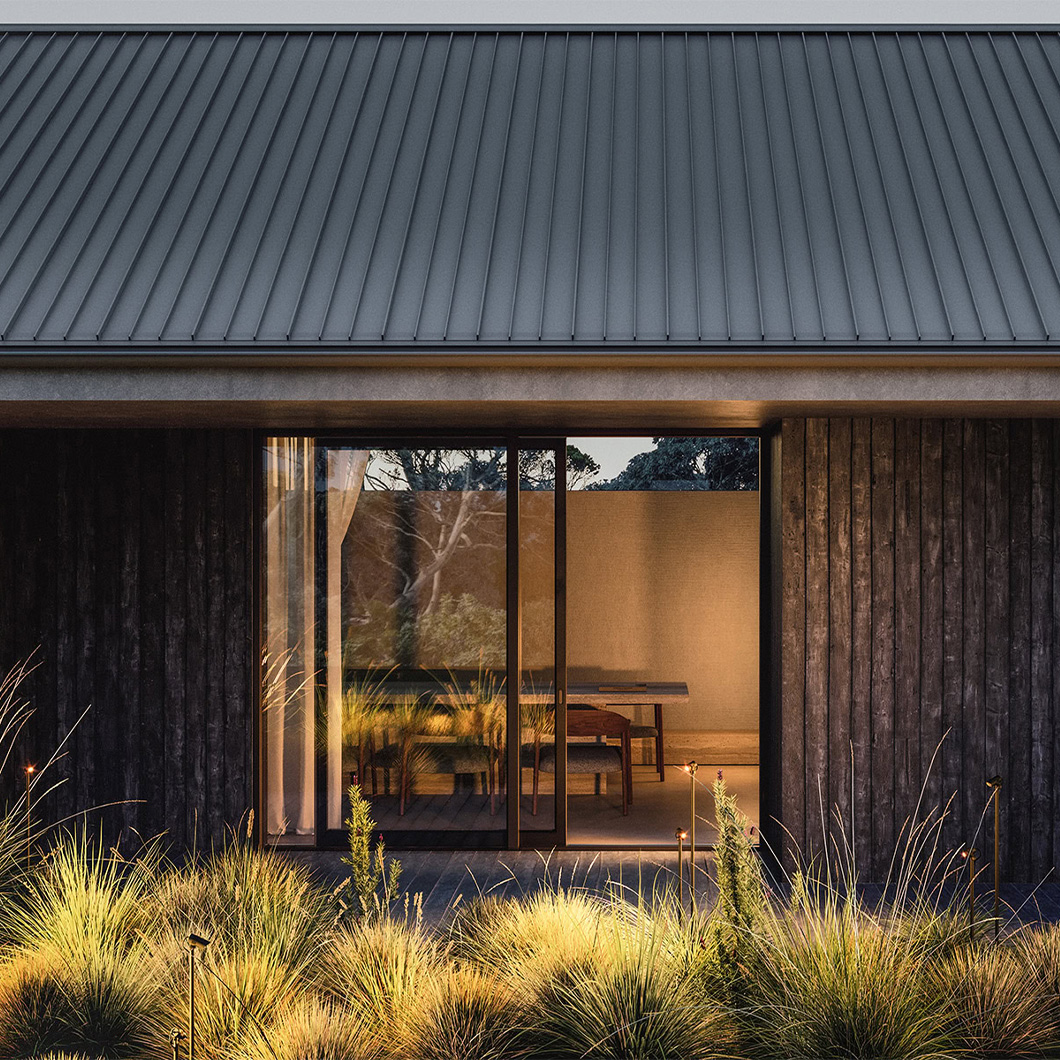

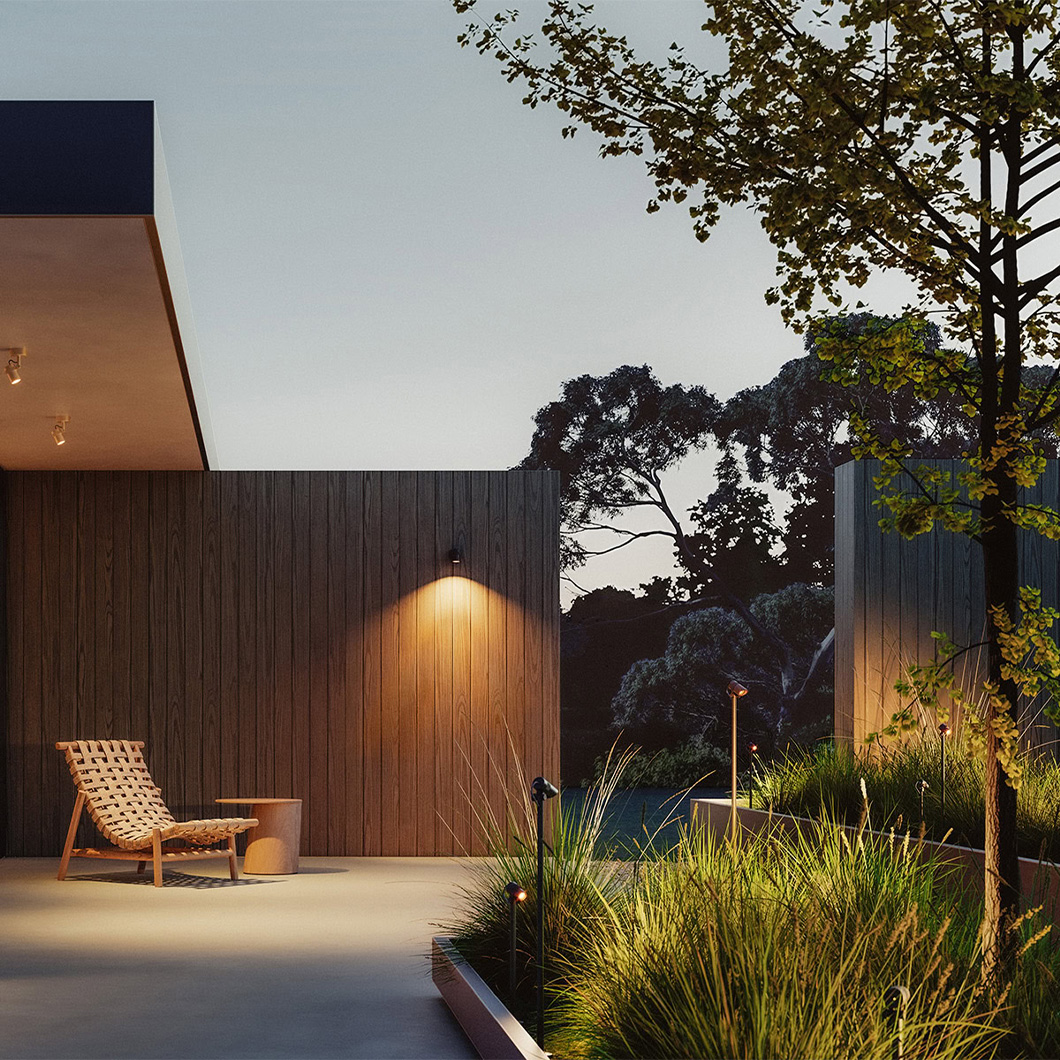

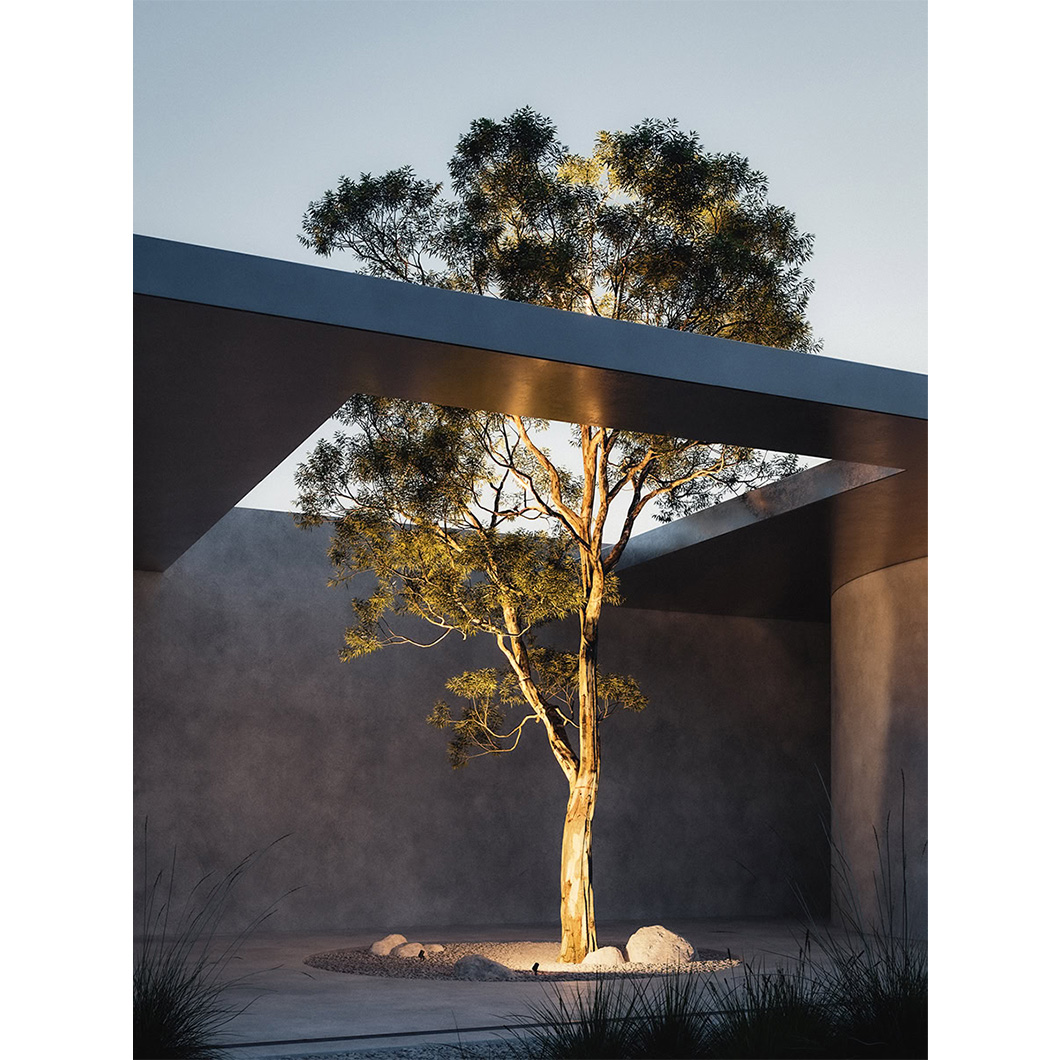

Inspired by the world of photography in its lines and design, Focus by Lodes is a multifunctional projector light, ideal for illuminating greenery and shrubs in outdoor spaces. The name Focus refers to the action of ‘focusing’ typical of photography, but also extends to the concept of precisely directing light to shape it and create atmospheres, expressing a design that combines aesthetics, functionality, and attention to detail.

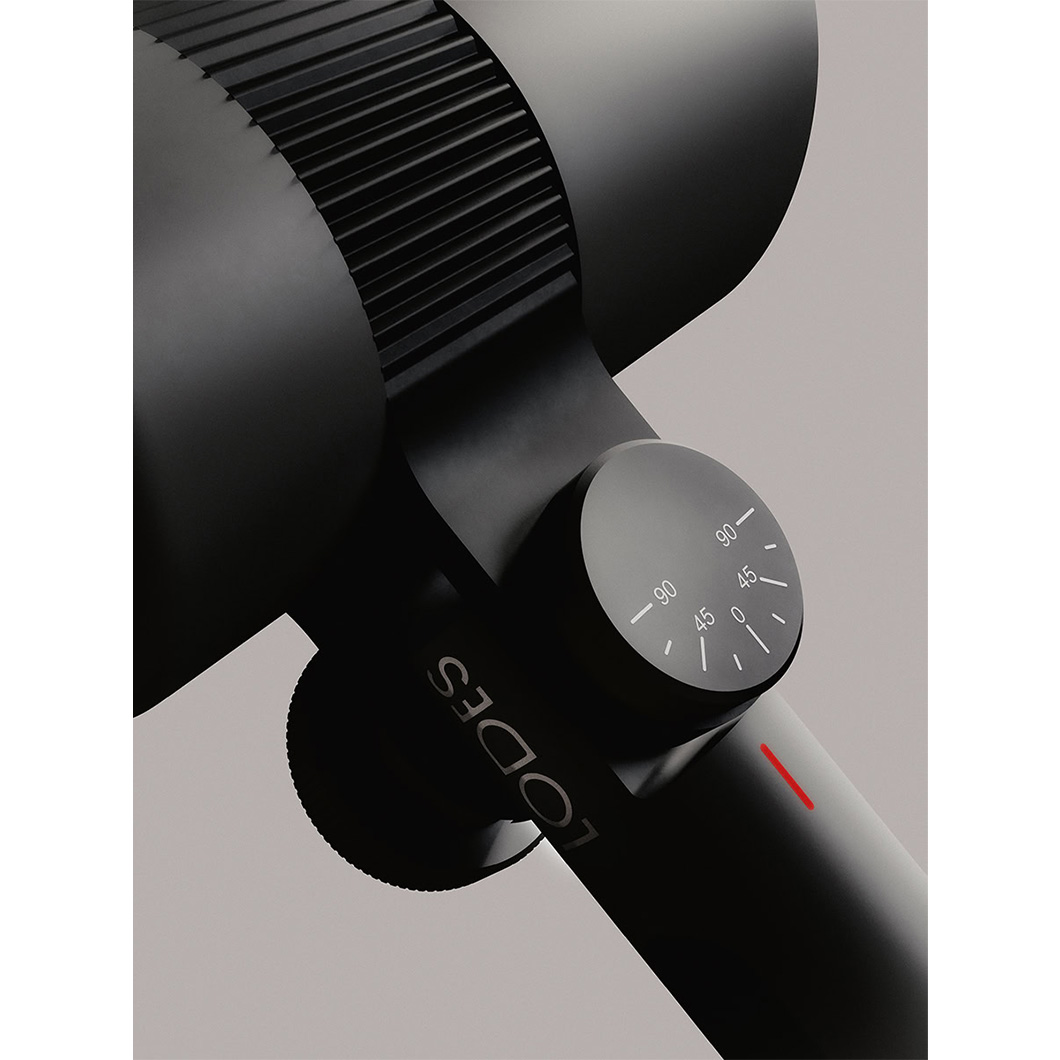

The joint, often relegated to a purely functional role, becomes a central element: it allows the projector to be rotated to optimise the lighting effect, while the goniometer with degree indication acts as a guide for adjusting the angle of inclination, recalling the precision of photographic tripods.

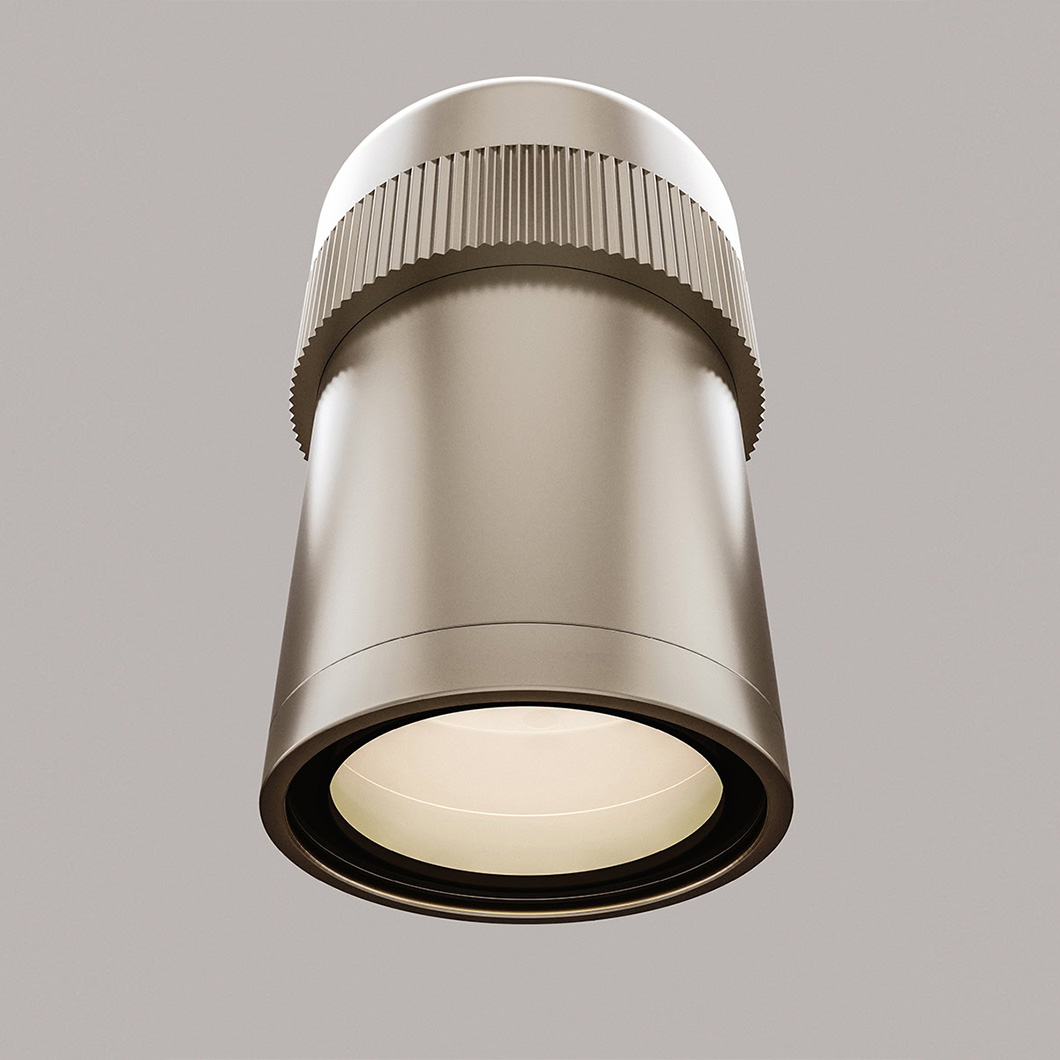

Available in three sizes - Focus 28, Focus 48, and Focus 60 - the versatile spotlight houses a high-output LED light source with either a spot, medium, or extra-wide beam angle to achieve precise or diffused lighting effects. The lighting effect can be further personalised with optional internal or external optical accessories – Honeycomb, Half-moon glare shield, Snoot.

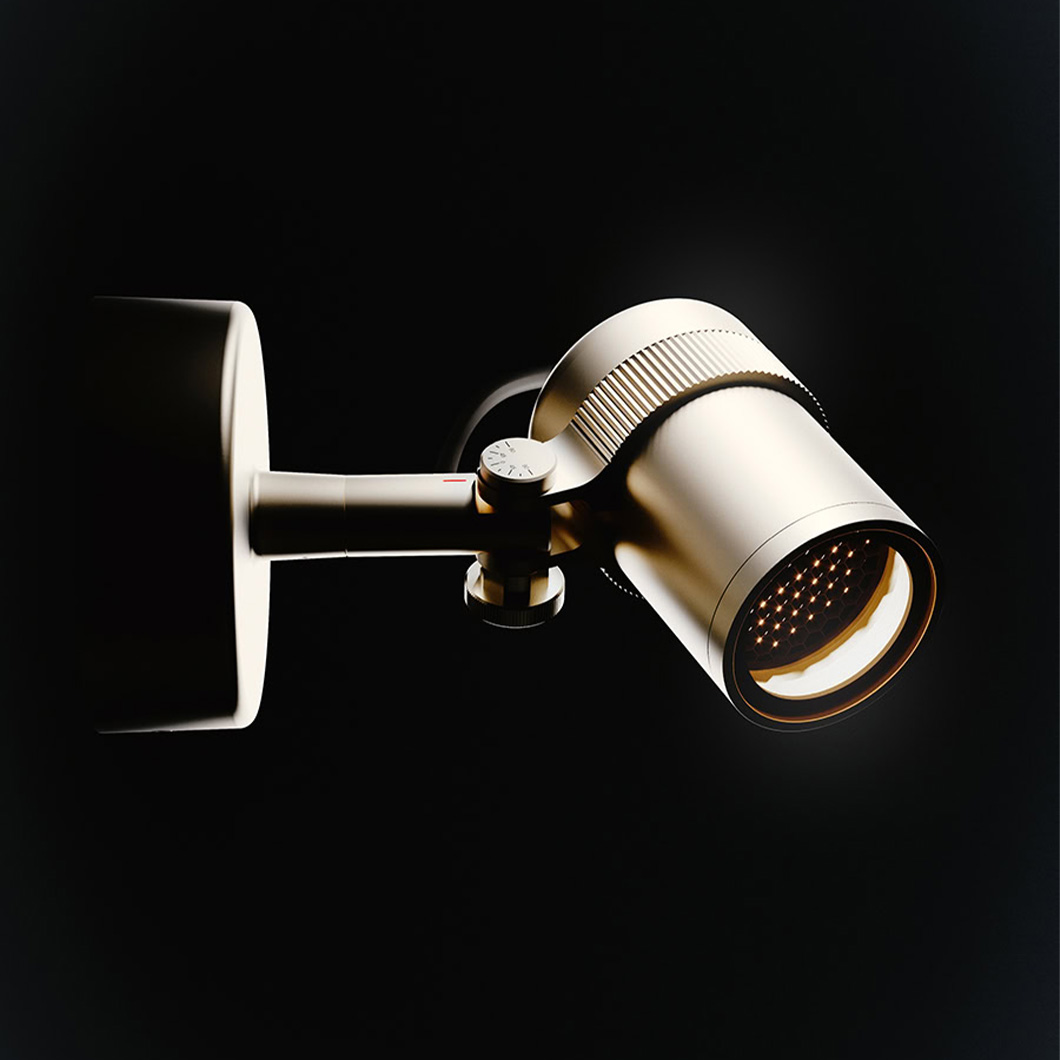

Ranging from neutral shades that blend into an exterior environment to bolder colours that enhance the design of the spotlight, Focus is available in black, anthracite, natural brown, natural green, and champagne.

IP67

Finishes:
Matt Black
Matt Anthracite
Matt Champagne
Natural Brown
Natural Green

Cable:
1.5m

Adjustability:
359° rotation
180° tilt

Focus 28
H.80mm x Ø28mm x D.54mm
24V
2,7W LED
Colour temperatures: 2200K (310lm nominal flux | 170lm delivered flux) | 2700K (280lm nominal flux | 182lm delivered flux) | 3000K (310lm nominal flux | 200lm delivered flux)
CRI 90
Optic: Spot 16° | Medium 25° | Extra Wide 55°
*Remote driver required (not included)

Focus 48
H.100mm x Ø48mm x D.81mm
24V
6,1W LED
Colour temperatures: 2200K (625lm nominal flux | 455lm delivered flux) | 2700K (810lm nominal flux | 590lm delivered flux) | 3000K (880lm nominal flux | 640lm delivered flux)
CRI 90
Optic: Spot 18° | Medium 24° | Extra Wide 60°
*Remote driver required (not included)

Focus 48 Built-in Driver
H.100mm x Ø48mm x D.81mm
220-240V
6,1W LED
Colour temperatures: 2200K (625lm nominal flux | 455lm delivered flux) | 2700K (810lm nominal flux | 590lm delivered flux) | 3000K (880lm nominal flux | 640lm delivered flux)
CRI 90
Optic: Spot 18° | Medium 24° | Extra Wide 60°

Focus 60
H.112.5mm x Ø60mm x D.95mm
24V
13,4W LED
Colour temperatures: 2200K (1110lm nominal flux | 890lm delivered flux) | 2700K (1440lm nominal flux | 1155lm delivered flux) | 3000K (1520lm nominal flux | 1220lm delivered flux)
CRI 90
Optic: Spot 18° | Medium 24° | Extra Wide 60°
*Remote driver required (not included)

Focus 60 Built-in Driver
H.112.5mm x Ø60mm x D.95mm
220-240V
13,4W LED
Colour temperatures: 2200K (1110lm nominal flux | 890lm delivered flux) | 2700K (1440lm nominal flux | 1155lm delivered flux) | 3000K (1520lm nominal flux | 1220lm delivered flux)
CRI 90
Optic: Spot 18° | Medium 24° | Extra Wide 60°

Internal Accessory:

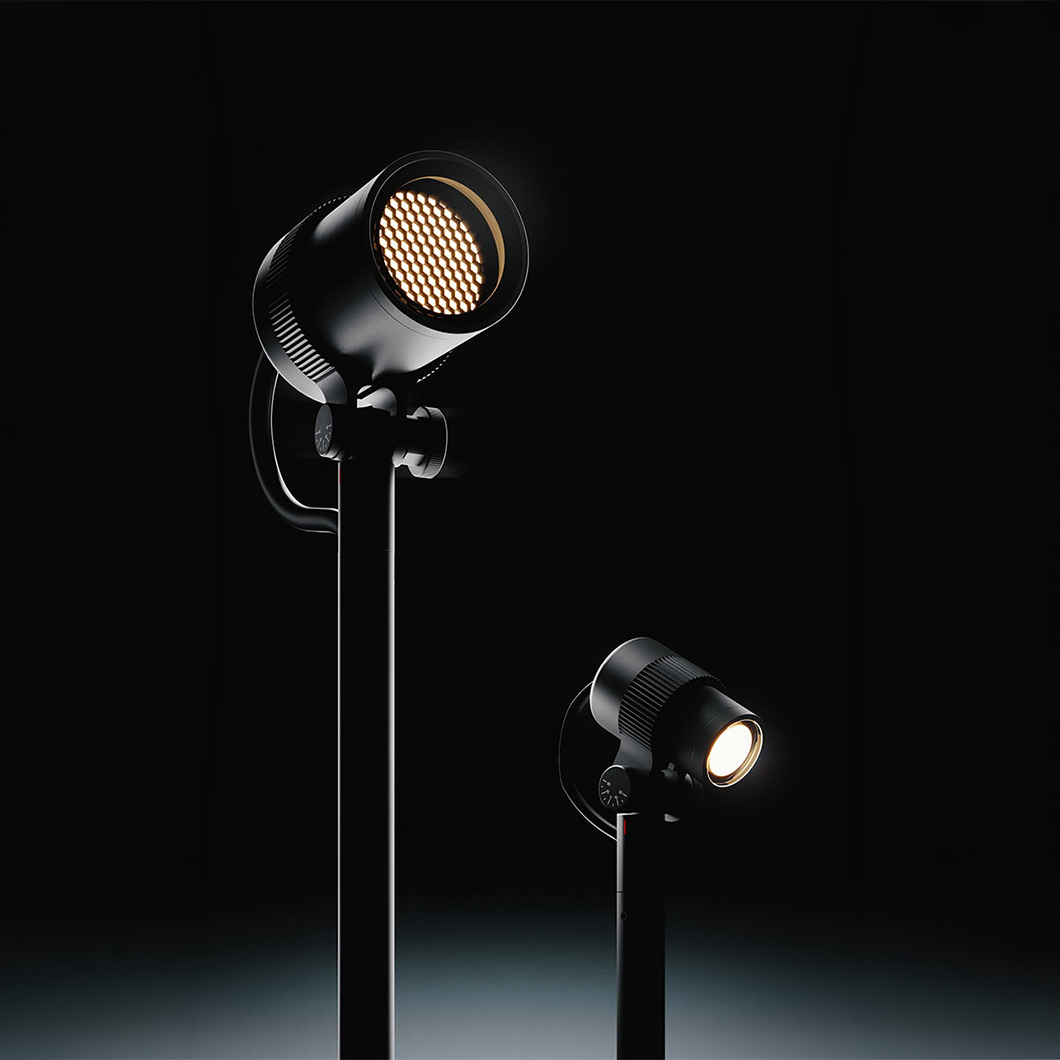

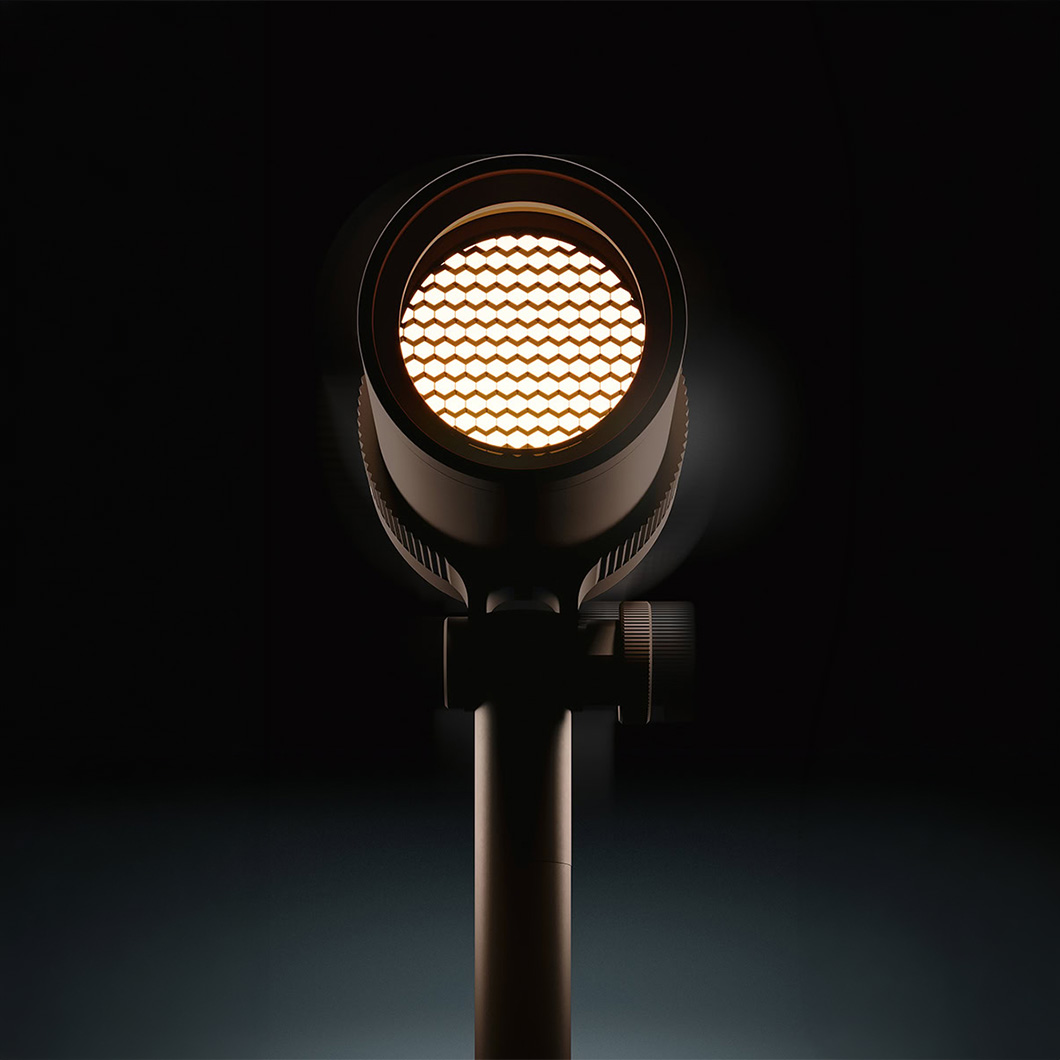

Honeycomb filter

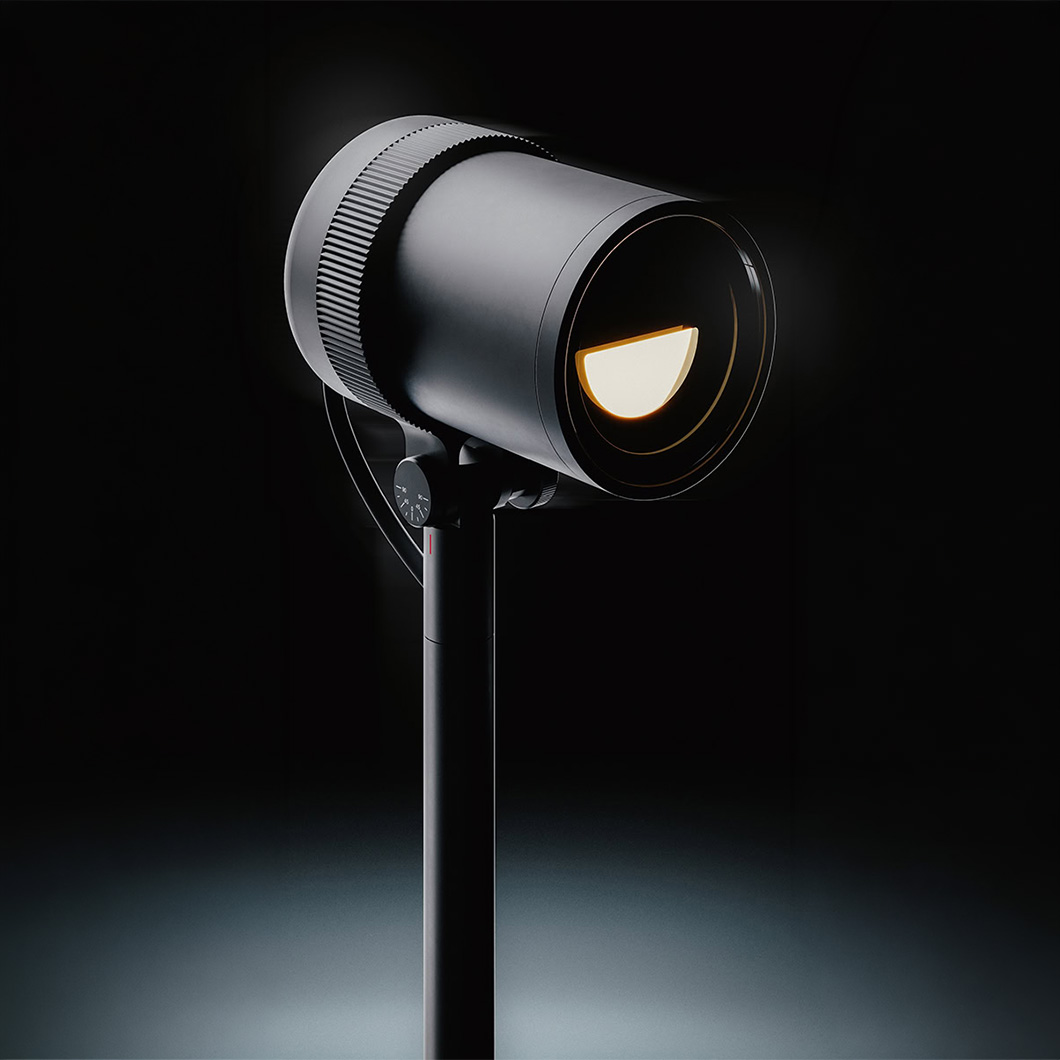

Half-moon glare shield

External Accessory:
Snoot

Mounting Accessories:
See datasheet in the downloads tab for more information
- Fixing base (surface mounting)
- Connection base (surface mounting base with space for internal connections)

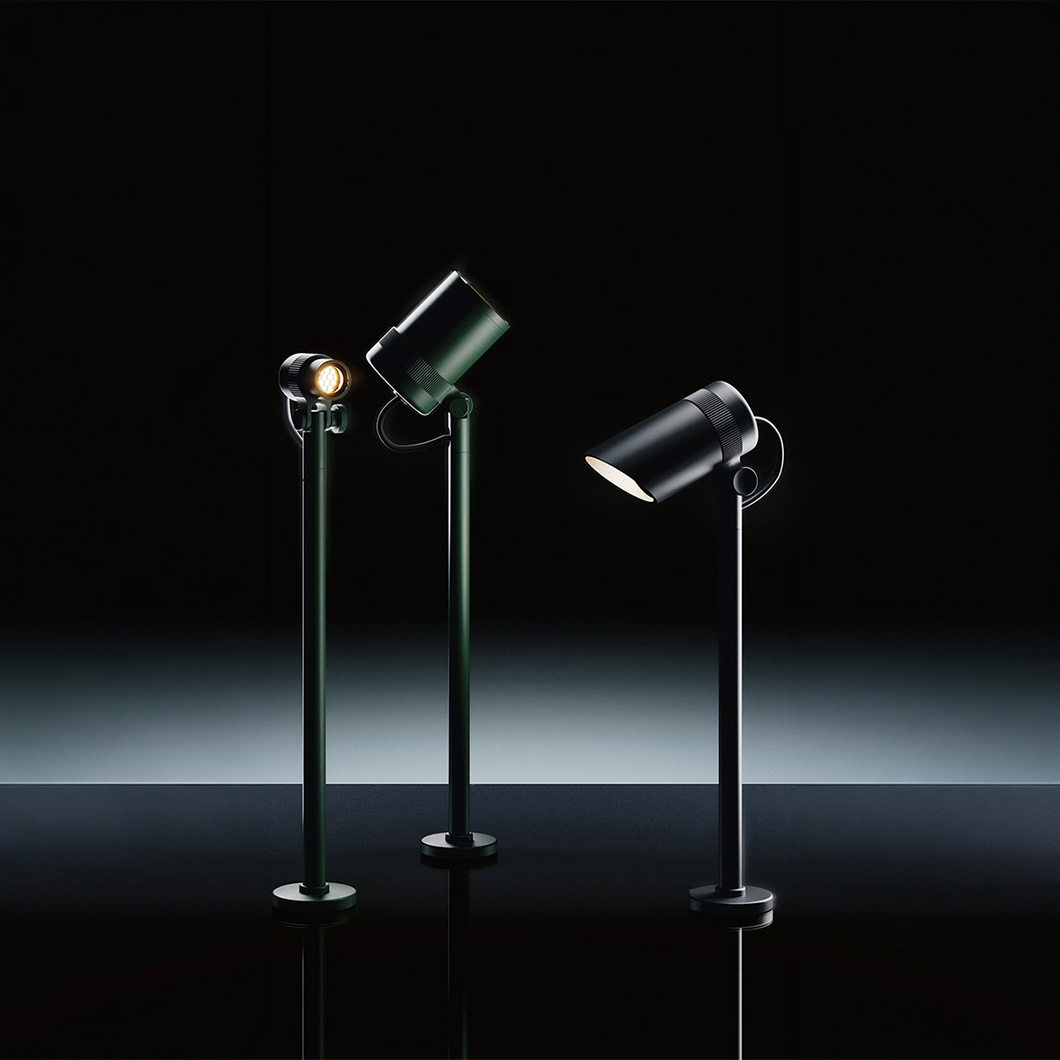

- Stem with fixing base for surface installation
- Fixing tree strap
- Spike for direct ground installation (can only be added to the fixing base)

• Datasheet PDF

 Delivery

Delivery usually within 4-5 weeks
