LLD Point XL Outdoor IP67 LED Adjustable Spot Light

Manufacturer: LLD Light

£439

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

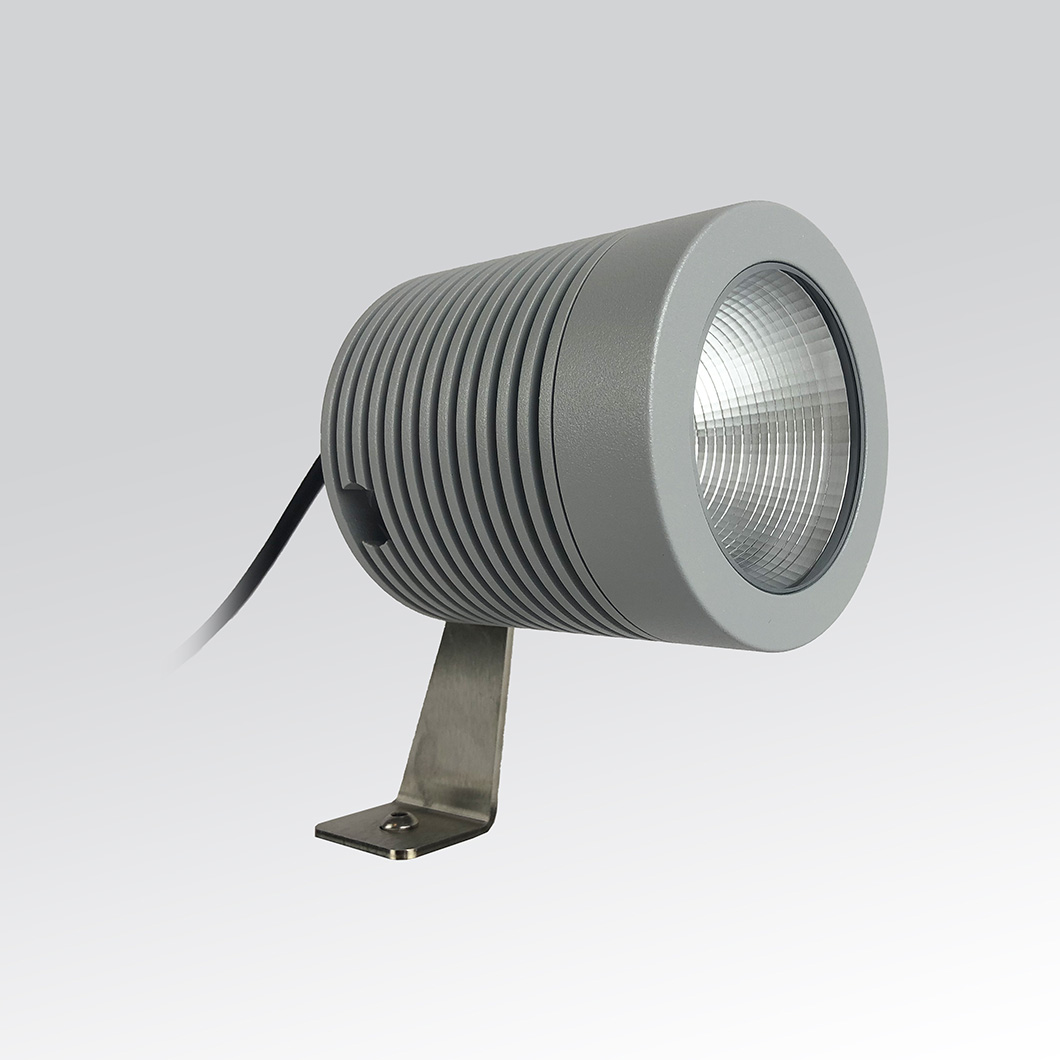

The big brother of the family, the LLD Point XL Spot Light is a contemporary adjustable projector & has a diameter of just under 9.5cm, kicking out an impressive 2100lm. The IP67 rating makes Point XL the perfect solution for highlighting architectural features, trees, plants and shrubs in modern gardens, patios, colonnades, entrances & outdoor spaces.

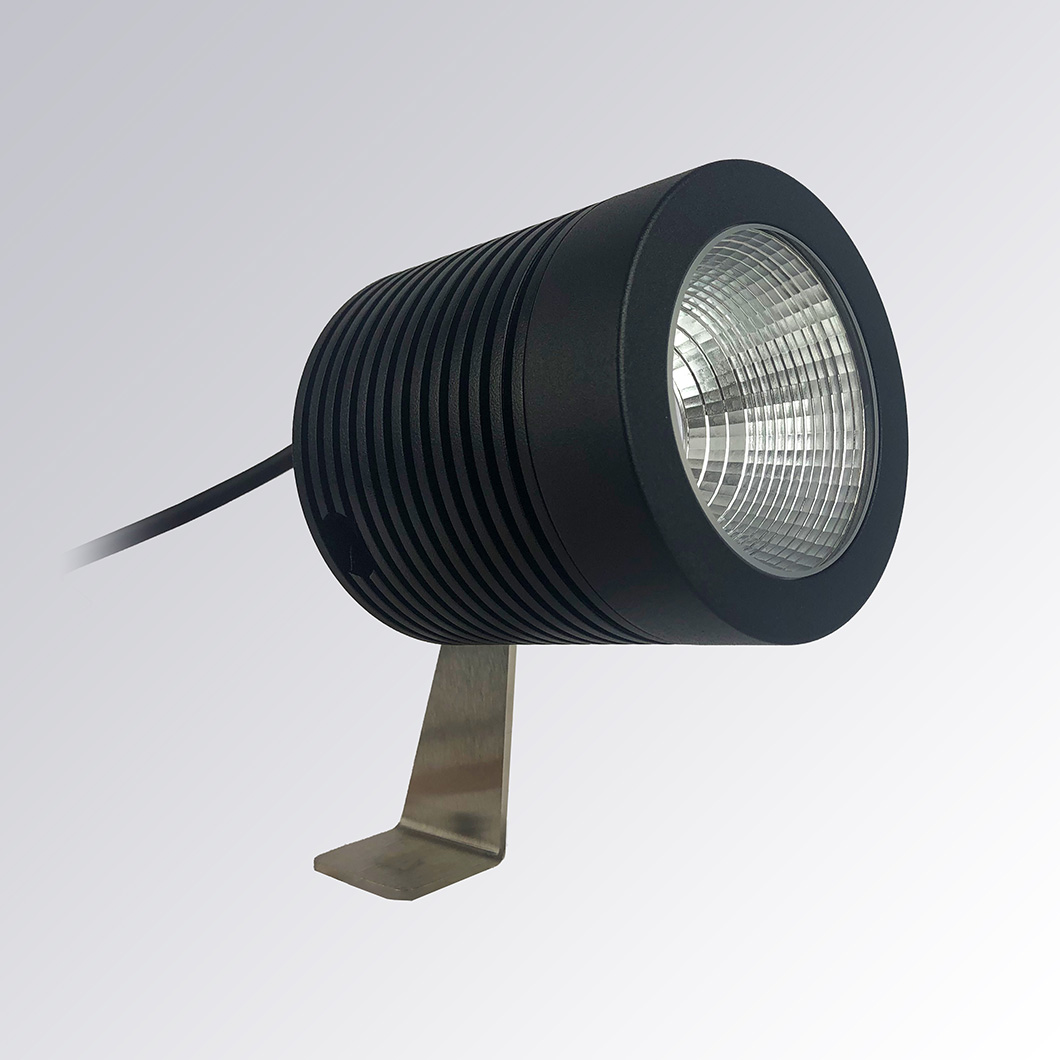

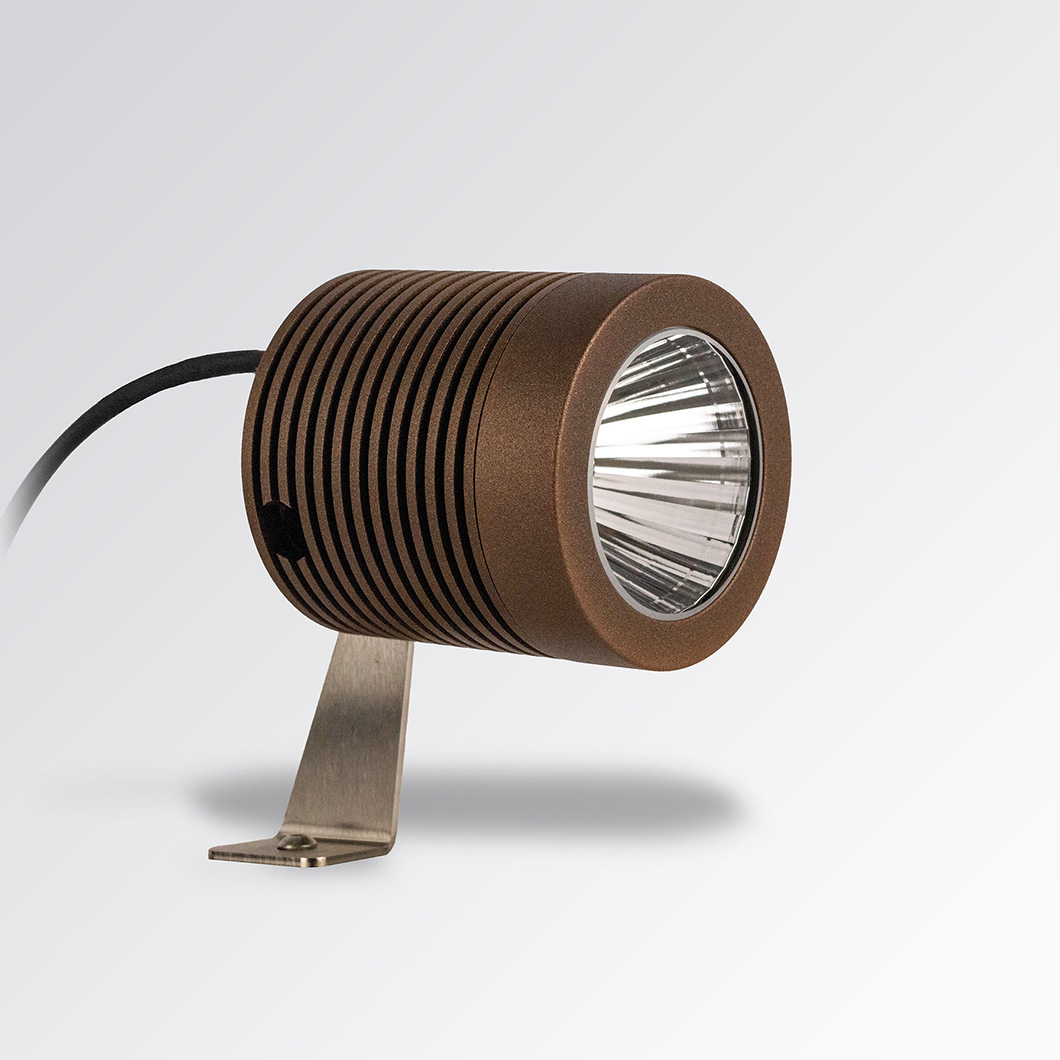

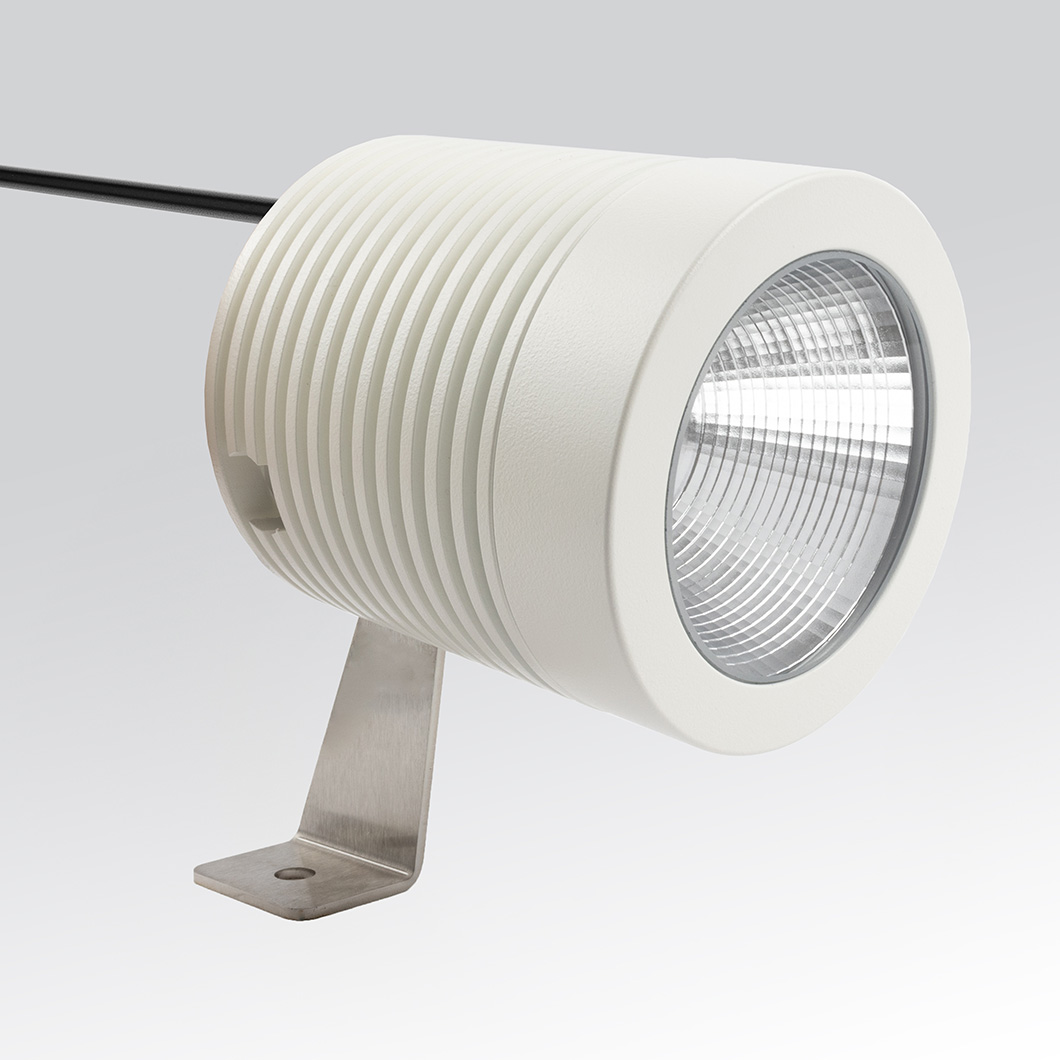

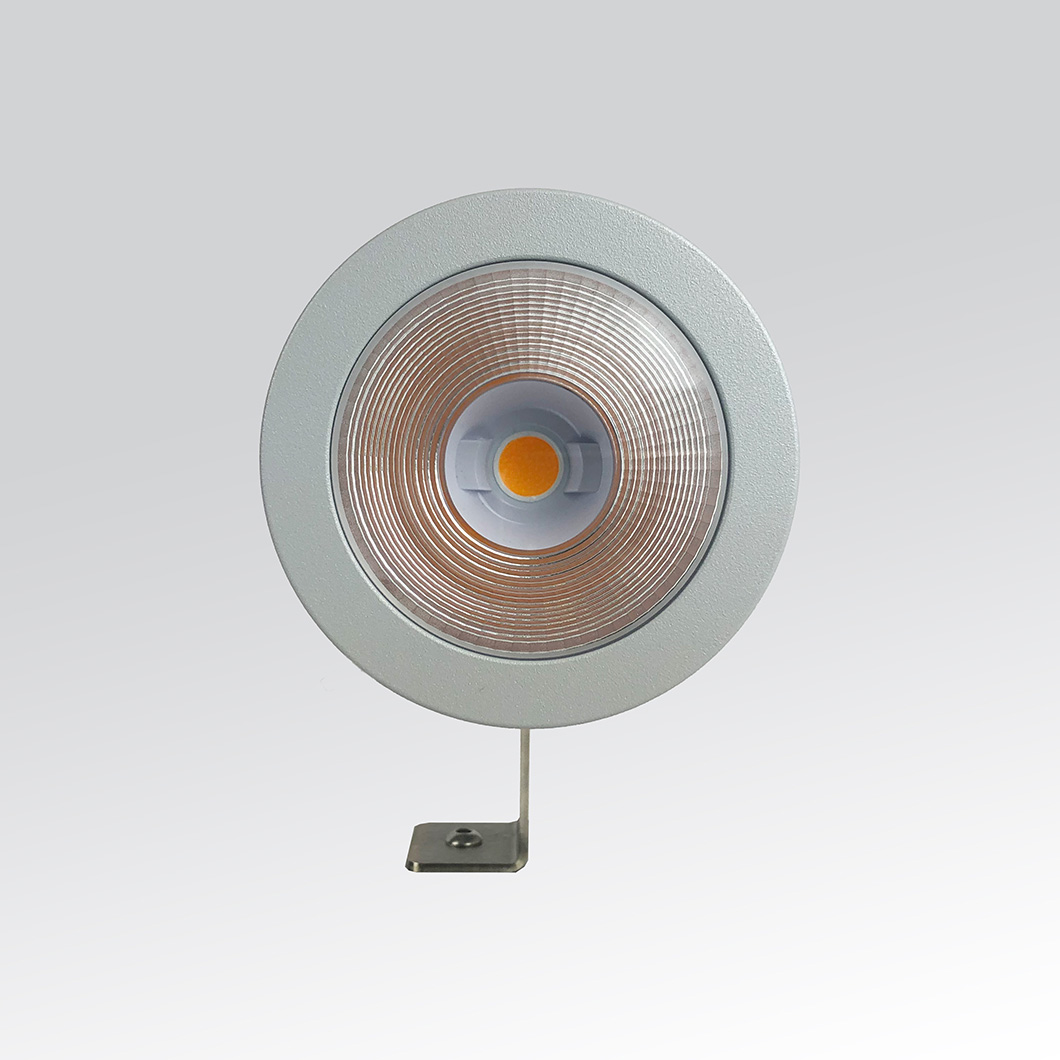

The Point XL uses an energy efficient 18W LED light source with a choice of beam angles in 18°, 30° or 55°. Available with a choice of 2700K, 3000K or 4000K light temperature. Constructed from an anticorodal aluminium body with satinized steel bracket & a tempered transparent glass lens. Finished in anodized aluminium, matt white, matt black, COR-TEN (rusted), anthracite or green.

Supplied with a 500mm cable with WP System connection. Can be fixed to the floor, ceiling or wall with the included fixing bracket or into the ground with the optional 200mm long spike. Optional antiglare guard also available.

Other sizes and IP68 submersible pond version available - see below. View the full LLD Light catalogue in the downloads tab.

500mA constant current driver not included. This fitting is compatible with non dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.

Delivery usually within 2 weeks

Currently in stock: 24VDC, 35 deg, 3000K, with spike, no antiglare guard.
Delivered next working day

All other versions: delivery usually within 2 weeks

Lightbulb with brain filament icon
- Our Top Tips -

  • Constant current or constant voltage, which version do you need? Decisions, decisions...
  • Firstly, whichever version you choose it is really important that your electrician knows how to wire them – see installation diagrams here
  • Series wiring with constant current will enable you to have the driver a longer distance from the fittings, up to 30m from the lights with the correct cable size.
  • With constant voltage the driver can only go up to 15m away from the fittings. In areas where voltage may fluctuate it is better to choose constant current version.

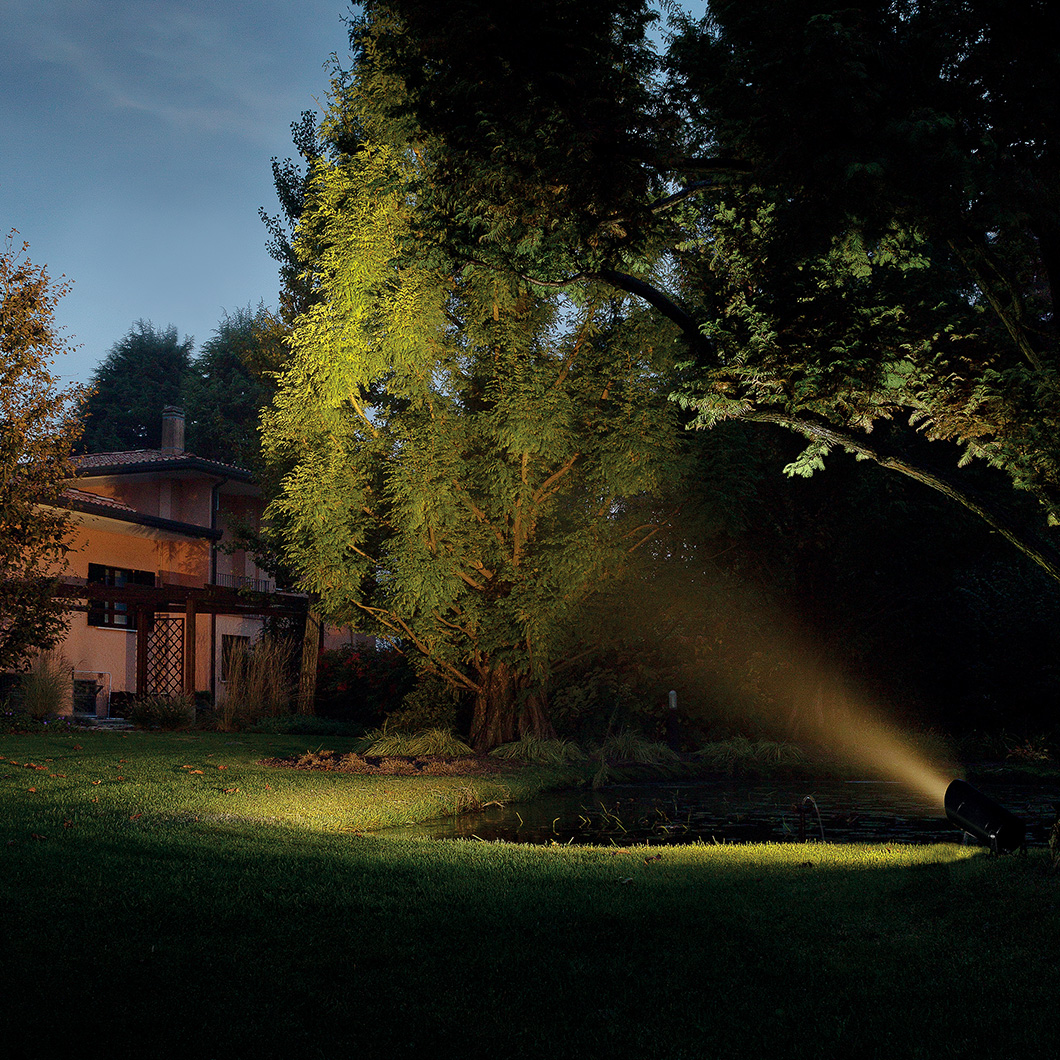

  • The Point Extra Large gives a lumen output of 2332 lumens in warm white this is ideal for lighting shrubs and trees up to 20m high. For wider fuller tree’s, pick a wider beam angle and for slimmer trees or shrubs go for a narrower angle.
  • What does the anti-glare guard do? This softens the light and we recommend its use in any position where the light unit is completely visible – for example not hidden by shrubs.

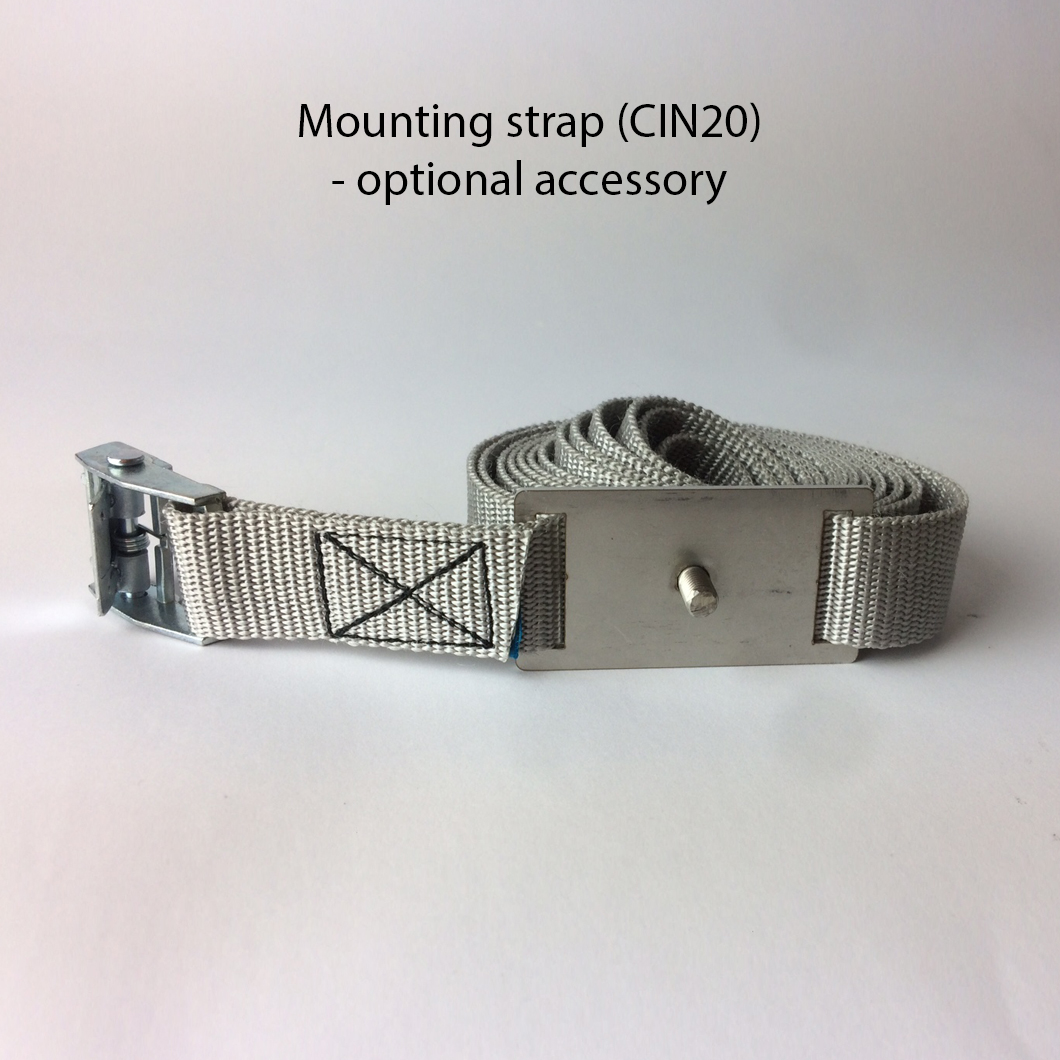

  • Mounting strap – this isn’t for your trousers! This can be strapped to a tree at high level. Then the Point spot can be mounted in shining down this creates what is called “ Moonlight “ effect.
  • Drivers need to be accessible and we advise not burying them under ground in case maintenance is required.
  • Still unsure of what you need? Then please call or use our chat for help.
Specification

IP67
Class III
500mm cable with WP System connection

Constant current version - wired in series
500mA driver required

CCT | Lumens
2700°K | 2322lm
3000°K | 2376lm
4000°K | 2430lm

Beam angle: 18° | 30° | 55°

Optional spike (PI002): H.200mm 21.5x21.5mm
Optional antiglare guard (PL004): Ø100mm D.60mm
Optional mounting strap (CIN20): Length 2500mm, Height 25mm

Lamp type: LED 18W Lifespan 50,000hrs

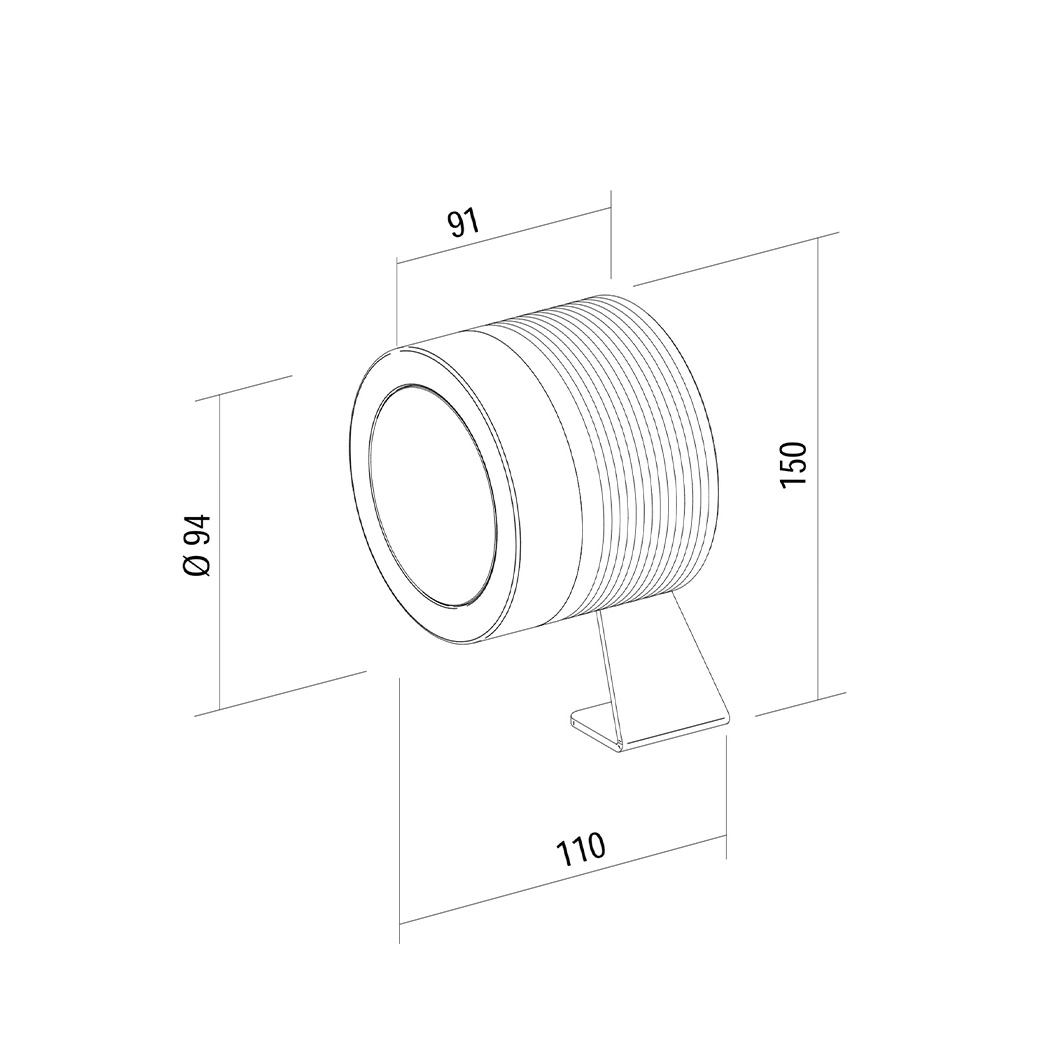

Dimensions

Product dimensions: D.116mm x H.132mm x Diameter.94mm

Downloads
Delivery and warranty

Delivery usually within 2-3 weeks

Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:

  • damage caused by transport
  • the use of products in unsuitable environmental conditions
  • non-standard product use or stress including under/over voltage
  • damage caused by negligence or lack of maintenance
  • damage caused by the use of power supplies not provided or indicated by LLD Light
  • repair attempts or tampering performed by unauthorised staff
About the manufacturer

With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.

Our LLD Light edit below showcases the most popular products in the range.

  Browse the full LLD 2021 catalogue
  Browse the full LLD News 2021 catalogue

For prices on any product that isn't shown below please contact us.



We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
