LLD Gea Frame XXS LED Recessed Downlight

Manufacturer: LLD Light


One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details


The smallest variation of the collection, Gea Frame XXS is a discreet yet powerful downlight producing between 600-660lm. Suitable for use in contemporary homes to pick out spots of interest such as furniture or pictures. With a baffle design, the recessed fixtures’ light source is hidden to prevent glare. Choose between a narrow 10°, medium 36° or wide 60° beam angle.

Crafted from a varnished aluminium body with frame, anodised aluminium heatsink and complete with a PMMA lens or opal diffuser. With energy efficient LED technology integrated, Gea is available in 2700K, 3000K or 4000K colour temperatures. Finishes in matt white, matt grey or matt black.

Springs included for installation into plasterboard or wood.

Series wiring – constant current driver required.


Class III
Cutout: Ø21mm
250mm cable
Push, 1-10V, DALI, DMX and phase cut dimmable
Springs included for installation into recess

Constant current - wired in series
500mA (6W) driver required

CCT | Lumens
2700°K | 146lm
3000°K | 155lm
4000°K | 172lm

Beam angle: 18° | 35° | 57°

Lamp type: Integral LED: 6W(500mA), CRI90+

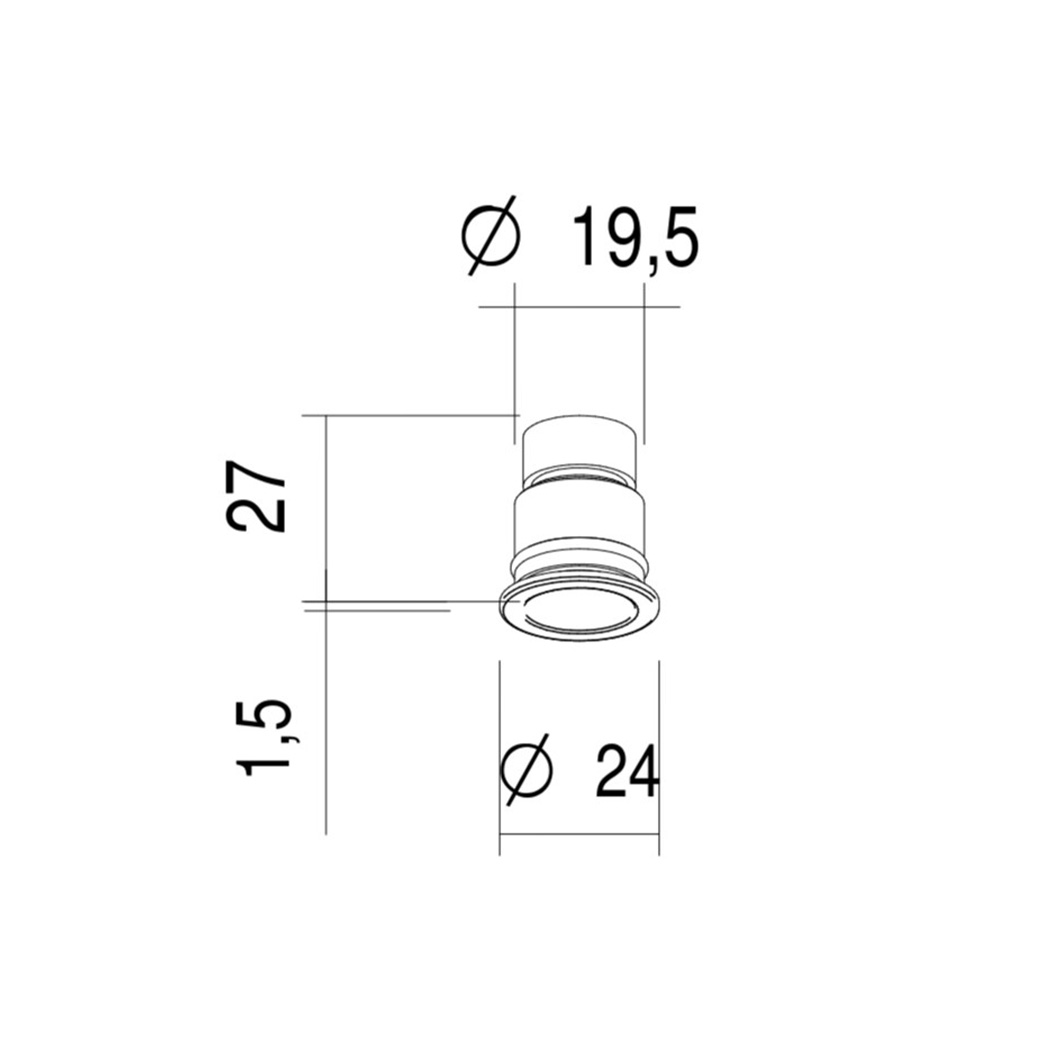

Product dimensions: H.30mm x Diameter.20mm

Delivery and warranty

Delivery usually within 2-3 weeks

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:

  • damage caused by transport
  • the use of products in unsuitable environmental conditions
  • non-standard product use or stress including under/over voltage
  • damage caused by negligence or lack of maintenance
  • damage caused by the use of power supplies not provided or indicated by LLD Light
  • repair attempts or tampering performed by unauthorised staff
About the manufacturer

With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
