- Description
-

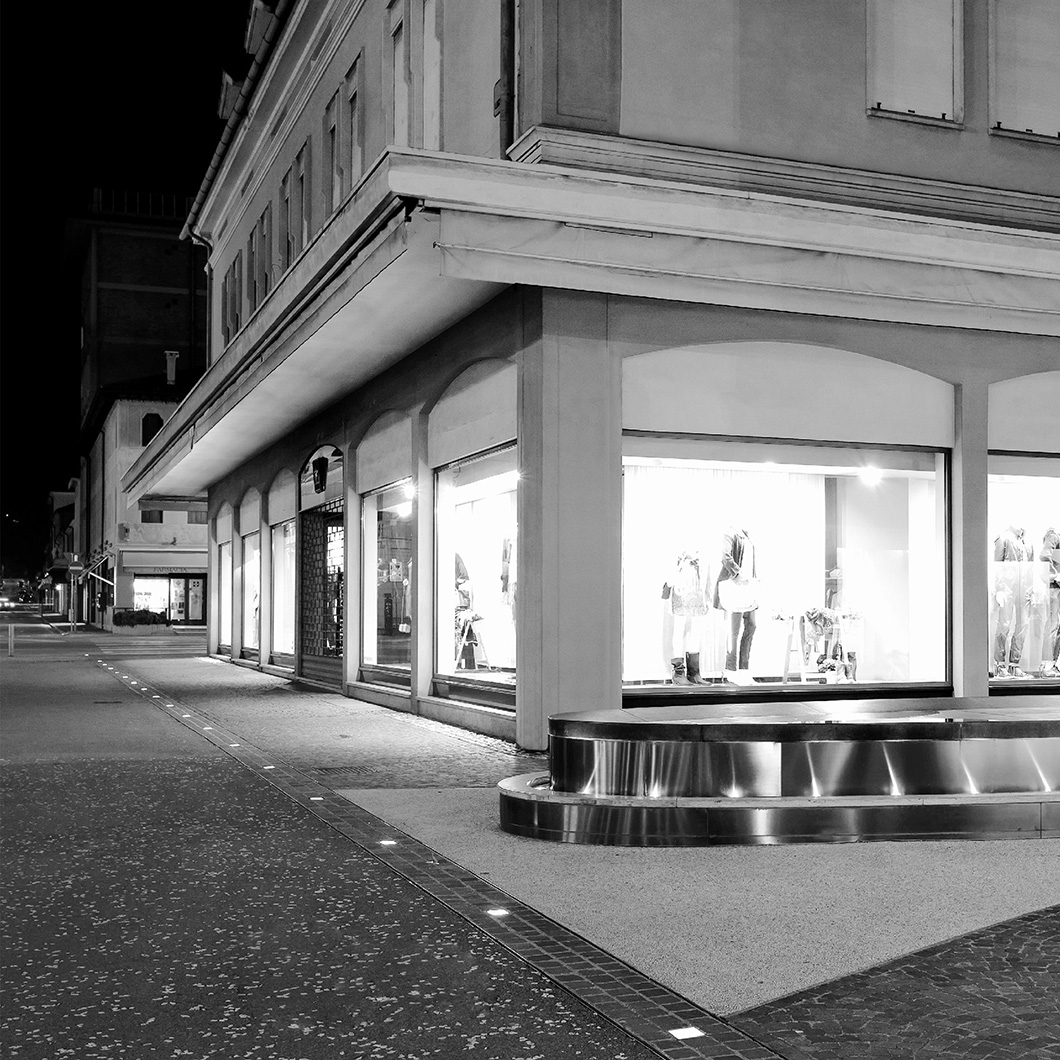

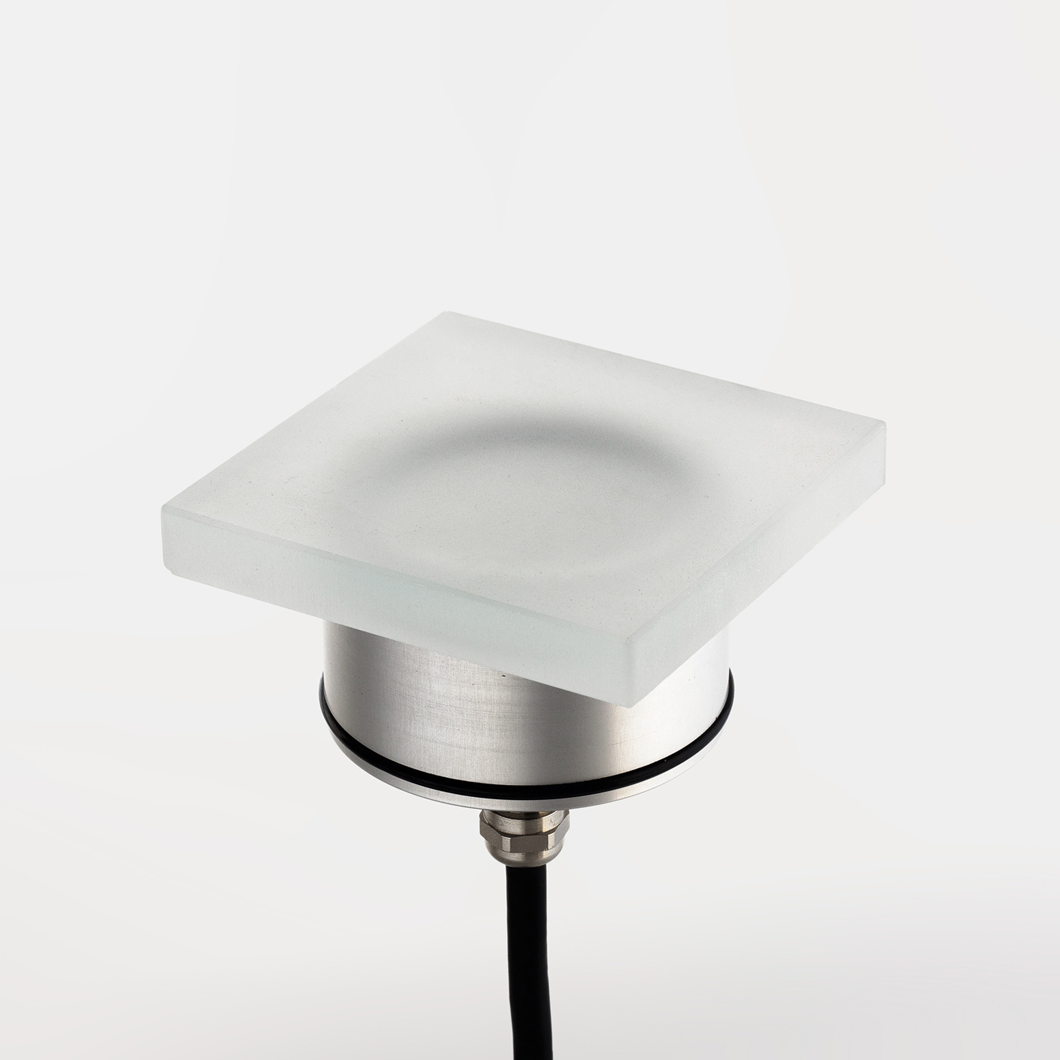

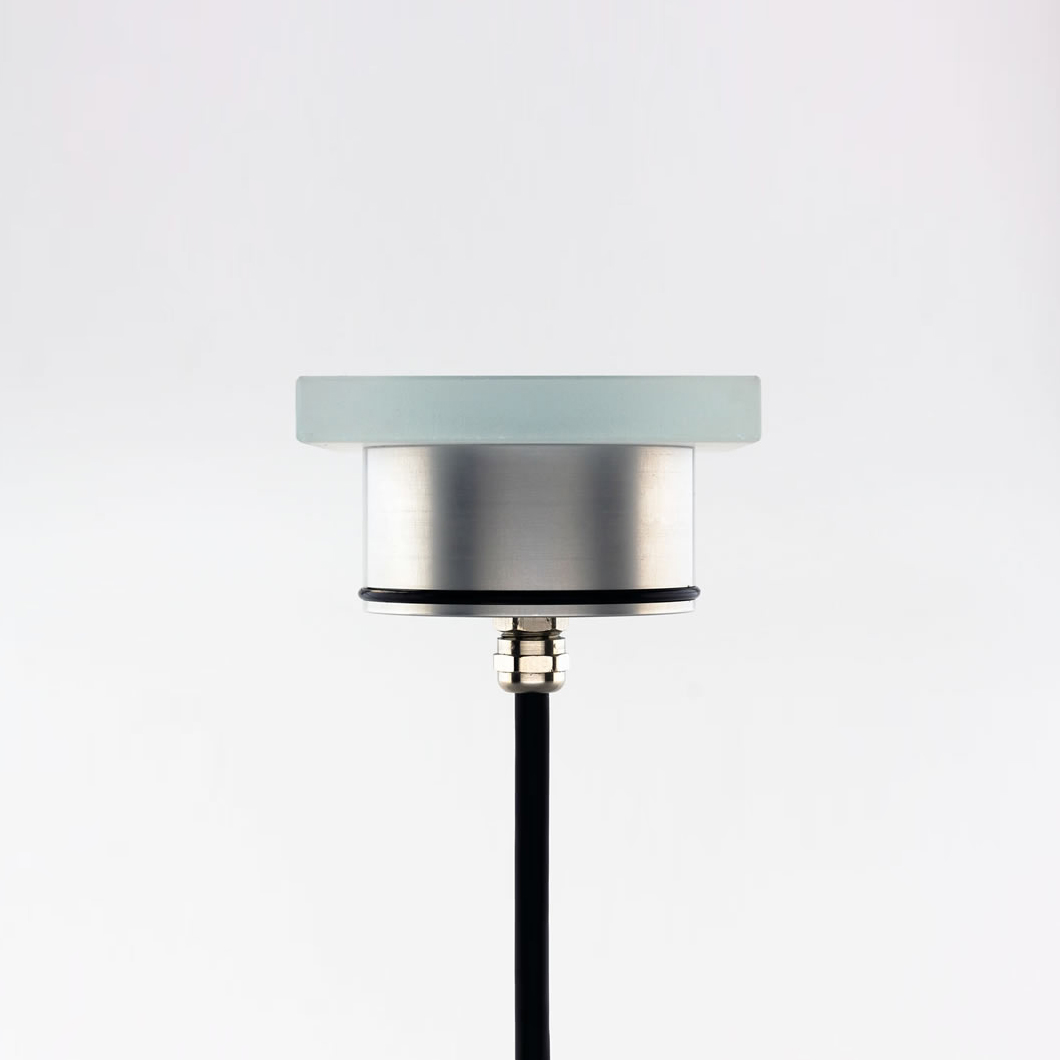

A minimal outdoor LED glass path light that recesses flush to the ground, the Ganimede L by LED Luce E Dintorni (LLD) is just under 10cm square. Omitting a diffused light, Ganimede L is a fixed optic path light that is suitable for recessed installation into the floor or wall, perfect for lighting exterior pathways, cobbled paths, steps and gardens due to its IP67 rating. The LLD Ganimede L Glass Path Light can take the weight of a person, making it perfect as a walk-over lighting solution.
Ganimede is available in 24Vdc and 230Vac versions, both available with a choice of 2200K, 2700K, 3000K, 4000K, red, green, or blue light colour temperatures. A sandblasted tempered glass diffuser sits on top of an anticorodal anodised aluminium body. Supplied with a 50cm, 5m, 10m, or 15m cable with WP System connection. The optional housing box should be used for installing Ganimede into the ground, allowing 30cm gravel drainage. 24VDC constant voltage driver (wired parallel) required. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.

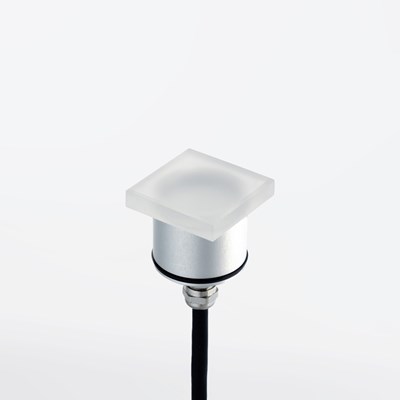

Smaller version available - see our 'More Like This's section below.
- Specification
-
IP67
Anticorodal aluminium body
Tempered sandblasted glass
Cable with WP system: 50cm, 5m, 10m, 15m
24Vdc
6,5W
6,5W - 24Vdc not included
Connected in parallel
230Vac
6W
50/60Hz
230Vac included
Mains voltage
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80
Optics: Diffused
Installation:
Recessed on ground with housing box (not included)
Recessed on brickwork with housing box (not included)
Accessories:
Housing box PVC (CAQ62): Ø91 x1113
Lamp type: LED 6W Lifespan 50,000hrs
- Dimensions
-

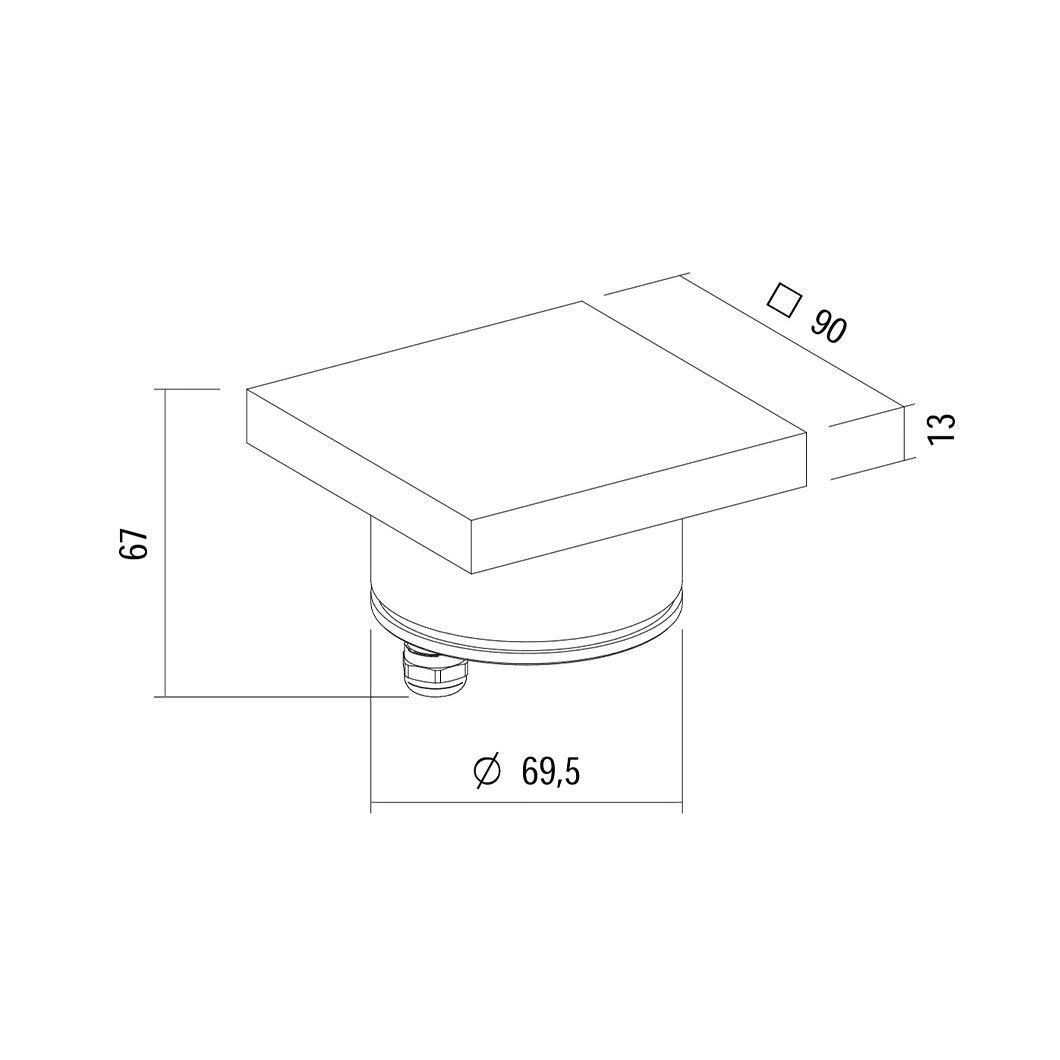

Product dimensions: W.90mm x D.90mm x H.67mm
- Downloads
-
- Delivery and warranty
-
Delivery
Delivery usually within 2-3 weeks
Warranty
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
