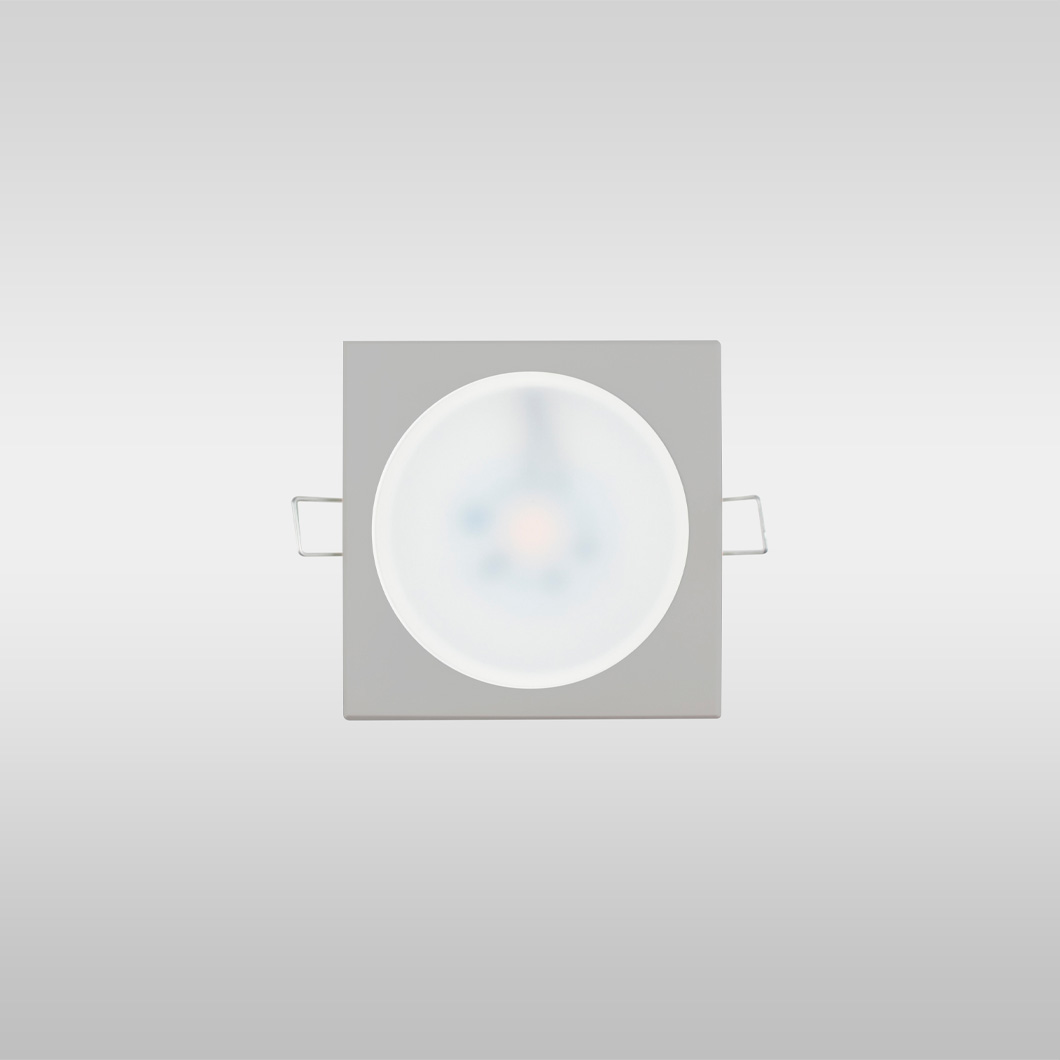

The LLD large square Emera in anodised aluminium.
LLD Emera Square L LED Recessed Niche Light| Image:1
The LLD large square Emera in anodised aluminium.
LLD Emera Square L LED Recessed Niche Light| Image:1

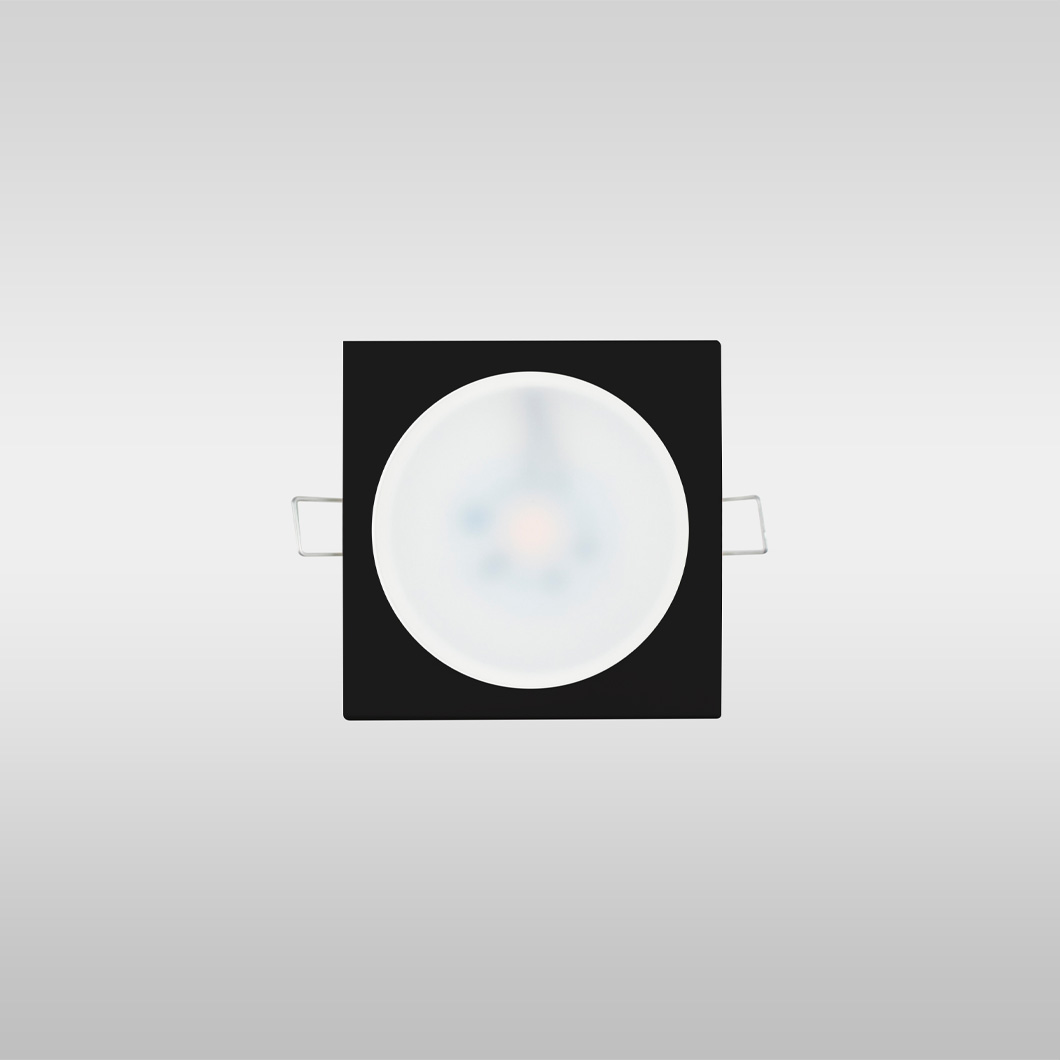

LLD Emera Square L LED Recessed Niche Light

Manufacturer: LLD Light

£152

Description

The LLD Emera range is a series of indoor niche lights, perfect for lighting shop windows, displays, bookcases, shelves, corridors, entrances and more. Carefully crafted from anti-corrosive aluminium, the shallow depth of the fitting brings versatility to installation, even in the most restricted recess spaces. The square bezel is 99x99mm and produces a wide 120° beam for flood lighting but softened by an opal PMMA diffuser. This is the large variation; small and medium sizes are also available.

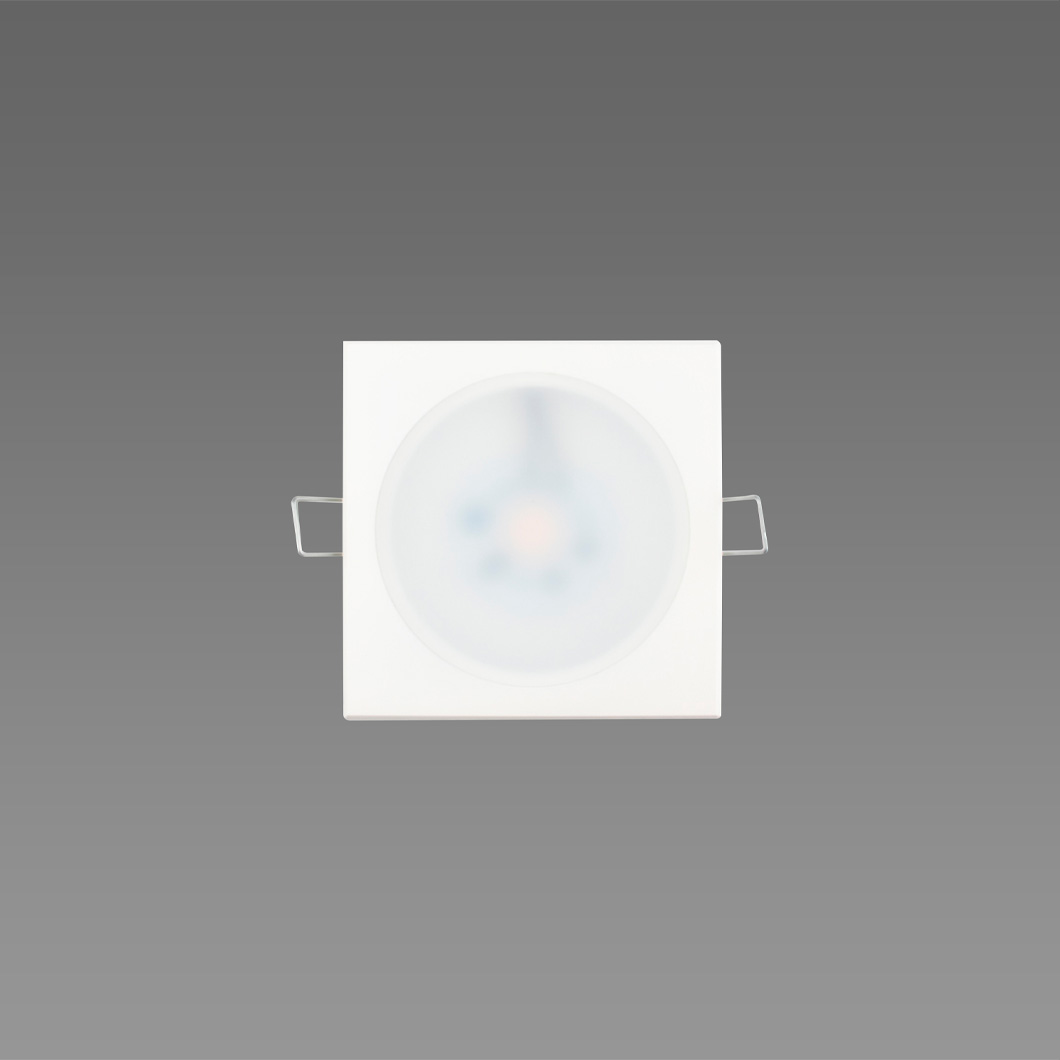

Equipped with energy efficient 9W integral LED with the option of 3 colour temperatures: 2700K, 3000K or 4000K. Choose between 2 versions: 24v constant voltage version which will require a remote driver with dimming options or a 230v mains voltage option with integrated driver (non-dimmable). Available in anodised aluminium or matt white finishes.

Springs included for installation into plasterboard.

Specification

IP40
9W
Cutout: Ø89mm
Push, DMX, Phase cut (on request), 1-10V and DALI dimmable [24v version only]
Springs included for installation into recess

24v:
Constant voltage - wired in parallel - 24v driver required - 25cm cable
H.31mm, W.99mm, D.99mm
230v:
Mains voltage - wired direct to mains - driver included - provided with push button terminal block
H.40mm, W.99mm, D.99mm

CCT | Lumens (24v-230v)
2700°K | 980-900lm
3000°K | 1036-990lm
4000°K | 1092-1080lm

Beam angle: 120°

Lamp type: Integral LED: 9W, 24V/230V, CRI90+

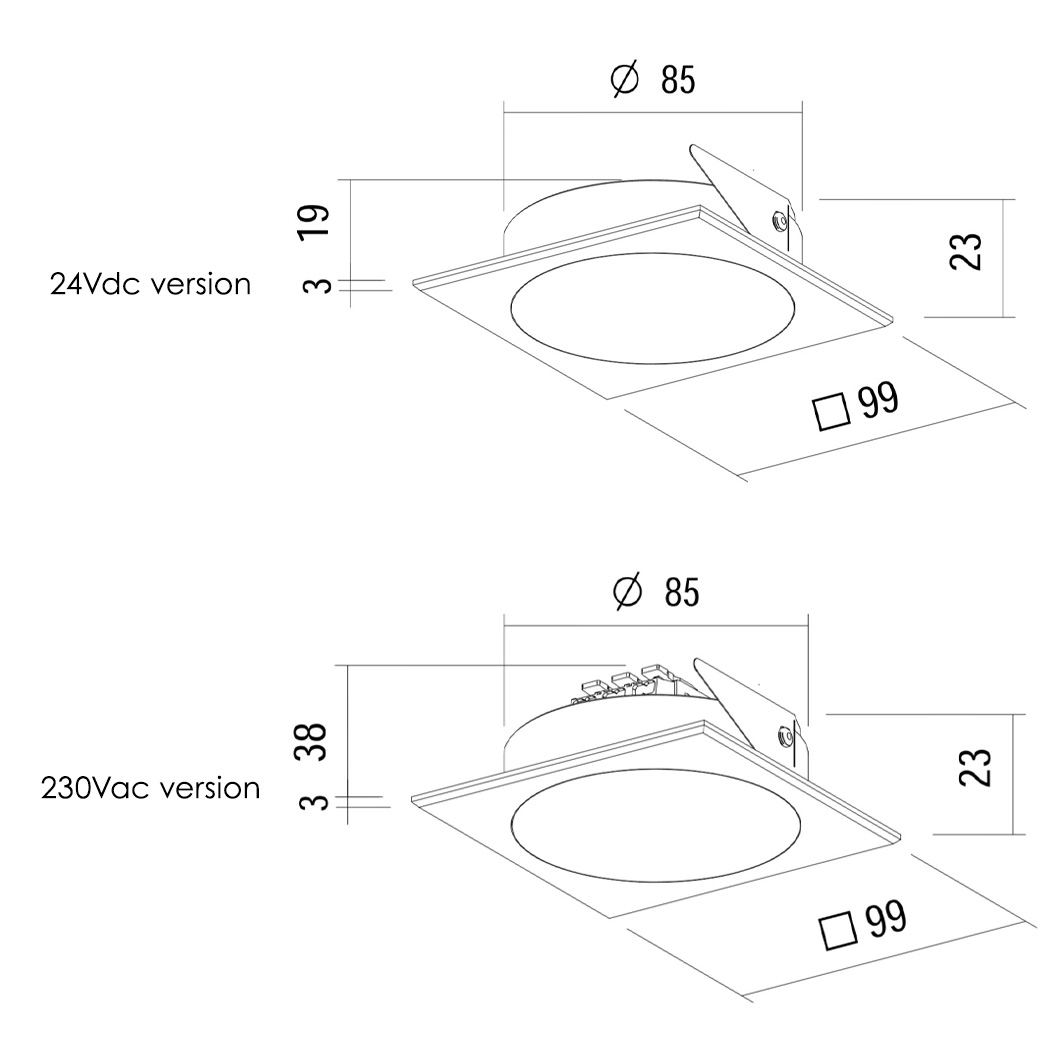

Dimensions
Downloads
Delivery and warranty

Delivery usually within 2 weeks

Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:

  • damage caused by transport
  • the use of products in unsuitable environmental conditions
  • non-standard product use or stress including under/over voltage
  • damage caused by negligence or lack of maintenance
  • damage caused by the use of power supplies not provided or indicated by LLD Light
  • repair attempts or tampering performed by unauthorised staff
About the manufacturer

With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.

We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
