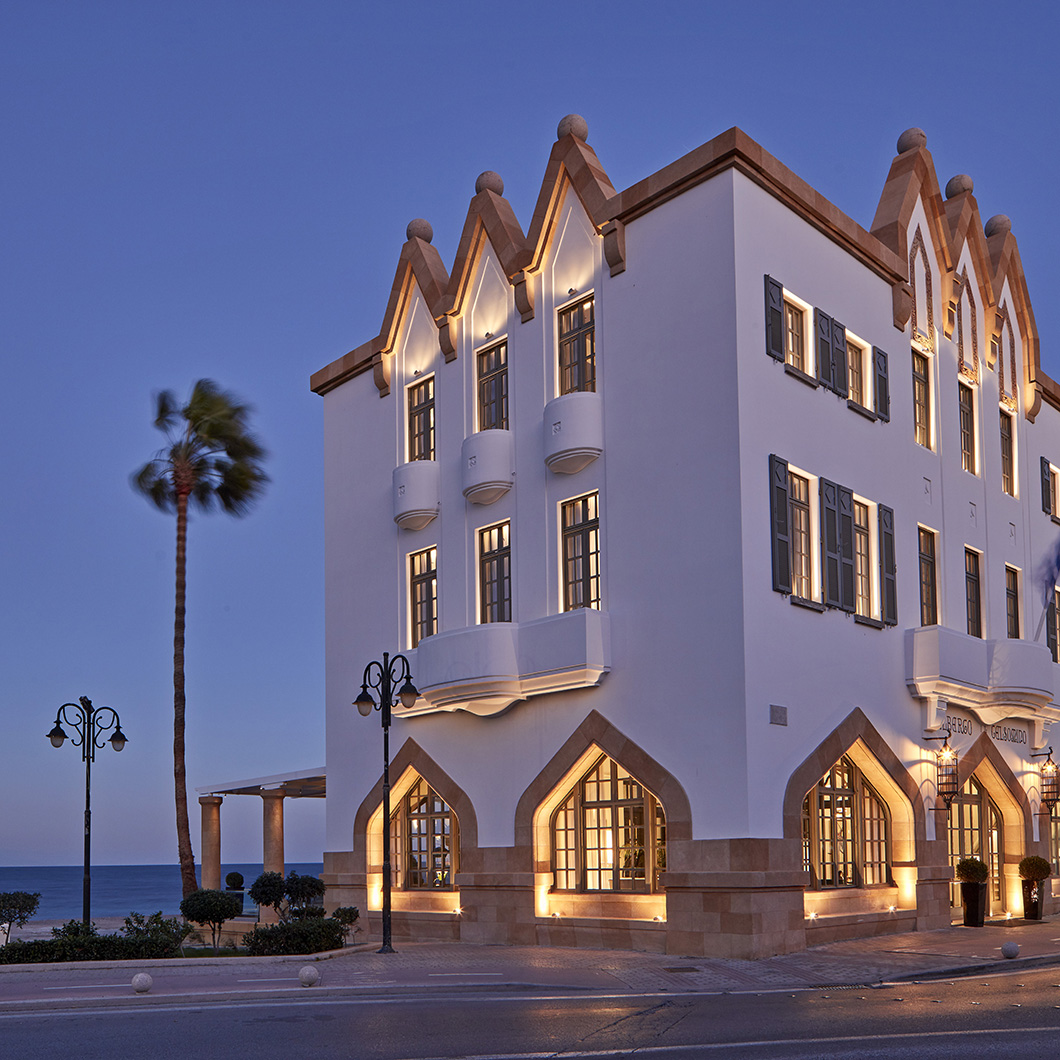

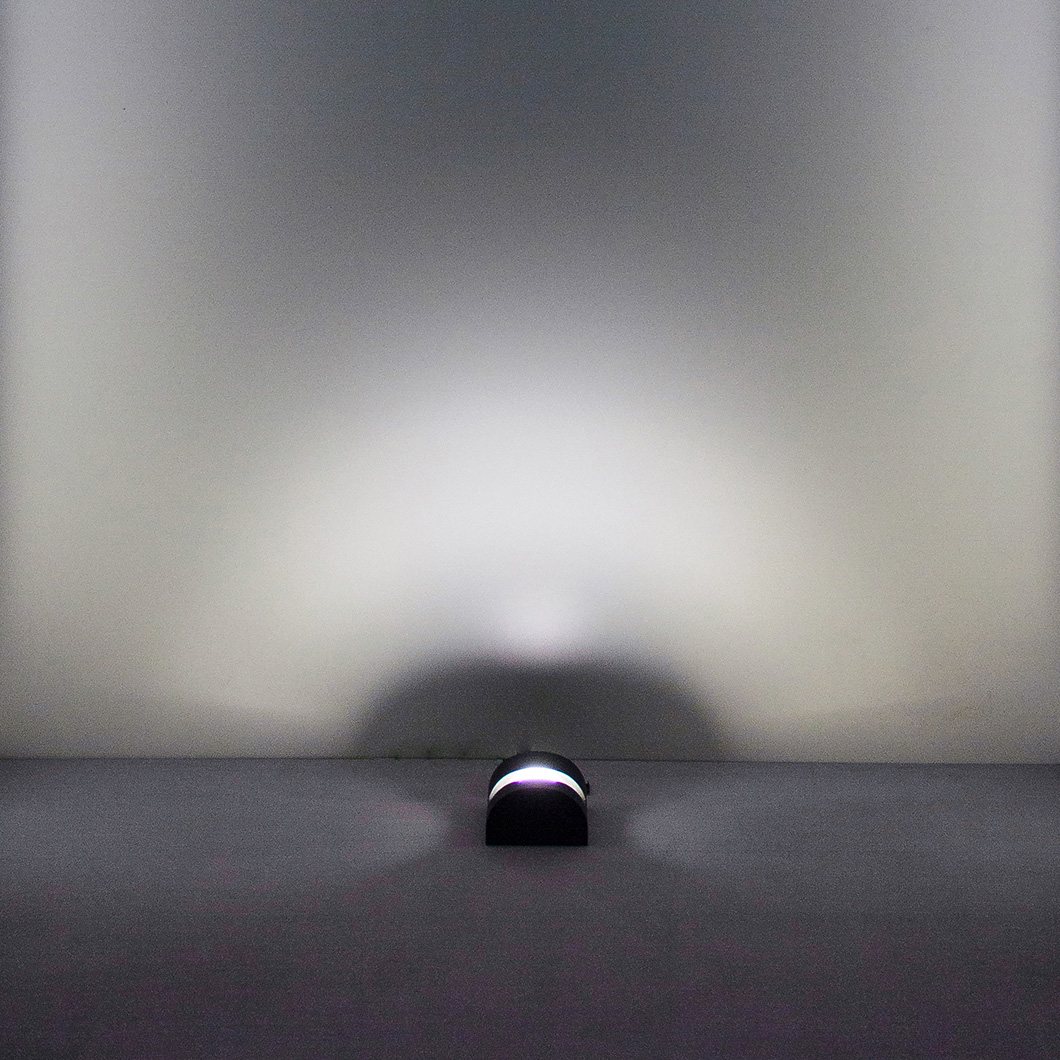

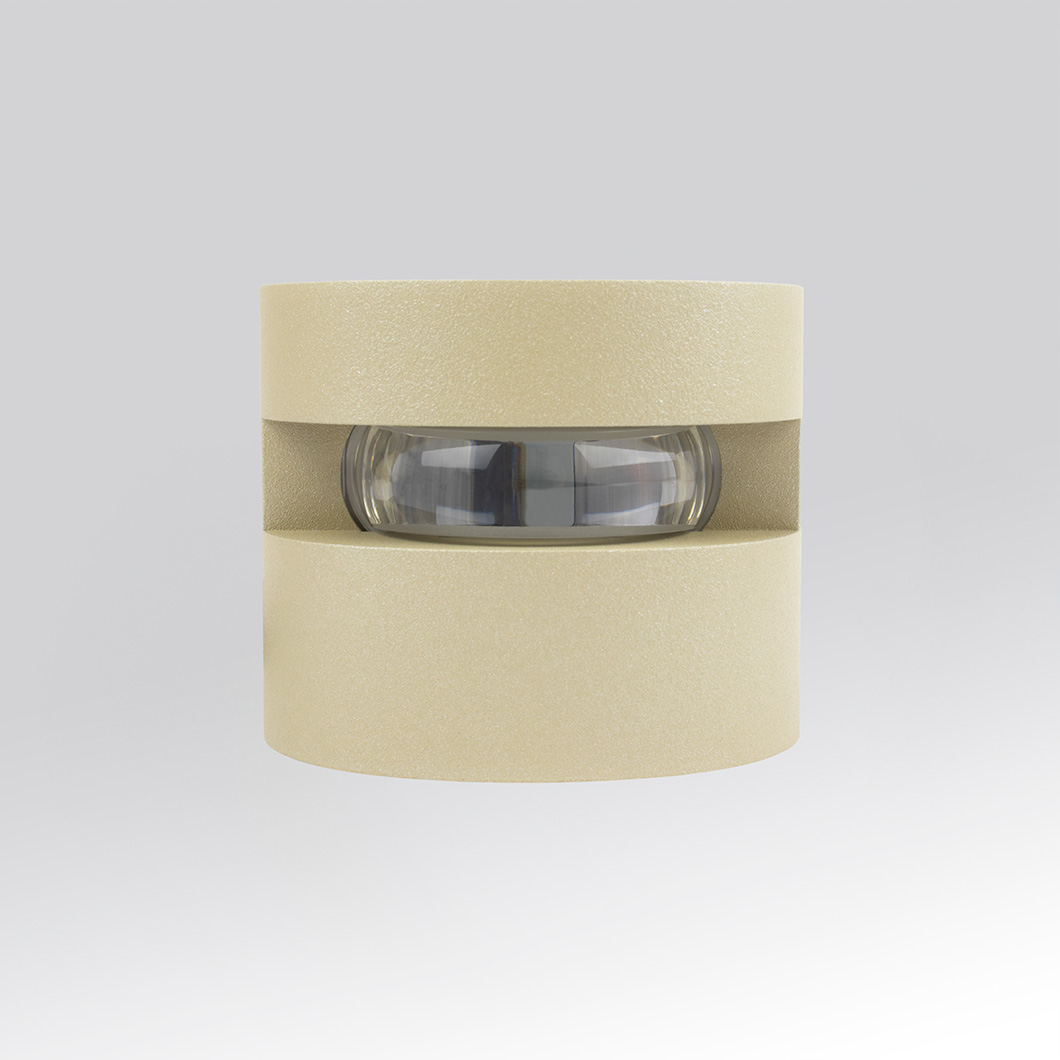

Designed specifically for lighting outdoor windows, arches and alcoves with an arc of light, the Ecate Outdoor IP65 LED Projector by LED Luce E Dintorni (LLD) is a neat and tidy contemporary light fitting. With its compact size and 3 x 115° optics, the LLD Ecate LED projector is perfect for highlighting exterior architectural features with over 200lm of light, achieving the effect of linear profile without the hassle of an intrusive installation. Ecate is available in two versions:

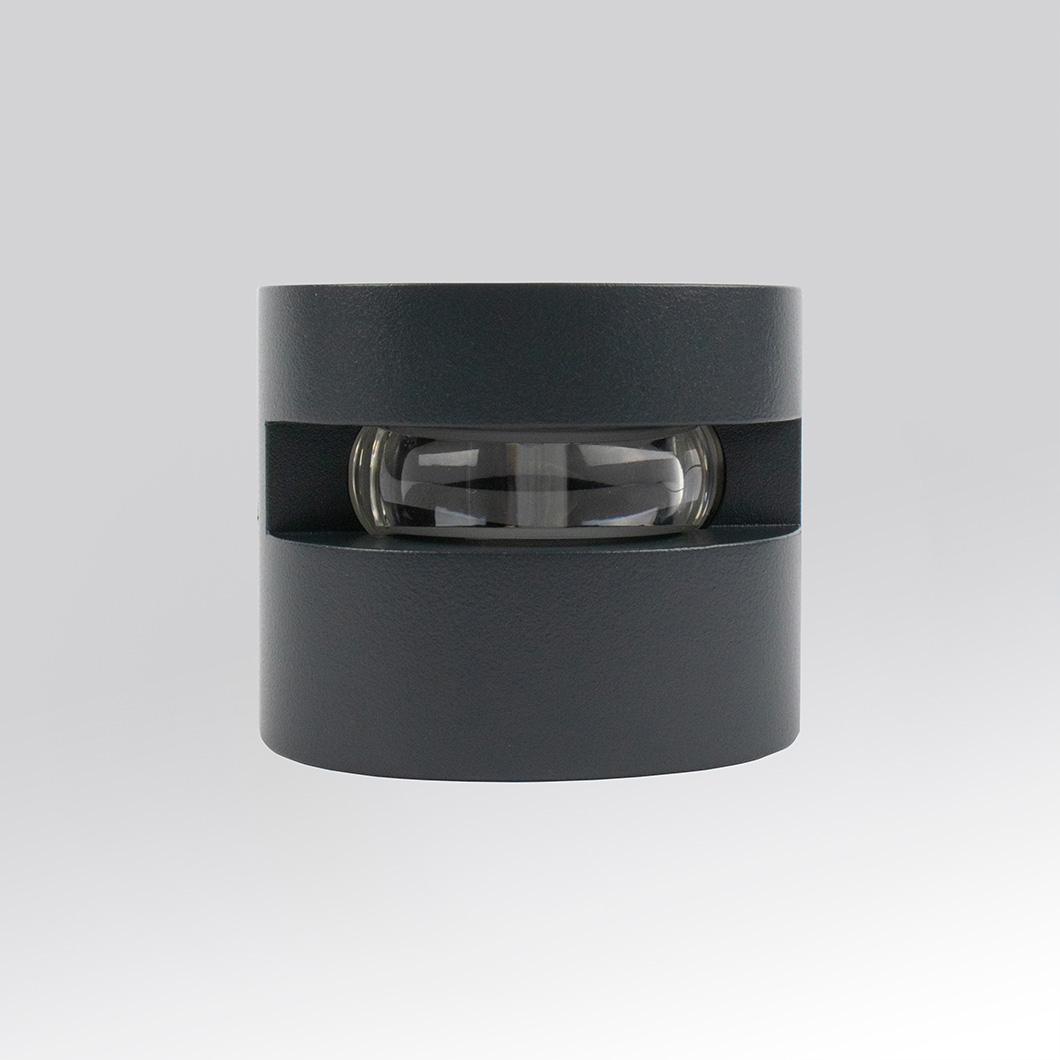

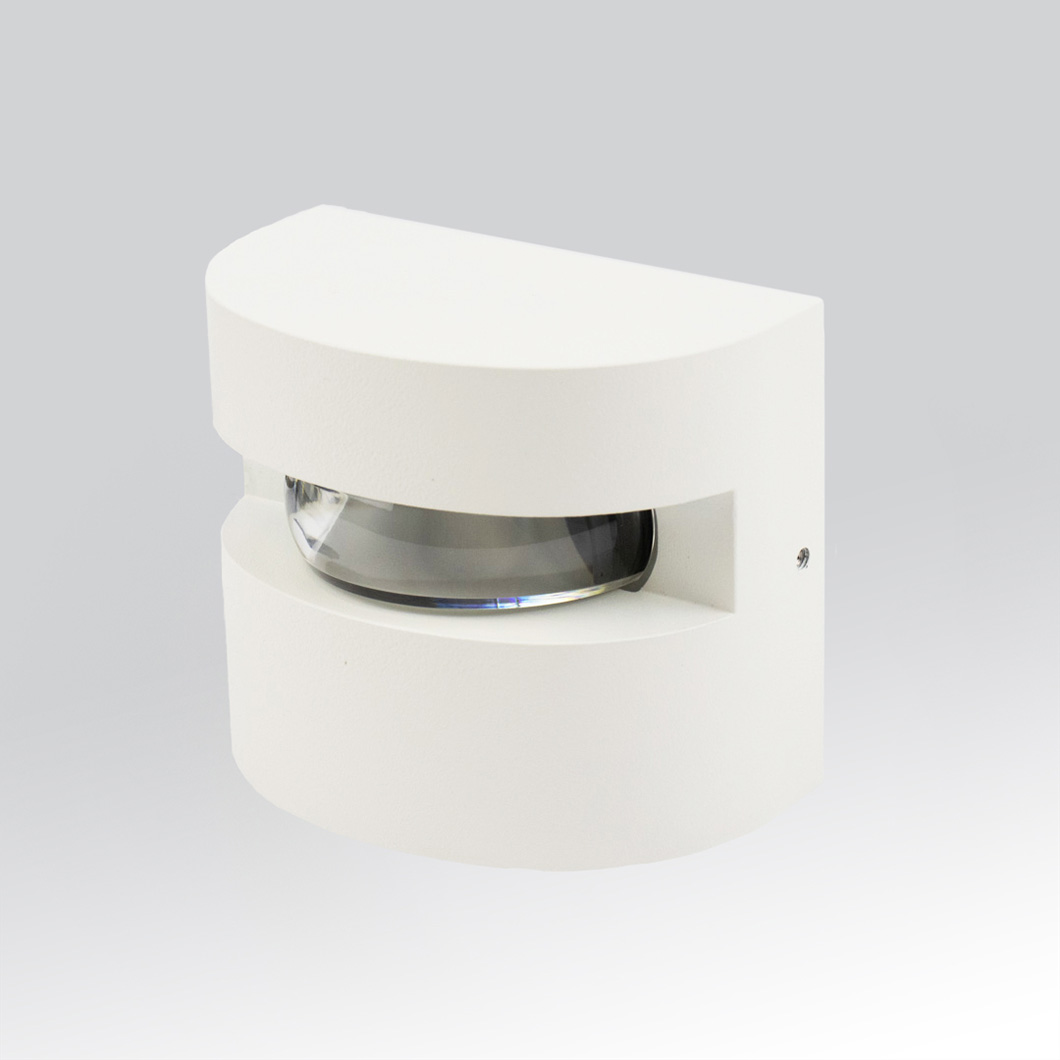

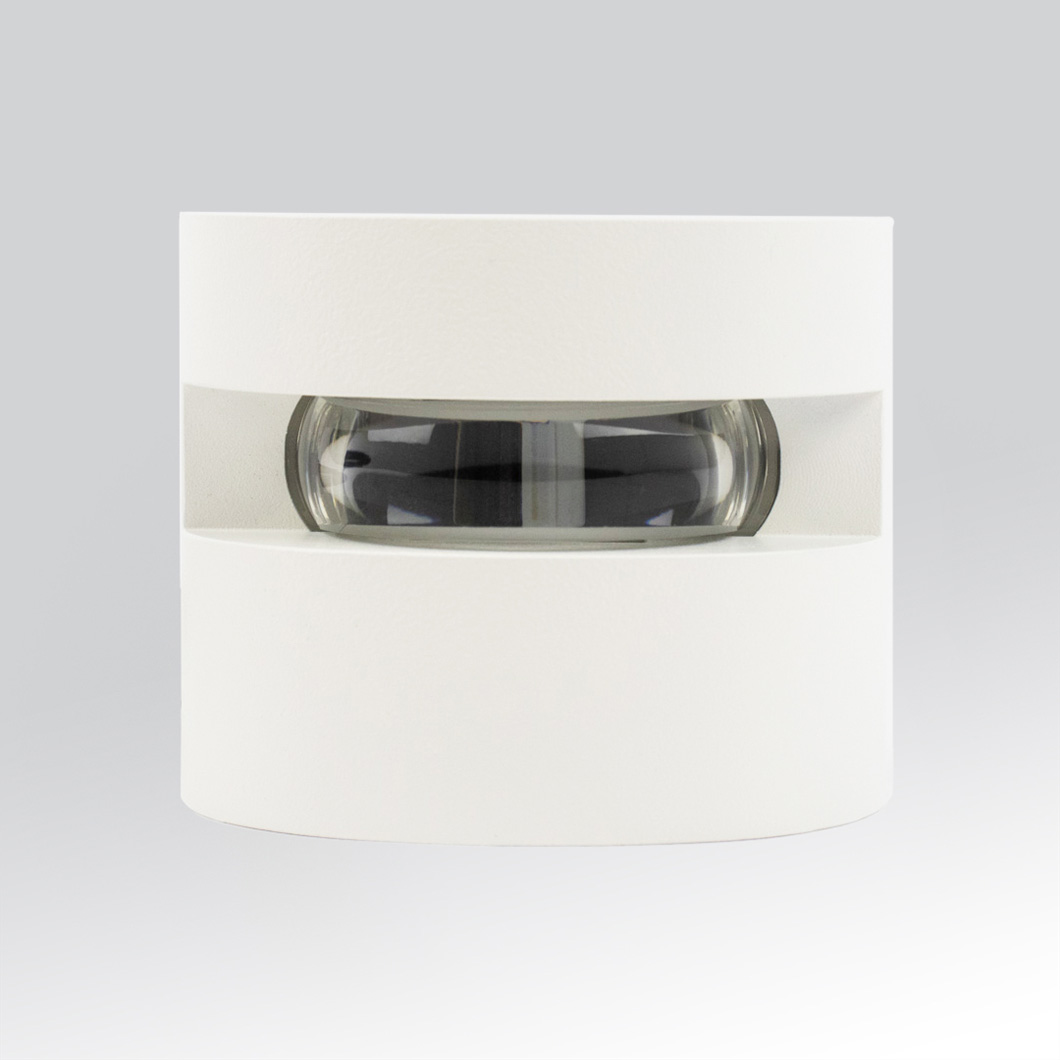

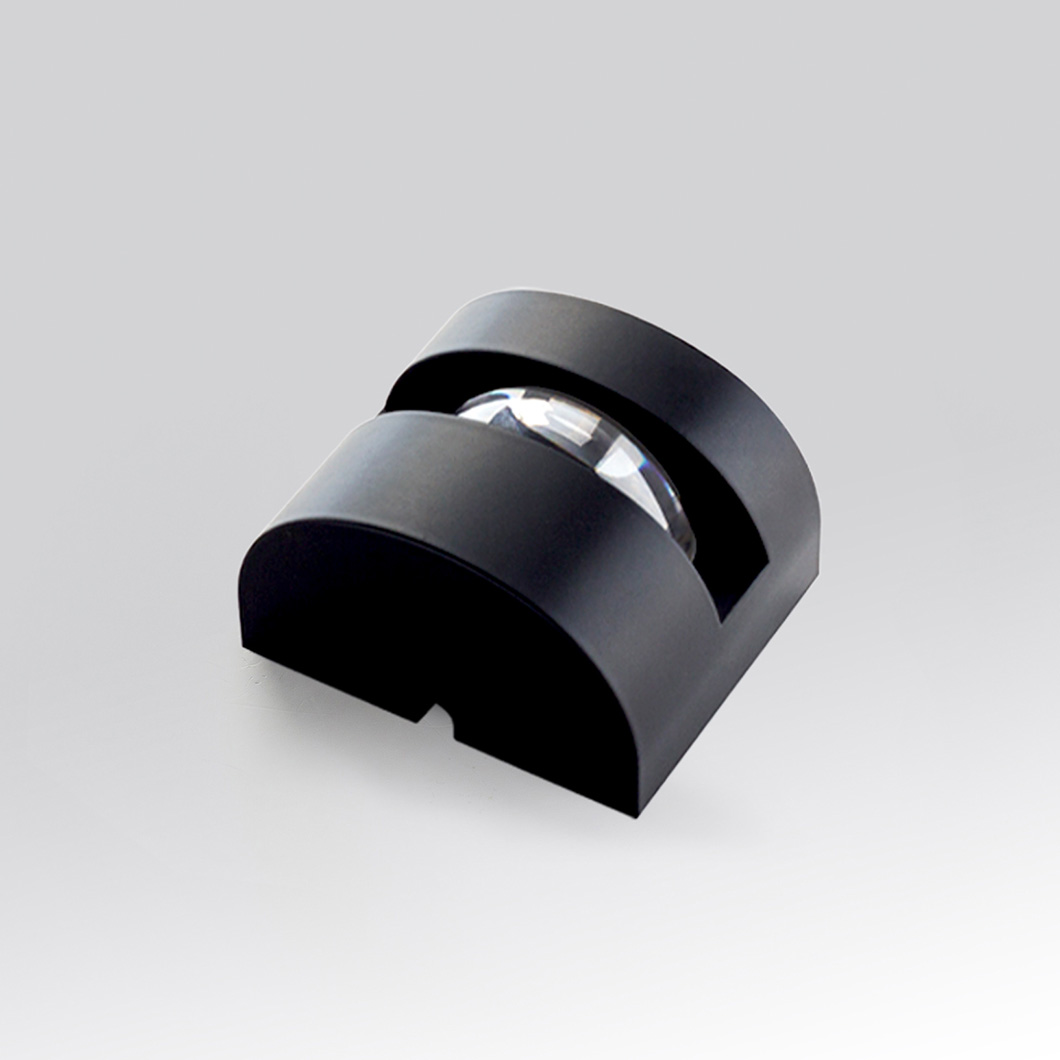

Both are available in 3000K or 4000K light colour temperatures. The body of the fitting is made from an anticorodal aluminium with a PMMA curved lens. Finished in anodized aluminium, matt white, matt black, COR-TEN (rusted) or anthracite. Ecate is fixed to the ground with the supplied mounting base and screws. Supplied with a 2m cable.

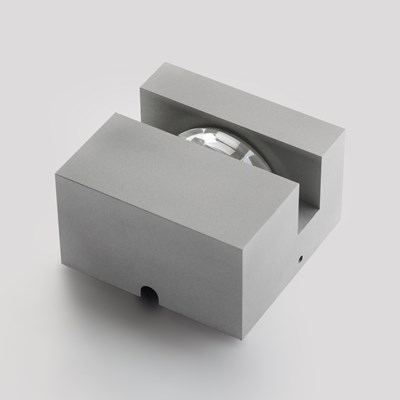

Not suitable for dimming. Ecate 230V mains voltage version available - see below. View the full LLD Light catalogue in the downloads tab.
Delivery usually within 2 weeks
Optics: 3 x 115°
Constant current version:
3W | Class I
Wired in series - 700mA constant current driver required
24VDC constant voltage version:
4W | Class III
Wired parallel - 24VDC driver required
CCT | Lumens
3000°K | 220lm
4000°K | 240lm
Optional C.C. driver (DE70004) - see dropdown:
Constant current | Non-Dim | 4W | 700mA | IP65 | 3-20V
Optional 24VDC Constant Voltage driver - see below
Lamp type: LED 3-4W Lifespan 50,000hrs

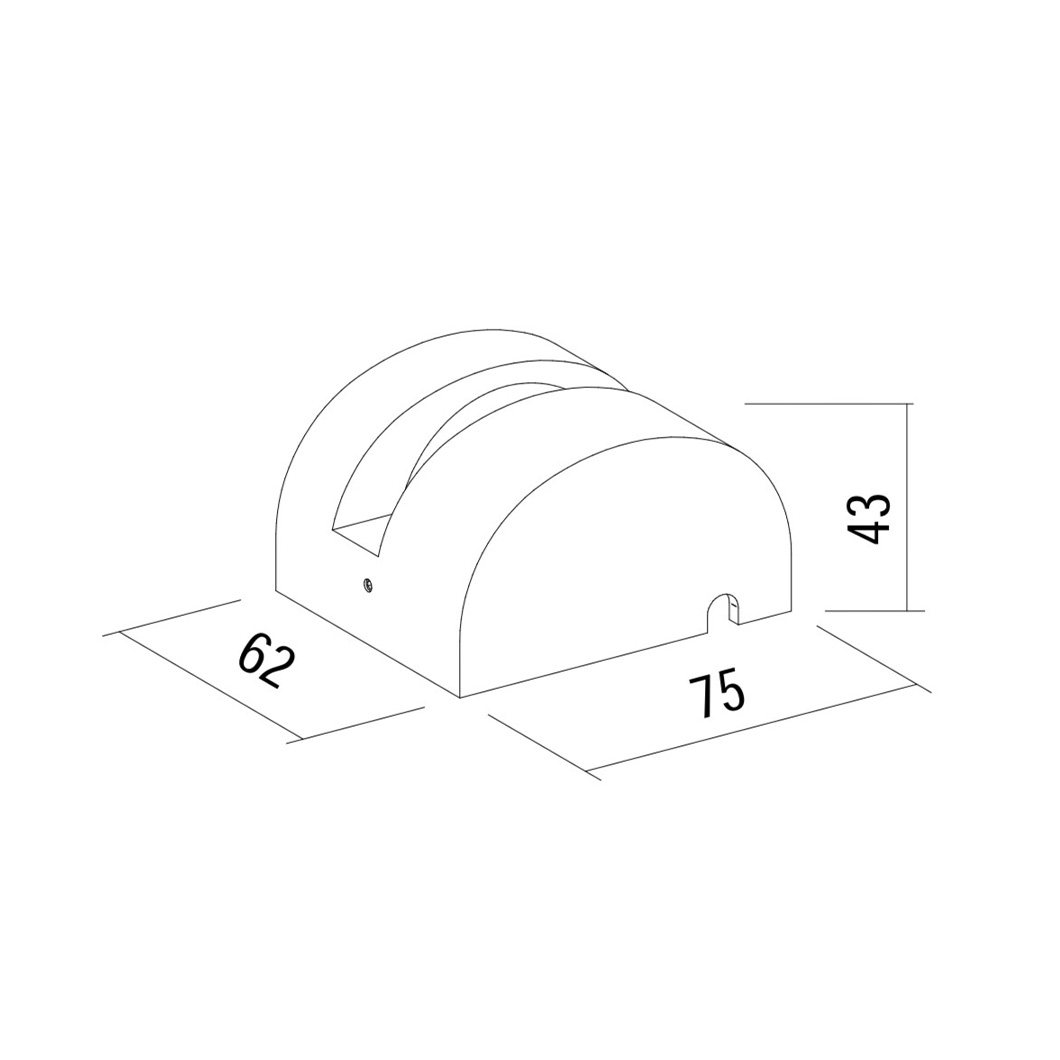

Product dimensions: W.75mm x D.62mm x H.43mm
Delivery usually within 2-3 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
