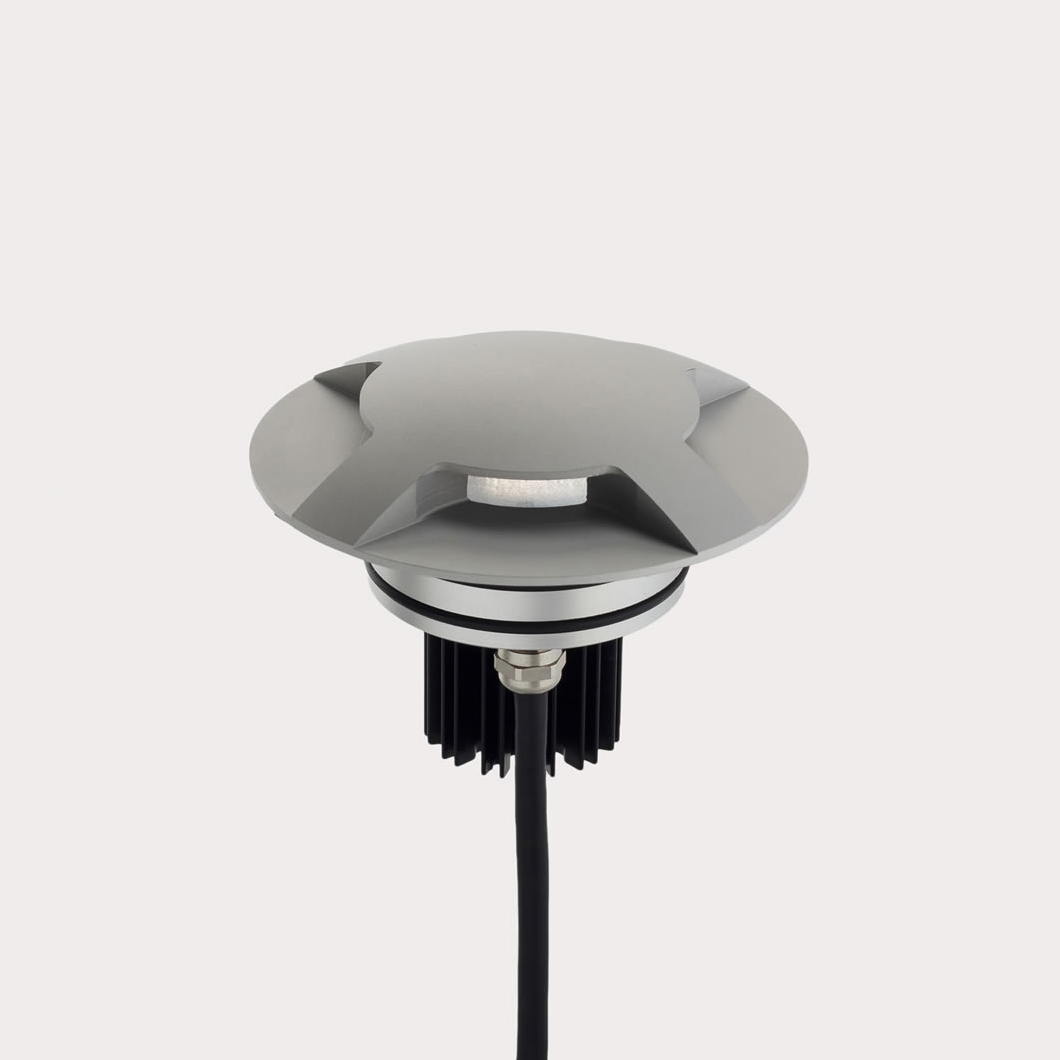

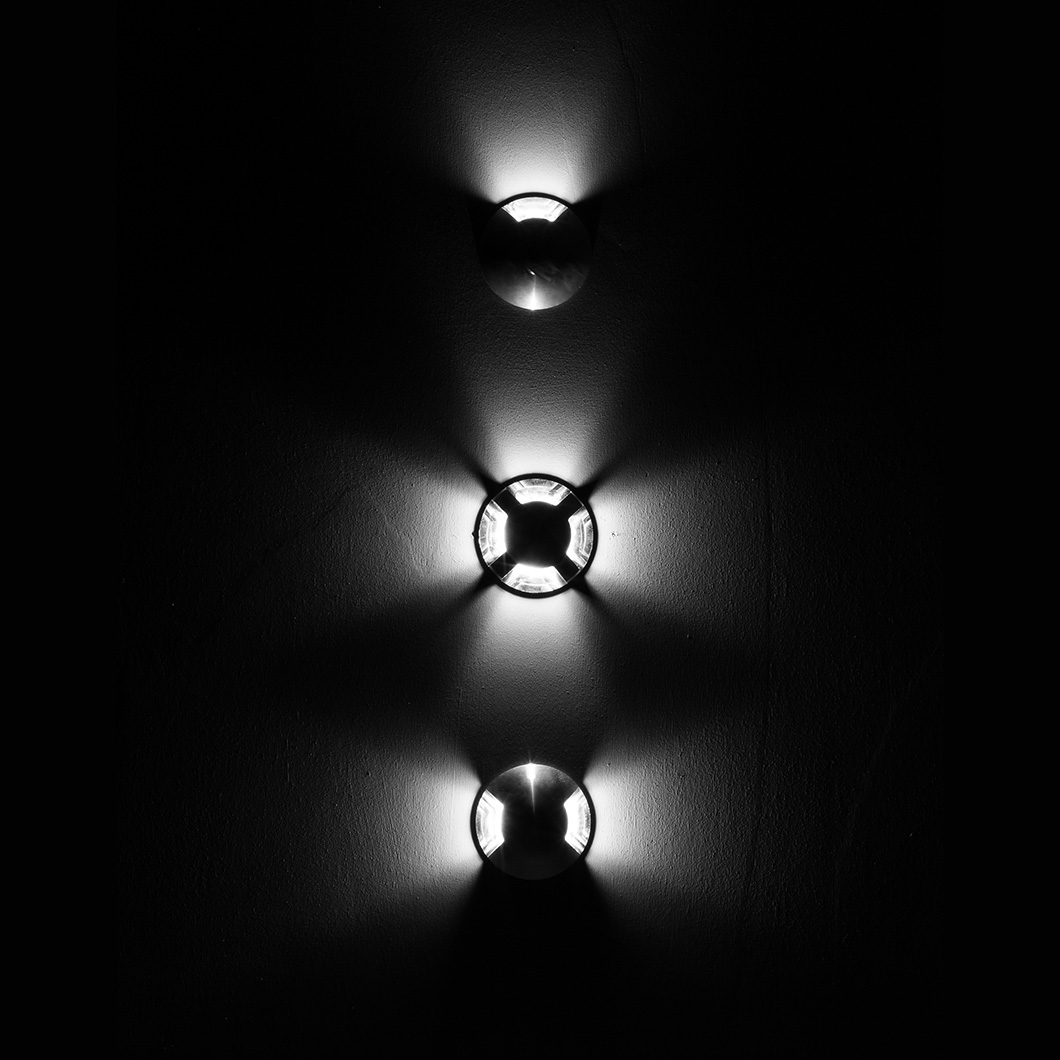

The bigger brother at just under 12cm in diameter, the Bia Maxi Round outdoor recessed path light by LLD (LED Luce E Dintorni) has four light emissions. The versatile LLD Bia Maxi is suitable for both private garden and commercial outdoor lighting projects, and can be installed in the wall as a low level or step light or into the floor as a path light. The Bia Maxi Round can be driven over up to 1500kg and has a rating of IP67.

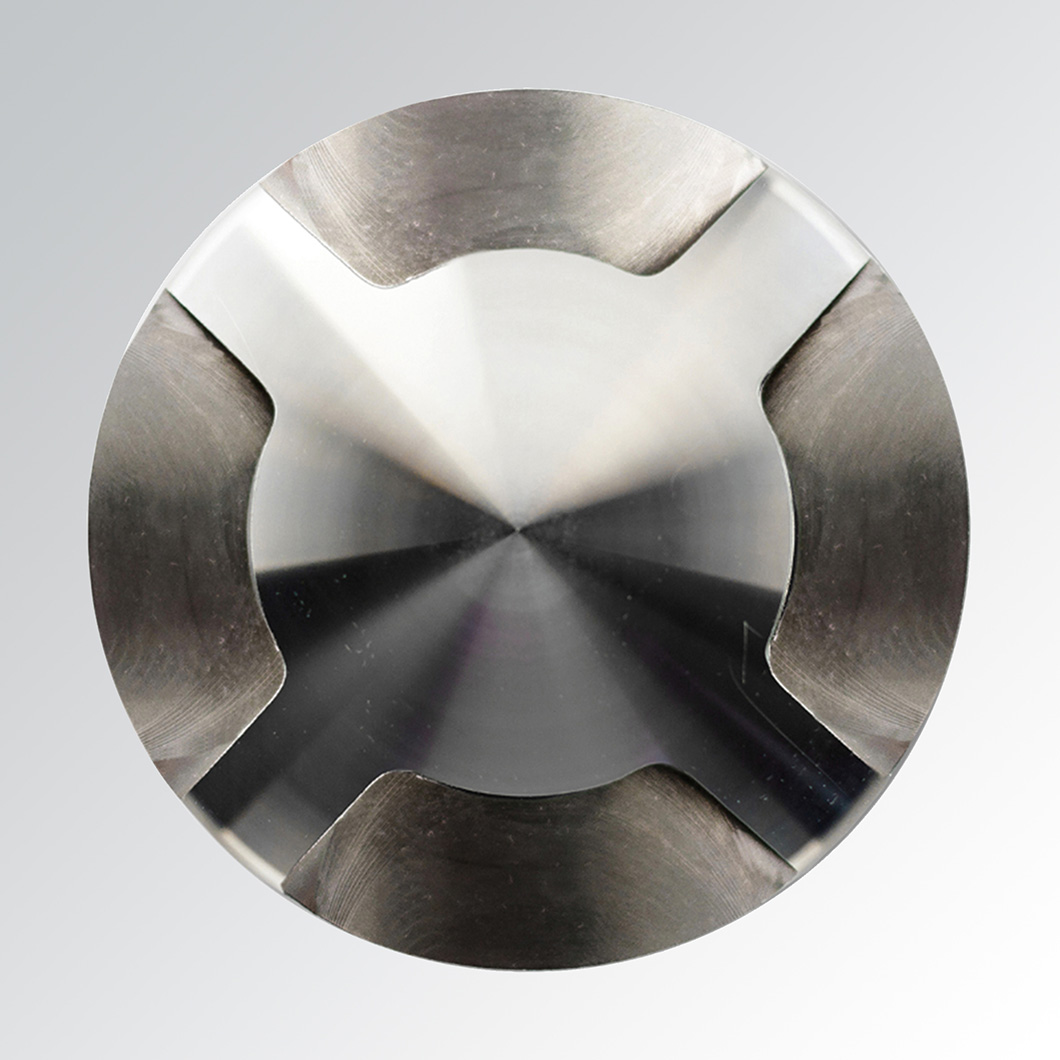

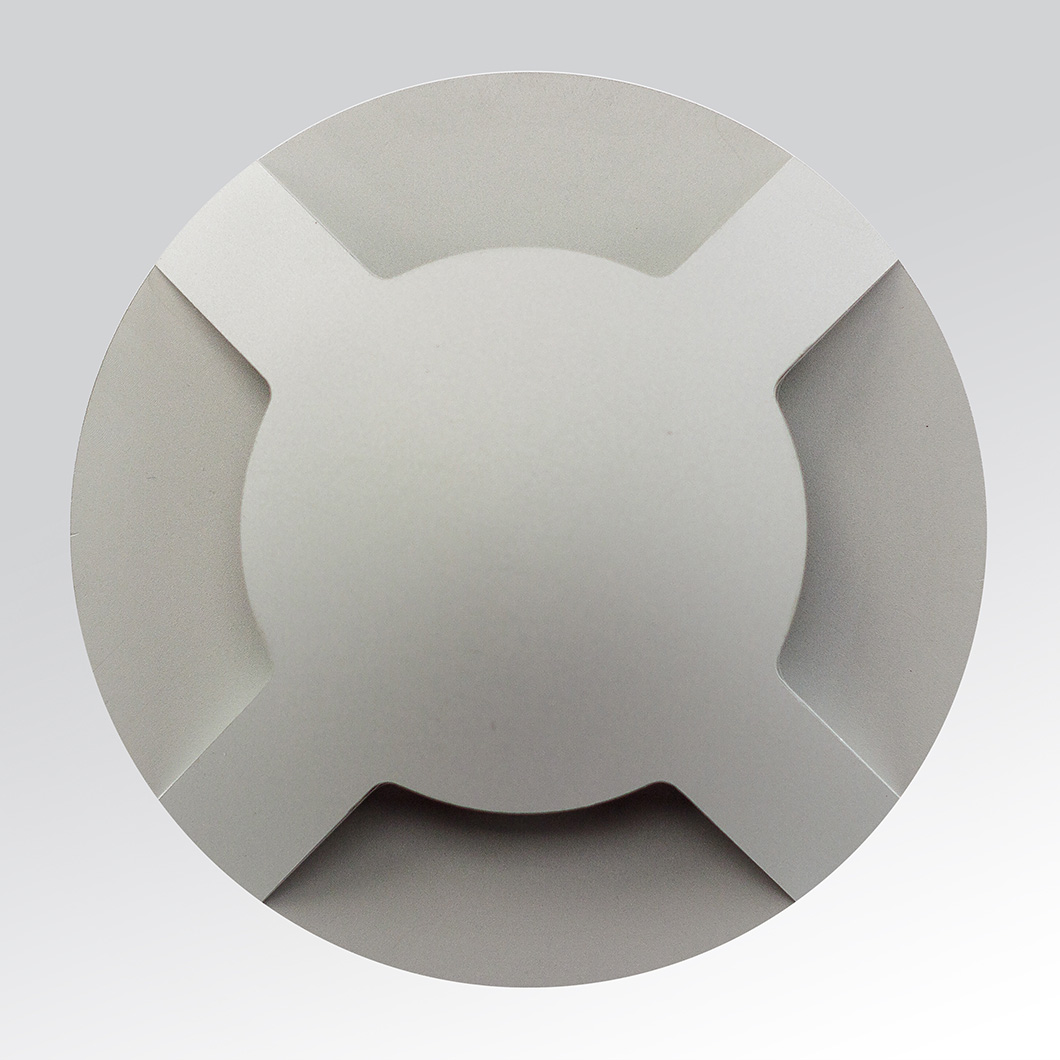

A 9W energy efficient LED produces over 1000lm, lighting in four specific targeted areas with minimum glare. The 24VDC constant voltage Bia Maxi path light has a choice of 2700K, 3000K or 4000K light temperatures. An anticorodal anodized aluminium body and trim is available in anodized aluminium, matt black, anthracite or rusty COR-TEN. The brushed steel and steel finishes have an AISI 316L stainless steel trim. Optic in PMMA.
Supplied with a 500mm cable with WP System connection. The optional housing box should be used for installing the LLD Bia Maxi into the ground, allowing 30cm gravel drainage. 24VDC constant voltage driver (wired parallel) required. This fitting is compatible with non dim, TRIAC dim, push dim, 1-10V dim, DMX dim and DALI dim drivers.
Other sizes and light emissions available - see below. View the full LLD Light catalogue in the downloads tab.
Delivery usually within 2 weeks
500mm cable with Water Proof connection system
Push, 1-10V, TIRAC, DMX and DALI dimmable with compatible driver (not included)
Exposed lip depth: 20mm
Weight: 0.91kg (steel) 0.56kg (other finishes)
Drive-over: up to 1500kg
Floor installation: 30cm gravel drainage with housing box
24VDC constant voltage version - wired parallel
24VDC driver required
CCT | Lumens
2700°K | 784lm
3000°K | 838lm
4000°K | 902lm
Optional housing box (CA070): Ø100mm D.120mm
Lamp type: LED 9W Lifespan 50,000hrs

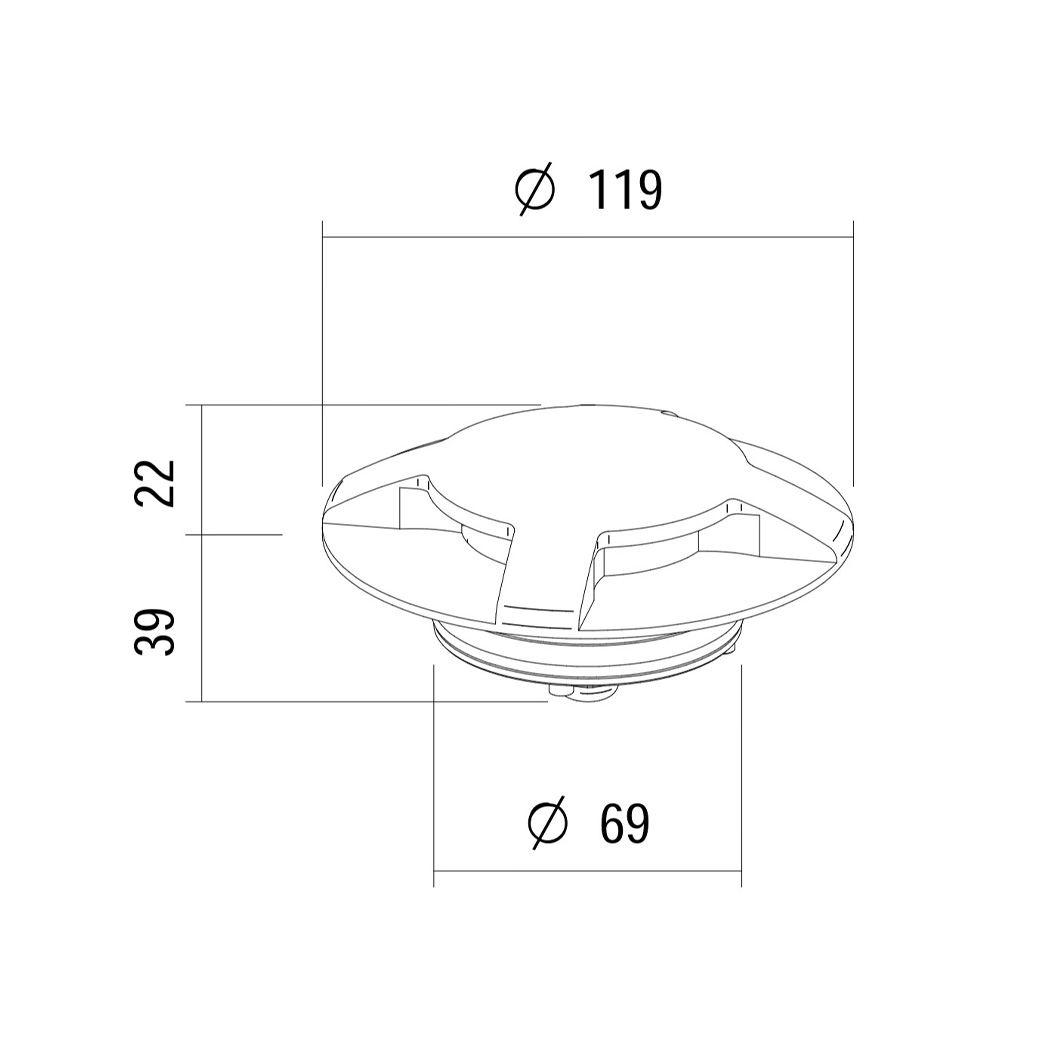

Product dimensions: H.94mm x Diameter.119mm
Delivery usually within 2-3 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
