- Description
-

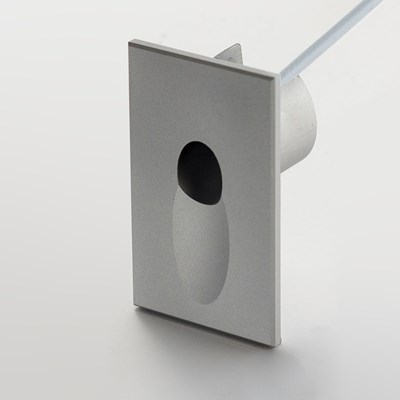

The LLD Ade is a recessed LED step light suitable for both indoor and outdoor installation. With an IP65 rating, the Ade Low Level Light is ideal for lighting steps, paths and corridors with a minimal and contemporary light fitting.

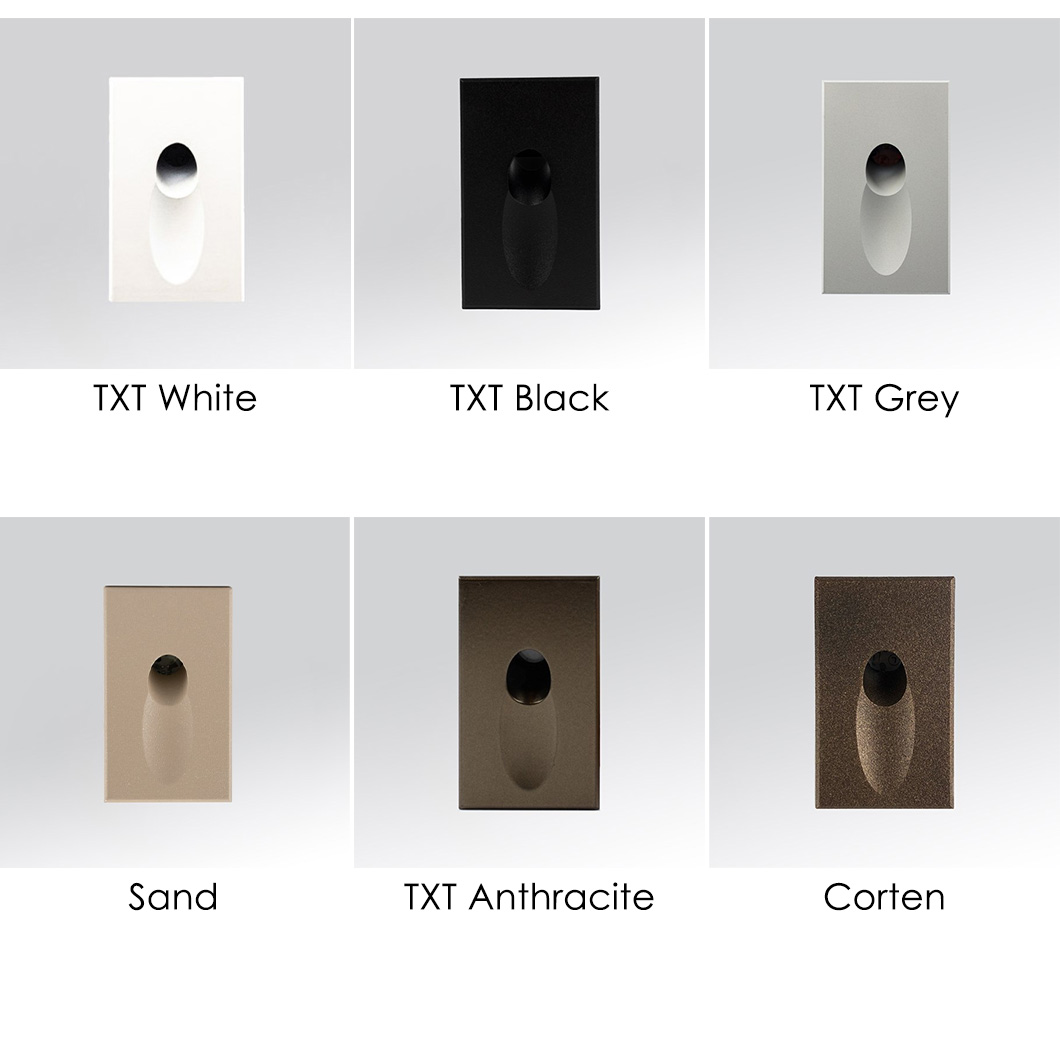

Utilising an energy efficient low wattage 1-2W LED light source with a wide 60° beam angle. Constant current and wired in series with a choice of 2700K, 3000K, 4000K, 5000K, red, green or blue light temperatures. Constructed from an anticorodal aluminium body with protection glass. Finished in anodized aluminium, matt white, matt black, COR-TEN (rusted) or anthracite.
Supplied with a 250mm cable. Can be installed in plasterboard or wood using the spring, or installed into brickwork using the housing box.
350mA or 500mA driver required. View the full LLD Light catalogue in the downloads tab.
Delivery usually within 2 weeks
- Specification
-
IP65
1W (350mA driver) or 2W (500mA driver)
Class III
Cutout: Ø36mm
250mm cable
Push, 1-10V and DALI dimmable
Constant current - wired in series
350mA (1W) or 500mA (2W) driver required
CCT | Lumens (1W-2W)
2700°K | 105-146lm
3000°K | 111-155lm
4000°K | 125-172lm
5000°K
Red
Green
Blue
Beam angle: 60°
Optional spring (ML032): W.60mm D.19mm
Optional housing box (CAE36): Ø40mm D.55mm
Lamp type: LED 1-2W Lifespan 50,000hrs

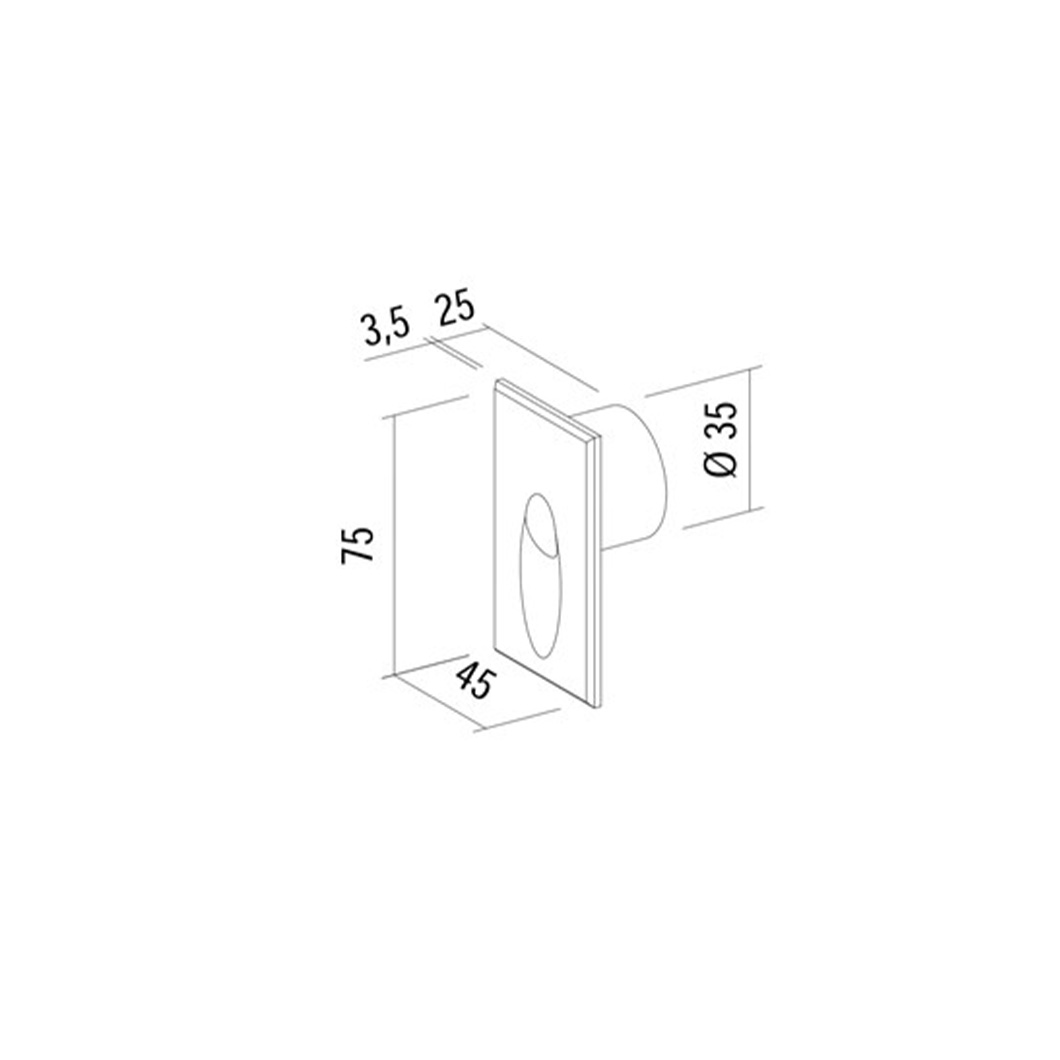

- Dimensions
-
Product dimensions: W.45mm x D.24mm x H.75mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
Browse the full LLD 2021 catalogue
