LED Profilelement R10-F Plaster Profile

Description

LED Profilelement R10-F plaster-in profile with reflector wing for installation in the surface with or without substructure - not suitable for drywalls. Suitable for wall or ceiling installation, R10-F integrates invisibly with the surrounding architecture, and is the perfect choice for cove lighting and for creating dramatic indirect lighting effects. The curved reflector creates a calm flow of light. Suitable for use with LED tape up to 15mm in width. With peel bar for flush plastering, minimum plaster thickness 19mm. Shadow casting can be avoided by altering the plane that the LED strip is fixed to. Made of zinc, which acts as a heat sink for the LED strip, the R10-F profile is supplied with the primer already applied. Diffuser available for a softened, refracted lighting effect.

See the Optional Items below for:
The fleece lining for seamless installation (see install instructions)

Supplied in 2m lengths.

See install instructions PDF in the Downloads tab.

- Our Top Tips -

• What makes this profile better than others on the market?
  This profile is made from zinc alloy which is very hard to deform - even under a high heat output. Therefore changes in temperature will not cause cracking in the plaster (provided the recommended fleece lining has been used too) unlike aluminium profile which often bends.


• Why do I need a diffuser?
  The diffuser is final piece of the jigsaw, with it you will create a nice soft halo of light. Without it you will create a hard wonky line – not a great look.


• How do I avoid cracks in the plaster?
  Use 60mm fleece lining or 90mm fleece lining over the join of the profile and plasterboard (or joining to other profiles) before applying the final layers of plaster. See 'You May Also Need' below.



Specification

Suitable for LED tape up to 15mm in width
Diffuser available
Pre-primed in white
Can be mounted on brick walls using mounting adhesives or screw anchors
Built-in peel bar for flush peeling of the stucco / plaster
Min. thickness of the stucco 19mm

Dimensions

Product dimensions: W.2000mm x D.19mm

Downloads

• LED-Prof-install10.pdf

Delivery and warranty

When in stock: Next day delivery
Not in stock: Delivery approximately 2 weeks

Supplied with a 3 year warranty

About the manufacturer

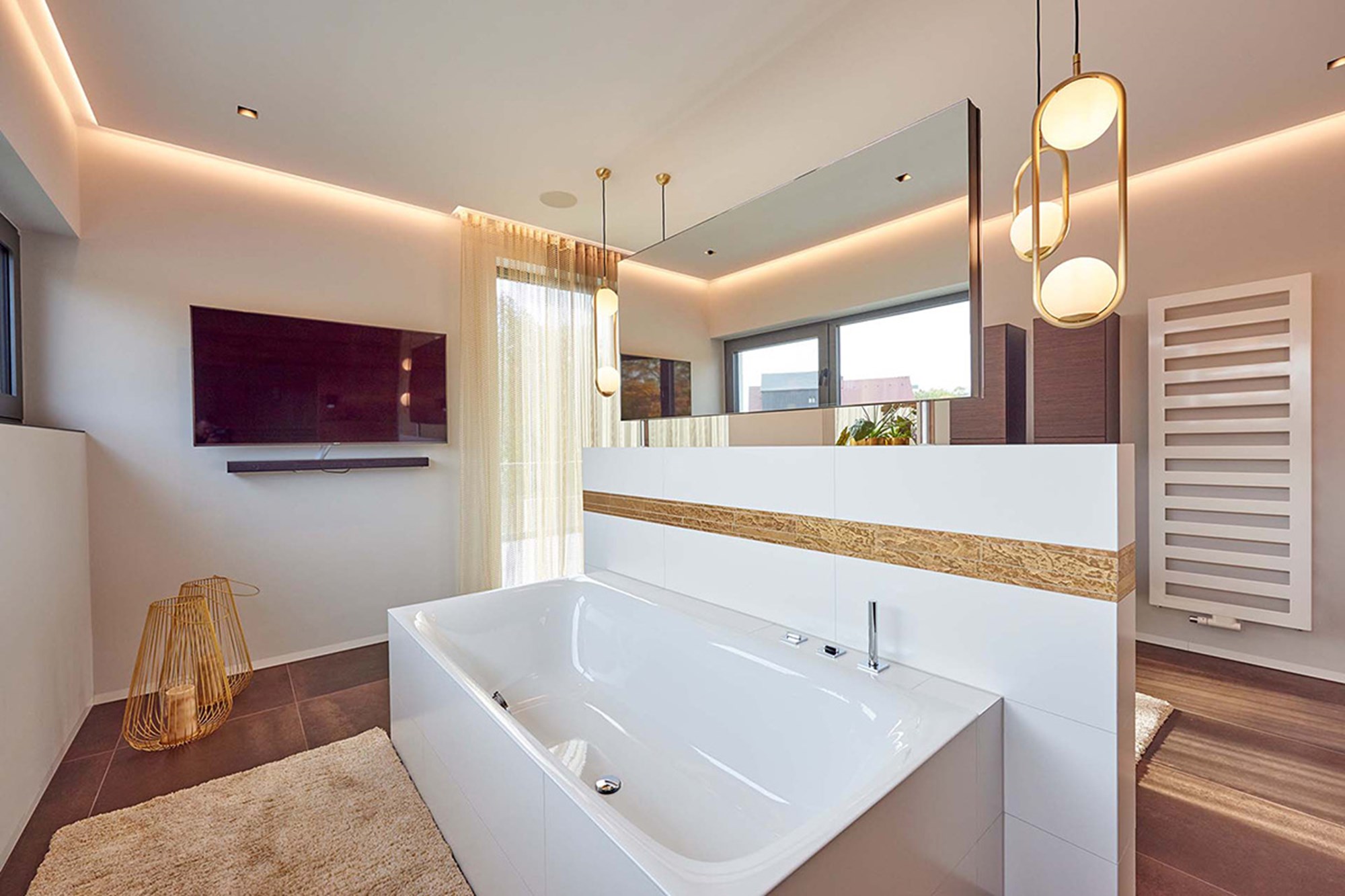

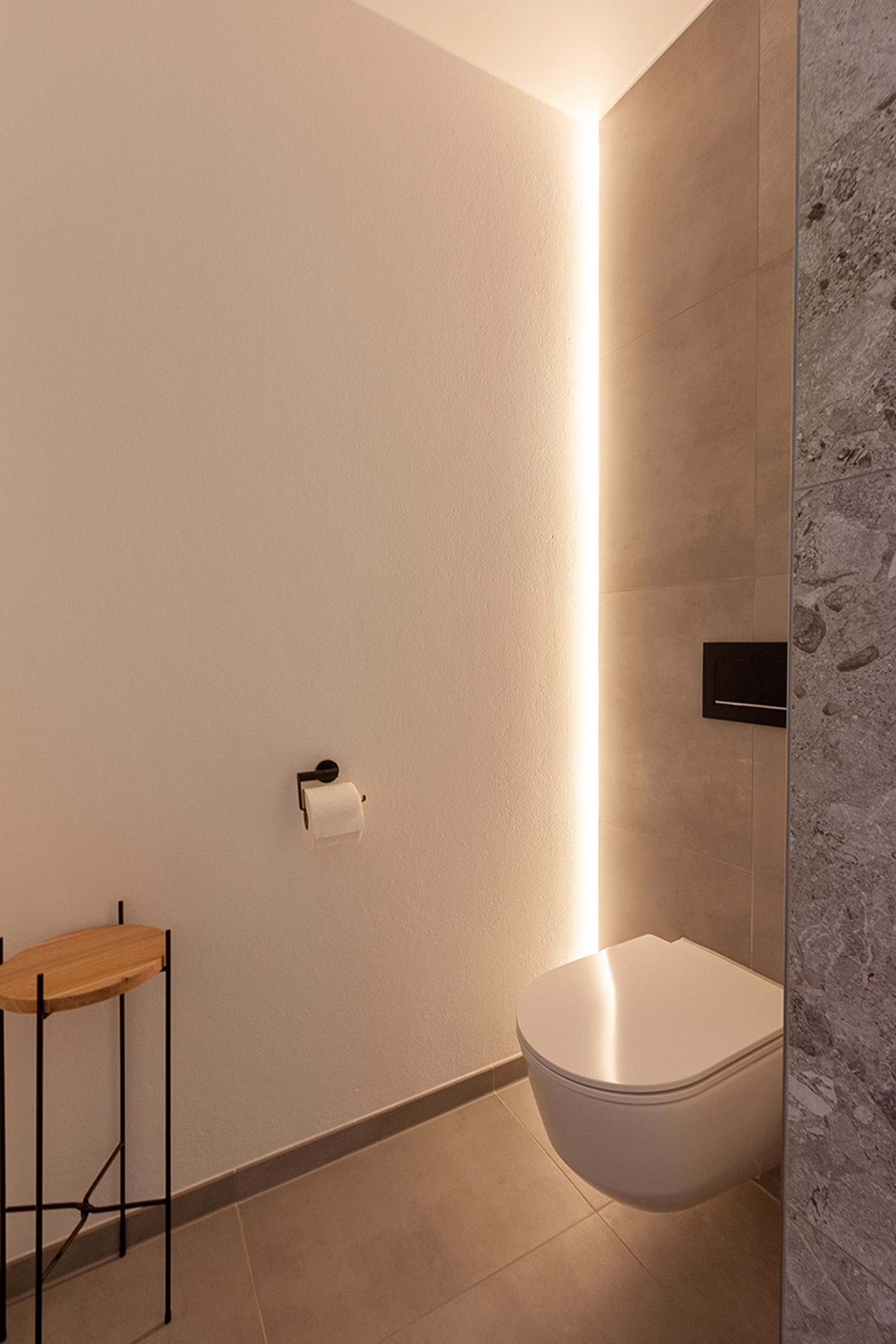

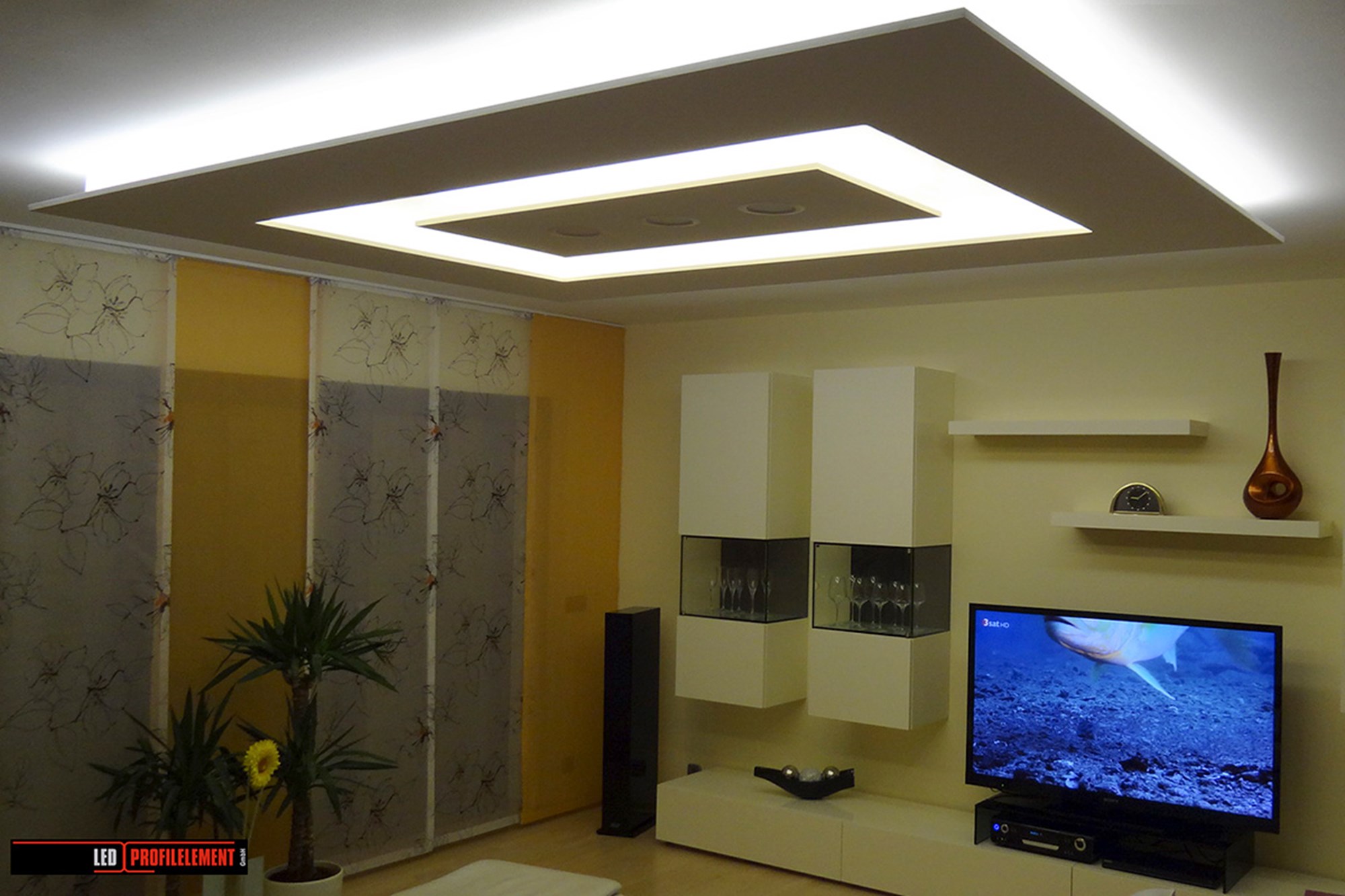

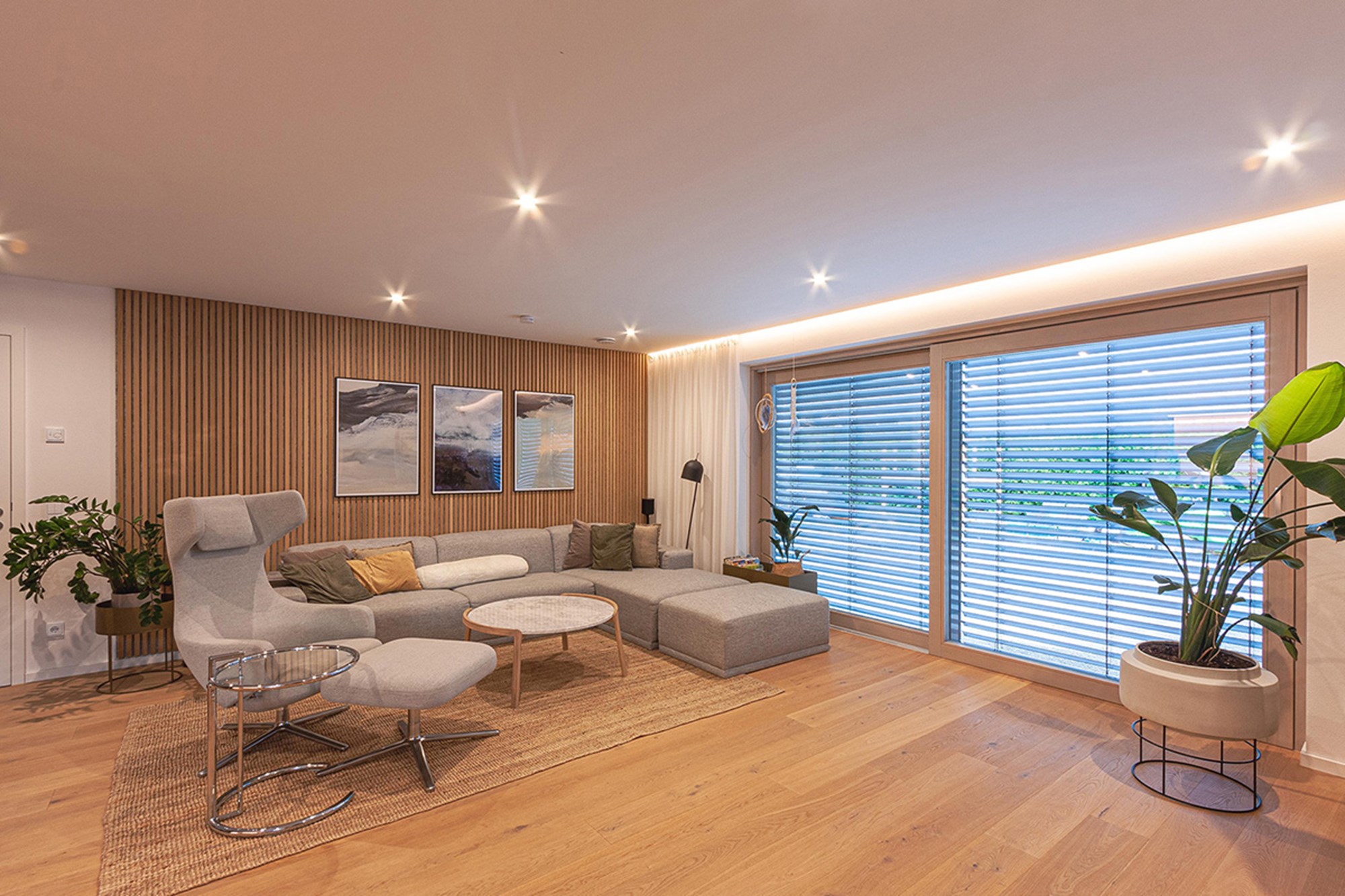

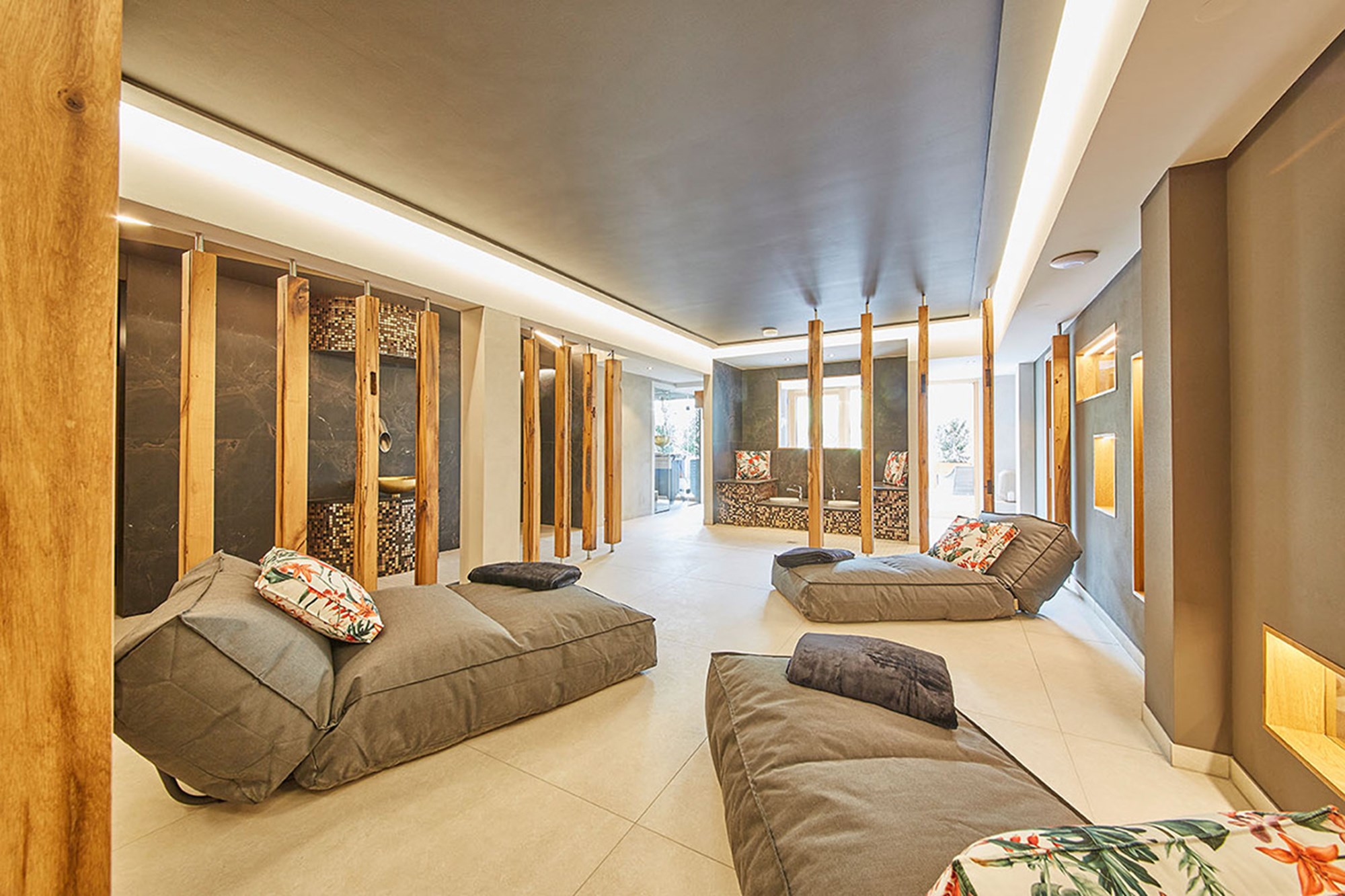

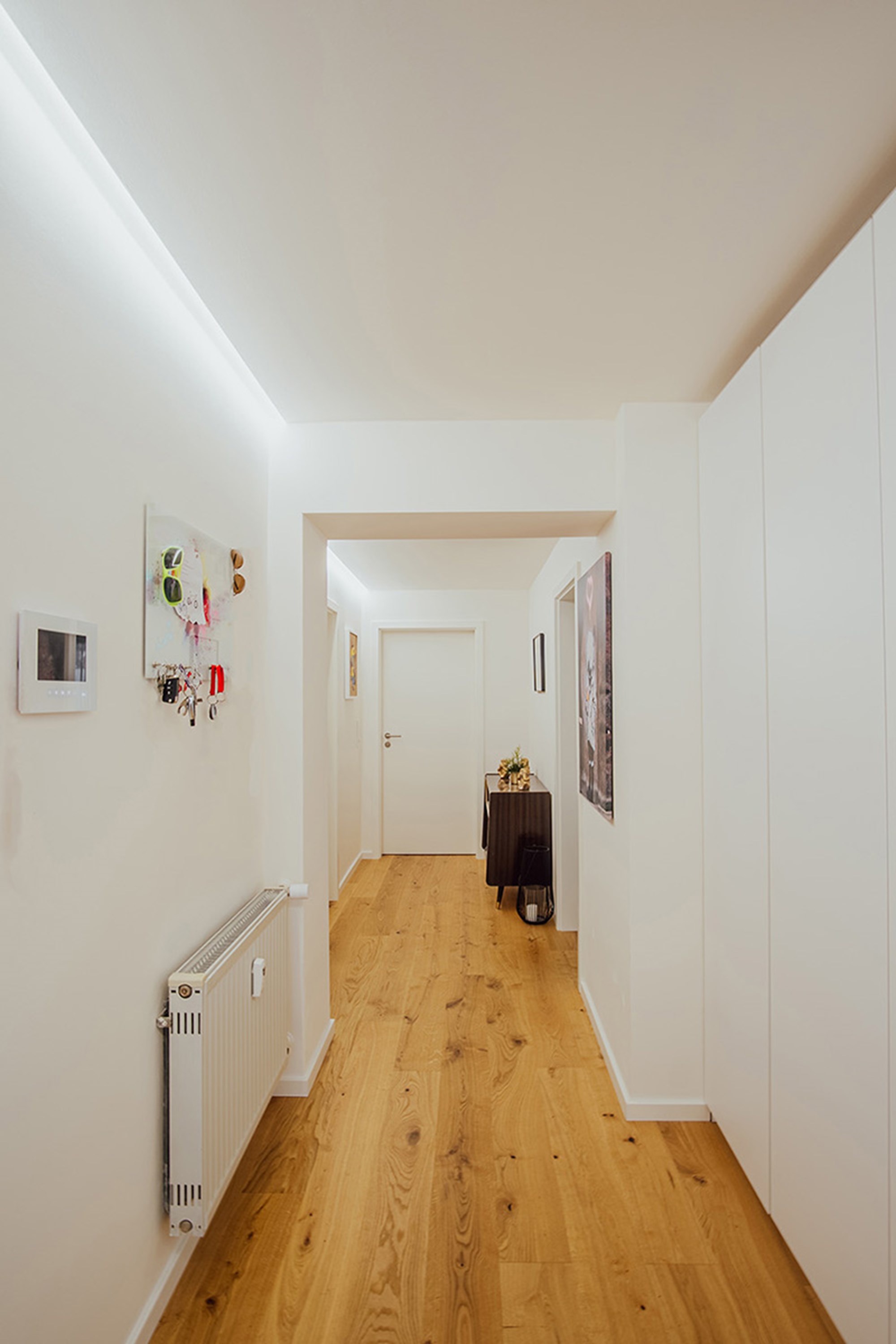

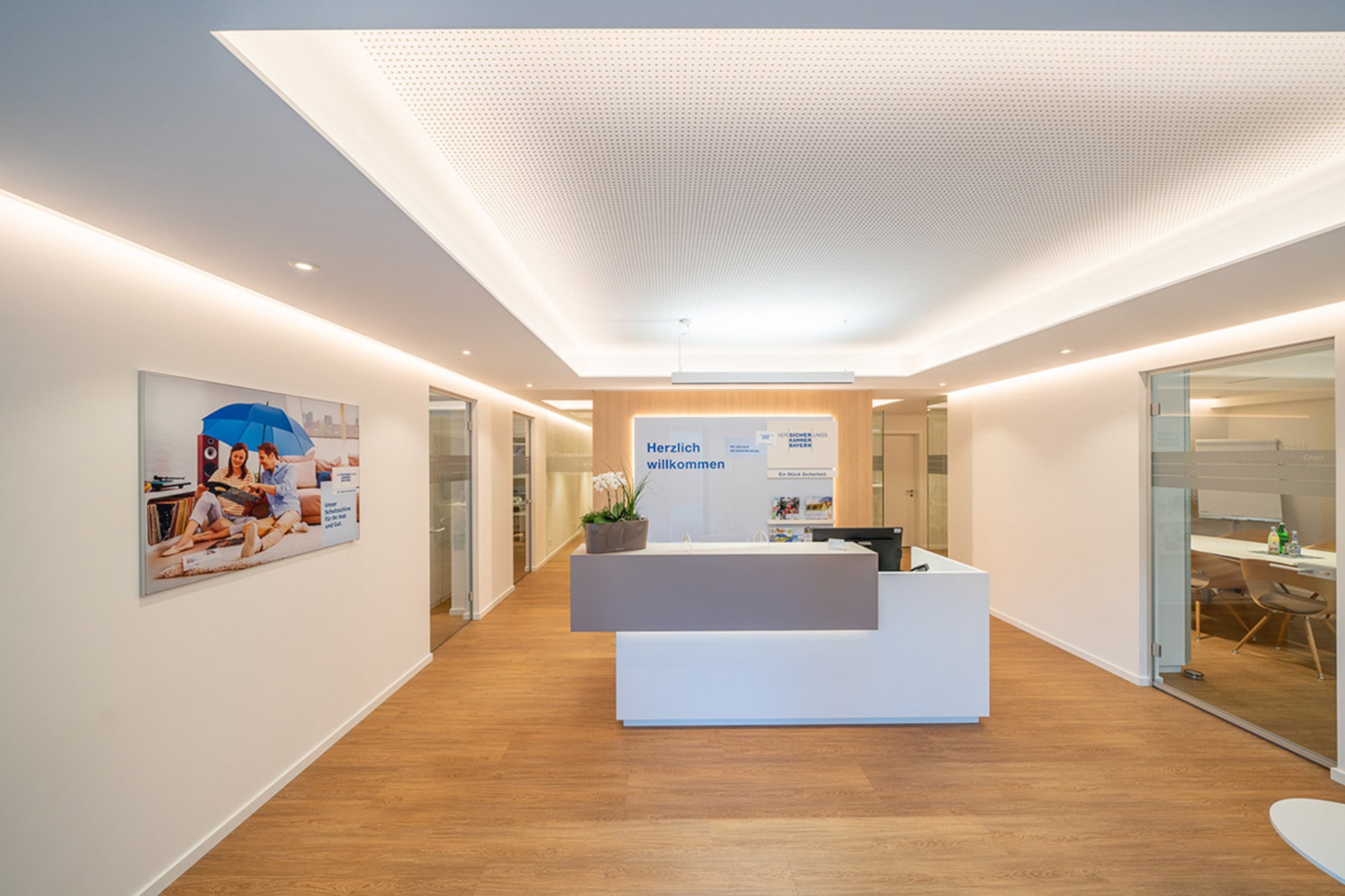

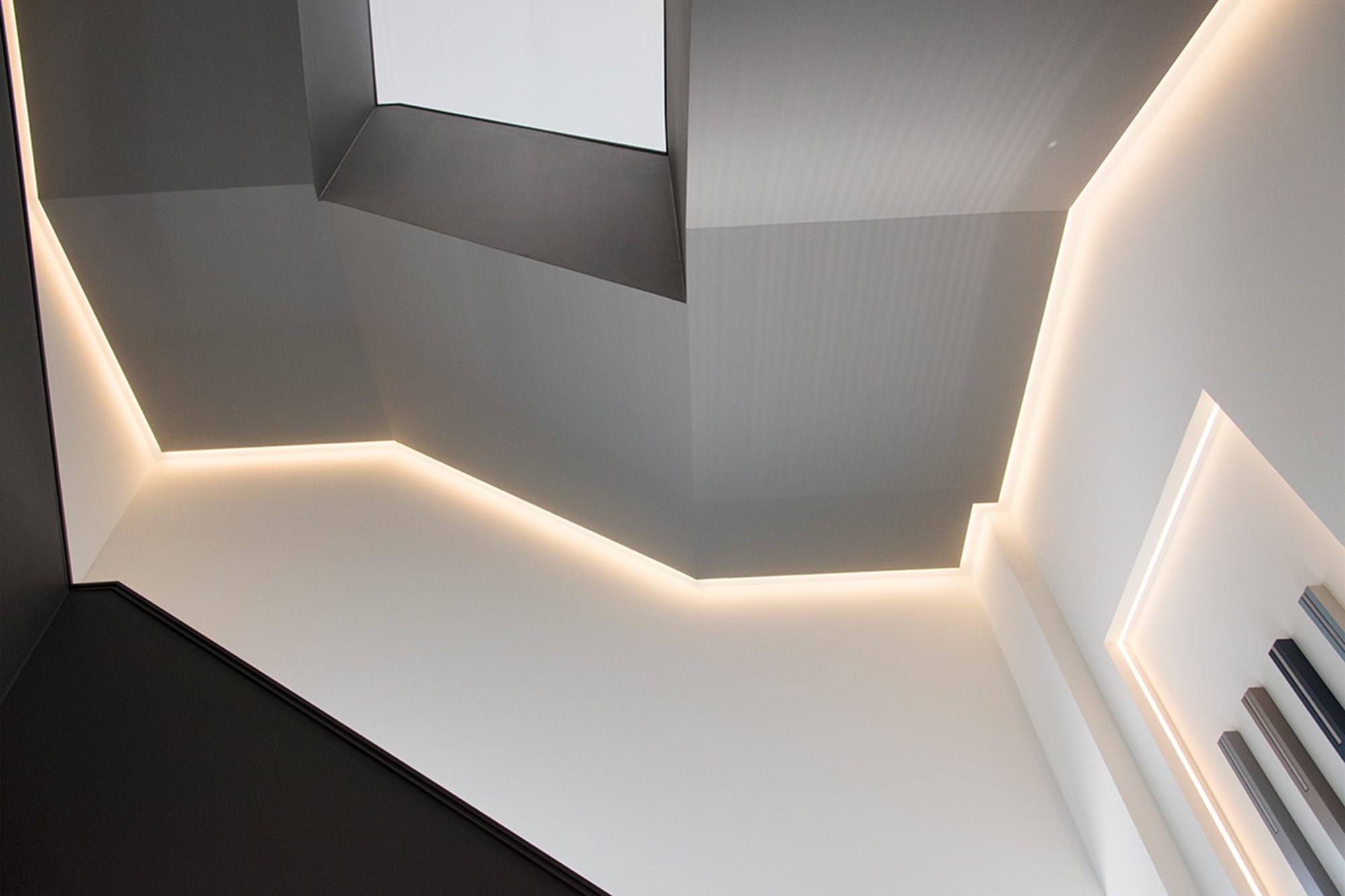

Flexibility. If there’s one word to sum up LED Profilelement, it’s flexibility. Whether creating indirect accent lighting, shadow gaps for coves and skirtings or highlighting architectural features, the versatility of LED Profilelement flows from soft and subtle integrated lighting to a striking, dramatic statement.

The LED Profilelement edit below showcases the most popular products in the range.

 Browse the full LED Profilelement catalogue

For prices on any product that isn't shown below please contact us.



Installed directly into the drywall, many of the profiles are either plaster-in or with a paintable wing - seamlessly integrating into the architectural scheme whilst taking advantage of the latest in LED innovations. As we said - flexibility.

Got a question? Email us or call 01189 882294
