LED Profilelement Circum 21/SNL Flex Profile

Description

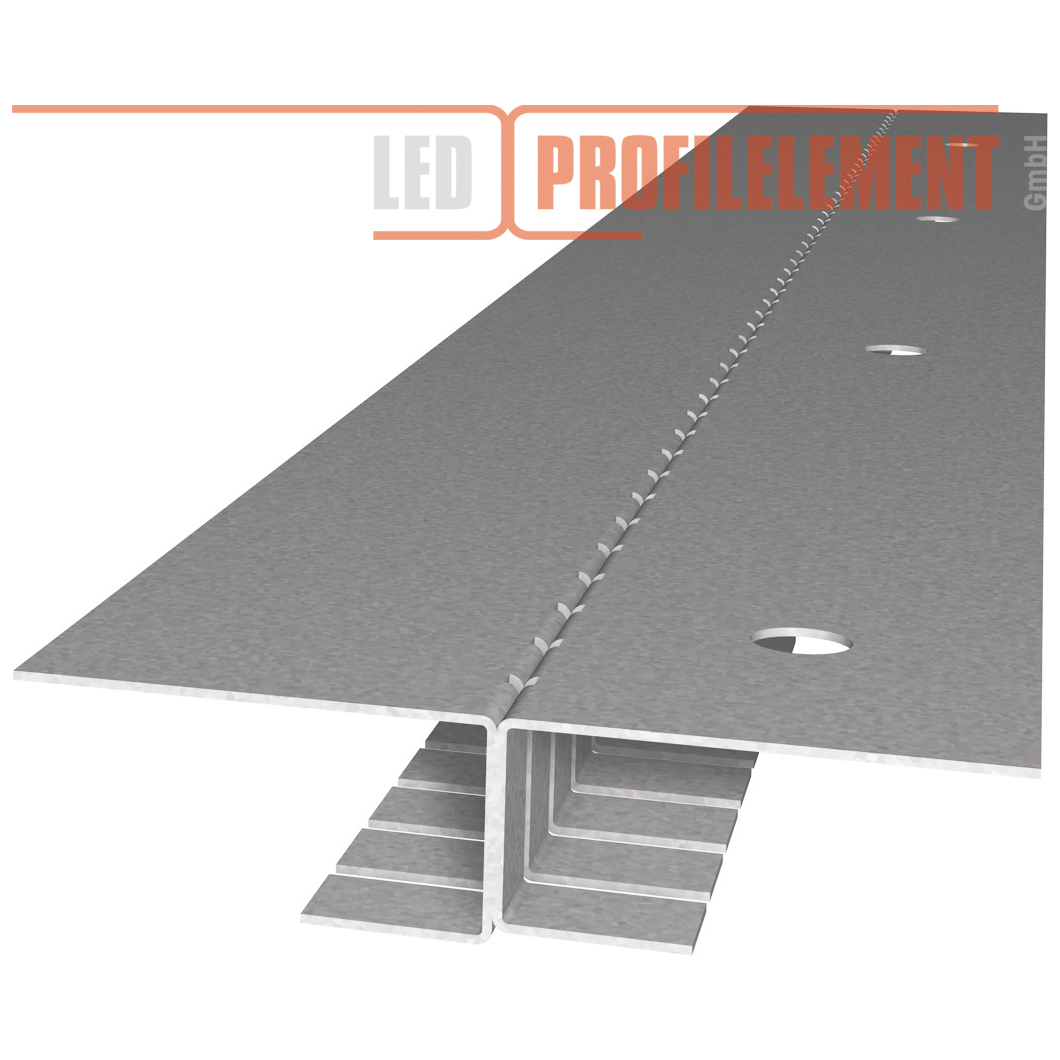

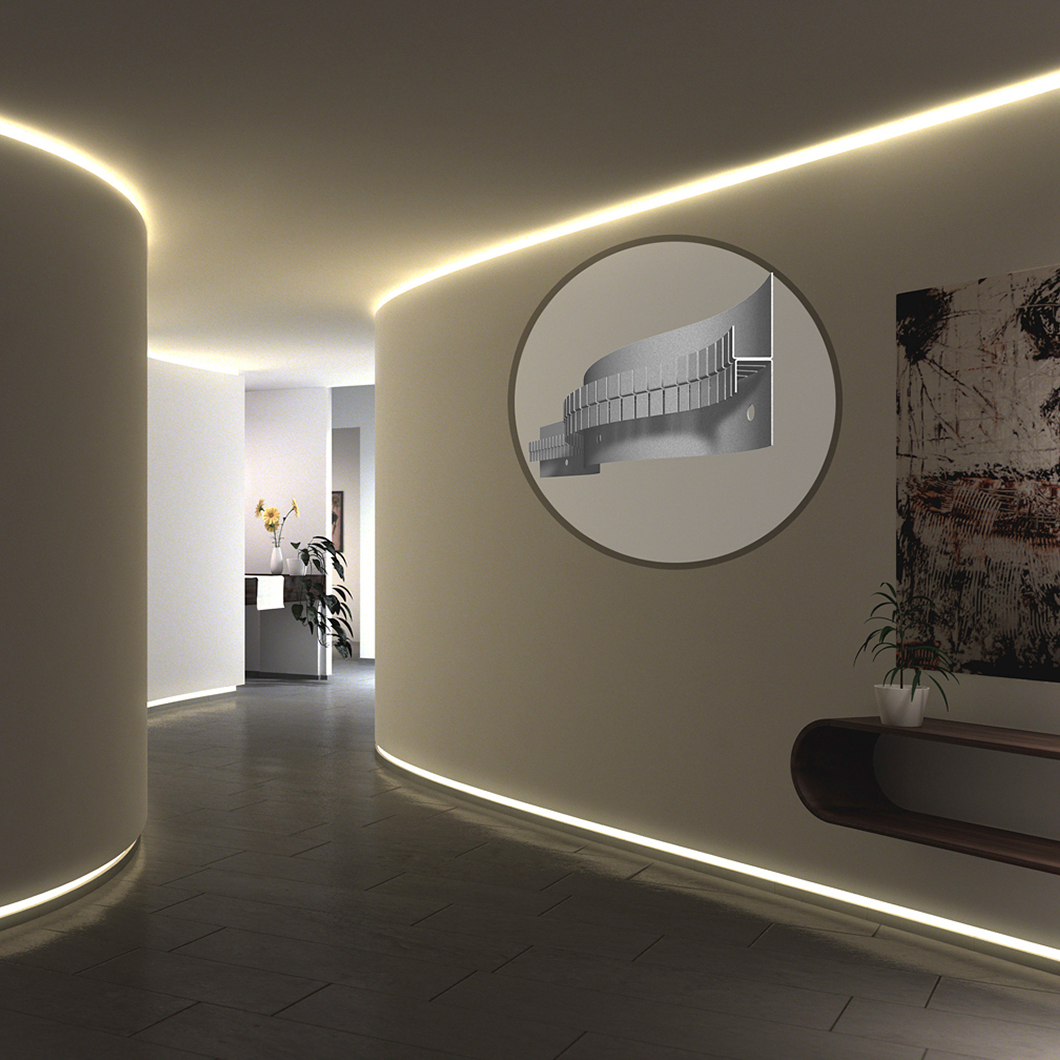

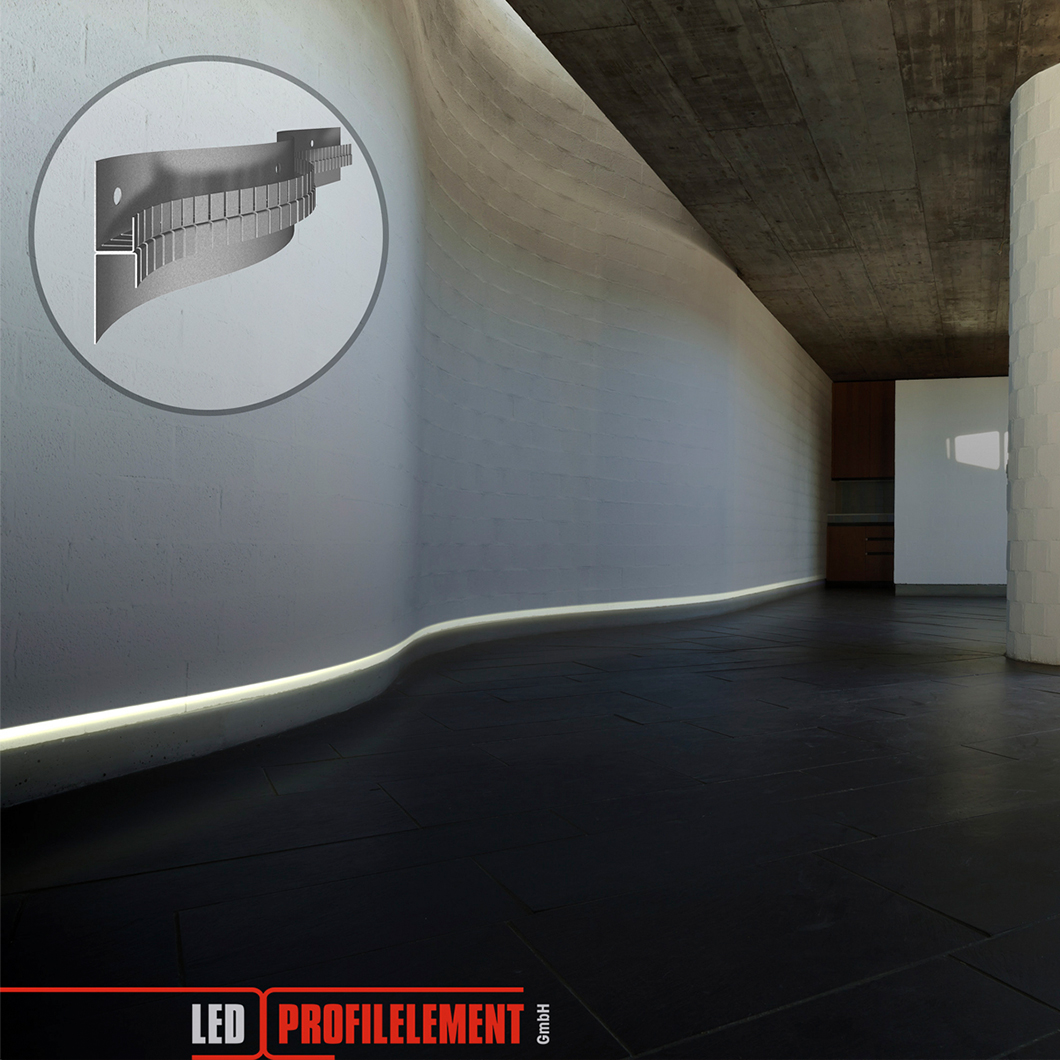

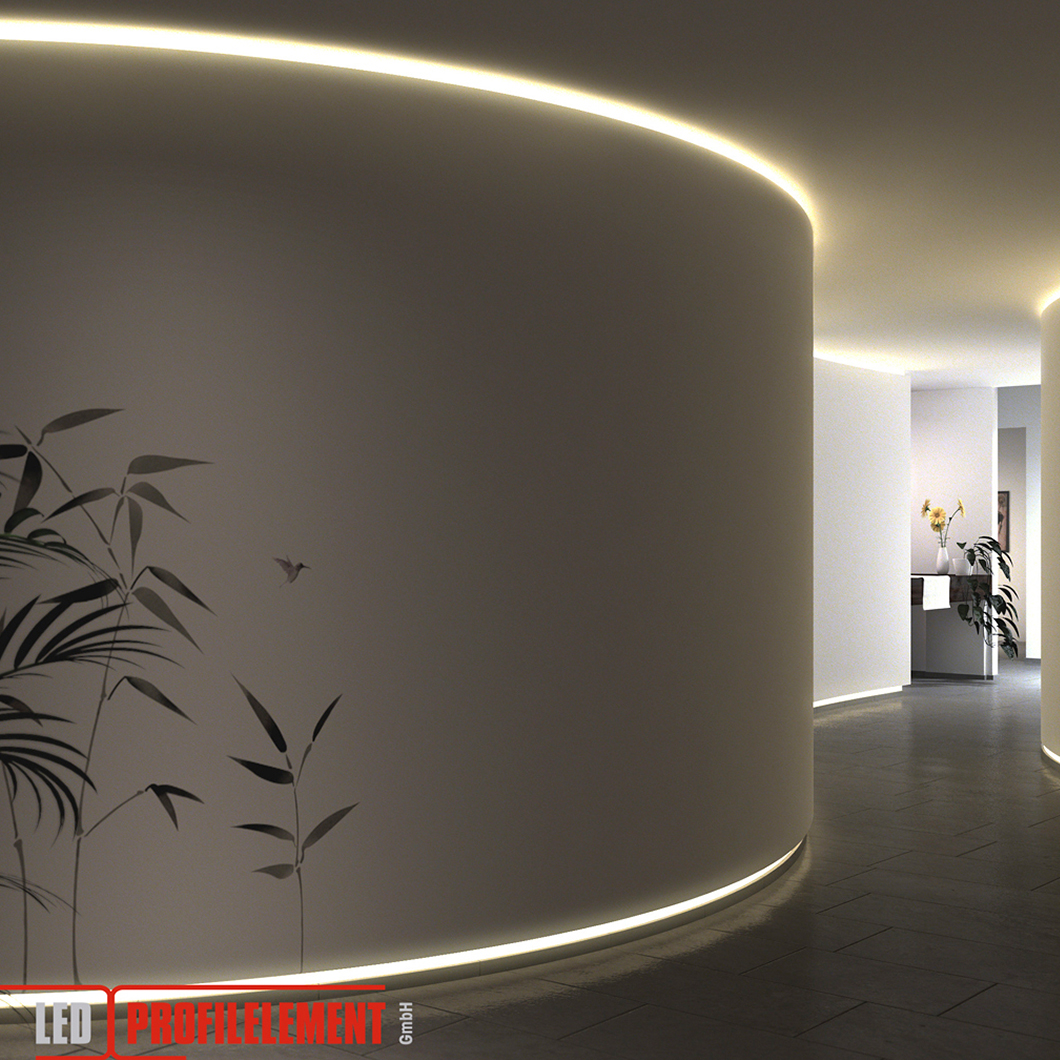

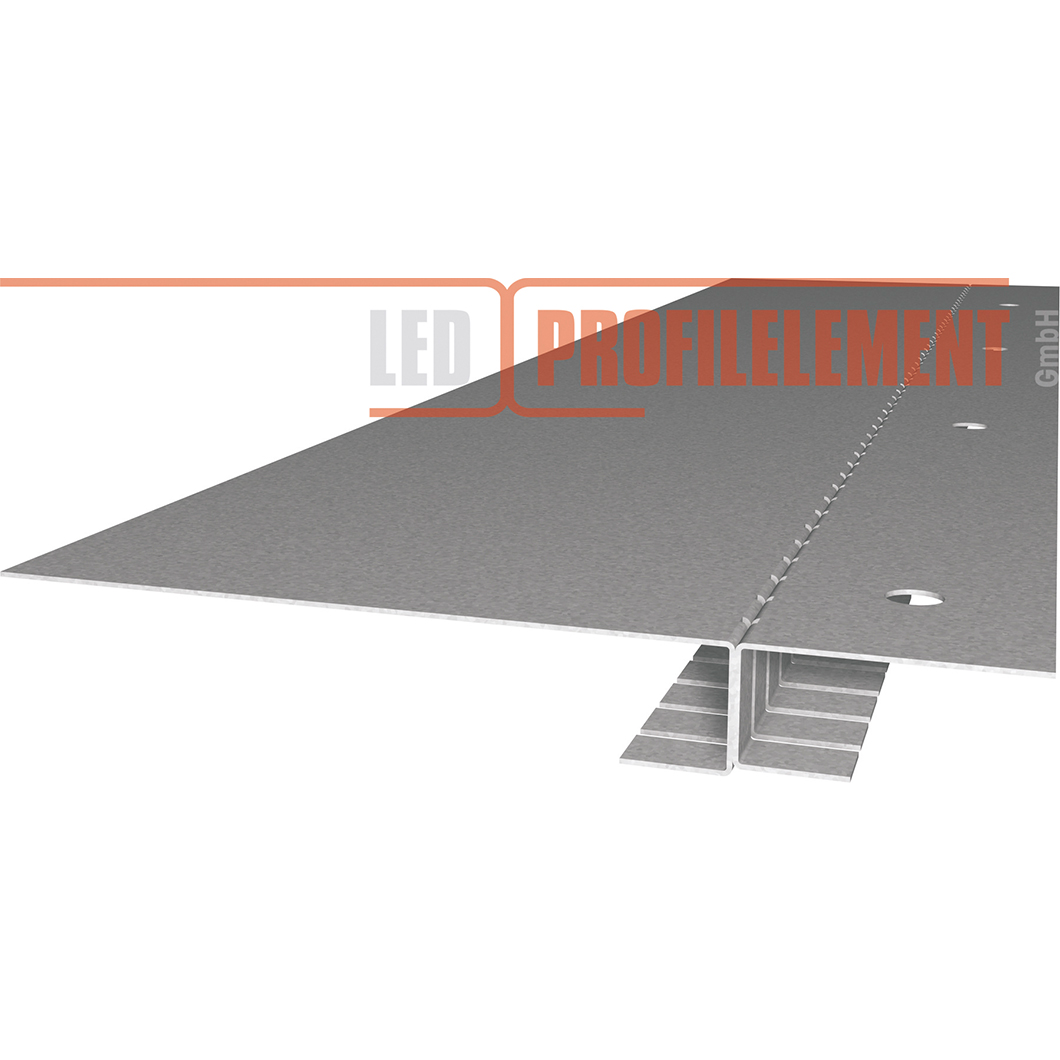

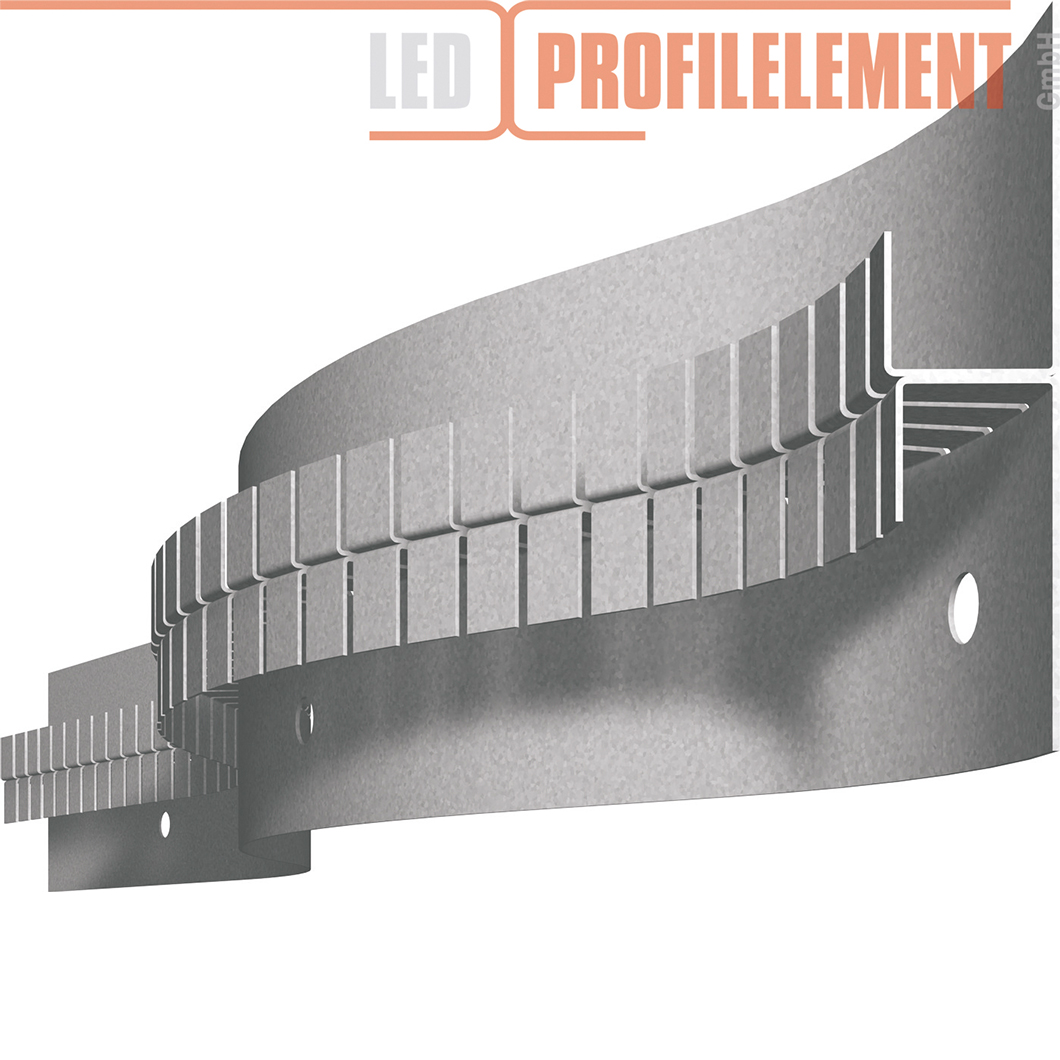

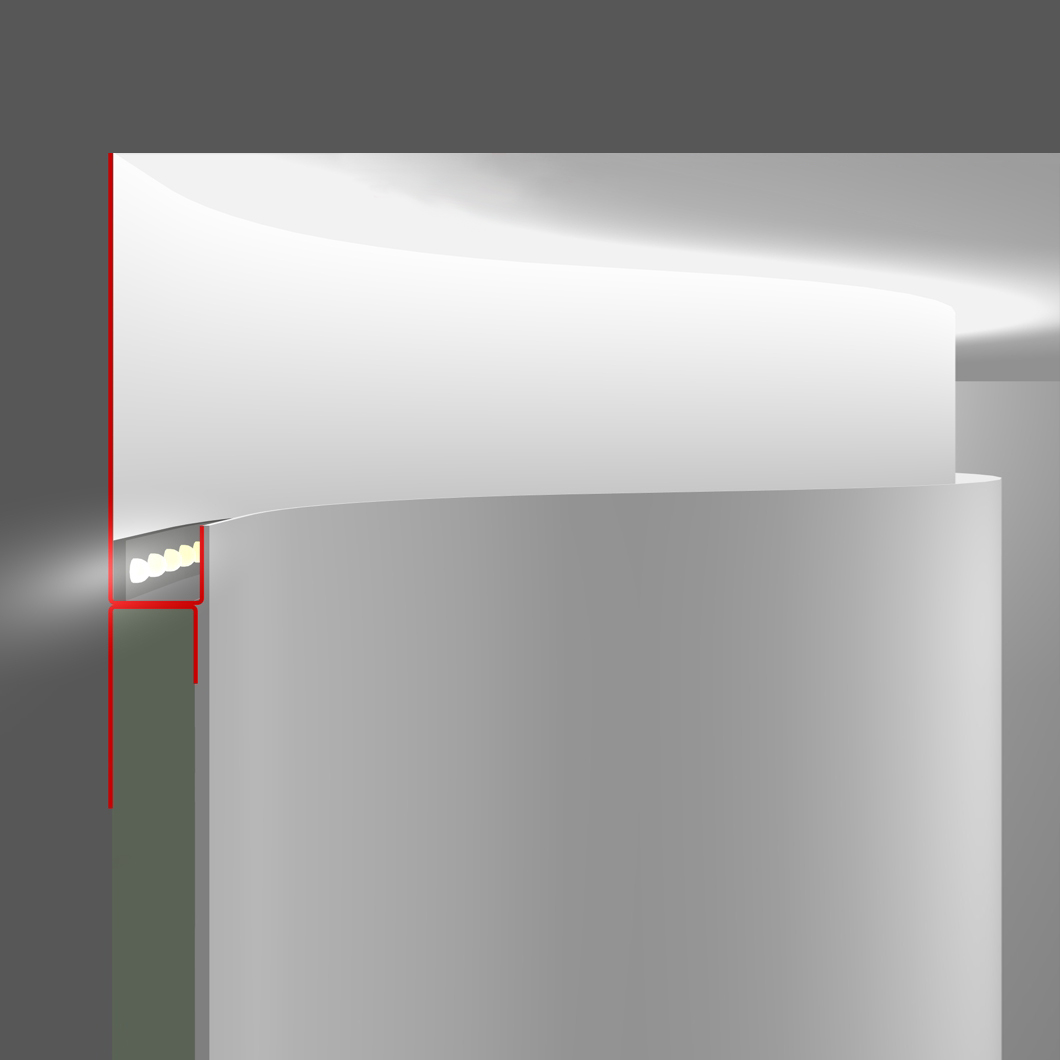

LED Profilelement Circum 21 / SNL Flex profile with visible wing for direct connection to the drywall with substructure. Suitable for curved wall, ceiling and floor/skirting installation, SNL Flex integrates invisibly with the surrounding architecture, and is the perfect choice for cove lighting and for creating dramatic indirect lighting effects. Two SNL profiles can be installed opposite each other to create further design options. The visible wing (gap to the wall) is available in 6 widths. Suitable for use with LED tape up to 13mm in width. Shadow casting can be avoided by altering the plane that the LED strip is fixed to. Made of zinc, which acts as a heat sink for the LED strip, the SNL profile is supplied with the primer already applied. Without diffuser only. Fire rated, see downloads tab for further info.

Use in conjunction with SNL for a combination of straight and curved shapes.

See the Optional Items below for:
The fleece lining for seamless installation (see install instructions)

• Supplied in 2m lengths.
• The recommended minimum radius for all flex profiles is 50cm.

Delivery usually within 3-5 working days.

See install instructions PDF in the Downloads tab.

Specification

• Suitable for LED tape up to 13mm in width
• Visible wing (gap from wall): 20, 30, 40, 50, 60, 70 or 80mm
• Pre-primed in white
• Fire rated
• Recommended flex profile minimum radius: 50cm

How to install LED Profilelement SNL Flex Profile - video

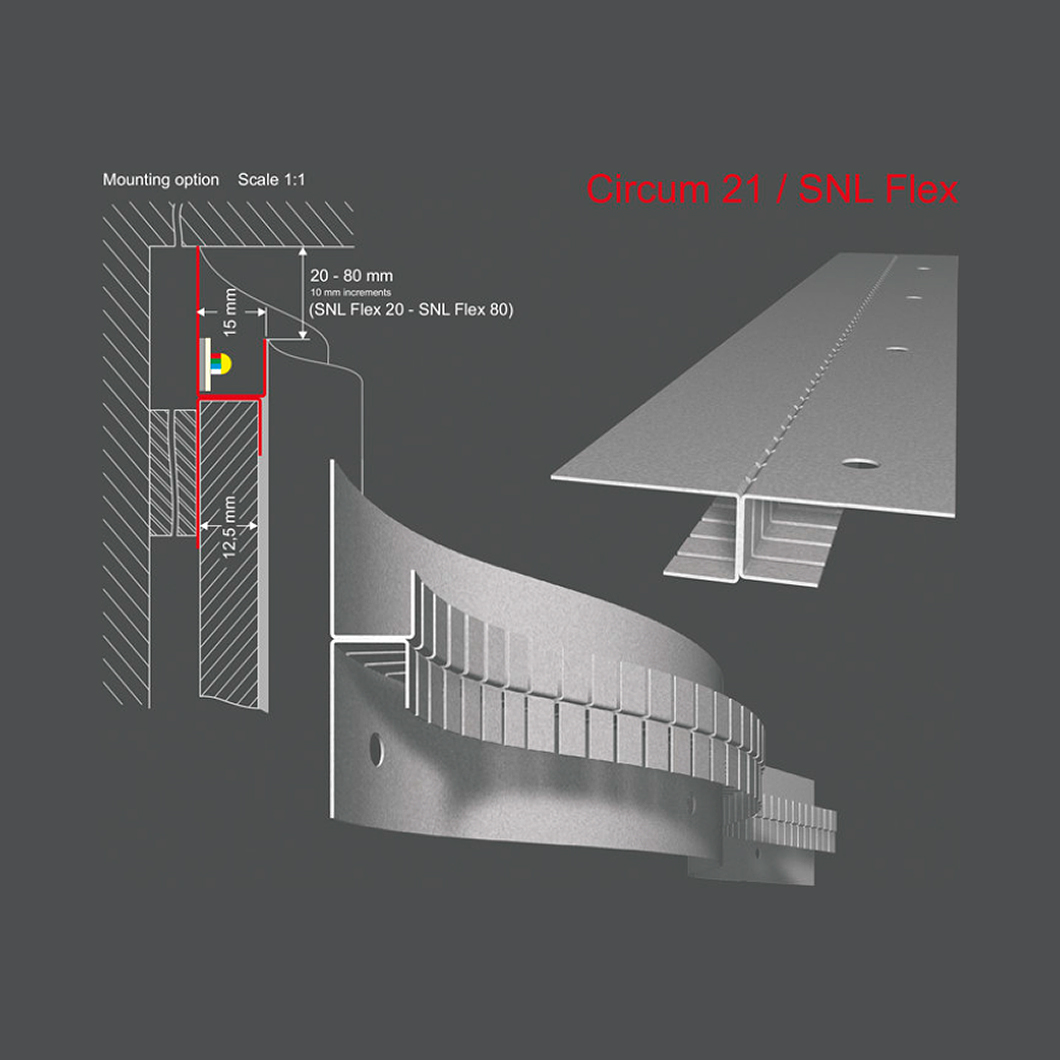

Dimensions

Product dimensions: W.2000mm

Downloads

• LED-Prof-install3.pdf
• mounting instruction-flex-profiles1.pdf
• LED Profilelement Fire Rating Doc

Delivery and warranty

When in stock: Next day delivery
Not in stock: Delivery approximately 2 weeks

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

Supplied with a 3 year warranty
