- Description
-

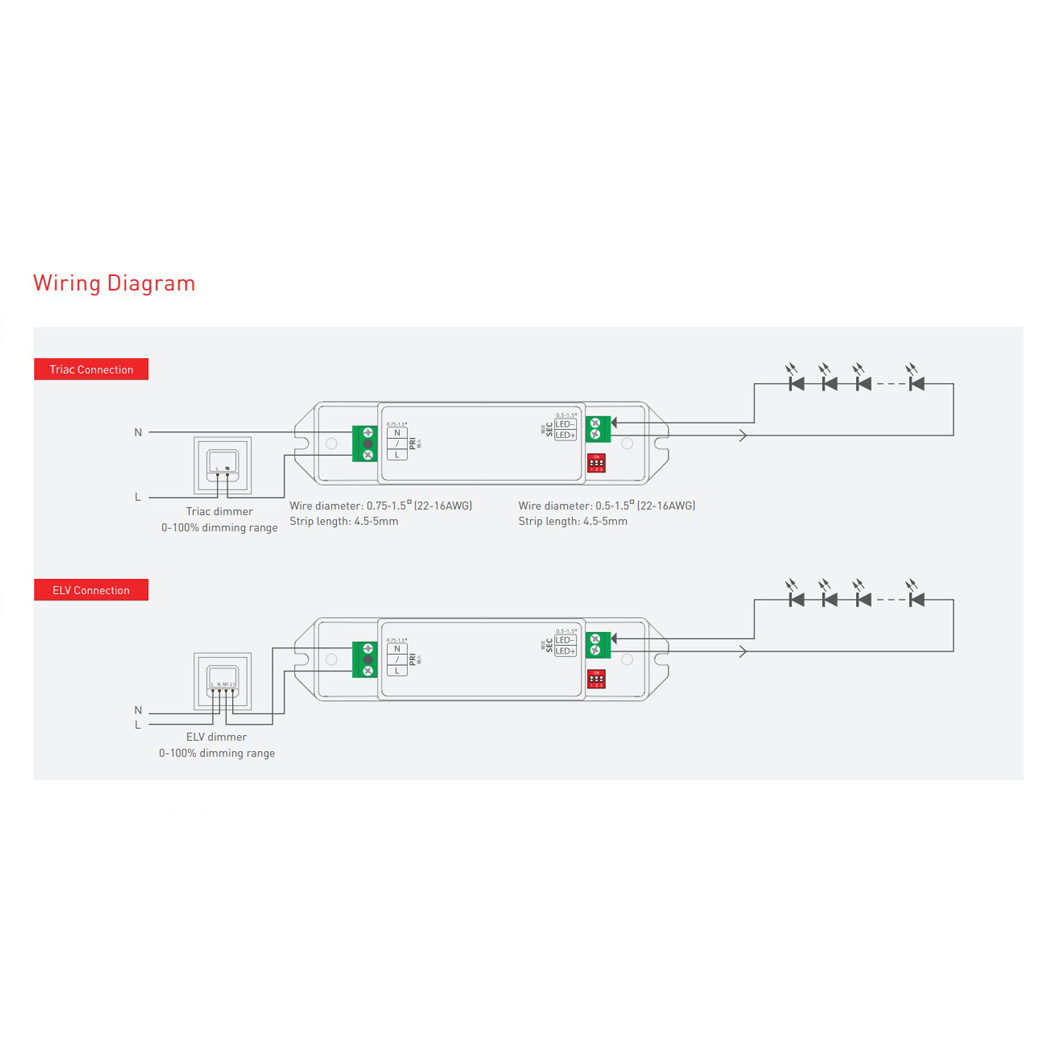

Supports Leading edge (Triac), Trailing edge (ELV).
With soft-on and fade-in dimming function, enhancing your visual comfort.
T-PWM™ dimming technology allows for continuous and flicker-free images under high-speed photography.
- Specification
-
Dimming interface: Triac/ELV
Dimming range: 0-100%, LED Startup Current<0.1%
DC Voltage Range: 200-280Vdc
AC Voltage Range: 220-240Vac
Output voltage: 9-42Vdc
Output current: 100-450mA
Output power: Max. 10W
Working temperature: ta: -20 ~ 45°C tc: 90°C
- Dimensions
-
Product dimensions: W.135mm x D.20mm x H.30mm
- Downloads
-
- Delivery and warranty
-
Delivery
In Stock - UK Next Day Delivery
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
- About the manufacturer
-
With over 20 years experience in designing LED lighting control, L-Tech are experts in creating technologically state-of-the-art LED drivers. Transform your home into a smart home with intelligent lighting control.
