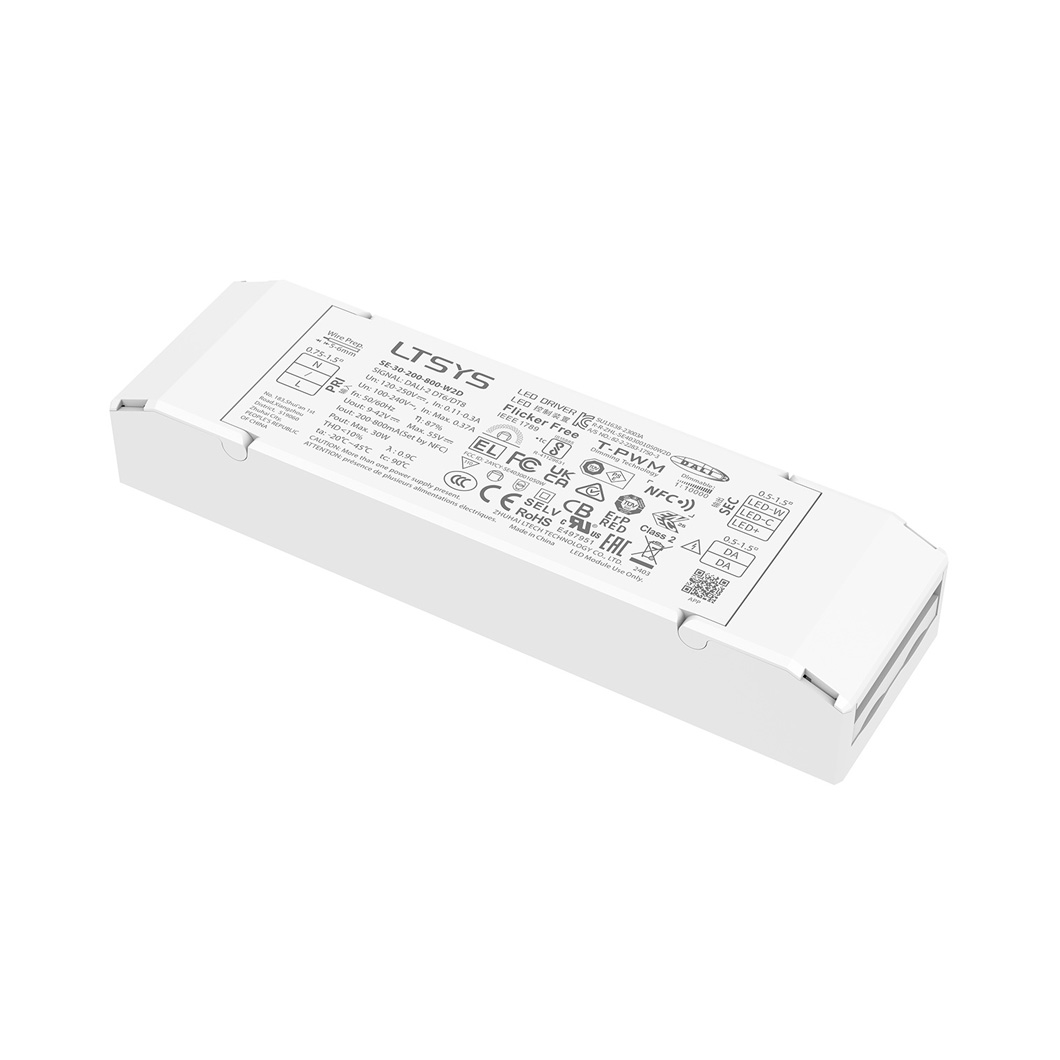

L-Tech 30W NFC Tunable White CC DALI LED Driver

30W NFC batch-programmable DALI LED driver suitable for tunable white human centric lighting projects. Utilising a simplified intelligent control system, supporting NFC programmer or smart device app.

T-PWM dimming technology results in flicker-free, minimum brightness 0.01% and a soft brightness output. Low power dissipation of <0.5W. Dimming range 0-100%.

Product Code: SE-30-200-800-W2D
Output Type: Constant current
Dimming Interface: DALI-2 T6/DT8
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

Output Voltage: 9-42Vdc
Max. Output Voltage: ≤55Vdc
Output Current Range: 200-800mA
Output Power Range: 1.8W-30W
Dimming Range: 0~100%, down to 0.01%
LF Current Ripple: <3%(Maximum current for non dimming state)
Current Accuracy: ±5%
PWM Frequency: ≤3600Hz

DC Voltage Range: 120-250Vdc
AC Voltage Range: 100-240Vac
EoF: 100%
Input Voltage: 115Vac/230Vac
Frequency: 50/60Hz
Input Current: ≤0.34A/115Vac, ≤0.17A/230Vac
Power Factor: PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
THD: THD≤10%/230Vac, at full load
Efficiency (Typ.): 87%
Inrush Current: Cold start 25A(Test twidth=130us tested under 50% Ipeak)/230Vac
Anti Surge: L-N: 2KV
Leakage Current: Max. 0.5mA

Working Temperature: ta: -20 ~ 45°C tc: 90°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

Product dimensions: W.167mm x D.30mm x H.39mm
