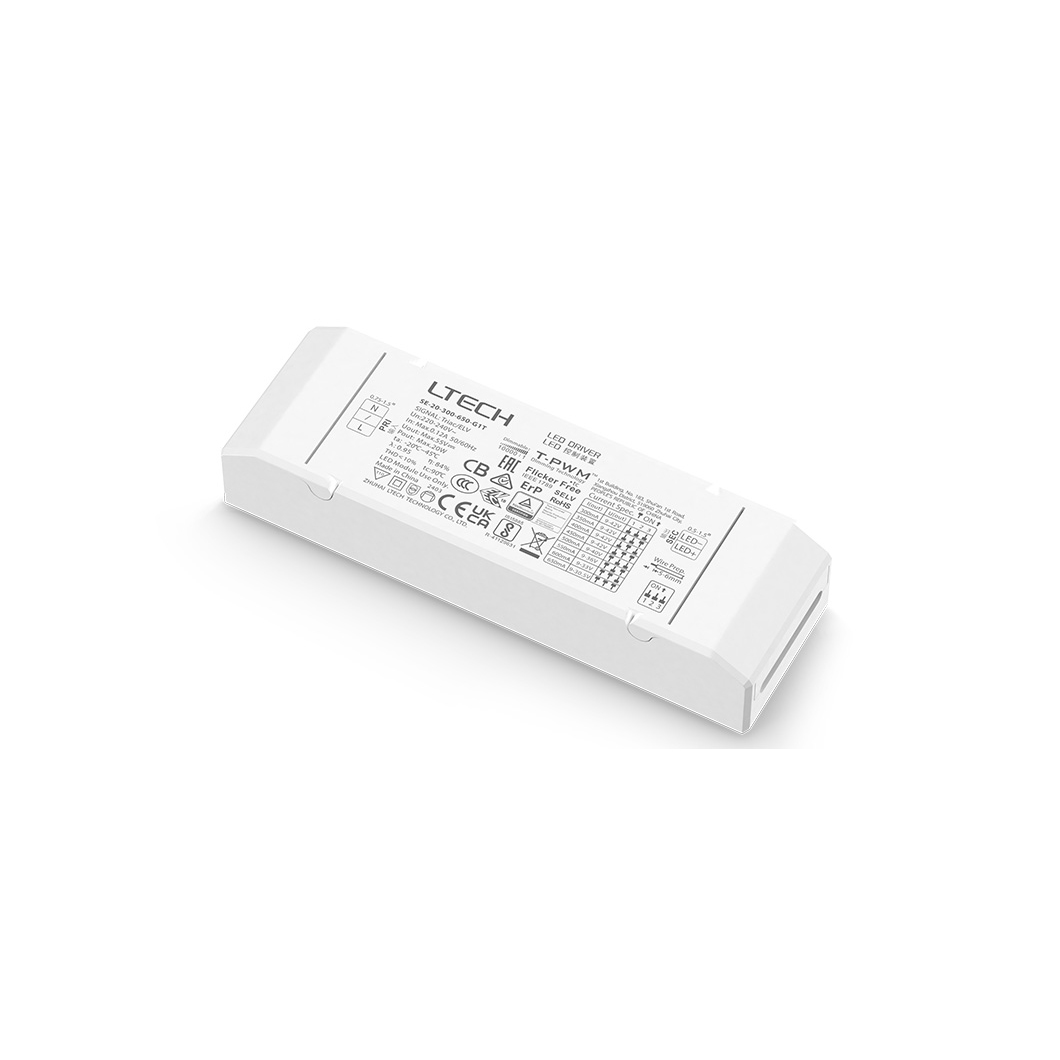

L-Tech 20W 300-650mA CC Triac LED Driver

Manufacturer: L-Tech

£32

One tree planted
Trustpilot Rating
Free UK delivery
Next Day Delivery
365 Day returns

View product details

Description

Intelligent constant current LED driver. Supports Leading edge (Triac), Trailing edge (ELV). With soft-on and fade-in dimming function, enhancing your visual comfort (see video below). T-PWM™ dimming technology allows for continuous and flicker-free images under high-speed photography.

The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO. Small size and light weight. The clamshell design and screwless type for strain-relief.

Dimming

  • Support Leading edge(Triac), Trailing edge(ELV).
  • With soft-on and fade-in dimming function, enhancing your visual comfort.
  • T-PWM™ dimming technology allows continuous and flicker-free images under high-speed photography.
  • Dimming from 0~100%, down to 0.01%.
  • The whole dimming process is flicker-free with high frequency exemption level.

Other Info

  • Multiple current levels and wide voltage range. Suitable for different power of LEDs.
  • Class 2 LED driver, Safety Extra Low Voltage (SELV).
  • Innovative thermal management technology intelligently protects the life of the LED driver.
  • Overheat, overload, short circuit protection and automatic recovery.
  • Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
  • Up to 50,000-hour life time.
  • 5-year warranty (Rubycon capacitor).
Specification

Features:
Output Type: Constant current
Dimming Interface: Triac/ELV
Protection Grade: IP20
Insulation Grade: Class II (suitable for class I/II/III light fixtures)

Output:
Output Voltage: 9-42Vdc
Maximum Output Voltage: ≤55V
Output Current Range: 300-650mA
Output Power Range: 2.7W-20W
Dimming Range: 0-100%, down to 0.01%
Ripple Current: Max.5.0%@Rated current
Current Accuracy: ±5%
PWM Frequency: 3600Hz

Input:
DC Voltage Range: 200-280Vdc
Input Voltage: 220-240Vac
Frequency: 50/60Hz
Input Current: ≤0.12A/230Vac
Power Transmission: Max. 25W
Power Factor: PF>0.95/230Vac , at full load
THD: THD<10%/230Vac , at full load
Efficiency (Typ.): >84%@500mA
Inrush Current: Cold start 13A(Test twidth=120us tested under 50% Ipeak)/230Vac
Anti Surge: L-N: 2kV
Leakage Current: <0.5mA/230Vac

Environment:
Working Temperature: ta: -20 ~ 45°C tc: 90°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C, 10 ~ 95%RH
Temperature Coefficient: ±0.03%/°C (-20°C ~ 45°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

Protection:
Overload Protection: Shut down the output and recover automatically once it exceeds 1.02-1.35 times of the rated power
Overheat Protection: Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Short Circuit Protection: When short circuit occurs, shut down the output and recover automatically

Weight: 110g

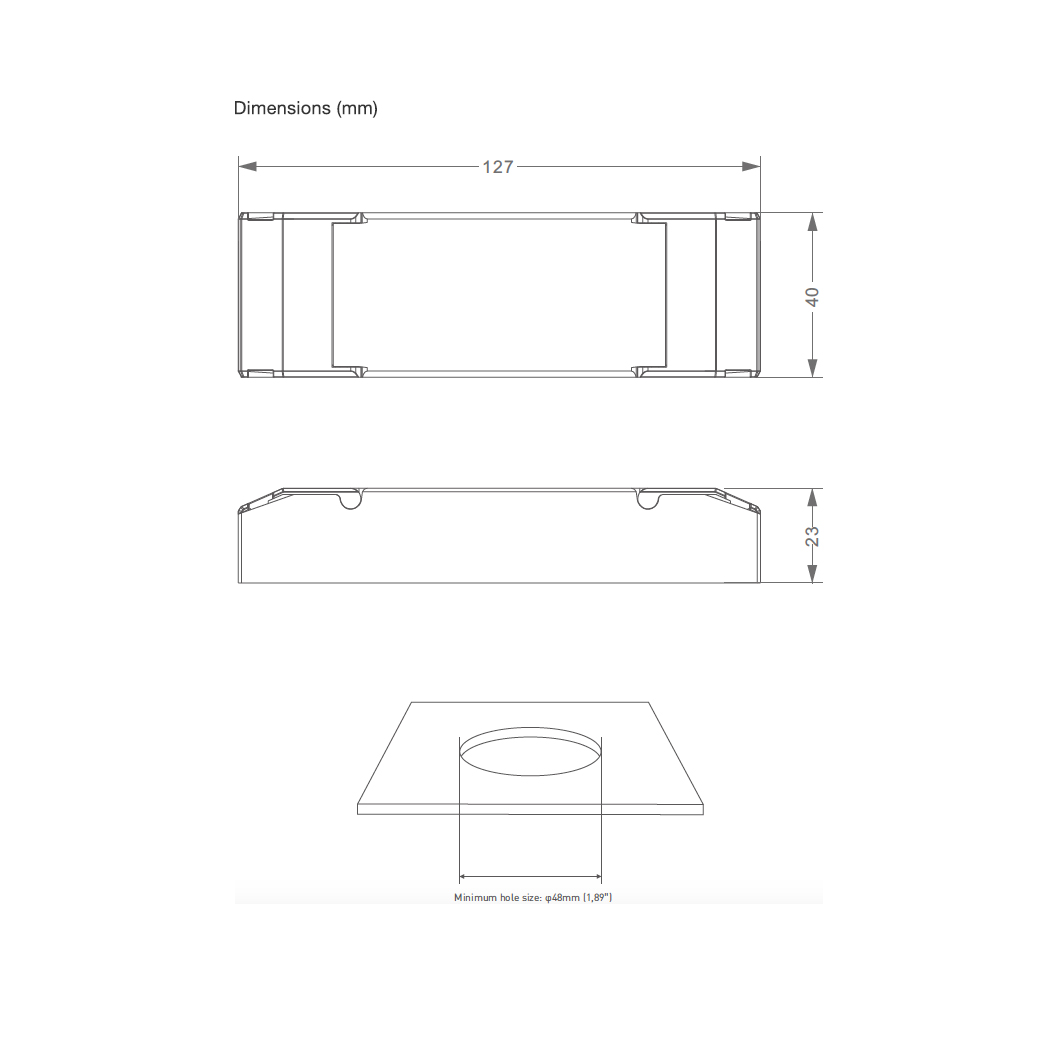

Dimensions

Product dimensions: W.127mm x D.23mm x H.40mm

Cutout dimensions: Dia.48mm
