- Description
-
The design of the dismountable end cap allows you to adjust the length of the housing depending on your needs.
Dimming from 0~100%, down to 0.1%.

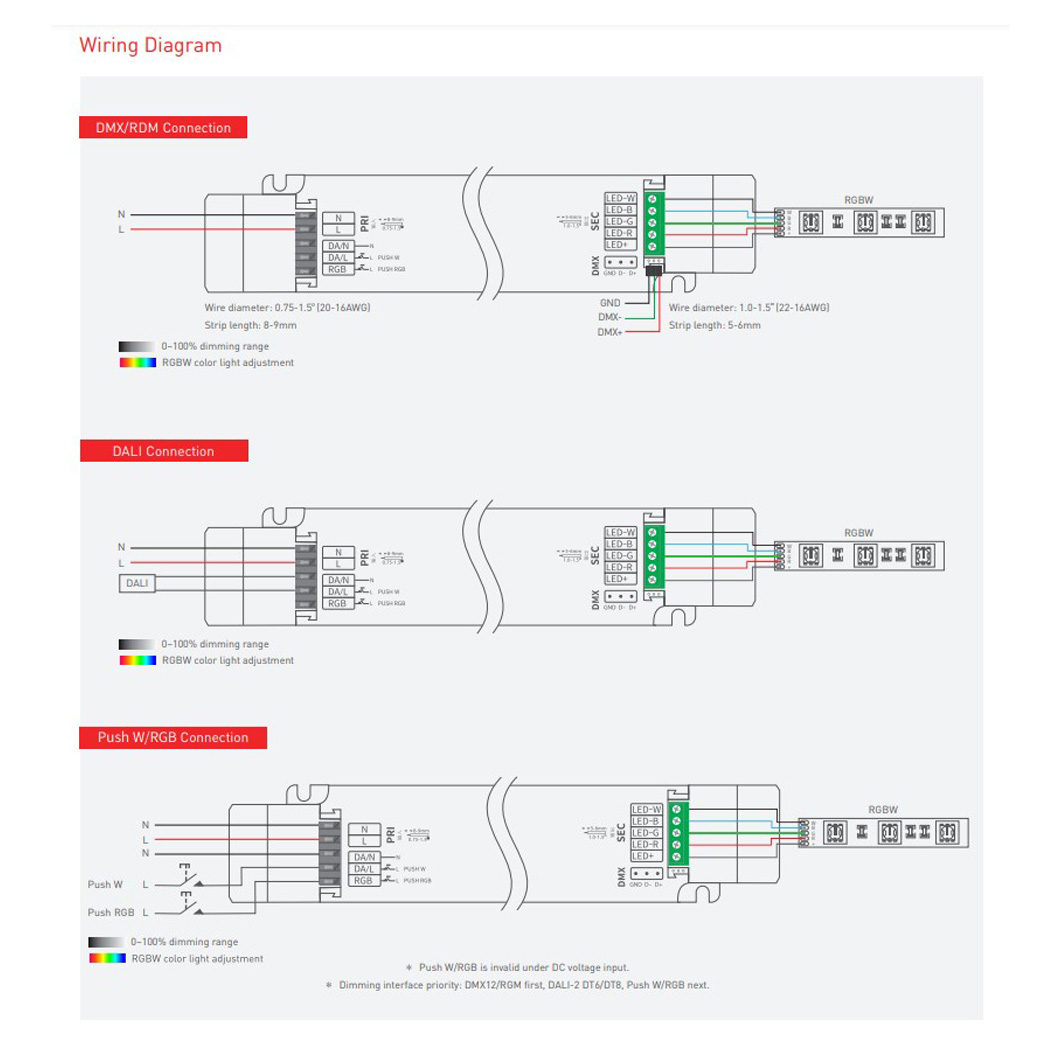

Dimming interface:DMX512/RDM, DALI-2 DT6/DT8, Push.
Energy-efficient driver: Effeciency 93%
- Specification
-
Dimming interface: DMX12/RDM, DALI-2 DT6/DT8, Push
Dimming range: 0-100%, LED Startup Current<0.1%
DC Voltage Range: 200-280Vdc
AC Voltage Range: 198-264Vac
Output voltage: 24Vdc
Output current: Max. 6.25A (1.56Ax4CH)
Working temperature: ta: -20 ~ 50°C tc: 85°C
- Dimensions
-
Product dimensions: W.352mm x D.30mm x H.43mm
- Downloads
-
- Delivery and warranty
-
In Stock - UK Next Day Delivery
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
- About the manufacturer
-
With over 20 years experience in designing LED lighting control, L-Tech are experts in creating technologically state-of-the-art LED drivers. Transform your home into a smart home with intelligent lighting control.
