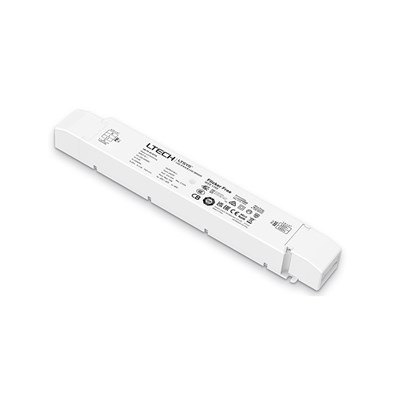

L-Tech 150W 24VDC CV Phase Dim LED Driver

Description

150W LED driver suitable for leading edge (TRIAC), trailing edge (ELV), and push DIM dimming. This product features a soft-on and fade-in function. Dimming range 0-100%.

Specification

Output
Output voltage: 24Vdc
Input voltage: 24Vdc ± 0.5Vdc
Output current: Max. 6.25a
Output power: Max. 150W
Output power range: 0-150W
Strobe level: High-frequency exemption level
Dimming range: 0-100%, down to 0.1%
Overload power limitation: ≥102%
PWM frequency: 3600Hz

Input
Dimming interface: Leading edge (TRIAC), Trailing edge (ELV), and Push DIM
Input voltage: 220-240Vac
Frequency: 50-60Hz
Input current: ≤0.75A/230Vac
Power factor: PF>0.98/230Vac, at full load
THD: THD＜6%@230Vac (at full load)
Efficiency (typ.): 91%
Inrush current (typ.): Cold start 45A at 230Vac
Control surge capability: L-N: 2kV
Leakage current: Max. 0.5mA

Environment
Working temperature: ta: -20~50°C tc: 90°C
Working humidity: 230Vac 20 ~ 95%RH, non-condensing
Storage temp. humidity: -40°C ~ 80°C, 10~95%RH
Temp. coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

Dimensions

Product dimensions: W.352mm x D.30mm x H.43mm

Downloads

• L-Tech-150W-24VDC-CV-Triac-LED-Driver-Datasheet

Delivery and warranty

 Delivery

In Stock - UK Next Day Delivery

 August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

With over 20 years experience in designing LED lighting control, L-Tech are experts in creating technologically state-of-the-art LED drivers. Transform your home into a smart home with intelligent lighting control.
