L-Tech 150W 24VDC CV DALI LED Driver

Manufacturer: L-Tech

£160


One tree planted
Trustpilot Rating
Free UK delivery
Next Day Delivery
365 Day returns

View product details

Description

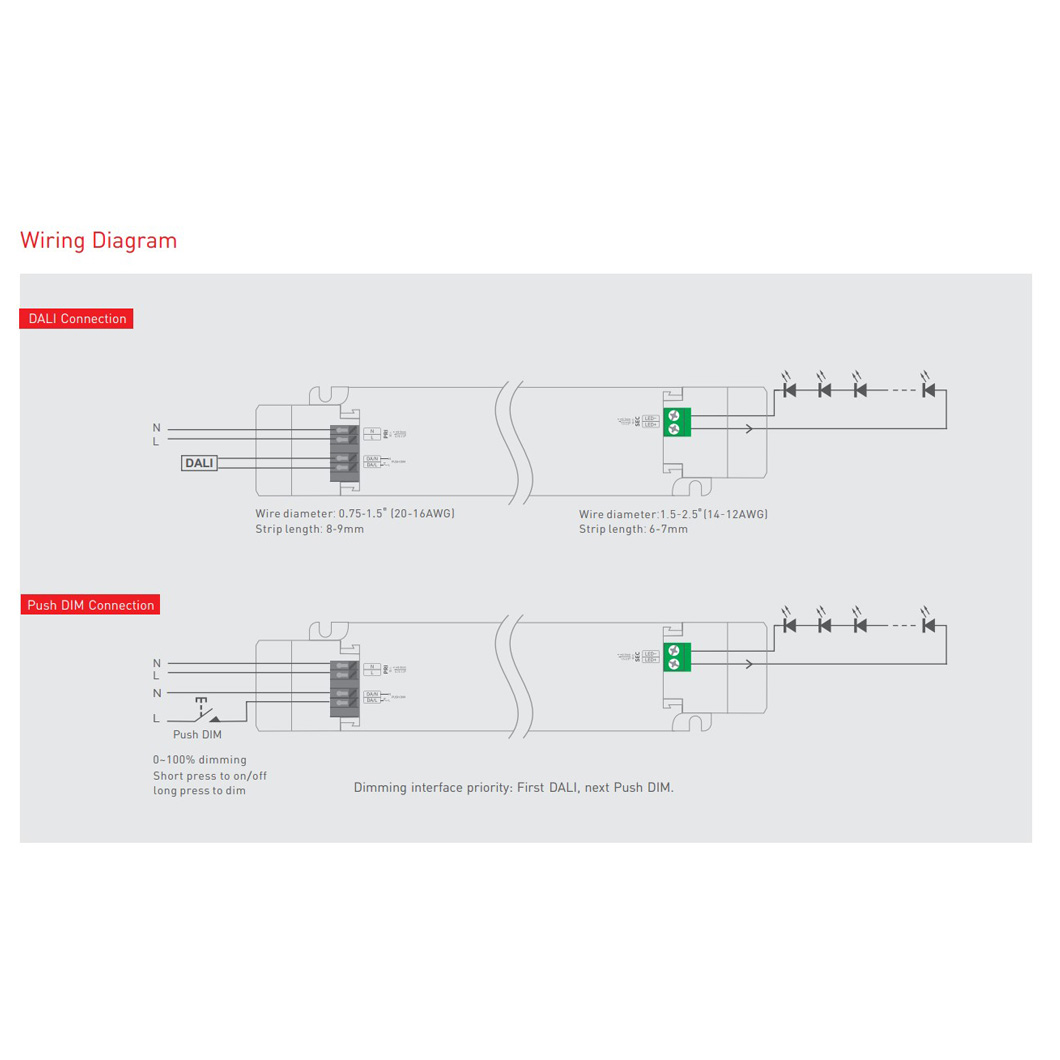

150W LED driver suitable for DALI and push DIM dimming. This product features innovative thermal management technology and intelligent power life protection. Dimming range 0-100%.

Specification

Output
Output voltage: 24Vdc
Input voltage: 24Vdc ± 0.5Vdc
Output current: Max. 6.25a
Output power: Max. 150W
Output power range: 0-150W
Strobe level: High-frequency exemption level
Dimming range: 0-100%, down to 0.1%
Overload power limitation: ≥102%
Ripple: Switch ripple≤200mV, noise≤500mV
PWM frequency: 3600Hz

Input
Dimming interface: DALI-2 DT6/DT8
Input voltage: 220-240Vac
Frequency: 50-60Hz
Input current: ≤0.75A/230Vac
Power factor: PF>0.98/230Vac, at full load
THD: THD<6%@230Vac (at full load)
Efficiency (typ.): 93%
Inrush current (typ.): Cold start 45A at 230Vac
Control surge capability: L-N: 2kV
Leakage current: Max. 0.5mA

Environment
Working temperature: ta: -20~50°C tc: 90°C
Working humidity: 230Vac 20 ~ 95%RH, non-condensing
Storage temp. humidity: -40°C ~ 80°C, 10~95%RH
Temp. coefficient: ±0.03%/°C(0-50°C)
Vibration:
10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

Dimensions

Product dimensions: W.352mm x D.30mm x H.43mm
