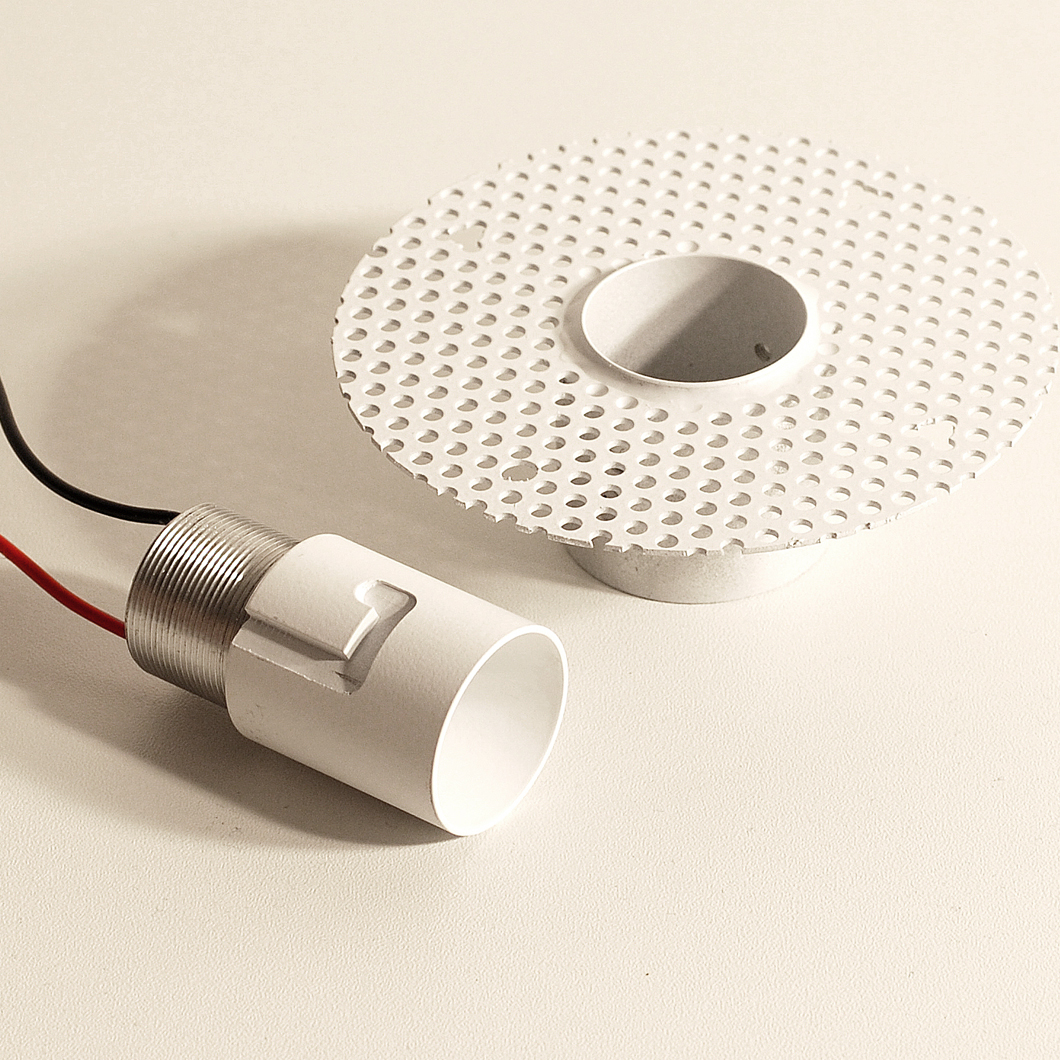

Flexalighting Zero R2 IP44 Plaster In Downlight

Zero R2 is a sleek, petite, but effective trimless recessed plaster-in ceiling light. The high Chromatic Rendering Index (CRI 93) allows for the usage as accent lighting in museums or commercial expositions, and perfect for art or sculptures in any home. Available in several colour temperatures and power. IP44 rated.

Matching plasterboard recessing frame (ZQC001/ZQC001B) included.

Other Zero versions available.

IP44
1W 350mA
2W 500mA
Constant current - wired in series

10°, 25° or 60° beam angle

ZQC001/ZQC001B recessed plasterboard frame (incl.):
Diameter:95mm H:32mm
Circular 40mm cutout

Driver required - see 'You May Also Need' below
Constant Current Driver | No. units powered
L-Tech 6W 350-700mA NFC CC TRIAC Ultra Small LED Driver | 1-3 units
L-Tech 20W 300-650mA CC Triac LED Driver | 2-18 Zero R2 (1W)
L-Tech 20W 300-650mA CC Triac LED Driver | 2-9 Zero R2 (2W)

Lamp type: LED 1W 350mA or 2W 500mA

Product dimensions: H.55mm x Diameter.30mm

• zero-R2-datasheet-1.pdf
• zero-R2-datasheet-2.pdf
• Zero-Energy-Label.pdf
• Flexa-Drivers-Datasheet23.pdf
• ZERO R2 10DG 3000K 350mA.ies
• ZERO R2 10DG 3000K 500mA.ies
• ZERO R2 25DG 3000K 350mA.ies
• ZERO R2 25DG 3000K 500mA.ies
• ZERO R2 60DG 3000K 350mA.ies
• ZERO R2 60DG 3000K 500mA.ies
• ZERO R2 10DG 3000K 350mA.ldt
• ZERO R2 10DG 3000K 500mA.ldt
• ZERO R2 25DG 3000K 350mA.ldt
• ZERO R2 25DG 3000K 500mA.ldt
• ZERO R2 60DG 3000K 350mA.ldt
• ZERO R2 60DG 3000K 500mA.ldt

 Delivery

Delivery usually within 2-3 weeks

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

Flexalighting produce innovative and beautifully made architectural lighting solutions for indoor and outdoor installations. Leveraging one of the fundamental qualities of the LED source, the small size, the collection combines minimum device size with high quality luminous efficiency and high Chromatic Rendering Index LEDs.  Manufactured in Italy with a level of finishing that is at the top of the international market, Flexalighting is the perfect choice for domestic or commercial projects.
