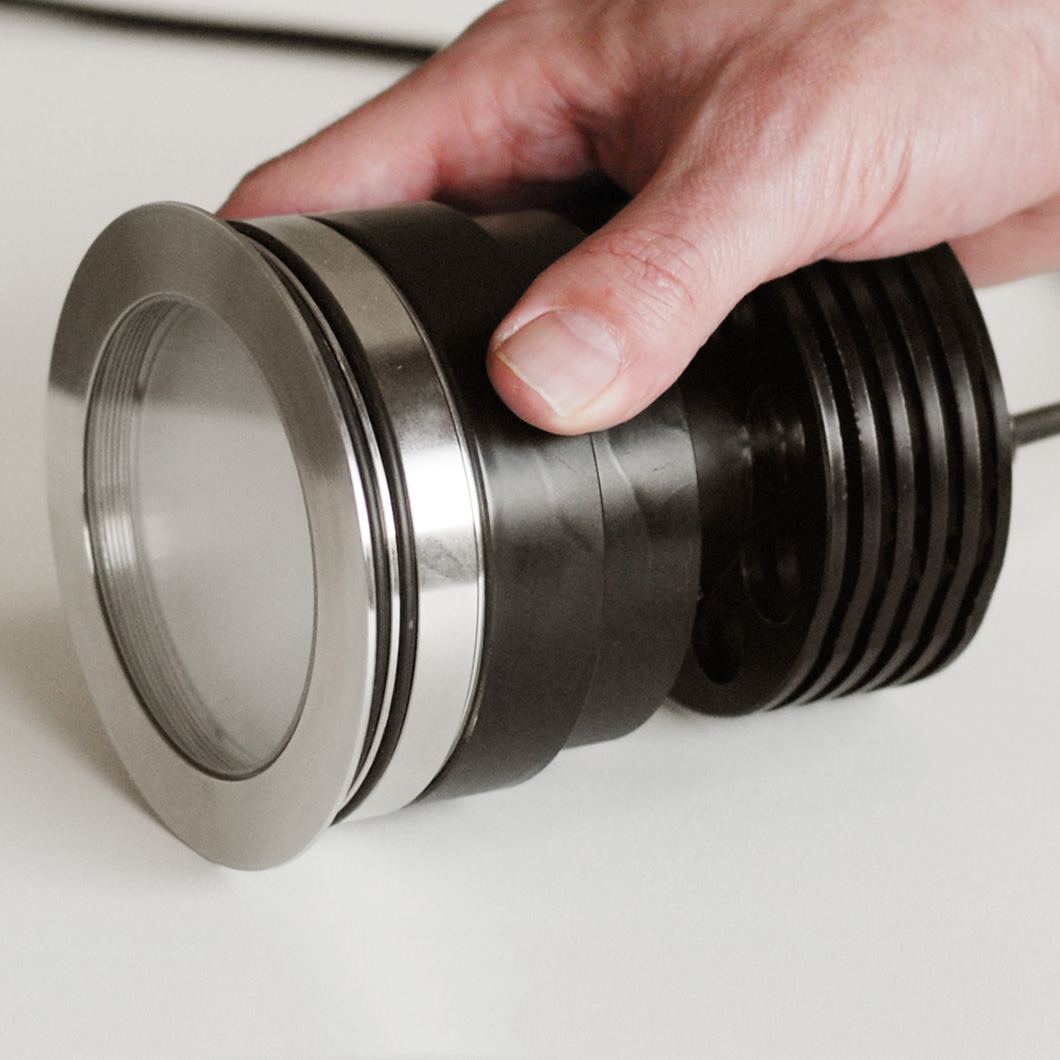

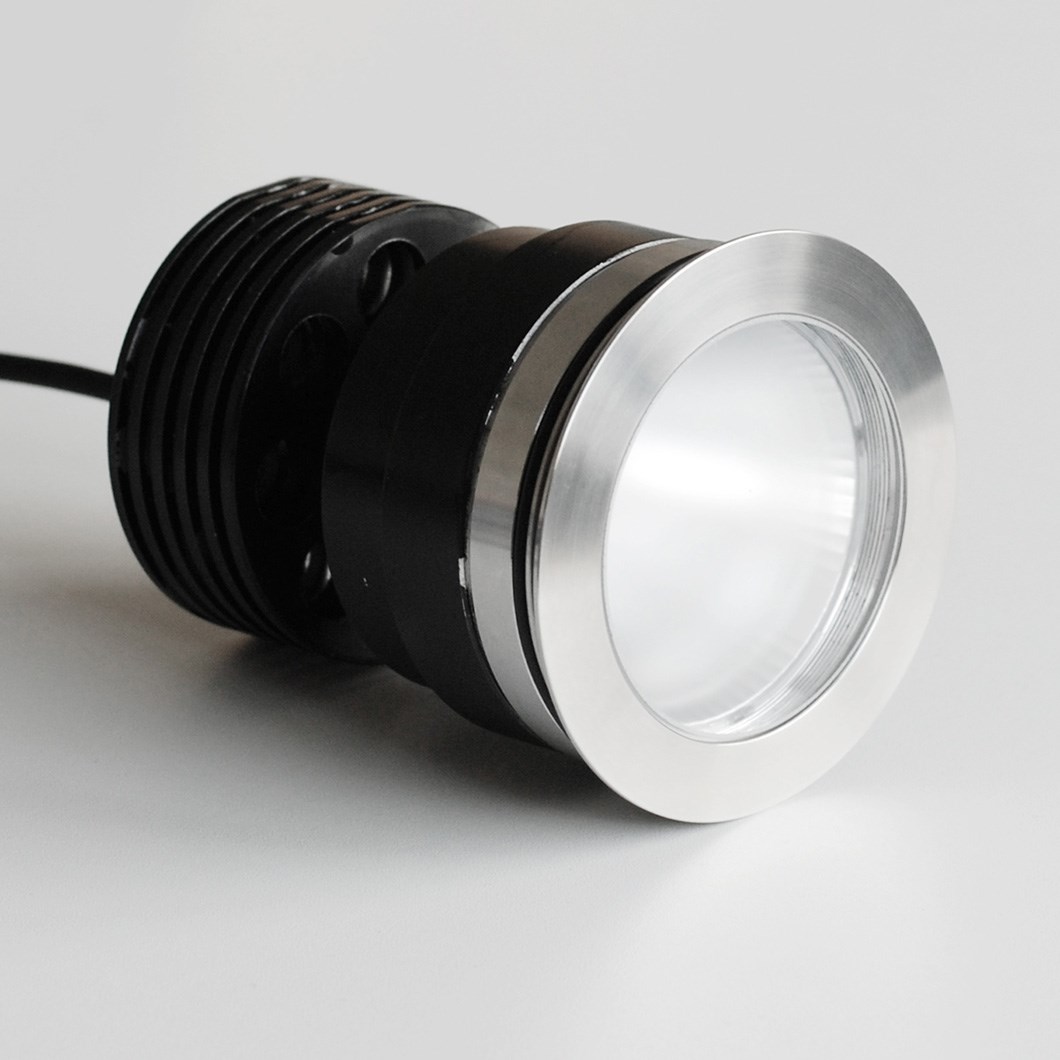

Flexalighting Wotan 20 LED IP67 Exterior Recessed Downlight

Wotan 20 LED IP67 recessed downlight boasts high quality construction with superb optical performance. The use of advanced waterproofing technologies provides absolute reliability of the product. Revolutionary in the practical design for dissipation, they give you the opportunity to combine colour temperatures and beam openings in the CRI85 and CRI93 versions. Anti-glare filter louvre (L0D2) available for maximum visual comfort of the installation. Optional recessing box (CSDS20) available.

IP67 rated, suitable for installation in bathroom zones 0, 1, 2 and 3.

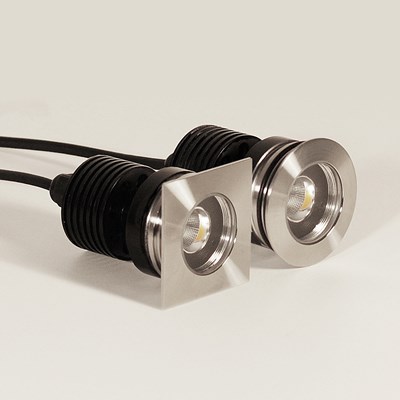

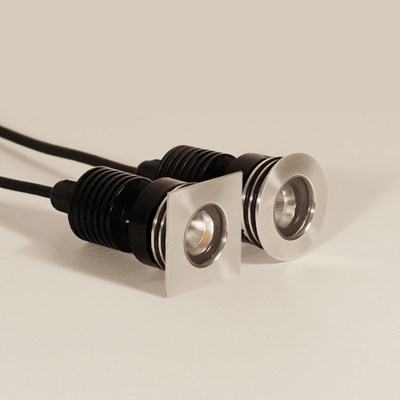

Other Wotan versions available.

IP67 - suitable for bathroom zones 0, 1, 2 and 3
Power: 20W
Supply current: 500 mA
Constant current
Spring fixing

CRI 85 or 93
CCT 2700°K, 3000°K or 4000°K

23°, 36°, 52° or 120° beam angle
Circular 90mm cutout

Optional recessing box (CSDS20):
Diameter:148mm D:196mm

Driver not included - see 'You May Also Need' below:
Driver | No. units powered
L-Tech 20W 300-650mA CC Triac LED Driver | 1x Mine 20

Lamp type: 20W LED (500mA)

Product dimensions: H.140mm x Diameter.100mm

• Data Sheet PDF
• Install Instructions PDF
• Data Sheet Flexalighting Drivers PDF
• Bathroom Zones & IP Ratings Explained PDF
• Lighting File | WOTAN 20 2700K CRI85 10DG IES
• Lighting File | WOTAN 20 2700K CRI85 23DG IES
• Lighting File | WOTAN 20 2700K CRI85 35DG IES
• Lighting File | WOTAN 20 2700K CRI85 52DG IES
• Lighting File | WOTAN 20 2700K CRI85 120DG IES
• Lighting File | WOTAN 20 3000K CRI85 10DG IES
• Lighting File | WOTAN 20 3000K CRI85 23DG IES
• Lighting File | WOTAN 20 3000K CRI85 35DG IES
• Lighting File | WOTAN 20 3000K CRI85 52DG IES
• Lighting File | WOTAN 20 3000K CRI85 120DG IES
• Lighting File | WOTAN 20 4000K CRI85 10DG IES
• Lighting File | WOTAN 20 4000K CRI85 23DG IES
• Lighting File | WOTAN 20 4000K CRI85 35DG IES
• Lighting File | WOTAN 20 4000K CRI85 52DG IES
• Lighting File | WOTAN 20 4000K CRI85 120DG IES

 Delivery

Delivery usually within 2-3 weeks

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

Flexalighting produce innovative and beautifully made architectural lighting solutions for indoor and outdoor installations. Leveraging one of the fundamental qualities of the LED source, the small size, the collection combines minimum device size with high quality luminous efficiency and high Chromatic Rendering Index LEDs.  Manufactured in Italy with a level of finishing that is at the top of the international market, Flexalighting is the perfect choice for domestic or commercial projects.
