Flexalighting Maggy 72 Linear Plaster In Track System

Designer: Flexalighting

Manufacturer: Flexalighting

£0.00001

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

Flexalighting Maggy 72 trimless recessed linear track system utilises 4 components to create flexible tailored installations. Available in 2 straight lengths - 1000mm and 500mm, with an L-module for corner connections and and end module to cap the line.

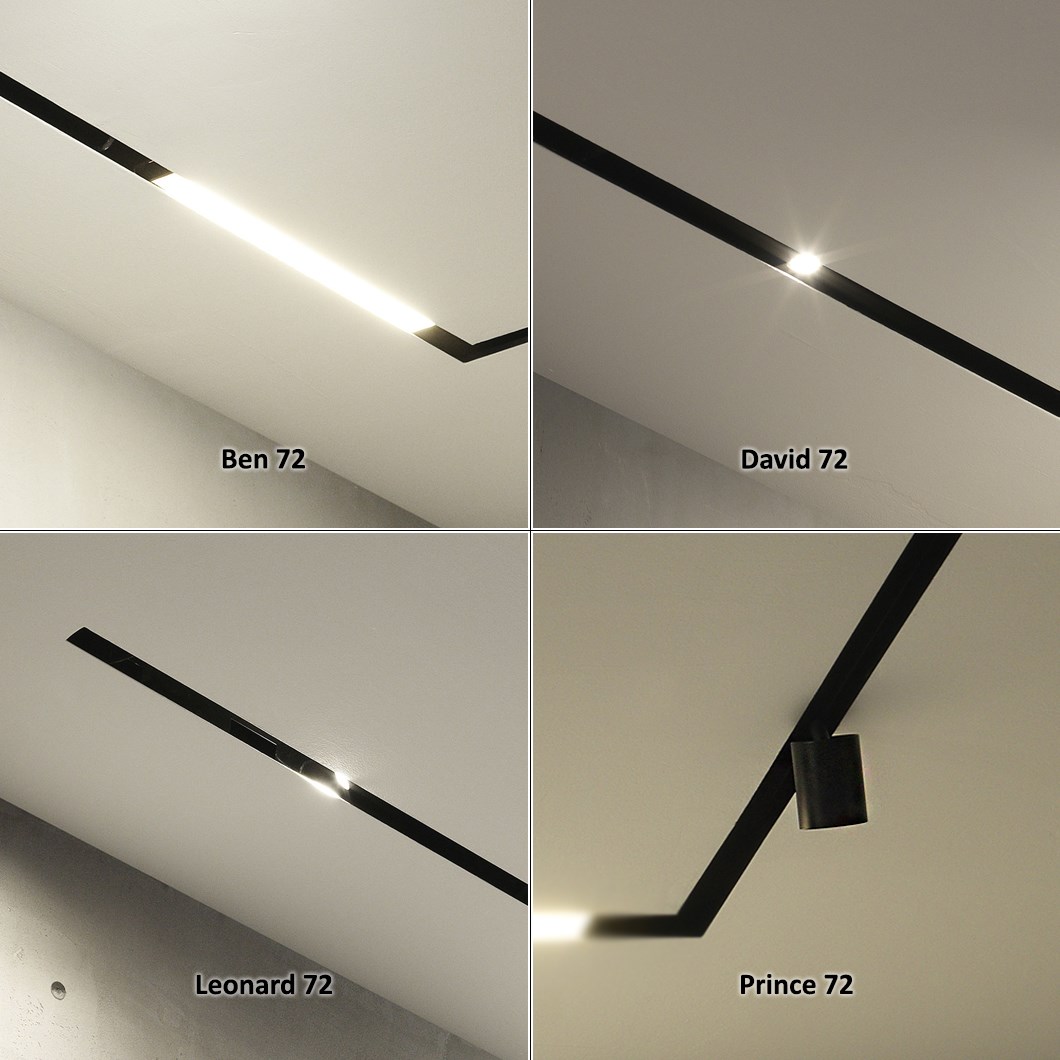

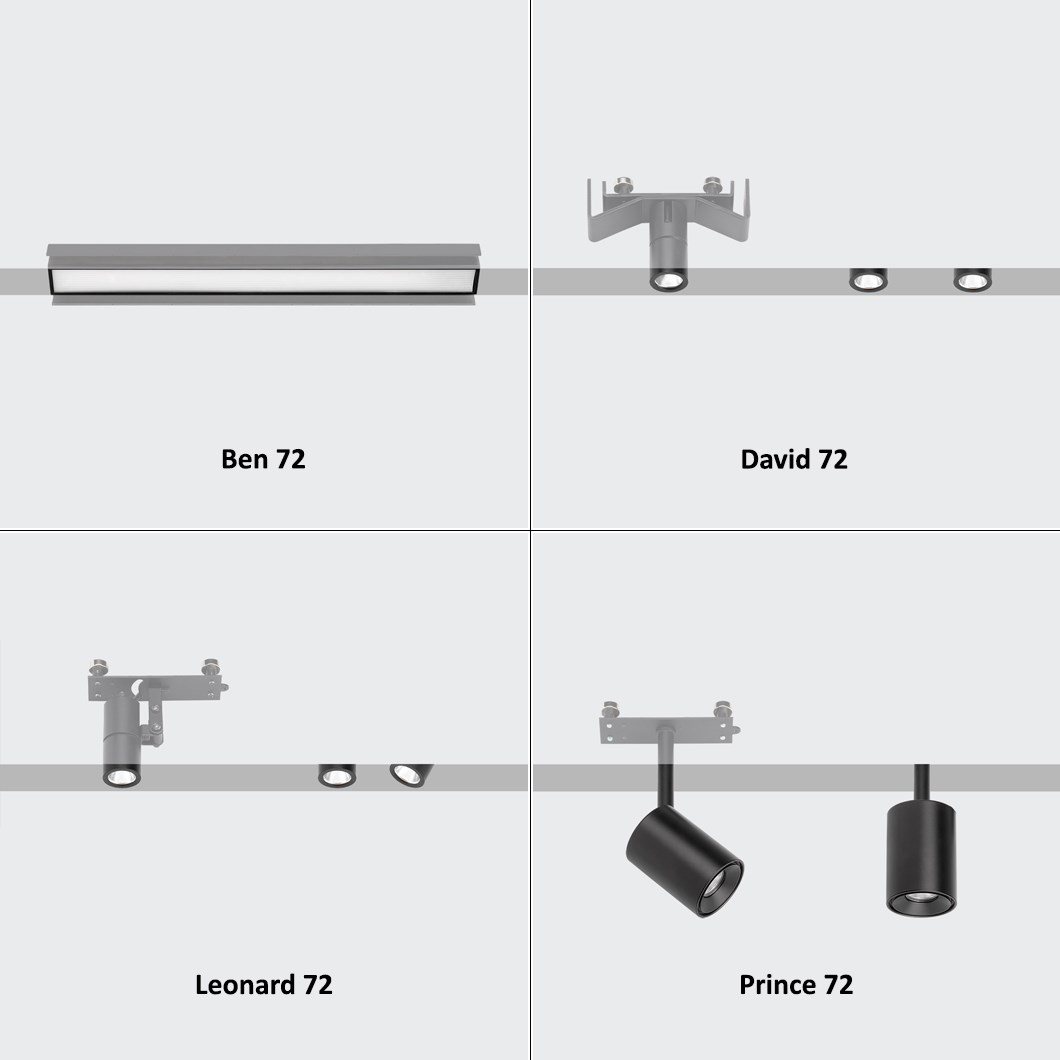

The Flexalighting Maggy 72 track system has a choice of 4 compatible LED light modules:

Ben 72
The Flexalighting Ben 72 is an LED diffuser module designed exclusively for the Maggy 72 trimless recessed linear track system. Offering a soft light, the Ben 72 module attaches to the Maggy 72 track via a magnetic system, with side slots on the duct which allow for the light modules to be easily repositioned. Available in 2700ºK, 3000ºK and 4000ºK light colour temperatures.

David 72
The Flexalighting David 72 is a fixed LED downlight module designed exclusively for the Maggy 72 trimless recessed linear track system. Offering 3 beam angles to suit various applications, the David 72 module attaches to the Maggy 72 track via a magnetic system, with side slots on the duct which allow for the light modules to be easily repositioned. Available with a CRI of 85 or 93, and in 2700ºK, 3000ºK and 4000ºK light colour temperatures.

Leonard 72
The Flexalighting Leonard 72 is an adjustable LED downlight module designed exclusively for the Maggy 72 trimless recessed linear track system. Offering 3 beam angles to suit various applications, the fitting has a 45º adjustable tilt and full 360º rotation. The Leonard 72 module attaches to the Maggy 72 track via a magnetic system, with side slots on the duct which allow for the light modules to be easily repositioned. Available with a CRI of 85 or 93, and in 2700ºK, 3000ºK and 4000ºK light colour temperatures.

Prince 72
The Flexalighting Prince 72 is an adjustable LED spot light module designed exclusively for the Maggy 72 trimless recessed linear track system. Offering 3 beam angles to suit various applications, the fitting has a 75º adjustable tilt and 360º rotation. The Prince 72 module attaches to the Maggy 72 track via a magnetic system, with side slots on the duct which allow for the light modules to be easily repositioned. Available with a CRI of 85 or 93, and in 2700ºK, 3000ºK and 4000ºK light colour temperatures.

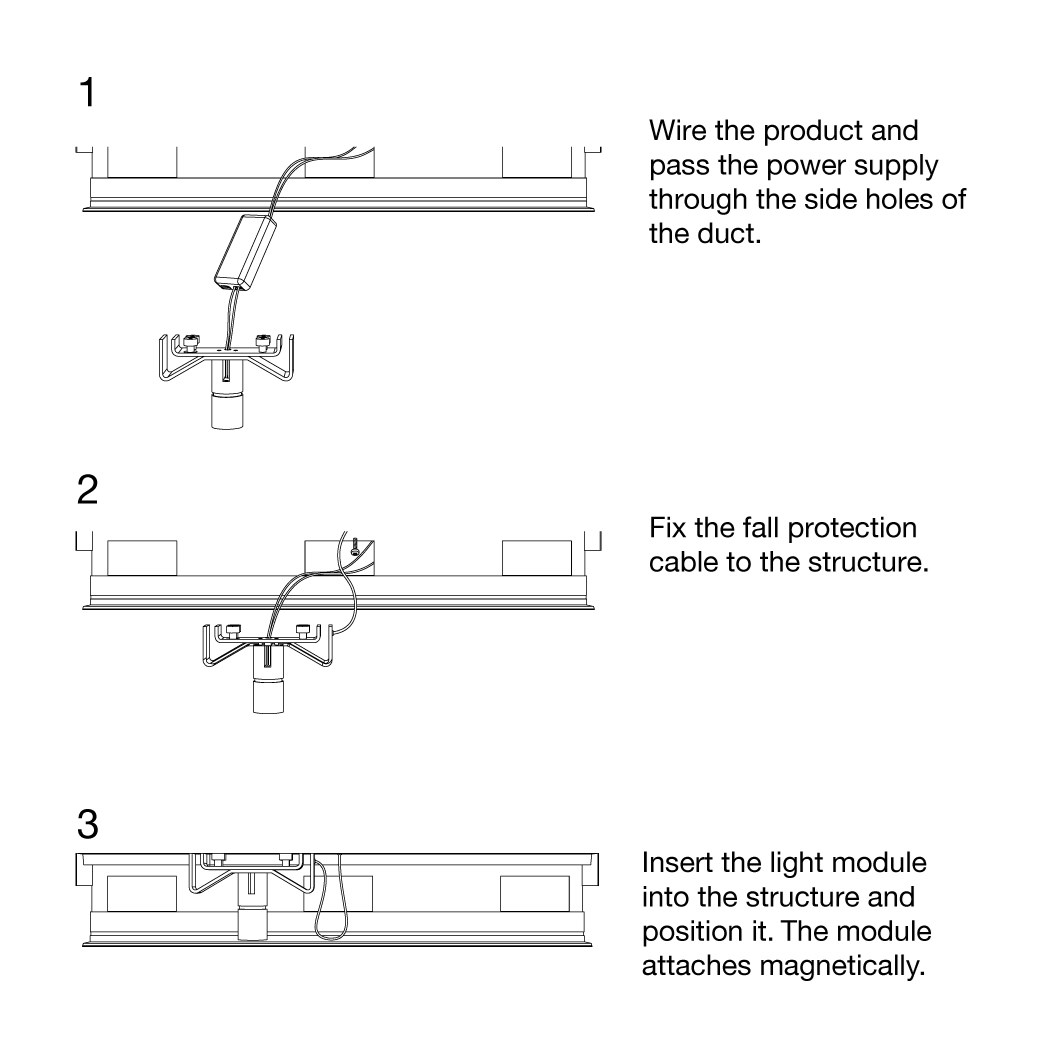

The modules are fitted via a magnetic system, with side slots on the duct which allow for the light modules to be easily repositioned. Maggy 72 track has a 72mm width - smaller Maggy 36 is available with a 36mm width and less powerful LED light modules.

See Related Products below for compatible LED light modules.

View Flexalighting Maggy 36 Linear Track System

Delivery usually in 1-2 weeks



Lightbulb with brain filament icon
- Our Top Tips -

How do I order a track? We know track lighting can be confusing so we've simplified it the best we can for you!

  • Use the dropdown options to select an individual component of the track system you want to build, along with the finish and a colour temperature (for modules) - then simply add to your basket with the desired quantity.
  • You can then continue to do this until all the required components for your system are in the basket. Once you're happy with everything selected, progress to the payment page.
  • It's as easy as that!
  • Of course, if you would like any help with anything, we are more than happy for you to email us at sales@darklightdesign.com or call us on 01189 882294

What driver do I need?

  • Simply add up the total number of watts from each module component included in your system (refer to Specification tab). As a bare minimum, select the driver which is over the total wattage amount. However we recommend choosing the next largest driver in case of future upgrades.
Specification

IP20

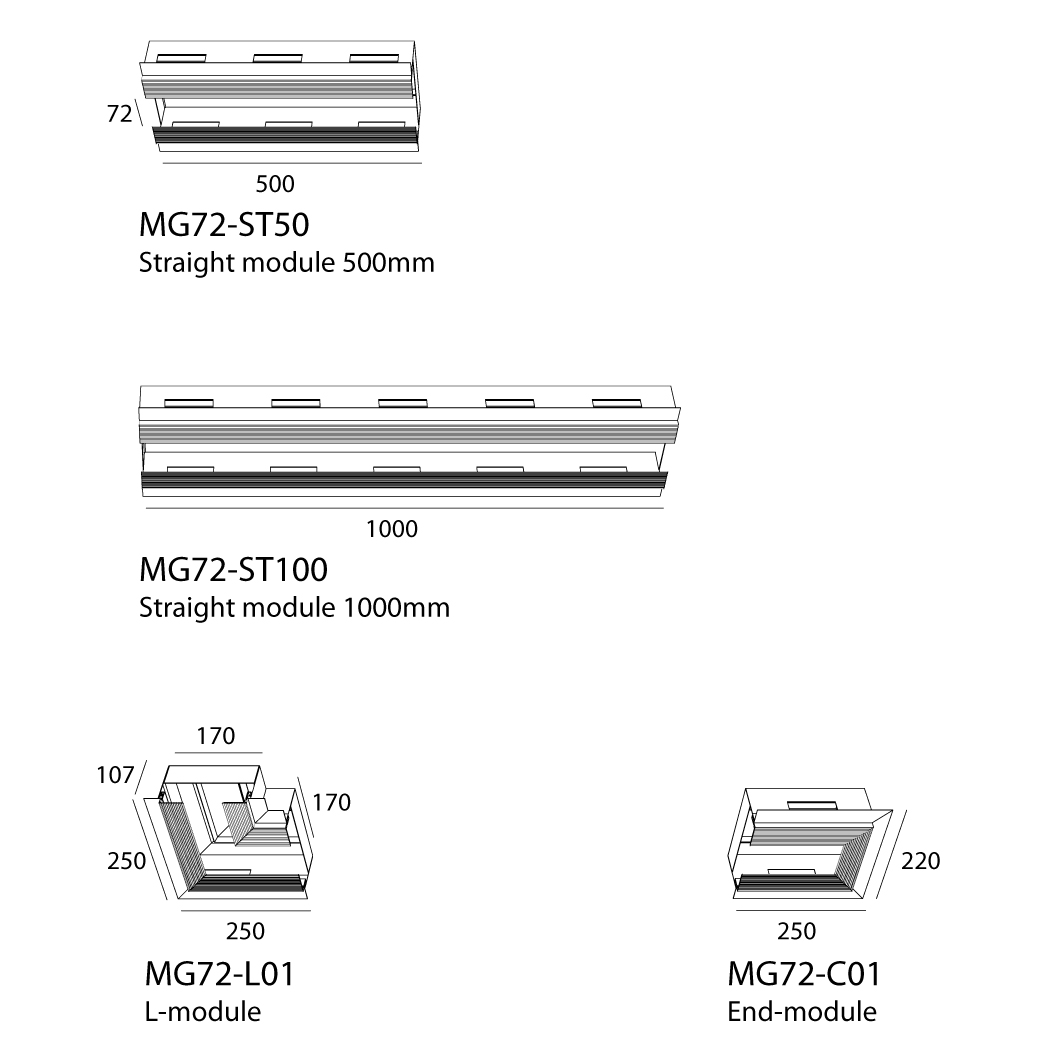

Track dimensions
Track internal width: 72mm

End Module (MG72-C01)
L.250mm H.107mm D.220mm

Straight Module 500mm (MG72-ST50)
L.500mm H.107mm D.220mm

Straight Module 1000mm (MG72-ST100)
L.1000mm H.107mm D.220mm

L Corner Module (MG72-L01)
L.250mm H.107mm D.250mm

Ben 72:
W.500mm
Power: 30W
Supply current: 24 VDC
Light temp.: 2700ºK, 3000ºK, 4000ºK

David 72:
W.160mm
Power: 20W
Supply current: 500 mA (36V)
Beam angle: 36º, 46º, 60º
Light temp.: 2700ºK, 3000ºK, 4000ºK
CRI: 85, 93

Leonard 72:
W.100mm
Power: 10W
Supply current: 250 mA (36V)
Adjustable tilt: 45º
Adjustable rotation: 360º
Beam angle: 36º, 46º, 60º
Light temp.: 2700ºK, 3000ºK, 4000ºK
CRI: 85, 93

Prince 72:
W.106mm, H.120mm, D.90mm
Power: 20W
Supply current: 500 mA (36V)
Adjustable tilt: 75º
Adjustable rotation: 360º
Beam angle: 36º, 46º, 60º
Light temp.: 2700ºK, 3000ºK, 4000ºK
CRI: 85, 93

Dimensions
Downloads
Delivery and warranty

Delivery usually within 1-2 weeks

About the manufacturer

Flexalighting produce innovative and beautifully made architectural lighting solutions for indoor and outdoor installations. Leveraging one of the fundamental qualities of the LED source, the small size, the collection combines minimum device size with high quality luminous efficiency and high Chromatic Rendering Index LEDs.  Manufactured in Italy with a level of finishing that is at the top of the international market, Flexalighting is the perfect choice for domestic or commercial projects.
